交流风扇
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

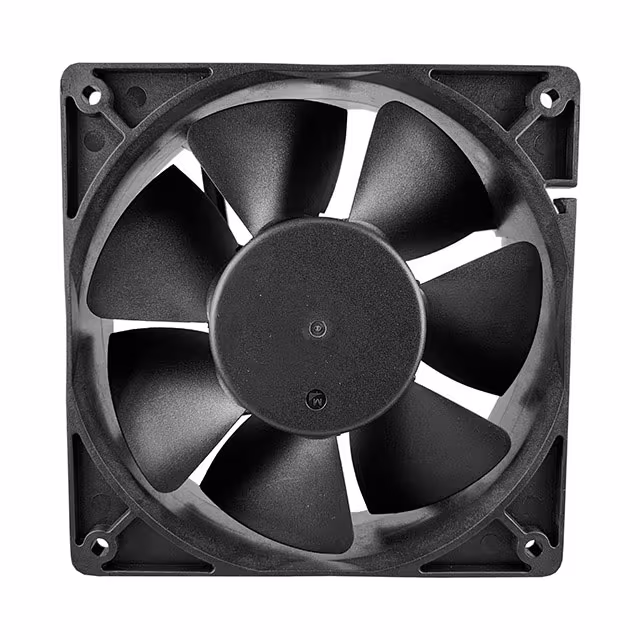

FMA1-12038WBHW12EC FAN, 120X120X38MM, 2-BALL BEA Qualtek |
31 | - |
|
数据表 |
FMA1-12038 | Bulk | Active | 100 ~ 240VAC | Square - 120mm L x 120mm H | 123.9 CFM (3.47m³/min) | 0.363 in H2O (90.5 Pa) | Ball | - | Tubeaxial | Electronic Commutation (EC) | 38.50mm | 49.3dB(A) | 9.50W | CE, cURus | 3500 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | IP54 - Dust Protected, Water Resistant |
|
FMA1-09225WBHW12EC FAN, 92X92X25MM, 2-BALL BEARI Qualtek |
82 | - |
|
数据表 |
FMA1-09225 | Bulk | Active | 100 ~ 240VAC | Square - 92mm L x 92mm H | 55.6 CFM (1.56m³/min) | 0.265 in H2O (66.0 Pa) | Ball | - | Tubeaxial | Electronic Commutation (EC) | 25.00mm | 44.0dB(A) | 6.00W | CE, cURus | 3500 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | IP54 - Dust Protected, Water Resistant |
|
FKA1-17251QBHW31FAN AXIAL 172X50.8MM 230VAC WIRE Qualtek |
8 | - |
|
数据表 |
FKA1-17251 | Bulk | Active | 230VAC | Rectangular/Rounded - 172mm L x 150mm H | 189.0 CFM (5.29m³/min) | 0.408 in H2O (101.6 Pa) | Ball | 2.3 lbs (1 kg) | Tubeaxial | - | 50.80mm | 57.7dB(A) | 50.6W | CE, cURus, TUV | 2700 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|

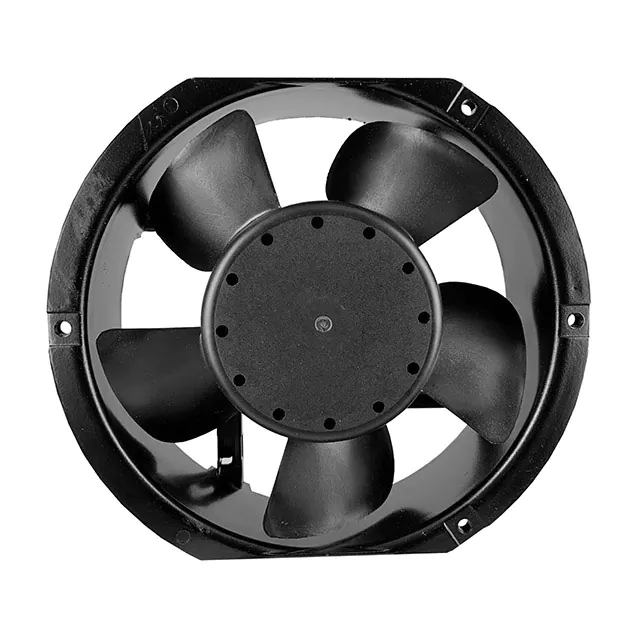

FMA1-17251WBHW32EC FAN, 172X150X51MM, 2-BALL BEA Qualtek |
24 | - |
|
数据表 |
FMA1-17251 | Bulk | Active | 100 ~ 240VAC | Rectangular/Rounded - 172mm L x 152mm H | 228.4 CFM (6.39m³/min) | 0.600 in H2O (149.5 Pa) | Ball | - | Tubeaxial | Electronic Commutation (EC) | 51.00mm | 55.4dB(A) | 22.50W | CE, cURus | 3200 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | IP54 - Dust Protected, Water Resistant |
|
FDA2-25489NBHT4FFAN AXIAL 254X89MM 115VAC TERM Qualtek |
3 | - |
|
数据表 |
HPLC, FDA2-25489 | Bulk | Active | 115VAC | Round - 254mm Dia | 860.0 CFM (24.08m³/min) | 0.846 in H2O (210.7 Pa) | Ball | 6 lbs (2.7 kg) | Tubeaxial | - | 89.00mm | 68.0dB(A) | 97.0W | CE, cURus, TUV | 3200 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Terminals | - |
|
FAA1-09225QBHT31FAN AXIAL 92X25MM 230VAC TERM Qualtek |
22 | - |
|
数据表 |
FAA1-09225 | Bulk | Active | 230VAC | Square - 92mm L x 92mm H | 34.0 CFM (0.952m³/min) | 0.116 in H2O (28.9 Pa) | Ball | 0.507 lb (229.97 g) | Tubeaxial | - | 25.00mm | 30.1dB(A) | 10.00W | CE, cURus, TUV | 2400 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Terminals | - |
|
FAA1-09225QBMW31FAN AXIAL 92X25MM 230VAC WIRE Qualtek |
74 | - |
|
数据表 |
FAA1-09225 | Bulk | Active | 230VAC | Square - 92mm L x 92mm H | 30.5 CFM (0.854m³/min) | 0.089 in H2O (22.2 Pa) | Ball | 0.507 lb (229.97 g) | Tubeaxial | - | 25.00mm | 26.8dB(A) | 11.50W | CE, cURus, TUV | 2200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
FAA1-12038QBLT31-AFAN AXIAL 119.5X38.5MM 230VAC Qualtek |
37 | - |
|
数据表 |
FAA1-12038 | Bulk | Active | 230VAC | Square - 119.5mm L x 119.5mm H | 71.5 CFM (2.00m³/min) | 0.100 in H2O (24.9 Pa) | Ball | 1.2 lbs (544.3 g) | Tubeaxial | - | 38.50mm | 37.9dB(A) | 9.40W | CE, cURus, TUV | 2200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Terminals | - |
|
FAA1-12038QBJT31-AFAN AXIAL Qualtek |
8 | - |
|
数据表 |
FAA1-12038 | Bulk | Active | 230VAC | Square - 119.5mm L x 119.5mm H | 103.5 CFM (2.90m³/min) | 0.350 in H2O (87.2 Pa) | Ball | 1.2 lbs (544.3 g) | Tubeaxial | - | 38.50mm | 47.0dB(A) | 17.60W | CE, cURus, TUV | 3100 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Terminals | - |
|
|
FAA1-12038QBLW31-AFAN AXIAL 119.5X38.5MM 230VAC Qualtek |
73 | - |
|
数据表 |
FAA1-12038 | Bulk | Active | 230VAC | Square - 119.5mm L x 119.5mm H | 71.5 CFM (2.00m³/min) | 0.100 in H2O (24.9 Pa) | Ball | 1.2 lbs (544.3 g) | Tubeaxial | - | 38.50mm | 37.9dB(A) | 9.40W | CE, cURus, TUV | 2200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
