交流风扇
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FAA1-12038NBJW31-AFAN AXIAL 119.5X38.5MM 115VAC Qualtek |
554 | - |
|
数据表 |
FAA1-12038-A | Bulk | Active | 115VAC | Square - 119.5mm L x 119.5mm H | 103.4 CFM (2.90m³/min) | 0.350 in H2O (87.2 Pa) | Ball | 1.2 lbs (544.3 g) | Tubeaxial | - | 38.50mm | 47.0dB(A) | 17.20W | CE, cURus, TUV | 3100 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
FAA1-08038NBHW31FAN AXIAL 80X38MM 115VAC WIRE Qualtek |
524 | - |
|
数据表 |
FAA1-08038 | Bulk | Active | 115VAC | Square - 80mm L x 80mm H | 29.6 CFM (0.829m³/min) | 0.166 in H2O (41.3 Pa) | Ball | 0.706 lb (320.24 g) | Tubeaxial | - | 38.00mm | 31.6dB(A) | 8.50W | CE, cURus, TUV | 2800 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
FAA1-08038QBHT31FAN AXIAL 80X38MM 230VAC TERM Qualtek |
558 | - |
|
数据表 |
FAA1-08038 | Bulk | Active | 230VAC | Square - 80mm L x 80mm H | 29.6 CFM (0.829m³/min) | 0.166 in H2O (41.3 Pa) | Ball | 0.706 lb (320.24 g) | Tubeaxial | - | 38.00mm | 31.6dB(A) | 9.50W | CE, cURus, TUV | 2800 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Terminals | - |
|
FAA1-12038NBKT31-AFAN AXIAL Qualtek |
327 | - |
|
数据表 |
FAA1-12038 | Bulk | Active | 115VAC | Square - 119.5mm L x 119.5mm H | 107.0 CFM (3.00m³/min) | 0.250 in H2O (62.3 Pa) | Ball | 1.2 lbs (544.3 g) | Tubeaxial | - | 38.50mm | 48.1dB(A) | 19.20W | CE, cURus, TUV | 2600 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Terminals | - |
|

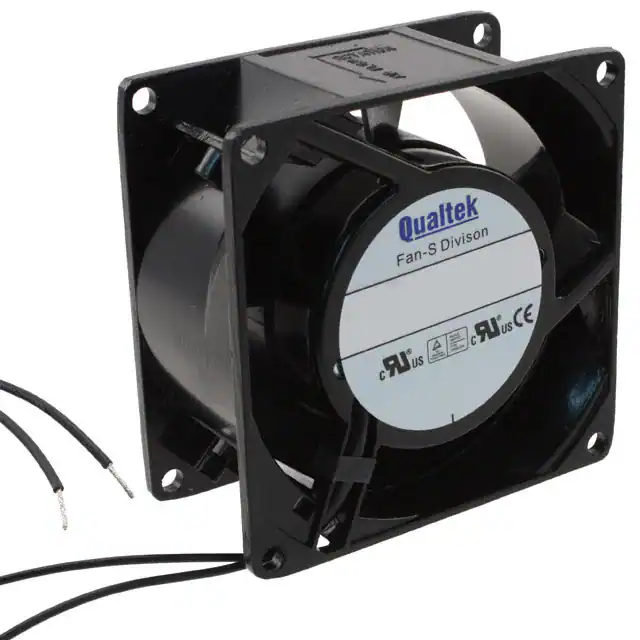

FAA1-08038NBMW31FAN AXIAL 80X38MM 115VAC WIRE Qualtek |
594 | - |
|
数据表 |
FAA1-08038 | Bulk | Active | 115VAC | Square - 80mm L x 80mm H | 24.0 CFM (0.672m³/min) | 0.110 in H2O (27.4 Pa) | Ball | 0.706 lb (320.24 g) | Tubeaxial | - | 38.00mm | 26.2dB(A) | 4.00W | CE, cURus, TUV | 2400 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
FAA1-12038NBJT31-AFAN AXIAL Qualtek |
437 | - |
|
数据表 |
FAA1-12038 | Bulk | Active | 115VAC | Square - 119.5mm L x 119.5mm H | 103.5 CFM (2.90m³/min) | 0.350 in H2O (87.2 Pa) | Ball | 1.2 lbs (544.3 g) | Tubeaxial | - | 38.50mm | 47.0dB(A) | 17.20W | CE, cURus, TUV | 3100 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Terminals | - |
|
FAA1-08025NBMT31FAN AXIAL 80X25MM 115VAC TERM Qualtek |
835 | - |
|
数据表 |
FAA1-08025 | Bulk | Active | 115VAC | Square - 80mm L x 80mm H | 19.0 CFM (0.532m³/min) | 0.118 in H2O (29.4 Pa) | Ball | 0.463 lb (210.01 g) | Tubeaxial | - | 25.00mm | 24.0dB(A) | 5.00W | CE, cURus, TUV | 2500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Terminals | - |
|

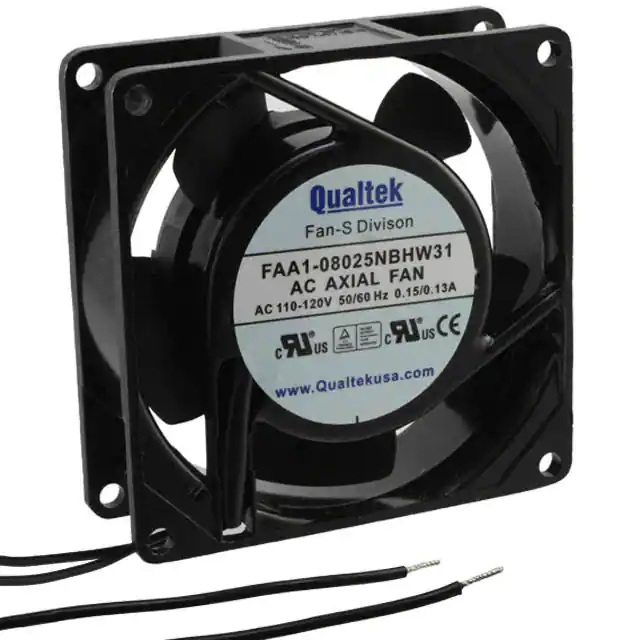

FAA1-08025NBHW31FAN AXIAL 80X25MM 115VAC WIRE Qualtek |
216 | - |
|
数据表 |
FAA1-08025 | Bulk | Active | 115VAC | Square - 80mm L x 80mm H | 21.0 CFM (0.588m³/min) | 0.125 in H2O (31.1 Pa) | Ball | 0.463 lb (210.01 g) | Tubeaxial | - | 25.00mm | 27.8dB(A) | 7.00W | CE, cURus, TUV | 2800 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
FAA1-12025NBMT31FAN AXIAL 120X25MM 115VAC TERM Qualtek |
8,183 | - |
|
数据表 |
FAA1-12025 | Bulk | Active | 115VAC | Square - 120mm L x 120mm H | 71.0 CFM (1.99m³/min) | 0.156 in H2O (38.8 Pa) | Ball | 0.749 lb (339.74 g) | Tubeaxial | - | 25.00mm | 44.1dB(A) | 20.70W | CE, cURus, TUV | 2300 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Terminals | - |
|

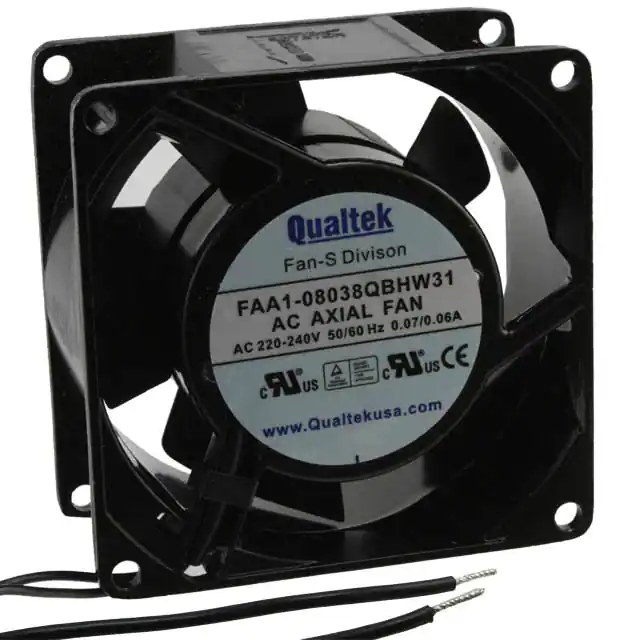

FAA1-08038QBHW31FAN AXIAL 80X38MM 230VAC WIRE Qualtek |
298 | - |
|
数据表 |
FAA1-08038 | Bulk | Active | 230VAC | Square - 80mm L x 80mm H | 29.6 CFM (0.829m³/min) | 0.166 in H2O (41.3 Pa) | Ball | 0.706 lb (320.24 g) | Tubeaxial | - | 38.00mm | 31.6dB(A) | 9.50W | CE, cURus, TUV | 2800 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
