交流风扇
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

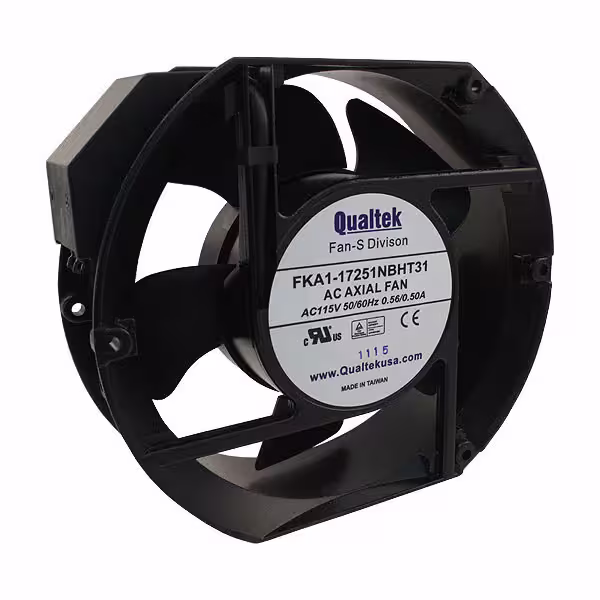

FKA1-17251NBHT31FAN AXIAL 172X50.8MM 115VAC TERM Qualtek |
99 | - |
|
数据表 |
FKA1-17251 | Bulk | Active | 115VAC | Rectangular/Rounded - 172mm L x 150mm H | 189.0 CFM (5.29m³/min) | 0.408 in H2O (101.6 Pa) | Ball | 2.3 lbs (1 kg) | Tubeaxial | - | 50.80mm | 57.7dB(A) | 51.8W | CE, cURus, TUV | 2700 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Terminals | - |
|
FDA2-17251NBHW4FFAN AXIAL 172X51MM 115VAC WIRE Qualtek |
55 | - |
|
数据表 |
HPLC, FDA2-17251 | Bulk | Active | 115VAC | Rectangular/Rounded - 172mm L x 151mm H | 250.0 CFM (7.00m³/min) | 0.610 in H2O (151.9 Pa) | Ball | 2 lbs (907.2 g) | Tubeaxial | - | 51.00mm | 59.0dB(A) | 25.00W | CE, cURus, TUV | 3100 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
FDA2-17255NBHW4FFAN AXIAL 172X55MM 115VAC WIRE Qualtek |
17 | - |
|
数据表 |
HPLC, FDA2-17255 | Bulk | Active | 115VAC | Rectangular/Rounded - 172mm L x 151mm H | 240.0 CFM (6.72m³/min) | 0.531 in H2O (132.3 Pa) | Ball | 1.8 lbs (816.5 g) | Tubeaxial | - | 55.00mm | 61.0dB(A) | 25.00W | CE, cURus, TUV | 3100 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|

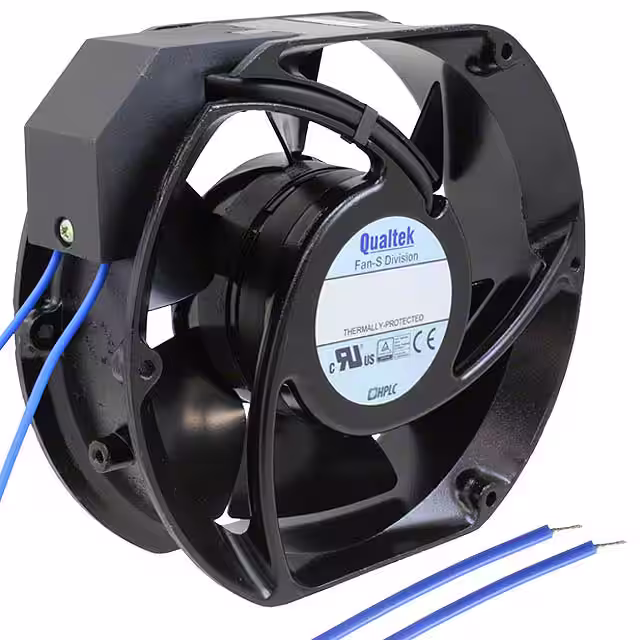

FDA2-17251QBHW4FFAN AXIAL 172X51MM 230VAC WIRE Qualtek |
12 | - |
|
数据表 |
HPLC, FDA2-17251 | Bulk | Active | 230VAC | Rectangular/Rounded - 172mm L x 151mm H | 250.0 CFM (7.00m³/min) | 0.610 in H2O (151.9 Pa) | Ball | 2 lbs (907.2 g) | Tubeaxial | - | 51.00mm | 59.0dB(A) | 27.00W | CE, cURus, TUV | 3100 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
FDA2-28080NBHK4FFAN AXIAL 280X80MM BALL 115VAC Qualtek |
10 | - |
|
数据表 |
HPLC, FDA2-28080 | Bulk | Active | 115VAC | Square - 320mm L x 320mm H | 1150.0 CFM (32.20m³/min) | 0.807 in H2O (201.0 Pa) | Ball | 6.7 lbs (3 kg) | Tubeaxial | - | 80.00mm | 73.0dB(A) | 136W | CE, cURus, TUV | 2900 RPM | -4 ~ 158°F (-20 ~ 70°C) | Terminal Block | - |
|
|
FDA2-28080QBHK4FFAN AXIAL 280X80MM BALL 230VAC Qualtek |
8 | - |
|
数据表 |
HPLC, FDA2-28080 | Bulk | Active | 230VAC | Square - 320mm L x 320mm H | 1150.0 CFM (32.20m³/min) | 0.807 in H2O (201.0 Pa) | Ball | 6.7 lbs (3 kg) | Tubeaxial | - | 80.00mm | 73.0dB(A) | 138W | CE, cURus, TUV | 2900 RPM | -4 ~ 158°F (-20 ~ 70°C) | Terminal Block | - |
|
FAA1-12038NBMT31-AFAN AXIAL 119.5X38.5MM 115VAC Qualtek |
80 | - |
|
数据表 |
FAA1-12038 | Bulk | Active | 115VAC | Square - 119.5mm L x 119.5mm H | 87.0 CFM (2.44m³/min) | 0.210 in H2O (52.3 Pa) | Ball | 1.2 lbs (544.3 g) | Tubeaxial | - | 38.50mm | 42.0dB(A) | 12.40W | CE, cURus, TUV | 2800 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Terminals | - |
|
FAA1-12038NBLT31-AFAN AXIAL 119.5X38.5MM 115VAC Qualtek |
37 | - |
|
数据表 |
FAA1-12038 | Bulk | Active | 115VAC | Square - 119.5mm L x 119.5mm H | 71.5 CFM (2.00m³/min) | 0.100 in H2O (24.9 Pa) | Ball | 1.2 lbs (544.3 g) | Tubeaxial | - | 38.50mm | 37.9dB(A) | 8.70W | CE, cURus, TUV | 2200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Terminals | - |
|
|
FAA1-12038QBMT31-AFAN AXIAL 119.5X38.5MM 230VAC Qualtek |
33 | - |
|
数据表 |
FAA1-12038 | Bulk | Active | 230VAC | Square - 119.5mm L x 119.5mm H | 87.0 CFM (2.44m³/min) | 0.210 in H2O (52.3 Pa) | Ball | 1.2 lbs (544.3 g) | Tubeaxial | - | 38.50mm | 42.0dB(A) | 12.50W | CE, cURus, TUV | 2800 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Terminals | - |
|

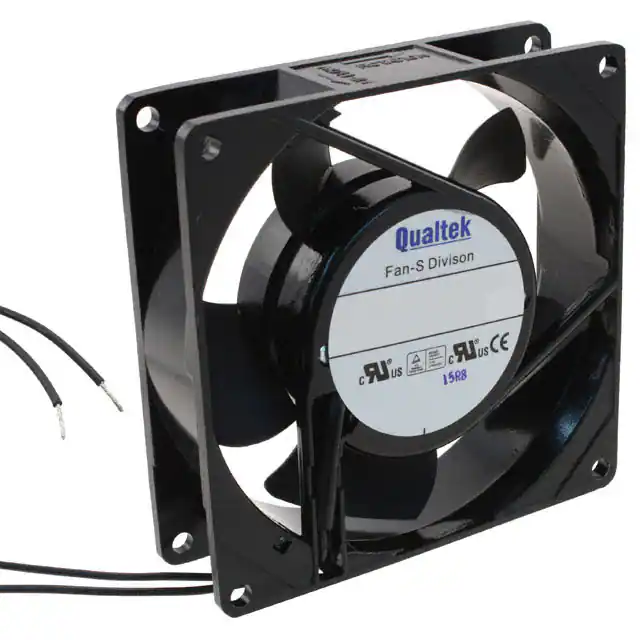

FAA1-09225NBMW31FAN AXIAL 92X25MM 115VAC WIRE Qualtek |
15 | - |
|
数据表 |
FAA1-09225 | Bulk | Active | 115VAC | Square - 92mm L x 92mm H | 30.5 CFM (0.854m³/min) | 0.089 in H2O (22.2 Pa) | Ball | 0.507 lb (229.97 g) | Tubeaxial | - | 25.00mm | 26.8dB(A) | 5.00W | CE, cURus, TUV | 2200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
