交流风扇
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

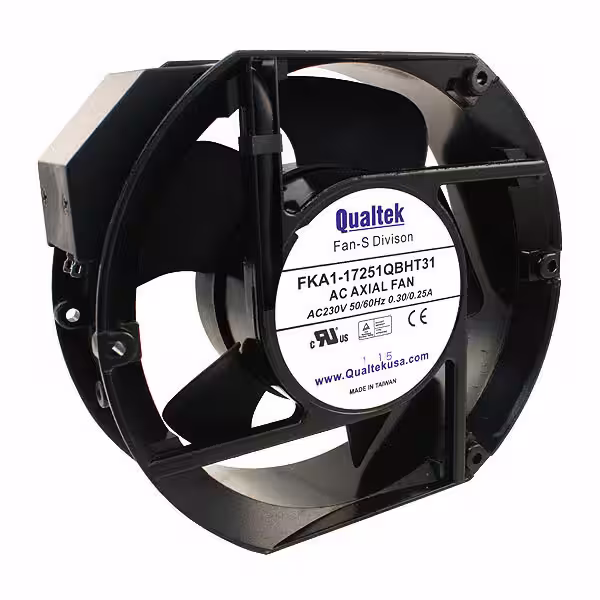

FKA1-17251QBHT31FAN AXIAL 172X50.8MM 230VAC TERM Qualtek |
10 | - |
|
数据表 |
FKA1-17251 | Bulk | Active | 230VAC | Rectangular/Rounded - 172mm L x 150mm H | 189.0 CFM (5.29m³/min) | 0.408 in H2O (101.6 Pa) | Ball | 2.3 lbs (1 kg) | Tubeaxial | - | 50.80mm | 57.7dB(A) | 50.6W | CE, cURus, TUV | 2700 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Terminals | - |
|

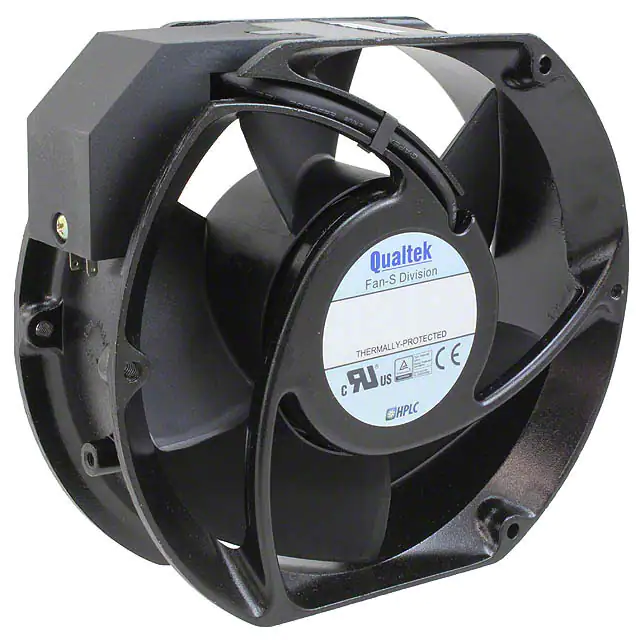

FDA2-17251NBHT4FFAN AXIAL 172X51MM 115VAC TERM Qualtek |
12 | - |
|
数据表 |
HPLC, FDA2-17251 | Bulk | Active | 115VAC | Rectangular/Rounded - 172mm L x 151mm H | 250.0 CFM (7.00m³/min) | 0.610 in H2O (151.9 Pa) | Ball | 2 lbs (907.2 g) | Tubeaxial | - | 51.00mm | 59.0dB(A) | 25.00W | CE, cURus, TUV | 3100 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Terminals | - |
|
FDA2-17251QBKT3FFAN AXIAL 172X51MM 230VAC TERM Qualtek |
12 | - |
|
数据表 |
HPLC, FDA2-17251 | Bulk | Active | 230VAC | Rectangular/Rounded - 172mm L x 151mm H | 275.0 CFM (7.70m³/min) | 0.768 in H2O (191.3 Pa) | Ball | 1.9 lbs (861.8 g) | Tubeaxial | - | 51.00mm | 60.0dB(A) | 27.00W | CE, cURus, TUV | 3300 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Terminals | - |
|

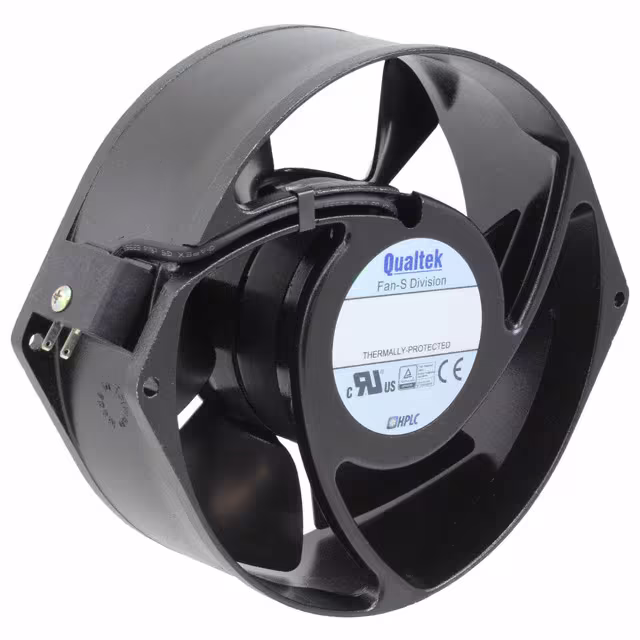

FDA2-17255NBHT4FFAN AXIAL 172X55MM 115VAC TERM Qualtek |
12 | - |
|
数据表 |
HPLC, FDA2-17255 | Bulk | Active | 115VAC | Rectangular/Rounded - 172mm L x 151mm H | 240.0 CFM (6.72m³/min) | 0.531 in H2O (132.3 Pa) | Ball | 1.8 lbs (816.5 g) | Tubeaxial | - | 55.00mm | 61.0dB(A) | 25.00W | CE, cURus, TUV | 3100 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Terminals | - |
|
FDA2-17255QBHW4FFAN AXIAL 172X55MM 230VAC WIRE Qualtek |
12 | - |
|
数据表 |
HPLC, FDA2-17255 | Bulk | Active | 230VAC | Rectangular/Rounded - 172mm L x 151mm H | 240.0 CFM (6.72m³/min) | 0.531 in H2O (132.3 Pa) | Ball | 1.8 lbs (816.5 g) | Tubeaxial | - | 55.00mm | 61.0dB(A) | 27.00W | CE, cURus, TUV | 3100 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
FKA2-25489QBHT3FFAN AXIAL 254X89MM 230VAC TERM Qualtek |
9 | - |
|
数据表 |
FKA2-25489 | Bulk | Active | 230VAC | Round - 254mm Dia | 530.0 CFM (14.84m³/min) | 0.276 in H2O (68.7 Pa) | Ball | 4.4 lbs (2 kg) | Tubeaxial | - | 89.00mm | 62.0dB(A) | 62.8W | CE, cURus, TUV | 2000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Terminals | - |
|
FDA2-25489NBLW4FFAN AXIAL 254X89MM 115VAC WIRE Qualtek |
6 | - |
|
数据表 |
HPLC, FDA2-25489 | Bulk | Active | 115VAC | Round - 254mm Dia | 440.0 CFM (12.32m³/min) | 0.307 in H2O (76.5 Pa) | Ball | 6 lbs (2.7 kg) | Tubeaxial | - | 89.00mm | 52.0dB(A) | 29.00W | CE, cURus, TUV | 1650 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
|
FDA2-25489QBLW4FFAN AXIAL 254X89MM 230VAC WIRE Qualtek |
4 | - |
|
数据表 |
HPLC, FDA2-25489 | Bulk | Active | 230VAC | Round - 254mm Dia | 440.0 CFM (12.32m³/min) | 0.307 in H2O (76.5 Pa) | Ball | 6 lbs (2.7 kg) | Tubeaxial | - | 89.00mm | 52.0dB(A) | 32.00W | CE, cURus, TUV | 1650 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
|
FDA2-25489QBLT4FFAN AXIAL 254X89MM 230VAC TERM Qualtek |
3 | - |
|
数据表 |
HPLC, FDA2-25489 | Bulk | Active | 230VAC | Round - 254mm Dia | 440.0 CFM (12.32m³/min) | 0.307 in H2O (76.5 Pa) | Ball | 6 lbs (2.7 kg) | Tubeaxial | - | 89.00mm | 52.0dB(A) | 32.00W | CE, cURus, TUV | 1650 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Terminals | - |
|
FAA1-12038QBMW31-AFAN AXIAL 119.5X38.5MM 230VAC Qualtek |
23 | - |
|
数据表 |
FAA1-12038 | Bulk | Active | 230VAC | Square - 119.5mm L x 119.5mm H | 87.0 CFM (2.44m³/min) | 0.210 in H2O (52.3 Pa) | Ball | 1.2 lbs (544.3 g) | Tubeaxial | - | 38.50mm | 42.0dB(A) | 12.50W | CE, cURus, TUV | 2800 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
