交流风扇
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

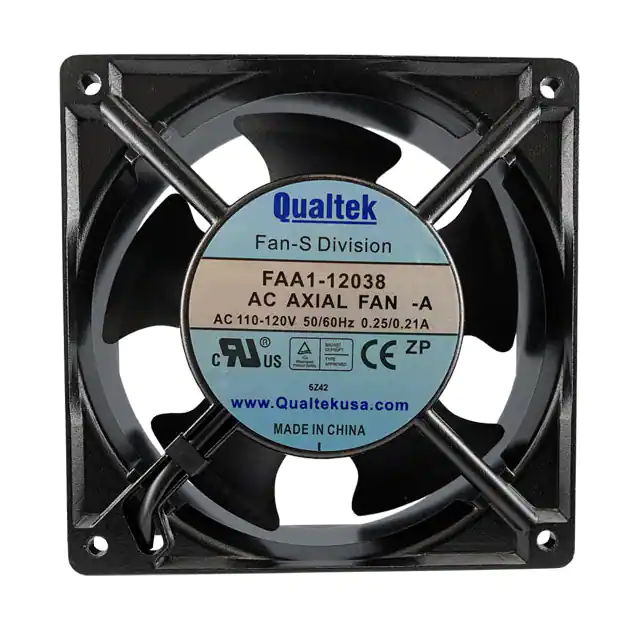

FAA1-12038QBKT31-AFAN AXIAL Qualtek |
1,128 | - |
|
数据表 |
FAA1-12038 | Bulk | Active | 230VAC | Square - 119.5mm L x 119.5mm H | 107.0 CFM (3.00m³/min) | 0.250 in H2O (62.3 Pa) | Ball | 1.2 lbs (544.3 g) | Tubeaxial | - | 38.50mm | 48.1dB(A) | 19.80W | CE, cURus, TUV | 2600 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Terminals | - |
|
FDA2-17251NBKT3FFAN AXIAL 172X51MM 115VAC TERM Qualtek |
184 | - |
|
数据表 |
HPLC, FDA2-17251 | Bulk | Active | 115VAC | Rectangular/Rounded - 172mm L x 151mm H | 275.0 CFM (7.70m³/min) | 0.768 in H2O (191.3 Pa) | Ball | 1.9 lbs (861.8 g) | Tubeaxial | - | 51.00mm | 60.0dB(A) | 27.00W | CE, cURus, TUV | 3300 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Terminals | - |
|
FAA1-09225NBHT31FAN AXIAL 92X25MM 115VAC TERM Qualtek |
115 | - |
|
数据表 |
FAA1-09225 | Bulk | Active | 115VAC | Square - 92mm L x 92mm H | 34.0 CFM (0.952m³/min) | 0.116 in H2O (28.9 Pa) | Ball | 0.507 lb (229.97 g) | Tubeaxial | - | 25.00mm | 30.1dB(A) | 5.00W | CE, cURus, TUV | 2400 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Terminals | - |
|
FAA1-08025QBHW31FAN AXIAL 80X25MM 230VAC WIRE Qualtek |
163 | - |
|
数据表 |
FAA1-08025 | Bulk | Active | 230VAC | Square - 80mm L x 80mm H | 21.0 CFM (0.588m³/min) | 0.125 in H2O (31.1 Pa) | Ball | 0.463 lb (210.01 g) | Tubeaxial | - | 25.00mm | 27.8dB(A) | 10.00W | CE, cURus, TUV | 2800 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|

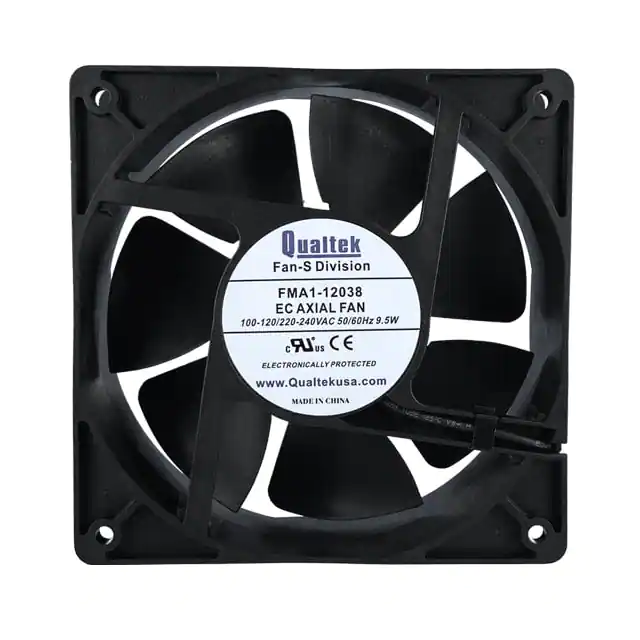

FMA1-12038WBHT12EC FAN, 120X120X38MM, 2-BALL BEA Qualtek |
480 | - |
|
数据表 |
FMA1-12038 | Bulk | Active | 100 ~ 240VAC | Square - 120mm L x 120mm H | 123.9 CFM (3.47m³/min) | 0.363 in H2O (90.5 Pa) | Ball | - | Tubeaxial | Electronic Commutation (EC) | 38.50mm | 49.3dB(A) | 9.50W | CE, cURus | 3500 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Terminals | IP54 - Dust Protected, Water Resistant |
|

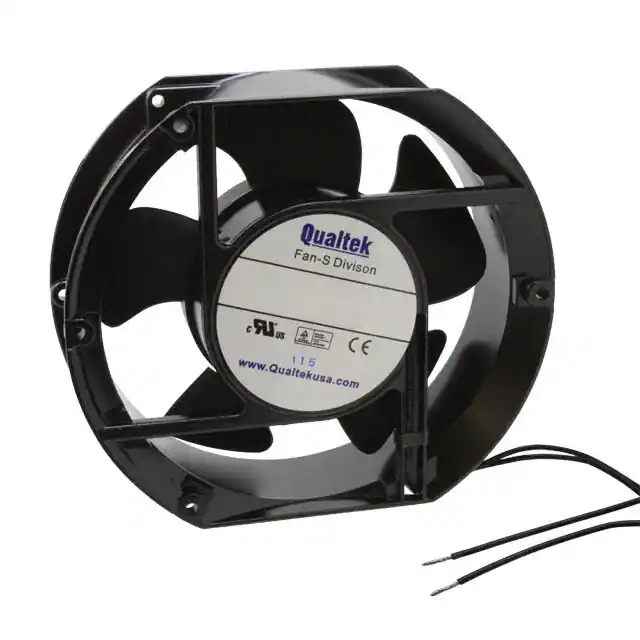

FKA1-17251NBHW31FAN AXIAL 172X50.8MM 115VAC WIRE Qualtek |
108 | - |
|
数据表 |
FKA1-17251 | Bulk | Active | 115VAC | Rectangular/Rounded - 172mm L x 150mm H | 189.0 CFM (5.29m³/min) | 0.408 in H2O (101.6 Pa) | Ball | 2.3 lbs (1 kg) | Tubeaxial | - | 50.80mm | 57.7dB(A) | 51.8W | CE, cURus, TUV | 2700 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
FMA1-08025WBHW12EC FAN, 80X80X25MM, 2-BALL BEARI Qualtek |
91 | - |
|
数据表 |
FMA1-08025 | Bulk | Active | 100 ~ 240VAC | Square - 80mm L x 80mm H | 38.9 CFM (1.09m³/min) | 0.247 in H2O (61.5 Pa) | Ball | - | Tubeaxial | Electronic Commutation (EC) | 25.00mm | 31.0dB(A) | 4.50W | CE, cURus | 3500 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | IP54 - Dust Protected, Water Resistant |
|

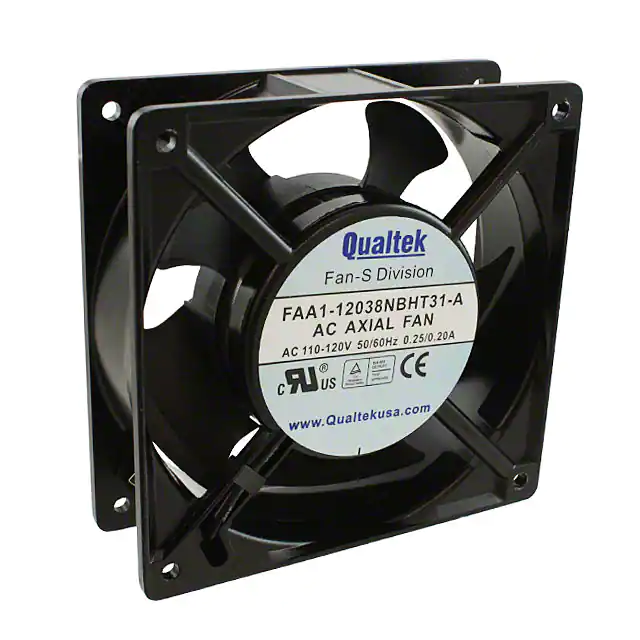

FAA1-12038NBHT31-AFAN AXIAL 119.5X38.5MM 115VAC Qualtek |
66 | - |
|
数据表 |
FAA1-12038 | Bulk | Active | 115VAC | Square - 119.5mm L x 119.5mm H | 97.0 CFM (2.72m³/min) | 0.350 in H2O (87.2 Pa) | Ball | 1.2 lbs (544.3 g) | Tubeaxial | - | 38.50mm | 44.5dB(A) | 14.00W | CE, cURus, TUV | 2900 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Terminals | - |
|
FAA1-09225NBMT31FAN AXIAL 92X25MM 115VAC TERM Qualtek |
78 | - |
|
数据表 |
FAA1-09225 | Bulk | Active | 115VAC | Square - 92mm L x 92mm H | 30.5 CFM (0.854m³/min) | 0.089 in H2O (22.2 Pa) | Ball | 0.507 lb (229.97 g) | Tubeaxial | - | 25.00mm | 26.8dB(A) | 5.00W | CE, cURus, TUV | 2200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Terminals | - |
|
FAA1-12025QBMW31FAN AXIAL 120X25MM 230VAC WIRE Qualtek |
73 | - |
|
数据表 |
FAA1-12025 | Bulk | Active | 230VAC | Square - 120mm L x 120mm H | 71.0 CFM (1.99m³/min) | 0.156 in H2O (38.8 Pa) | Ball | 0.749 lb (339.74 g) | Tubeaxial | - | 25.00mm | 44.1dB(A) | 20.70W | CE, cURus, TUV | 2300 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
