交流风扇
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

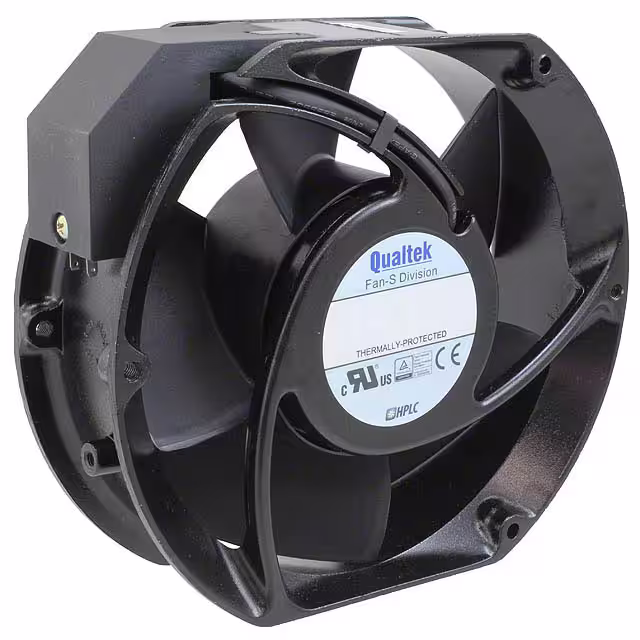

FDA2-17251NBHT4DFAN AXIAL 172X51MM 115VAC TERM Qualtek |
0 | - |
|
数据表 |
HPLC, FDA2-17251 | Bulk | Active | 115VAC | Rectangular/Rounded - 172mm L x 151mm H | 250.0 CFM (7.00m³/min) | 0.610 in H2O (151.9 Pa) | Ball | 2 lbs (907.2 g) | Tubeaxial | - | 51.00mm | 59.0dB(A) | 25.00W | CE, cURus, TUV | 3100 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Terminals | IP56M - Dust Protected, Water Resistant |
|

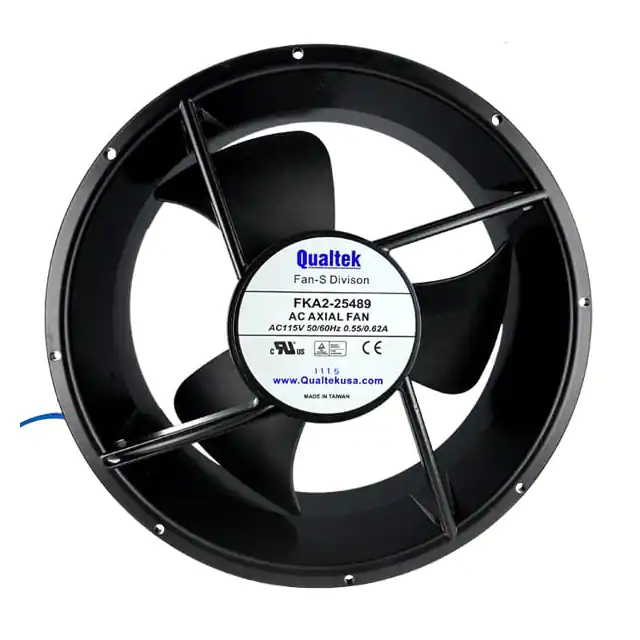

FKA2-25489QBHW3FFAN AXIAL 254X89MM 230VAC WIRE Qualtek |
0 | - |
|
数据表 |
FKA2-25489 | Bulk | Active | 230VAC | Round - 254mm Dia | 530.0 CFM (14.84m³/min) | 0.276 in H2O (68.7 Pa) | Ball | 4.4 lbs (2 kg) | Tubeaxial | - | 89.00mm | 62.0dB(A) | 62.8W | CE, cURus, TUV | 2000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
FKA2-25489NBHW3FFAN AXIAL 254X89MM 115VAC WIRE Qualtek |
0 | - |
|
数据表 |
FKA2-25489 | Bulk | Active | 115VAC | Round - 254mm Dia | 630.0 CFM (17.64m³/min) | 0.276 in H2O (68.7 Pa) | Ball | 4.4 lbs (2 kg) | Tubeaxial | - | 89.00mm | 62.0dB(A) | 67.8W | CE, cURus, TUV | 2000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|

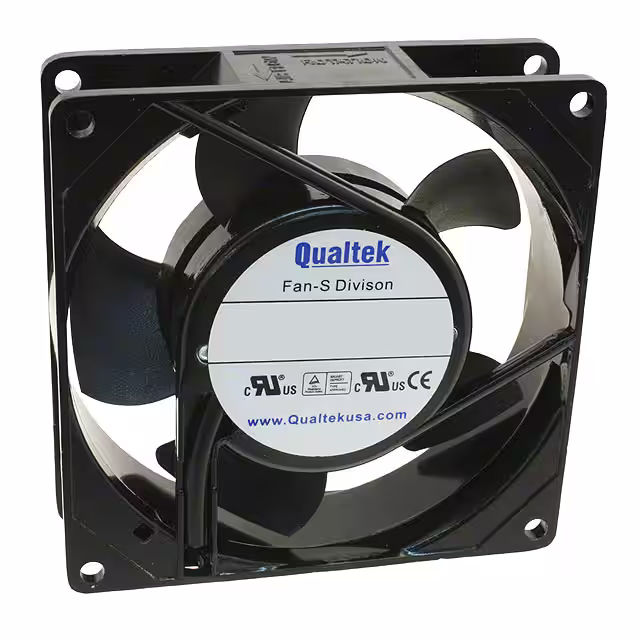

FAA1-09225QBMT31FAN AXIAL 92X25MM 230VAC TERM Qualtek |
3 | - |
|
数据表 |
FAA1-09225 | Bulk | Active | 230VAC | Square - 92mm L x 92mm H | 30.5 CFM (0.854m³/min) | 0.089 in H2O (22.2 Pa) | Ball | 0.507 lb (229.97 g) | Tubeaxial | - | 25.00mm | 26.8dB(A) | 11.50W | CE, cURus, TUV | 2200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Terminals | - |
|
FDA2-17251QBHT4DFAN AXIAL 172X51MM 230VAC TERM Qualtek |
0 | - |
|
数据表 |
HPLC, FDA2-17251 | Bulk | Active | 230VAC | Rectangular/Rounded - 172mm L x 151mm H | 250.0 CFM (7.00m³/min) | 0.610 in H2O (151.9 Pa) | Ball | 2 lbs (907.2 g) | Tubeaxial | - | 51.00mm | 59.0dB(A) | 27.00W | CE, cURus, TUV | 3100 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Terminals | IP56M - Dust Protected, Water Resistant |
|
FAA1-12038NBMW31-AFAN AXIAL 119.5X38.5MM 115VAC Qualtek |
0 | - |
|
数据表 |
FAA1-12038 | Bulk | Obsolete | 115VAC | Square - 119.5mm L x 119.5mm H | 87.0 CFM (2.44m³/min) | 0.210 in H2O (52.3 Pa) | Ball | 1.2 lbs (544.3 g) | Tubeaxial | - | 38.50mm | 42.0dB(A) | 12.40W | CE, cURus, TUV | 2800 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
FAA1-12038NBHT31FAN AXIAL 119.5X38.5MM 115VAC Qualtek |
0 | - |
|
数据表 |
FAA1-12038 | Bulk | Obsolete | 115VAC | Square - 119.5mm L x 119.5mm H | 94.5 CFM (2.65m³/min) | 0.350 in H2O (87.2 Pa) | Ball | 1.2 lbs (544.3 g) | Tubeaxial | - | 38.50mm | 44.5dB(A) | 14.00W | CE, cURus, TUV | 3000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Terminals | - |
|
FAA1-08038QBMT31FAN AXIAL 80X38MM 230VAC TERM Qualtek |
0 | - |
|
数据表 |
FAA1-08038 | Bulk | Active | 230VAC | Square - 80mm L x 80mm H | 24.0 CFM (0.672m³/min) | 0.110 in H2O (27.4 Pa) | Ball | 0.706 lb (320.24 g) | Tubeaxial | - | 38.00mm | 26.2dB(A) | 5.00W | CE, cURus, TUV | 2400 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Terminals | - |
|

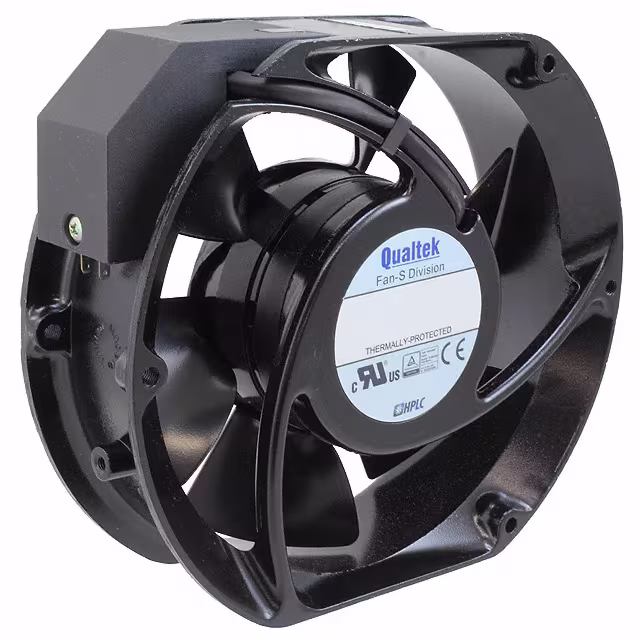

FDA2-17251QBHT4FFAN AXIAL 172X51MM 230VAC TERM Qualtek |
0 | - |
|
数据表 |
HPLC, FDA2-17251 | Bulk | Active | 230VAC | Rectangular/Rounded - 172mm L x 151mm H | 250.0 CFM (7.00m³/min) | 0.610 in H2O (151.9 Pa) | Ball | 2 lbs (907.2 g) | Tubeaxial | - | 51.00mm | 59.0dB(A) | 27.00W | CE, cURus, TUV | 3100 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Terminals | - |
|

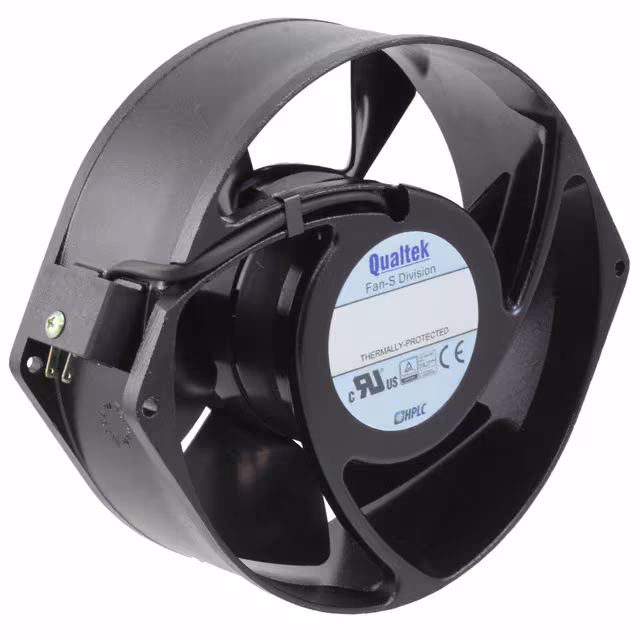

FDA2-17255QBHT4FFAN AXIAL 172X55MM 230VAC TERM Qualtek |
0 | - |
|
数据表 |
HPLC, FDA2-17255 | Bulk | Active | 230VAC | Rectangular/Rounded - 172mm L x 151mm H | 240.0 CFM (6.72m³/min) | 0.531 in H2O (132.3 Pa) | Ball | 1.8 lbs (816.5 g) | Tubeaxial | - | 55.00mm | 61.0dB(A) | 27.00W | CE, cURus, TUV | 3100 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Terminals | - |
