交流风扇
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FMA1-08025WBHT12EC FAN, 80X80X25MM, 2-BALL BEARI Qualtek |
71 | - |
|
数据表 |
FMA1-08025 | Bulk | Active | 100 ~ 240VAC | Square - 80mm L x 80mm H | 38.9 CFM (1.09m³/min) | 0.247 in H2O (61.5 Pa) | Ball | - | Tubeaxial | Electronic Commutation (EC) | 25.00mm | 31.0dB(A) | 4.50W | CE, cURus | 3500 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Terminals | IP54 - Dust Protected, Water Resistant |
|
FDA2-17238QBHT4FFAN AXIAL 172X38.5MM 230VAC TERM Qualtek |
8 | - |
|
数据表 |
HPLC, FDA2-17238 | Bulk | Active | 230VAC | Rectangular/Rounded - 172mm L x 151mm H | 240.0 CFM (6.72m³/min) | 0.571 in H2O (142.2 Pa) | Ball | 1.8 lbs (816.5 g) | Tubeaxial | - | 38.50mm | 59.0dB(A) | 27.00W | CE, cURus, TUV | 3100 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Terminals | - |
|
FAA1-12038NBKW31-AFAN AXIAL 119.5X38.5MM 115VAC Qualtek |
32 | - |
|
数据表 |
FAA1-12038-A | Bulk | Active | 115VAC | Square - 119.5mm L x 119.5mm H | 107.0 CFM (3.00m³/min) | 0.250 in H2O (62.3 Pa) | Ball | 1.2 lbs (544.3 g) | Tubeaxial | - | 38.50mm | 48.1dB(A) | 19.20W | CE, cURus, TUV | 2600 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
FAA1-08038NBHT31FAN AXIAL 80X38MM 115VAC TERM Qualtek |
98 | - |
|
数据表 |
FAA1-08038 | Bulk | Active | 115VAC | Square - 80mm L x 80mm H | 29.6 CFM (0.829m³/min) | 0.166 in H2O (41.3 Pa) | Ball | 0.706 lb (320.24 g) | Tubeaxial | - | 38.00mm | 31.6dB(A) | 8.50W | CE, cURus, TUV | 2800 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Terminals | - |
|
FAA1-08025QBMT31FAN AXIAL 80X25MM 230VAC TERM Qualtek |
57 | - |
|
数据表 |
FAA1-08025 | Bulk | Active | 230VAC | Square - 80mm L x 80mm H | 19.0 CFM (0.532m³/min) | 0.118 in H2O (29.4 Pa) | Ball | 0.463 lb (210.01 g) | Tubeaxial | - | 25.00mm | 24.0dB(A) | 11.00W | CE, cURus, TUV | 2500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Terminals | - |
|
FAA1-12038QBHT31-AFAN AXIAL 119.5X38.5MM 230VAC Qualtek |
86 | - |
|
数据表 |
FAA1-12038 | Bulk | Active | 230VAC | Square - 119.5mm L x 119.5mm H | 97.0 CFM (2.72m³/min) | 0.350 in H2O (87.2 Pa) | Ball | 1.2 lbs (544.3 g) | Tubeaxial | - | 38.50mm | 44.5dB(A) | 14.80W | CE, cURus, TUV | 2900 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Terminals | - |
|
FAA1-08038QBMW31FAN AXIAL 80X38MM 230VAC WIRE Qualtek |
25 | - |
|
数据表 |
FAA1-08038 | Bulk | Active | 230VAC | Square - 80mm L x 80mm H | 24.0 CFM (0.672m³/min) | 0.110 in H2O (27.4 Pa) | Ball | 0.706 lb (320.24 g) | Tubeaxial | - | 38.00mm | 26.2dB(A) | 5.00W | CE, cURus, TUV | 2400 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
FAA1-09225QBHW31FAN AXIAL 92X25MM 230VAC WIRE Qualtek |
19 | - |
|
数据表 |
FAA1-09225 | Bulk | Active | 230VAC | Square - 92mm L x 92mm H | 34.0 CFM (0.952m³/min) | 0.116 in H2O (28.9 Pa) | Ball | 0.507 lb (229.97 g) | Tubeaxial | - | 25.00mm | 30.1dB(A) | 10.00W | CE, cURus, TUV | 2400 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|

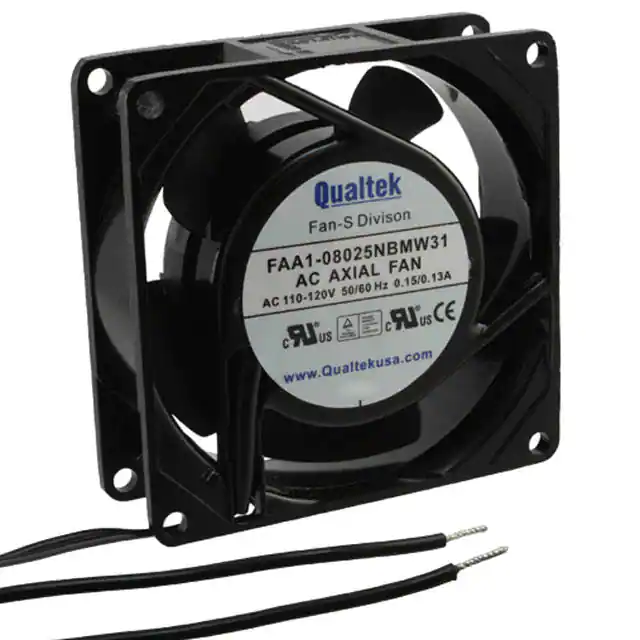

FAA1-08025NBMW31FAN AXIAL 80X25MM 115VAC WIRE Qualtek |
26 | - |
|
数据表 |
FAA1-08025 | Bulk | Active | 115VAC | Square - 80mm L x 80mm H | 19.0 CFM (0.532m³/min) | 0.118 in H2O (29.4 Pa) | Ball | 0.463 lb (210.01 g) | Tubeaxial | - | 25.00mm | 24.0dB(A) | 5.00W | CE, cURus, TUV | 2500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|

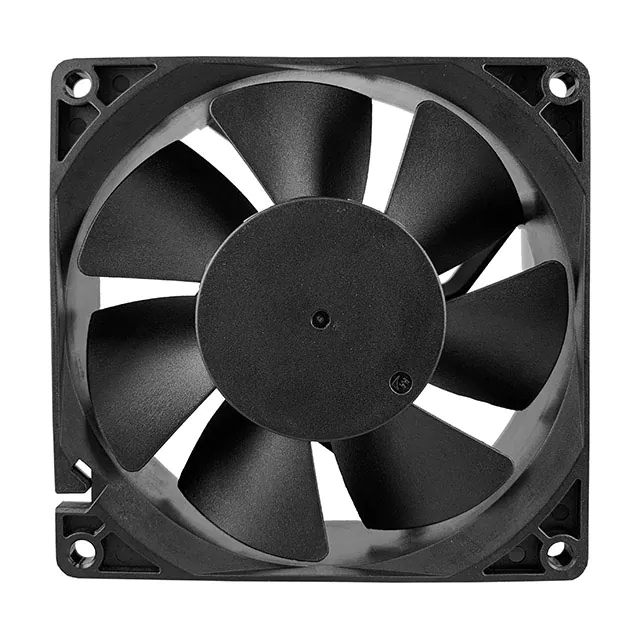

FMA1-09225WBHT12EC FAN, 92X92X25MM, 2-BALL BEARI Qualtek |
67 | - |
|
数据表 |
FMA1-09225 | Bulk | Active | 100 ~ 240VAC | Square - 92mm L x 92mm H | 55.6 CFM (1.56m³/min) | 0.265 in H2O (66.0 Pa) | Ball | - | Tubeaxial | Electronic Commutation (EC) | 25.00mm | 44.0dB(A) | 6.00W | CE, cURus | 3500 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Terminals | IP54 - Dust Protected, Water Resistant |
