交流风扇
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

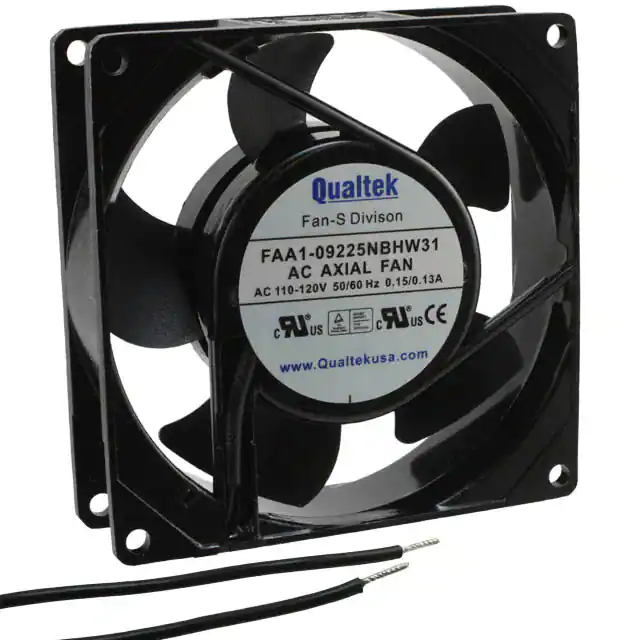

FAA1-09225NBHW31FAN AXIAL 92X25MM 115VAC WIRE Qualtek |
477 | - |
|
数据表 |
FAA1-09225 | Bulk | Active | 115VAC | Square - 92mm L x 92mm H | 34.0 CFM (0.952m³/min) | 0.116 in H2O (28.9 Pa) | Ball | 0.507 lb (229.97 g) | Tubeaxial | - | 25.00mm | 30.1dB(A) | 5.00W | CE, cURus, TUV | 2400 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|

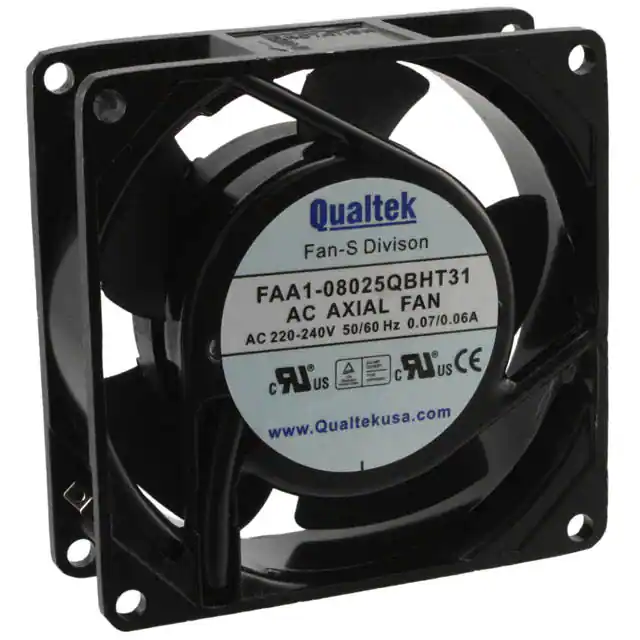

FAA1-08025QBHT31FAN AXIAL 80X25MM 230VAC TERM Qualtek |
262 | - |
|
数据表 |
FAA1-08025 | Bulk | Active | 230VAC | Square - 80mm L x 80mm H | 21.0 CFM (0.588m³/min) | 0.125 in H2O (31.1 Pa) | Ball | 0.463 lb (210.01 g) | Tubeaxial | - | 25.00mm | 27.8dB(A) | 10.00W | CE, cURus, TUV | 2800 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Terminals | - |
|

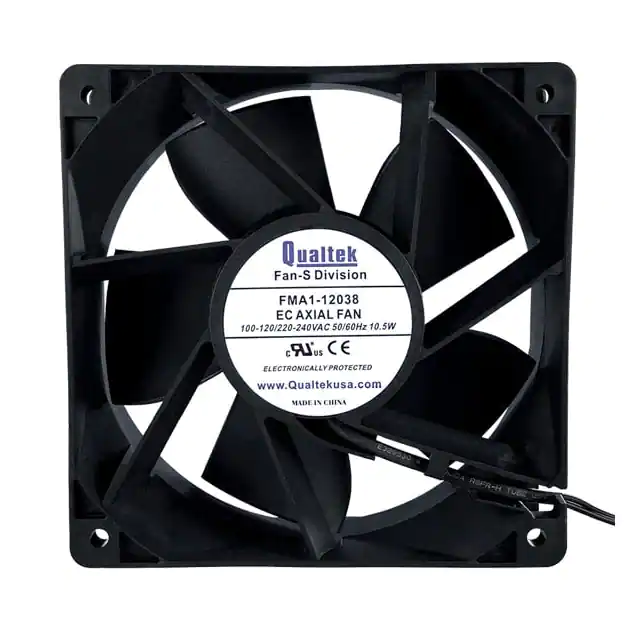

FMA1-12038WBJW12-AEC FAN, 120X120X38MM, 2-BALL BEA Qualtek |
1,220 | - |
|
数据表 |
FMA1-12038-A | Bulk | Active | 100 ~ 240VAC | Square - 120mm L x 120mm H | 137.6 CFM (3.85m³/min) | 0.445 in H2O (110.8 Pa) | Ball | - | Tubeaxial | Electronic Commutation (EC) | 38.00mm | 51.5dB(A) | 15.00W | CE, cURus | 3500 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | IP54 - Dust Protected, Water Resistant |
|
FMA1-09238WBHT12EC FAN, 92X92X38MM, 2-BALL BEARI Qualtek |
125 | - |
|
数据表 |
FMA1-09238 | Bulk | Active | 100 ~ 240VAC | Square - 92mm L x 92mm H | 67.7 CFM (1.90m³/min) | 0.288 in H2O (71.7 Pa) | Ball | - | Tubeaxial | Electronic Commutation (EC) | 38.00mm | 42.0dB(A) | 5.50W | CE, cURus | 3500 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Terminals | IP54 - Dust Protected, Water Resistant |
|
|

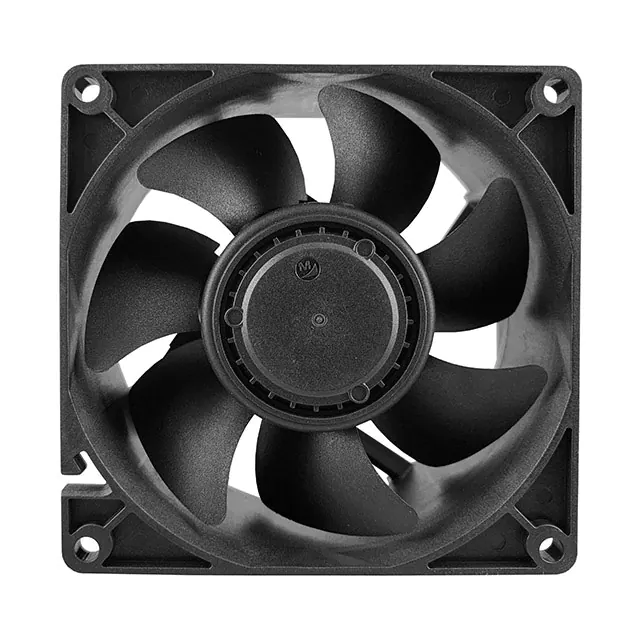

FMA1-09238WBHW12EC FAN, 92X92X38MM, 2-BALL BEARI Qualtek |
200 | - |
|
数据表 |
FMA1-09238 | Bulk | Active | 100 ~ 240VAC | Square - 92mm L x 92mm H | 67.7 CFM (1.90m³/min) | 0.288 in H2O (71.7 Pa) | Ball | - | Tubeaxial | Electronic Commutation (EC) | 38.00mm | 42.0dB(A) | 5.50W | CE, cURus | 3500 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | IP54 - Dust Protected, Water Resistant |
|
FMA1-12025WBHT12EC FAN, 120X120X25MM, 2-BALL BEA Qualtek |
161 | - |
|
数据表 |
FMA1-12025 | Bulk | Active | 100 ~ 240VAC | Square - 120mm L x 120mm H | 79.4 CFM (2.22m³/min) | 0.175 in H2O (43.7 Pa) | Ball | - | Tubeaxial | Electronic Commutation (EC) | 25.00mm | 44.8dB(A) | 6.00W | CE, cURus | 3000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Terminals | IP54 - Dust Protected, Water Resistant |
|
FKA2-25489NBHT3FFAN AXIAL 254X89MM 115VAC TERM Qualtek |
202 | - |
|
数据表 |
FKA2-25489 | Bulk | Active | 115VAC | Round - 254mm Dia | 630.0 CFM (17.64m³/min) | 0.276 in H2O (68.7 Pa) | Ball | 4.4 lbs (2 kg) | Tubeaxial | - | 89.00mm | 62.0dB(A) | 67.8W | CE, cURus, TUV | 2000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Terminals | - |
|
FAA1-12038NBLW31-AFAN AXIAL 119.5X38.5MM 115VAC Qualtek |
153 | - |
|
数据表 |
FAA1-12038 | Bulk | Active | 115VAC | Square - 119.5mm L x 119.5mm H | 71.5 CFM (2.00m³/min) | 0.100 in H2O (24.9 Pa) | Ball | 1.2 lbs (544.3 g) | Tubeaxial | - | 38.50mm | 37.9dB(A) | 8.70W | CE, cURus, TUV | 2200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
FAA1-12025NBMW31FAN AXIAL 120X25MM 115VAC WIRE Qualtek |
2,390 | - |
|
数据表 |
FAA1-12025 | Bulk | Active | 115VAC | Square - 120mm L x 120mm H | 71.0 CFM (1.99m³/min) | 0.156 in H2O (38.8 Pa) | Ball | 0.749 lb (339.74 g) | Tubeaxial | - | 25.00mm | 44.1dB(A) | 20.70W | CE, cURus, TUV | 2300 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
FAA1-08025QBMW31FAN AXIAL 80X25MM 230VAC WIRE Qualtek |
232 | - |
|
数据表 |
FAA1-08025 | Bulk | Active | 230VAC | Square - 80mm L x 80mm H | 19.0 CFM (0.532m³/min) | 0.118 in H2O (29.4 Pa) | Ball | 0.463 lb (210.01 g) | Tubeaxial | - | 25.00mm | 24.0dB(A) | 11.00W | CE, cURus, TUV | 2500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
