固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
8230-08-RCFIXED IND 330NH 780MA 200MOHM TH Bourns Inc. |
464 | - |
|
数据表 |
8230 | Axial | Bulk | Active | Wirewound | Phenolic | ±10% | 780 mA | - | - | Unshielded | 200mOhm Max | 330 nH | 30 @ 25MHz | 410MHz | Through Hole | - | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | - | -55°C ~ 105°C | 25 MHz | - |
|
9250A-181-RCFIXED IND 180NH 1.3A 47 MOHM TH Bourns Inc. |
398 | - |
|
数据表 |
9250A | Axial | Bulk | Active | Molded | Ferrite | ±10% | 1.3 A | 1.3A | - | Shielded | 47mOhm Max | 180 nH | 50 @ 25MHz | 250MHz | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - | -55°C ~ 125°C | 25 MHz | - |
|

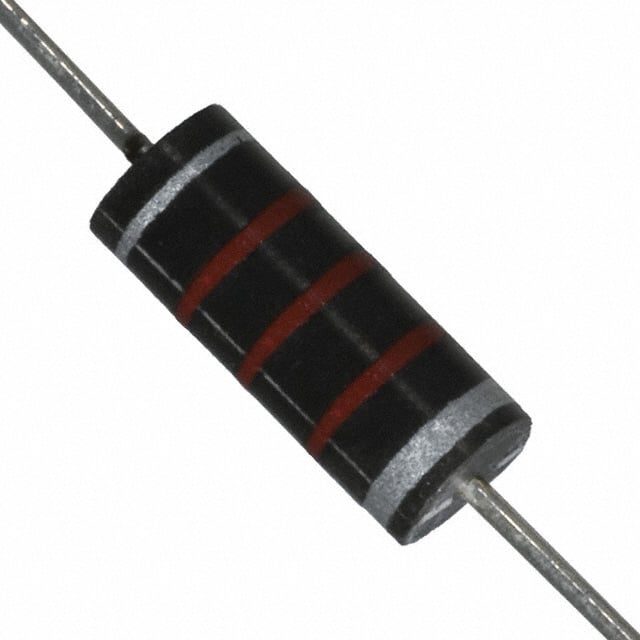

9250A-225-RCFIXED IND 2.2MH 50MA 33.8 OHM TH Bourns Inc. |
288 | - |
|
数据表 |
9250A | Axial | Bulk | Active | Molded | Ferrite | ±10% | 50 mA | 27mA | - | Shielded | 33.8Ohm Max | 2.2 mH | 45 @ 250kHz | 970kHz | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - | -55°C ~ 125°C | 250 kHz | - |
|
9250A-275-RCFIXED IND 2.7MH 40MA 47.3 OHM TH Bourns Inc. |
183 | - |
|
数据表 |
9250A | Axial | Bulk | Active | Molded | Ferrite | ±10% | 40 mA | 25mA | - | Shielded | 47.3Ohm Max | 2.7 mH | 45 @ 250kHz | 920kHz | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - | -55°C ~ 125°C | 250 kHz | - |
|

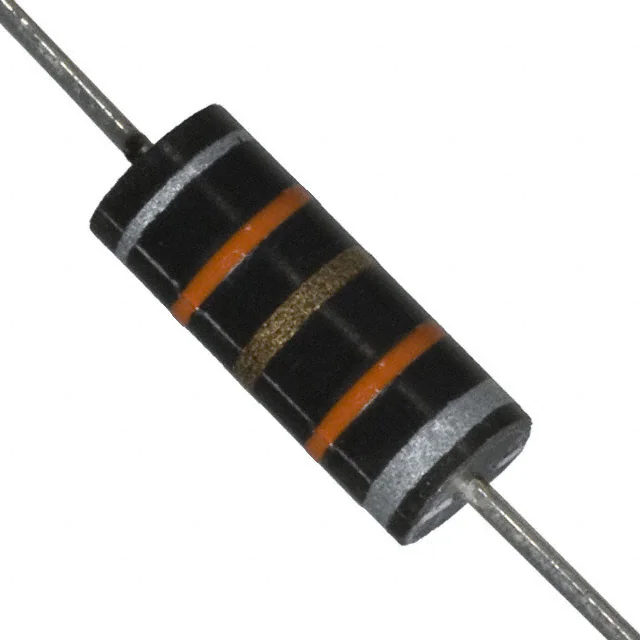

9250A-332-RCFIXED IND 3.3UH 480MA 350MOHM TH Bourns Inc. |
126 | - |
|
数据表 |
9250A | Axial | Bulk | Active | Molded | Ferrite | ±10% | 480 mA | 480mA | - | Shielded | 350mOhm Max | 3.3 µH | 44 @ 7.9MHz | 85MHz | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - | -55°C ~ 125°C | 7.9 MHz | - |
|
5900-393-RCFIXED IND 39MH 120MA 31 OHM TH Bourns Inc. |
1,179 | - |
|
数据表 |
5900 | Axial | Tray | Active | Drum Core, Wirewound | Ferrite | ±10% | 120 mA | 130mA | - | Unshielded | 31Ohm Max | 39 mH | - | - | Through Hole | - | 0.453" Dia x 0.900" L (11.51mm x 22.86mm) | - | -55°C ~ 105°C | 1 kHz | - |
|
|
5900-562-RCFIXED IND 5.6MH 320MA 4.1 OHM TH Bourns Inc. |
1,030 | - |
|
数据表 |
5900 | Axial | Tray | Active | Drum Core, Wirewound | Ferrite | ±10% | 320 mA | 350mA | - | Unshielded | 4.1Ohm Max | 5.6 mH | - | - | Through Hole | - | 0.453" Dia x 0.900" L (11.51mm x 22.86mm) | - | -55°C ~ 105°C | 1 kHz | - |
|

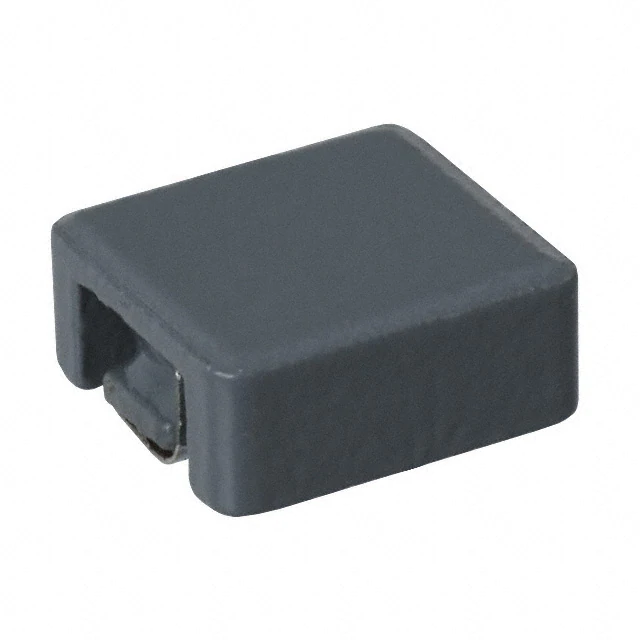

PM7232S-1R5M-RCFIXED IND 1.5UH 9A 15 MOHM SMD Bourns Inc. |
3,847 | - |
|
数据表 |
PM7232S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron | ±20% | 9 A | 14A | - | Shielded | 15mOhm Max | 1.5 µH | - | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | - | -55°C ~ 150°C | 100 kHz | 0.126" (3.20mm) |
|
|
PM7232S-R47M-RCFIXED IND 470NH 17.5A 4.2MOHM SM Bourns Inc. |
1,290 | - |
|
数据表 |
PM7232S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron | ±20% | 17.5 A | 26A | - | Shielded | 4.2mOhm Max | 470 nH | - | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | - | -55°C ~ 150°C | 100 kHz | 0.126" (3.20mm) |
|

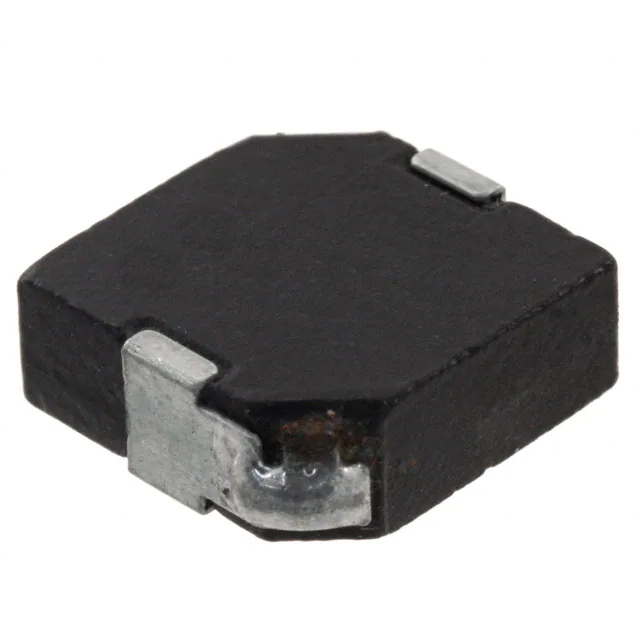

PM12651S-4R7M-RCFIXED IND 4.7UH 12A 15 MOHM SMD Bourns Inc. |
2,399 | - |
|
数据表 |
PM12651S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron | ±20% | 12 A | 27A | - | Shielded | 15mOhm Max | 4.7 µH | - | - | Surface Mount | - | 0.547" L x 0.531" W (13.90mm x 13.50mm) | - | -55°C ~ 150°C | 100 kHz | 0.232" (5.90mm) |
