固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SRP1238A-1R0MFIXED IND 1UH 24A 3.5 MOHM SMD Bourns Inc. |
967 | - |
|
数据表 |
SRP1238A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | ±20% | 24 A | 40A | - | Shielded | 3.5mOhm Max | 1 µH | 15 @ 100kHz | 40MHz | Surface Mount | AEC-Q200 | 0.531" L x 0.492" W (13.50mm x 12.50mm) | - | -40°C ~ 150°C | 100 kHz | 0.138" (3.50mm) |
|
9230-96-RCFIXED IND 120NH 1.1A 80 MOHM TH Bourns Inc. |
173 | - |
|
数据表 |
9230 | Axial | Bulk | Active | Molded | Phenolic | ±10% | 1.1 A | - | - | Unshielded | 80mOhm Max | 120 nH | 40 @ 25MHz | 650MHz | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - | -55°C ~ 105°C | 25 MHz | - |
|

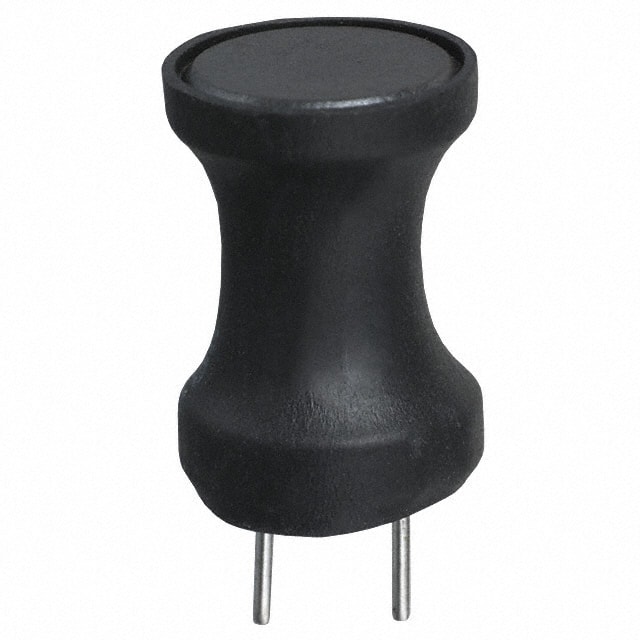

RL824-221K-RCFIXED IND 220UH 820MA 280MOHM TH Bourns Inc. |
1,096 | - |
|
数据表 |
RL824 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 820 mA | - | - | Unshielded | 280mOhm Max | 220 µH | 35 @ 790kHz | 1.9MHz | Through Hole | - | 0.413" Dia (10.50mm) | - | -55°C ~ 105°C | 1 kHz | 0.610" (15.50mm) |
|
|
9230-72-RCFIXED IND 150UH 85MA 15 OHM TH Bourns Inc. |
846 | - |
|
数据表 |
9230 | Axial | Bulk | Active | Molded | Ferrite | ±10% | 85 mA | - | - | Unshielded | 15Ohm Max | 150 µH | 30 @ 790kHz | 11MHz | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - | -55°C ~ 125°C | 790 kHz | - |
|
SRP5030CA-R56MFIXED IND 560NH 17.7A 4.52 MOHM Bourns Inc. |
4,485 | - |
|
数据表 |
SRP5030CA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | ±20% | 17.7 A | 22.2A | - | Shielded | 4.52mOhm Max | 560 nH | - | 73MHz | Surface Mount | AEC-Q200 | 0.217" L x 0.209" W (5.50mm x 5.30mm) | - | -55°C ~ 155°C | 100 kHz | 0.122" (3.10mm) |
|
|
SRP5030CA-1R8MFIXED IND 1.8UH 10.1A 12.7 MOHM Bourns Inc. |
4,392 | - |
|
数据表 |
SRP5030CA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | ±20% | 10.1 A | 12.3A | - | Shielded | 12.7mOhm Max | 1.8 µH | - | 36MHz | Surface Mount | AEC-Q200 | 0.217" L x 0.209" W (5.50mm x 5.30mm) | - | -55°C ~ 155°C | 100 kHz | 0.122" (3.10mm) |
|
|
SRP5030CA-R60MFIXED IND 600NH 17.7A 4.52 MOHM Bourns Inc. |
3,251 | - |
|
数据表 |
SRP5030CA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | ±20% | 17.7 A | 22A | - | Shielded | 4.52mOhm Max | 600 nH | - | 68MHz | Surface Mount | AEC-Q200 | 0.217" L x 0.209" W (5.50mm x 5.30mm) | - | -55°C ~ 155°C | 100 kHz | 0.122" (3.10mm) |
|
SRP5050FA-100M1IND,6X5.7X4.8MM,10UH20%,5A,SHD Bourns Inc. |
1,288 | - |
|
数据表 |
SRP5050FA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | ±20% | 5 A | 6.5A | - | Shielded | 43mOhm Max | 10 µH | - | 10MHz | Surface Mount | AEC-Q200 | 0.236" L x 0.224" W (6.00mm x 5.70mm) | - | -55°C ~ 155°C | 100 kHz | 0.197" (5.00mm) |
|
SRP1270-8R2MFIXED IND 8.2UH 11A 15.5MOHM SMD Bourns Inc. |
5,457 | - |
|
数据表 |
SRP1270 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron | ±20% | 11 A | 17A | - | Shielded | 15.5mOhm Max | 8.2 µH | - | 11MHz | Surface Mount | - | 0.539" L x 0.539" W (13.70mm x 13.70mm) | - | -55°C ~ 125°C | 100 kHz | 0.276" (7.00mm) |
|

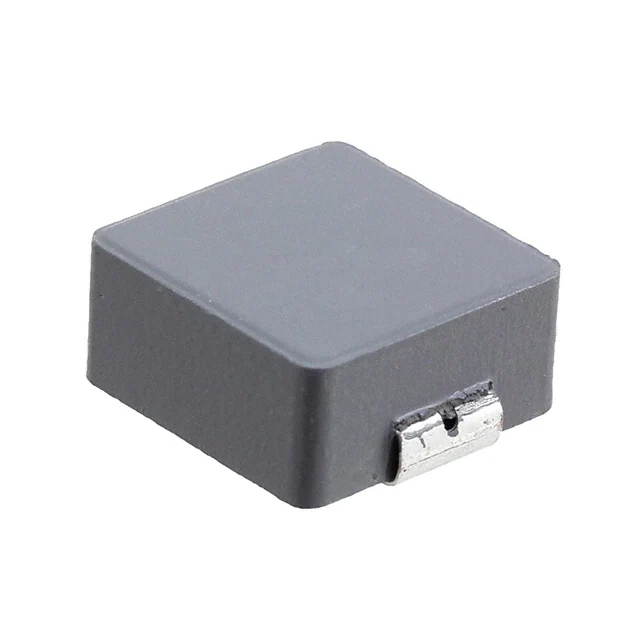

SRP1265A-1R8MFIXED IND 1.8UH 24A 4 MOHM SMD Bourns Inc. |
5,154 | - |
|
数据表 |
SRP1265A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | ±20% | 24 A | 40A | - | Shielded | 4mOhm Max | 1.8 µH | 20 @ 100kHz | 30MHz | Surface Mount | AEC-Q200 | 0.531" L x 0.492" W (13.50mm x 12.50mm) | - | -55°C ~ 150°C | 100 kHz | 0.252" (6.40mm) |
