固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

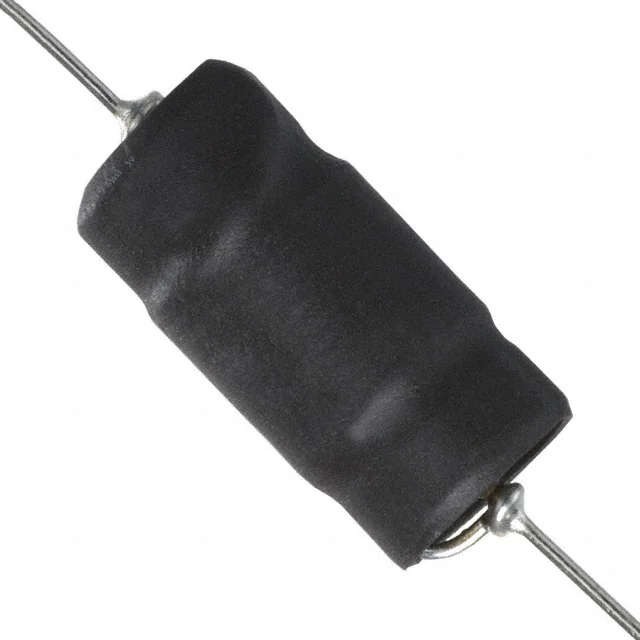

5900-100-RCFIXED IND 10UH 4.7A 19 MOHM TH Bourns Inc. |
18,184 | - |
|
数据表 |
5900 | Axial | Tray | Active | Drum Core, Wirewound | Ferrite | ±10% | 4.7 A | 8.7A | - | Unshielded | 19mOhm Max | 10 µH | - | - | Through Hole | - | 0.453" Dia x 0.900" L (11.51mm x 22.86mm) | - | -55°C ~ 105°C | 1 kHz | - |
|
|
5900-222-RCFIXED IND 2.2MH 500MA 1.7 OHM TH Bourns Inc. |
3,851 | - |
|
数据表 |
5900 | Axial | Tray | Active | Drum Core, Wirewound | Ferrite | ±10% | 500 mA | 560mA | - | Unshielded | 1.7Ohm Max | 2.2 mH | - | - | Through Hole | - | 0.453" Dia x 0.900" L (11.51mm x 22.86mm) | - | -55°C ~ 105°C | 1 kHz | - |
|
SRP7030CA-1R5MFIXED IND 1.5UH 15.3A 0.00825OHM Bourns Inc. |
6,501 | - |
|
数据表 |
SRP7030CA | Nonstandard | Tape & Reel (TR) | Active | - | Carbonyl Powder | ±20% | 15.3 A | 25A | - | Shielded | 8.25mOhm Max | 1.5 µH | - | 31MHz | Surface Mount | AEC-Q200 | 0.307" L x 0.299" W (7.80mm x 7.60mm) | Flat Wire, High Saturation | -55°C ~ 155°C | 100 kHz | 0.122" (3.10mm) |
|
|
SRP7030CA-1R0MFIXED IND 1UH 21.8A 0.005OHM SMD Bourns Inc. |
1,845 | - |
|
数据表 |
SRP7030CA | Nonstandard | Tape & Reel (TR) | Active | - | Carbonyl Powder | ±20% | 21.8 A | 30A | - | Shielded | 5mOhm Max | 1 µH | - | 35MHz | Surface Mount | AEC-Q200 | 0.307" L x 0.299" W (7.80mm x 7.60mm) | Flat Wire, High Saturation | -55°C ~ 155°C | 100 kHz | 0.122" (3.10mm) |
|
9250A-153-RCFIXED IND 15UH 315MA 800 MOHM TH Bourns Inc. |
3,805 | - |
|
数据表 |
9250A | Axial | Bulk | Active | Molded | Ferrite | ±10% | 315 mA | 250mA | - | Shielded | 800mOhm Max | 15 µH | 45 @ 2.5MHz | 49MHz | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - | -55°C ~ 125°C | 2.5 MHz | - |
|
9250A-122-RCFIXED IND 1.2UH 895MA 100MOHM TH Bourns Inc. |
2,192 | - |
|
数据表 |
9250A | Axial | Bulk | Active | Molded | Ferrite | ±10% | 895 mA | 895mA | - | Shielded | 100mOhm Max | 1.2 µH | 44 @ 7.9MHz | 130MHz | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - | -55°C ~ 125°C | 7.9 MHz | - |
|

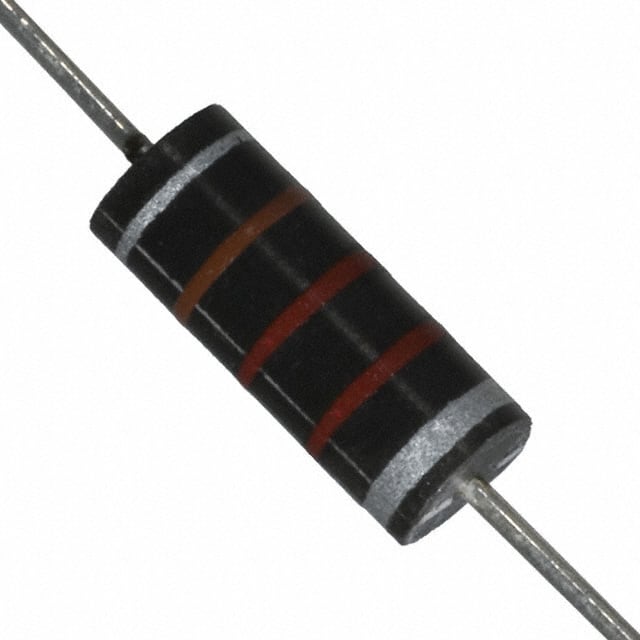

9250A-224-TR-RCFIXED IND 220UH 120MA 5 OHM TH Bourns Inc. |
1,623 | - |
|
数据表 |
9250A | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | ±10% | 120 mA | 80mA | - | Shielded | 5Ohm Max | 220 µH | 55 @ 790kHz | 7.5MHz | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - | -55°C ~ 125°C | 790 kHz | - |
|
9250A-222-RCFIXED IND 2.2UH 650MA 190MOHM TH Bourns Inc. |
1,440 | - |
|
数据表 |
9250A | Axial | Bulk | Active | Molded | Ferrite | ±10% | 650 mA | 650mA | - | Shielded | 190mOhm Max | 2.2 µH | 44 @ 7.9MHz | 100MHz | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - | -55°C ~ 125°C | 7.9 MHz | - |
|
9250A-273-RCFIXED IND 27UH 260MA 1.19 OHM TH Bourns Inc. |
1,418 | - |
|
数据表 |
9250A | Axial | Bulk | Active | Molded | Ferrite | ±10% | 260 mA | 200mA | - | Shielded | 1.19Ohm Max | 27 µH | 45 @ 2.5MHz | 38MHz | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - | -55°C ~ 125°C | 2.5 MHz | - |
|

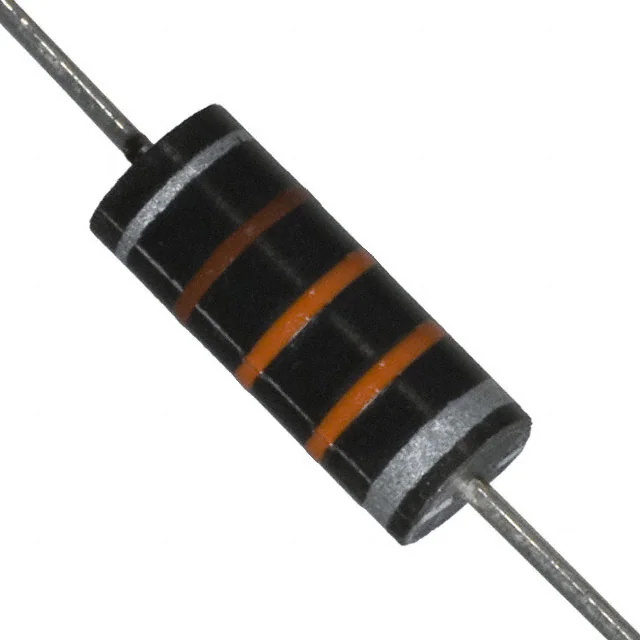

9250A-334-RCFIXED IND 330UH 110MA 6.4 OHM TH Bourns Inc. |
1,367 | - |
|
数据表 |
9250A | Axial | Bulk | Active | Molded | Ferrite | ±10% | 110 mA | 65mA | - | Shielded | 6.4Ohm Max | 330 µH | 55 @ 790kHz | 6.5MHz | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - | -55°C ~ 125°C | 790 kHz | - |
