固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SRP1038WA-150MIND,11X10X3.8MM,15UH20%,6.4A,SHD Bourns Inc. |
835 | - |
|
数据表 |
SRP1038WA | Nonstandard | Tape & Reel (TR) | Active | - | Metal | ±20% | 6.4 A | 7A | - | Shielded | 45mOhm Max | 15 µH | 20 @ 100kHz | 8MHz | Surface Mount | AEC-Q200 | 0.433" L x 0.394" W (11.00mm x 10.00mm) | - | -55°C ~ 165°C | 100 kHz | 0.157" (4.00mm) |
|
|
SRP1038WA-6R8MIND,11X10X3.8MM,6.8UH20%,10A,SHD Bourns Inc. |
661 | - |
|
数据表 |
SRP1038WA | Nonstandard | Tape & Reel (TR) | Active | - | Metal | ±20% | 10 A | 11A | - | Shielded | 19mOhm Max | 6.8 µH | 20 @ 100kHz | 12MHz | Surface Mount | AEC-Q200 | 0.433" L x 0.394" W (11.00mm x 10.00mm) | - | -55°C ~ 165°C | 100 kHz | 0.157" (4.00mm) |
|
|
SRP1038WA-330MIND,11X10X3.8MM,33UH20%,4.7A,SHD Bourns Inc. |
279 | - |
|
数据表 |
SRP1038WA | Nonstandard | Tape & Reel (TR) | Active | - | Metal | ±20% | 4.7 A | 4.8A | - | Shielded | 102mOhm Max | 33 µH | 20 @ 100kHz | 6MHz | Surface Mount | AEC-Q200 | 0.433" L x 0.394" W (11.00mm x 10.00mm) | - | -55°C ~ 165°C | 100 kHz | 0.157" (4.00mm) |
|
|
SRP1038WA-470MIND,11X10X3.8MM,47UH20%,3.6A,SHD Bourns Inc. |
214 | - |
|
数据表 |
SRP1038WA | Nonstandard | Tape & Reel (TR) | Active | - | Metal | ±20% | 3.6 A | 4A | - | Shielded | 165mOhm Max | 47 µH | 20 @ 100kHz | 5MHz | Surface Mount | AEC-Q200 | 0.433" L x 0.394" W (11.00mm x 10.00mm) | - | -55°C ~ 165°C | 100 kHz | 0.157" (4.00mm) |
|
4611-RCFIXED IND 8.2UH 600MA 1.2 OHM TH Bourns Inc. |
4,967 | - |
|
数据表 |
4600 | Axial | Bulk | Active | Wirewound | Phenolic | ±10% | 600 mA | - | - | Unshielded | 1.2Ohm Max | 8.2 µH | 57 @ 7.96MHz | 65MHz | Through Hole | - | 0.270" Dia x 0.750" L (6.86mm x 19.05mm) | - | -55°C ~ 125°C | 7.96 MHz | - |
|
|
4608-RCFIXED IND 3.9UH 1A 450 MOHM TH Bourns Inc. |
3,089 | - |
|
数据表 |
4600 | Axial | Bulk | Active | Wirewound | Phenolic | ±10% | 1 A | - | - | Unshielded | 450mOhm Max | 3.9 µH | 60 @ 7.96MHz | 93MHz | Through Hole | - | 0.270" Dia x 0.750" L (6.86mm x 19.05mm) | - | -55°C ~ 125°C | 7.96 MHz | - |
|
SRP6030CA-R18MFIXED IND 180NH 32A 1.75MOHM SMD Bourns Inc. |
2,398 | - |
|
数据表 |
SRP6030CA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | ±20% | 32 A | 40A | - | Shielded | 1.75mOhm Max | 180 nH | - | 143MHz | Surface Mount | AEC-Q200 | 0.260" L x 0.252" W (6.60mm x 6.40mm) | - | -55°C ~ 155°C | 100 kHz | 0.118" (3.00mm) |
|
|
SRP6030CA-R56MFIXED IND 560NH 22A 3.31MOHM SMD Bourns Inc. |
301 | - |
|
数据表 |
SRP6030CA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | ±20% | 22 A | 29A | - | Shielded | 3.31mOhm Max | 560 nH | - | 70MHz | Surface Mount | AEC-Q200 | 0.260" L x 0.252" W (6.60mm x 6.40mm) | - | -55°C ~ 155°C | 100 kHz | 0.118" (3.00mm) |
|
SRP6050CA-1R2MFIXED IND 1.2UH 18A 5.83MOHM SMD Bourns Inc. |
1,477 | - |
|
数据表 |
SRP6050CA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | ±20% | 18 A | 22A | - | Shielded | 5.83mOhm Max | 1.2 µH | - | 43MHz | Surface Mount | AEC-Q200 | 0.260" L x 0.252" W (6.60mm x 6.40mm) | - | -55°C ~ 155°C | 100 kHz | 0.197" (5.00mm) |
|

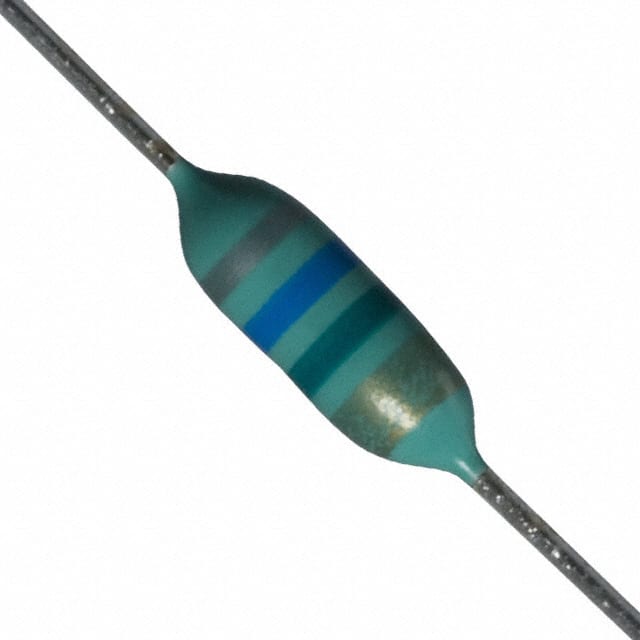

8230-14-RCFIXED IND 560NH 495MA 500MOHM TH Bourns Inc. |
183 | - |
|
数据表 |
8230 | Axial | Bulk | Active | Wirewound | Phenolic | ±10% | 495 mA | - | - | Unshielded | 500mOhm Max | 560 nH | 30 @ 25MHz | 300MHz | Through Hole | - | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | - | -55°C ~ 105°C | 25 MHz | - |
