固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
5900-151-RCFIXED IND 150UH 2A 110 MOHM TH Bourns Inc. |
854 | - |
|
数据表 |
5900 | Axial | Tray | Active | Drum Core, Wirewound | Ferrite | ±10% | 2 A | 2.1A | - | Unshielded | 110mOhm Max | 150 µH | - | - | Through Hole | - | 0.453" Dia x 0.900" L (11.51mm x 22.86mm) | - | -55°C ~ 105°C | 1 kHz | - |
|
|
5900-181-RCFIXED IND 180UH 1.7A 140 MOHM TH Bourns Inc. |
852 | - |
|
数据表 |
5900 | Axial | Tray | Active | Drum Core, Wirewound | Ferrite | ±10% | 1.7 A | 2A | - | Unshielded | 140mOhm Max | 180 µH | - | - | Through Hole | - | 0.453" Dia x 0.900" L (11.51mm x 22.86mm) | - | -55°C ~ 105°C | 1 kHz | - |
|
|
5900-681-RCFIXED IND 680UH 900MA 515MOHM TH Bourns Inc. |
789 | - |
|
数据表 |
5900 | Axial | Tray | Active | Drum Core, Wirewound | Ferrite | ±10% | 900 mA | 1A | - | Unshielded | 515mOhm Max | 680 µH | - | - | Through Hole | - | 0.453" Dia x 0.900" L (11.51mm x 22.86mm) | - | -55°C ~ 105°C | 1 kHz | - |
|
|
5900-3R9-RCFIXED IND 3.9UH 5.9A 12 MOHM TH Bourns Inc. |
788 | - |
|
数据表 |
5900 | Axial | Tray | Active | Drum Core, Wirewound | Ferrite | ±10% | 5.9 A | 14.4A | - | Unshielded | 12mOhm Max | 3.9 µH | - | - | Through Hole | - | 0.453" Dia x 0.900" L (11.51mm x 22.86mm) | - | -55°C ~ 105°C | 1 kHz | - |
|
|
5900-220-RCFIXED IND 22UH 3.8A 30 MOHM TH Bourns Inc. |
614 | - |
|
数据表 |
5900 | Axial | Tray | Active | Drum Core, Wirewound | Ferrite | ±10% | 3.8 A | 5.7A | - | Unshielded | 30mOhm Max | 22 µH | - | - | Through Hole | - | 0.453" Dia x 0.900" L (11.51mm x 22.86mm) | - | -55°C ~ 105°C | 1 kHz | - |
|
|
5900-221-RCFIXED IND 220UH 1.5A 185 MOHM TH Bourns Inc. |
172 | - |
|
数据表 |
5900 | Axial | Tray | Active | Drum Core, Wirewound | Ferrite | ±10% | 1.5 A | 1.8A | - | Unshielded | 185mOhm Max | 220 µH | - | - | Through Hole | - | 0.453" Dia x 0.900" L (11.51mm x 22.86mm) | - | -55°C ~ 105°C | 1 kHz | - |
|
|
5900-102-RCFIXED IND 1MH 710MA 830 MOHM TH Bourns Inc. |
895 | - |
|
数据表 |
5900 | Axial | Tray | Active | Drum Core, Wirewound | Ferrite | ±10% | 710 mA | 830mA | - | Unshielded | 830mOhm Max | 1 mH | - | - | Through Hole | - | 0.453" Dia x 0.900" L (11.51mm x 22.86mm) | - | -55°C ~ 105°C | 1 kHz | - |
|

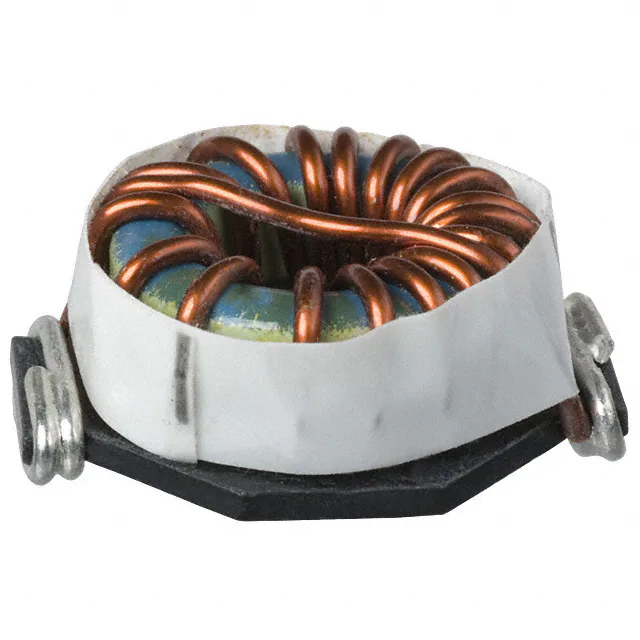

PM2110-220K-RCFIXED IND 22UH 9.7A 10 MOHM SMD Bourns Inc. |
3,438 | - |
|
数据表 |
PM2110 | Nonstandard | Bulk | Active | Toroidal | Iron | ±10% | 9.7 A | - | - | Unshielded | 10mOhm Max | 22 µH | - | - | Surface Mount | - | 1.201" L x 1.000" W (30.50mm x 25.40mm) | - | -55°C ~ 105°C | 1 kHz | 0.570" (14.48mm) |
|
PM2120-821K-RCFIXED IND 820UH 2.9A 157MOHM SMD Bourns Inc. |
4,144 | - |
|
数据表 |
PM2120 | Nonstandard | Bulk | Active | Toroidal | Iron | ±10% | 2.9 A | - | - | Unshielded | 157mOhm Max | 820 µH | - | - | Surface Mount | - | 1.201" L x 1.000" W (30.50mm x 25.40mm) | - | -55°C ~ 105°C | 1 kHz | 0.850" (21.59mm) |
|
2118-V-RCFIXED IND 330UH 1.7A 230 MOHM TH Bourns Inc. |
383 | - |
|
数据表 |
2100 | Radial, Vertical (Open) | Bulk | Active | Toroidal | - | ±15% | 1.7 A | - | - | Unshielded | 230mOhm Max | 330 µH | - | - | Through Hole | - | 0.860" Dia x 0.450" W (21.84mm x 11.43mm) | - | -55°C ~ 105°C | 1 kHz | - |
