固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

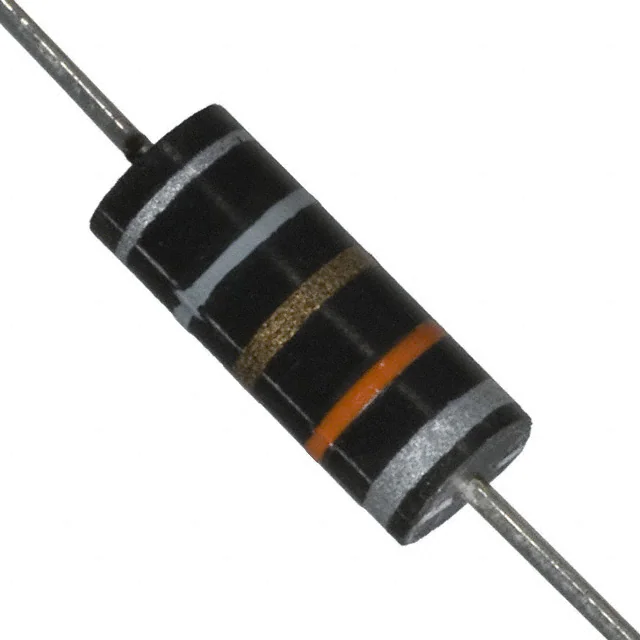

9250A-392-RCFIXED IND 3.9UH 450MA 400MOHM TH Bourns Inc. |
1,046 | - |
|
数据表 |
9250A | Axial | Bulk | Active | Molded | Ferrite | ±10% | 450 mA | 450mA | - | Shielded | 400mOhm Max | 3.9 µH | 44 @ 7.9MHz | 75MHz | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - | -55°C ~ 125°C | 7.9 MHz | - |
|
9250A-685-RCFIXED IND 6.8MH 27MA 111 OHM TH Bourns Inc. |
994 | - |
|
数据表 |
9250A | Axial | Bulk | Active | Molded | Ferrite | ±10% | 27 mA | 16mA | - | Shielded | 111Ohm Max | 6.8 mH | 40 @ 250kHz | 660kHz | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - | -55°C ~ 125°C | 250 kHz | - |
|
9250A-391-RCFIXED IND 390NH 670MA 180MOHM TH Bourns Inc. |
959 | - |
|
数据表 |
9250A | Axial | Bulk | Active | Molded | Ferrite | ±10% | 670 mA | 670mA | - | Shielded | 180mOhm Max | 390 nH | 44 @ 25MHz | 250MHz | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - | -55°C ~ 125°C | 25 MHz | - |
|
9250A-333-RCFIXED IND 33UH 240MA 1.37 OHM TH Bourns Inc. |
955 | - |
|
数据表 |
9250A | Axial | Bulk | Active | Molded | Ferrite | ±10% | 240 mA | 190mA | - | Shielded | 1.37Ohm Max | 33 µH | 45 @ 2.5MHz | 34MHz | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - | -55°C ~ 125°C | 2.5 MHz | - |
|

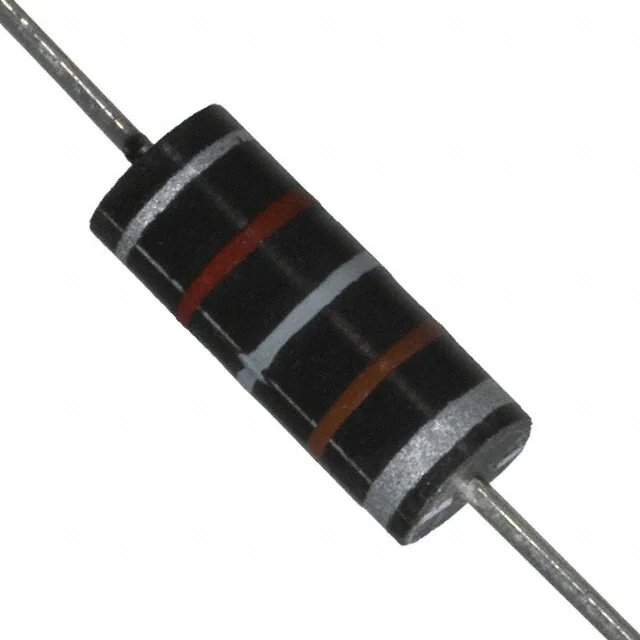

9250A-185-RCFIXED IND 1.8MH 50MA 29.9 OHM TH Bourns Inc. |
932 | - |
|
数据表 |
9250A | Axial | Bulk | Active | Molded | Ferrite | ±10% | 50 mA | 30mA | - | Shielded | 29.9Ohm Max | 1.8 mH | 45 @ 250kHz | 1MHz | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - | -55°C ~ 125°C | 250 kHz | - |
|
9250A-155-RCFIXED IND 1.5MH 55MA 26.5 OHM TH Bourns Inc. |
899 | - |
|
数据表 |
9250A | Axial | Bulk | Active | Molded | Ferrite | ±10% | 55 mA | 33mA | - | Shielded | 26.5Ohm Max | 1.5 mH | 45 @ 250kHz | 1.2MHz | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - | -55°C ~ 125°C | 250 kHz | - |
|
9250A-224-RCFIXED IND 220UH 125MA 5 OHM TH Bourns Inc. |
872 | - |
|
数据表 |
9250A | Axial | Bulk | Active | Molded | Ferrite | ±10% | 125 mA | 80mA | - | Shielded | 5Ohm Max | 220 µH | 55 @ 790kHz | 7.5MHz | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - | -55°C ~ 125°C | 790 kHz | - |
|
9250A-335-RCFIXED IND 3.3MH 40MA 53 OHM TH Bourns Inc. |
859 | - |
|
数据表 |
9250A | Axial | Bulk | Active | Molded | Ferrite | ±10% | 40 mA | 22mA | - | Shielded | 53Ohm Max | 3.3 mH | 45 @ 250kHz | 840kHz | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - | -55°C ~ 125°C | 250 kHz | - |
|

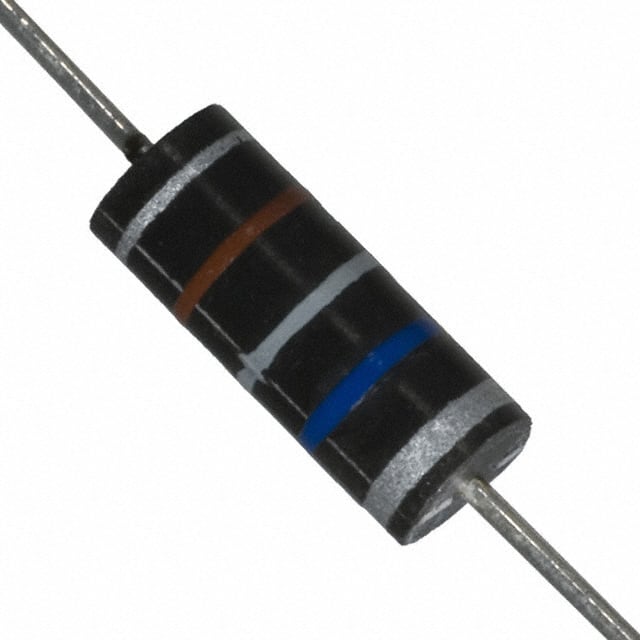

9250A-684-RCFIXED IND 680UH 80MA 11.8 OHM TH Bourns Inc. |
819 | - |
|
数据表 |
9250A | Axial | Bulk | Active | Molded | Ferrite | ±10% | 80 mA | 50mA | - | Shielded | 11.8Ohm Max | 680 µH | 60 @ 790kHz | 4.5MHz | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - | -55°C ~ 125°C | 790 kHz | - |
|
8230-30-RCFIXED IND 2.7UH 495MA 500MOHM TH Bourns Inc. |
797 | - |
|
数据表 |
8230 | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 495 mA | - | - | Unshielded | 500mOhm Max | 2.7 µH | 37 @ 7.9MHz | 100MHz | Through Hole | - | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | - | -55°C ~ 105°C | 7.9 MHz | - |
