固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

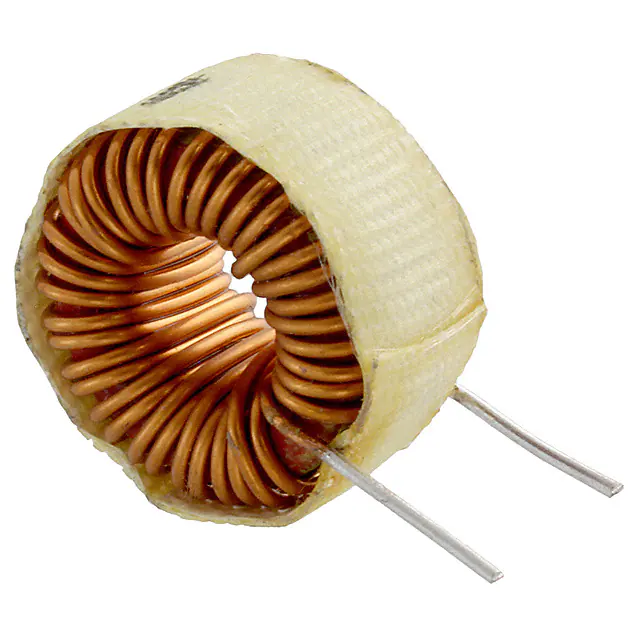

2000-1R2-V-RCFIXED IND 1.2UH 20.2A 1.7MOHM TH Bourns Inc. |
199 | - |
|
数据表 |
2000 | Radial, Vertical (Open) | Bulk | Active | Toroidal | - | ±20% | 20.2 A | - | - | Unshielded | 1.7mOhm Max | 1.2 µH | - | - | Through Hole | - | 0.680" Dia x 0.410" W (17.27mm x 10.41mm) | - | -55°C ~ 105°C | 1 kHz | - |
|
SRP1265WA-1R5MIND,13.6X12.6X6.2MM,1.5UH20%,27A Bourns Inc. |
1,220 | - |
|
数据表 |
SRP1265WA | Nonstandard | Tape & Reel (TR) | Active | - | Metal | ±20% | 27 A | 29A | - | Shielded | 2.76mOhm Max | 1.5 µH | 20 @ 100kHz | 30MHz | Surface Mount | AEC-Q200 | 0.535" L x 0.496" W (13.60mm x 12.60mm) | - | -55°C ~ 165°C | 100 kHz | 0.256" (6.50mm) |
|

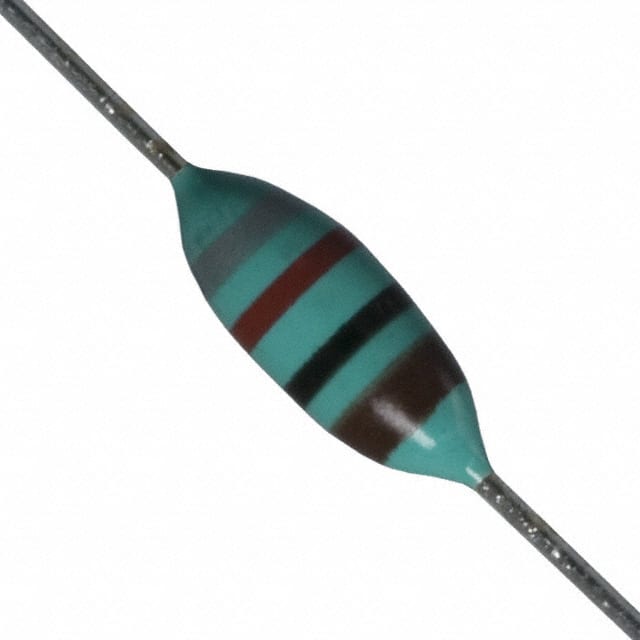

8230-92-RCFIXED IND 1MH 38MA 72 OHM TH Bourns Inc. |
778 | - |
|
数据表 |
8230 | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 38 mA | - | - | Unshielded | 72Ohm Max | 1 mH | 30 @ 790kHz | 3.4MHz | Through Hole | - | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | - | -55°C ~ 105°C | 790 kHz | - |
|
8230-60-RCFIXED IND 47UH 165MA 4.5 OHM TH Bourns Inc. |
516 | - |
|
数据表 |
8230 | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 165 mA | - | - | Unshielded | 4.5Ohm Max | 47 µH | 45 @ 2.5MHz | 20MHz | Through Hole | - | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | - | -55°C ~ 105°C | 2.5 MHz | - |
|
5900-273-RCFIXED IND 27MH 140MA 22 OHM TH Bourns Inc. |
2,582 | - |
|
数据表 |
5900 | Axial | Tray | Active | Drum Core, Wirewound | Ferrite | ±10% | 140 mA | 160mA | - | Unshielded | 22Ohm Max | 27 mH | - | - | Through Hole | - | 0.453" Dia x 0.900" L (11.51mm x 22.86mm) | - | -55°C ~ 105°C | 1 kHz | - |
|
|
5900-471-RCFIXED IND 470UH 1A 420 MOHM TH Bourns Inc. |
1,547 | - |
|
数据表 |
5900 | Axial | Tray | Active | Drum Core, Wirewound | Ferrite | ±10% | 1 A | 1.2A | - | Unshielded | 420mOhm Max | 470 µH | - | - | Through Hole | - | 0.453" Dia x 0.900" L (11.51mm x 22.86mm) | - | -55°C ~ 105°C | 1 kHz | - |
|
|
5900-680-RCFIXED IND 68UH 2.8A 56 MOHM TH Bourns Inc. |
1,295 | - |
|
数据表 |
5900 | Axial | Tray | Active | Drum Core, Wirewound | Ferrite | ±10% | 2.8 A | 3.2A | - | Unshielded | 56mOhm Max | 68 µH | - | - | Through Hole | - | 0.453" Dia x 0.900" L (11.51mm x 22.86mm) | - | -55°C ~ 105°C | 1 kHz | - |
|
|
5900-103-RCFIXED IND 10MH 230MA 7.6 OHM TH Bourns Inc. |
1,057 | - |
|
数据表 |
5900 | Axial | Tray | Active | Drum Core, Wirewound | Ferrite | ±10% | 230 mA | 260mA | - | Unshielded | 7.6Ohm Max | 10 mH | - | - | Through Hole | - | 0.453" Dia x 0.900" L (11.51mm x 22.86mm) | - | -55°C ~ 105°C | 1 kHz | - |
|
|
5900-391-RCFIXED IND 390UH 1.2A 310 MOHM TH Bourns Inc. |
1,040 | - |
|
数据表 |
5900 | Axial | Tray | Active | Drum Core, Wirewound | Ferrite | ±10% | 1.2 A | 1.3A | - | Unshielded | 310mOhm Max | 390 µH | - | - | Through Hole | - | 0.453" Dia x 0.900" L (11.51mm x 22.86mm) | - | -55°C ~ 105°C | 1 kHz | - |
|
8230-68-RCFIXED IND 100UH 125MA 8 OHM TH Bourns Inc. |
894 | - |
|
数据表 |
8230 | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 125 mA | - | - | Unshielded | 8Ohm Max | 100 µH | 50 @ 2.5MHz | 13MHz | Through Hole | - | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | - | -55°C ~ 105°C | 2.5 MHz | - |
