场效应晶体管（FETs）、MOSFETs
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | FET 类型 | 技术 | 电流 - 连续漏极 (Id) @ 25°C | 驱动电压（最大导通电阻，最小导通电阻） | 导通电阻 (Rds On)（最大值）@ Id, Vgs | 安装类型 | 栅极阈值电压 (Vgs(th)）（最大值）@ Id | 栅极电荷 (Qg)（最大值）@ Vgs | 漏极到源极电压 (Vdss) | 栅极电压 (Vgs)（最大值） | 输入电容 (Ciss)（最大值）@ Vds | 认证 | FET 特性 | 供应商设备封装 | 等级 | 功耗（最大值） | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IXTU1R4N60PMOSFET N-CH 600V 1.4A TO251 IXYS |
6,971 | - |
|
数据表 |
PolarHV™ | TO-251-3 Short Leads, IPAK, TO-251AA | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 1.4A (Tc) | 10V | 9Ohm @ 700mA, 10V | Through Hole | 5.5V @ 25µA | 5.2 nC @ 10 V | 600 V | ±30V | 140 pF @ 25 V | - | - | TO-251AA | - | 50W (Tc) | -55°C ~ 150°C (TJ) |
|
|
IXTU44N10TMOSFET N-CH 100V 44A TO251 IXYS |
6,268 | - |
|
数据表 |
- | TO-251-3 Short Leads, IPAK, TO-251AA | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 44A (Tc) | - | - | Through Hole | 4.5V @ 25µA | - | 100 V | - | - | - | - | TO-251AA | - | - | - |
|
IXKU5-505MINIPACK2MOSFET MINIPACK-2 IXYS |
5,237 | - |
|
数据表 |
- | - | Tube | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
IXTP24N65X2MMOSFET N-CH 650V 24A TO220 IXYS |
295 | - |
|
数据表 |
Ultra X2 | TO-220-3 Full Pack, Isolated Tab | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 24A (Tc) | 10V | 145mOhm @ 12A, 10V | Through Hole | 5V @ 250µA | 36 nC @ 10 V | 650 V | ±30V | 2060 pF @ 25 V | - | - | TO-220 Isolated Tab | - | 37W (Tc) | -55°C ~ 150°C (TJ) |
|
IXTP50N085TMOSFET N-CH 85V 50A TO220AB IXYS |
3,643 | - |
|
数据表 |
TrenchMV™ | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 50A (Tc) | 10V | 23mOhm @ 25A, 10V | Through Hole | 4V @ 25µA | 34 nC @ 10 V | 85 V | ±20V | 1460 pF @ 25 V | - | - | TO-220-3 | - | 130W (Tc) | -55°C ~ 175°C (TJ) |
|
IXTU5N50PMOSFET N-CH 500V 4.8A TO252 IXYS |
3,693 | - |
|
数据表 |
Polar | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 4.8A (Tc) | 10V | 1.4Ohm @ 2.4A, 10V | Surface Mount | 5.5V @ 50µA | 12.6 nC @ 10 V | 500 V | ±30V | 620 pF @ 25 V | - | - | TO-252AA | - | 89W (Tc) | -55°C ~ 150°C (TJ) |
|
|
IXTY5N50PMOSFET N-CH 500V 4.8A TO252 IXYS |
8,022 | - |
|
数据表 |
PolarHV™ | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 4.8A (Tc) | 10V | 1.4Ohm @ 2.4A, 10V | Surface Mount | 5.5V @ 50µA | 12.6 nC @ 10 V | 500 V | ±30V | 620 pF @ 25 V | - | - | TO-252AA | - | 89W (Tc) | -55°C ~ 150°C (TJ) |
|

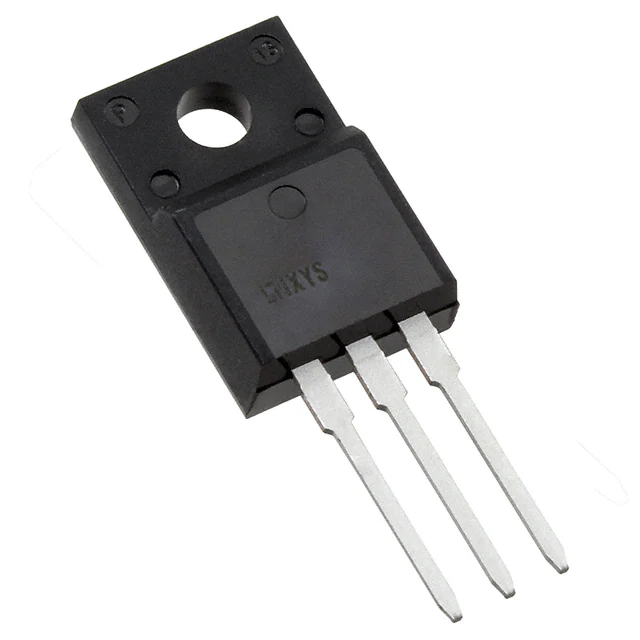

IXFP30N25X3MMOSFET N-CH 250V 30A TO220 IXYS |
262 | - |
|
数据表 |
HiPerFET™, Ultra X3 | TO-220-3 Full Pack, Isolated Tab | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 30A (Tc) | 10V | 60mOhm @ 15A, 10V | Through Hole | 4.5V @ 500µA | 21 nC @ 10 V | 250 V | ±20V | 1450 pF @ 25 V | - | - | TO-220 Isolated Tab | - | 36W (Tc) | -55°C ~ 150°C (TJ) |
|
|
IXFY4N60P3MOSFET N-CH 600V 4A TO252 IXYS |
2,615 | - |
|
数据表 |
HiPerFET™, Polar3™ | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 4A (Tc) | 10V | 2.2Ohm @ 2A, 10V | Surface Mount | 5V @ 250µA | 6.9 nC @ 10 V | 600 V | ±30V | 365 pF @ 25 V | - | - | TO-252AA | - | 114W (Tc) | -55°C ~ 150°C (TJ) |
|
|
IXFP4N60P3MOSFET N-CH 600V 4A TO220AB IXYS |
9,157 | - |
|
数据表 |
HiPerFET™, Polar3™ | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 4A (Tc) | 10V | 2.2Ohm @ 2A, 10V | Through Hole | 5V @ 250µA | 6.9 nC @ 10 V | 600 V | ±30V | 365 pF @ 25 V | - | - | TO-220-3 | - | 114W (Tc) | -55°C ~ 150°C (TJ) |
