直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DC1202524H2B-3T1FAN 120X25MM 24VDC TACH COMPUTER |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 103.9 CFM (2.91m³/min) | 0.400 in H2O (99.6 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | 47.0dB(A) | 12 W | CE, cURus | 3400 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Position Rectangular Connector | - |
|
|
DC1202524J2B-3T1FAN 120X25MM 24VDC TACH COMPUTER |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 67.8 CFM (1.90m³/min) | 0.170 in H2O (42.3 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | 35.0dB(A) | 4.8 W | CE, cURus | 2100 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Position Rectangular Connector | - |
|
|
DC1202524L2B-3T1FAN 120X25MM 24VDC TACH COMPUTER |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 77.0 CFM (2.16m³/min) | 0.230 in H2O (57.3 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | 39.0dB(A) | 7.2 W | CE, cURus | 2500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Position Rectangular Connector | - |
|
|
DC1202524M2B-3T1FAN 120X25MM 24VDC TACH COMPUTER |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 86.9 CFM (2.43m³/min) | 0.280 in H2O (69.7 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | 42.0dB(A) | 11.52 W | CE, cURus | 2800 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Position Rectangular Connector | - |
|
|
DC1202524U2B-3T1FAN 120X25MM 24VDC TACH COMPUTER |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 114.7 CFM (3.21m³/min) | 0.460 in H2O (114.6 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | 50.0dB(A) | 14.88 W | CE, cURus | 3700 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Position Rectangular Connector | - |
|
|
DC1202524V2B-3T1FAN 120X25MM 24VDC TACH COMPUTER |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 121.0 CFM (3.39m³/min) | 0.510 in H2O (127.0 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | 52.0dB(A) | 15.6 W | CE, cURus | 4000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Position Rectangular Connector | - |
|
614HFAN AXIAL 60X25.4MM 24VDC WIRE |
0 | - |
|
数据表 |
600 | - | Obsolete | 24VDC | Square - 60mm L x 60mm H | 27.0 CFM (0.756m³/min) | - | Ball | 0.19 lb (86.18 g) | Tubeaxial | - | 25.40mm | 44.0dB(A) | 3.4 W | - | - | - | 2 Wire Leads | - |
|
OD1238-12HB02AFAN AXIAL 120X38MM 12VDC WIRE |
0 | - |
|
数据表 |
OD1238 | Box | Active | 12VDC | Square - 120mm L x 120mm H | 123.9 CFM (3.47m³/min) | 0.469 in H2O (116.8 Pa) | Ball | 0.572 lb (259.45 g) | Tubeaxial | Auto Restart, Locked Rotor Sensor | 38.00mm | 44.1dB(A) | 6 W | CE, cURus, TUV, UR | 2895 RPM | -4 ~ 149°F (-20 ~ 65°C) | 3 Wire Leads | - |
|

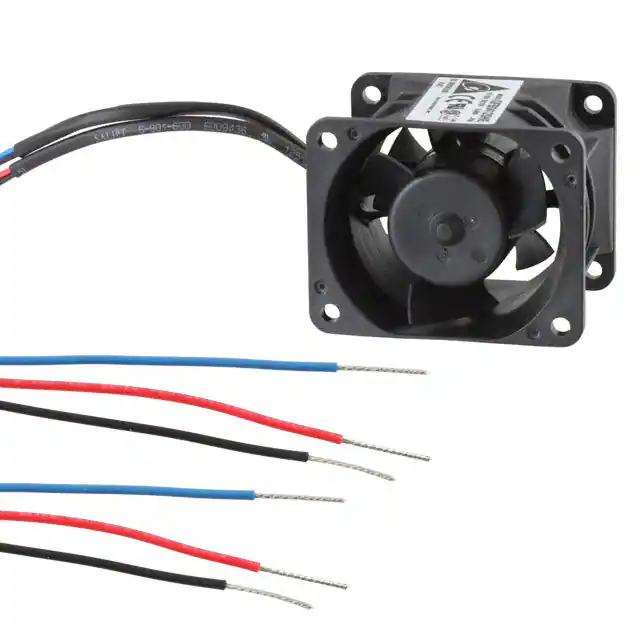

GFB0412SHE-F00FAN AXIAL DUAL 40X38MM 12VDC |
0 | - |
|
数据表 |
GFB | Bulk | Obsolete | 12VDC | Rectangular - 40mm L x 50mm H | 22.2 CFM (0.622m³/min) | 0.594 in H2O (148.0 Pa) | Ball | 0.111 lb (50.35 g) | Tubeaxial (Dual) | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | 57.5dB(A) | 6.72 W | CE, CSA, UL, VDE | 10000 Front, 9600 Rear | 14 ~ 140°F (-10 ~ 60°C) | 3 Wire Leads per Fan | - |
|
DC0923812U2B-BT0FAN AXIAL 92X38MM 12VDC WIRE |
0 | - |
|
数据表 |
- | Box | Active | 12VDC | Square - 92mm L x 92mm H | 145.6 CFM (4.08m³/min) | 1.460 in H2O (363.7 Pa) | Ball | 0.441 lb (200.00 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 38.00mm | 67.0dB(A) | 30 W | CE, cURus, TUV | 7000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
|
DC0923812H2B-BT0FAN AXIAL 92X38MM 12VDC WIRE |
0 | - |
|
数据表 |
- | Box | Active | 12VDC | Square - 92mm L x 92mm H | 123.6 CFM (3.46m³/min) | 1.120 in H2O (279.0 Pa) | Ball | 0.441 lb (200.00 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 38.00mm | 64.0dB(A) | 14.4 W | CE, cURus, TUV | 6000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
9G0912H1D011FAN AXIAL 92X38MM 12VDC WIRE |
22 | - |
|
数据表 |
San Ace 92 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 90.0 CFM (2.52m³/min) | 0.402 in H2O (100.1 Pa) | Ball | 0.397 lb (180.08 g) | Tubeaxial | Locked Rotor Sensor | 38.00mm | 43.0dB(A) | 6.96 W | CSA, TUV, UL | 4000 RPM | -4 ~ 140°F (-20 ~ 60°C) | 3 Wire Leads | - |
|
BFB0712L-F00FAN BLOWER 75.7X30MM 12VDC WIRE |
91 | - |
|
数据表 |
BFB | Bulk | Active | 12VDC | Square/Rounded - 75.7mm L x 75.7mm H | 7.0 CFM (0.196m³/min) | 0.157 in H2O (39.1 Pa) | Ball | 0.211 lb (95.71 g) | Blower | Locked Rotor Protection, Speed Sensor (Tach) | 30.00mm | 26.0dB(A) | 720 mW | CE, CSA, UL, VDE | 1900 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
412/2H-048FAN AXIAL 40X20MM 12VDC WIRE |
24 | - |
|
数据表 |
400 | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 7.4 CFM (0.207m³/min) | 0.040 in H2O (10.0 Pa) | Sleeve | - | Tubeaxial | Speed Sensor (Tach) | 20.00mm | 29.0dB(A) | 1 W | CE, CSA, UL, VDE | 7000 RPM | -4 ~ 122°F (-20 ~ 50°C) | 3 Wire Leads | IP20 |
|

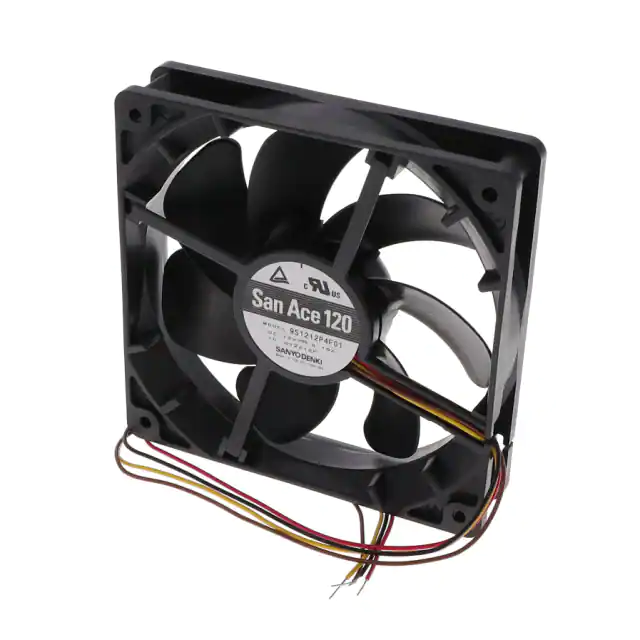

9S1212P4F01FAN AXIAL 119X25MM 12VDC WIRE |
28 | - |
|
数据表 |
San Ace 120 | Box | Active | 12VDC | Square - 119mm L x 119mm H | 70.6 CFM (1.98m³/min) | 0.120 in H2O (29.9 Pa) | Ball | 0.309 lb (140.16 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 25.00mm | 30.0dB(A) | 2.28 W | CSA, TUV, UL | 2200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
|
DB1203212H2B-2T0FAN BLOWER 119X32MM 12VDC WIRE |
38 | - |
|
数据表 |
DB | Box | Active | 12VDC | Square/Rounded - 119mm L x 119mm H | 32.1 CFM (0.899m³/min) | 1.060 in H2O (264.0 Pa) | Ball | - | Blower | Locked Rotor Protection | 32.00mm | 49.0dB(A) | 13.32 W | CE | 2800 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | IP55 - Dust Protected, Water Resistant |
|
08025DA-24P-AA-00FAN AXIAL 80X25.4MM 24VDC WIRE |
30 | - |
|
数据表 |
08025DA | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 73.0 CFM (2.04m³/min) | 0.750 in H2O (186.8 Pa) | Ball | 0.265 lb (120.2 g) | Tubeaxial | Auto Restart | 25.40mm | 55.0dB | 6.48 W | - | 7000 RPM | 14 ~ 140°F (-10 ~ 60°C) | 2 Wire Leads | - |
|
|
08025DA-12P-AA-00FAN AXIAL 80X25.4MM 12VDC WIRE |
22 | - |
|
数据表 |
08025DA | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 72.4 CFM (2.03m³/min) | 0.750 in H2O (186.8 Pa) | Ball | 0.265 lb (120.2 g) | Tubeaxial | Auto Restart | 25.40mm | 53.0dB | 5.88 W | - | 7000 RPM | 14 ~ 140°F (-10 ~ 60°C) | 2 Wire Leads | - |
|
09225VE-12Q-CT-00FAN AXIAL 92X25MM 12VDC WIRE |
60 | - |
|
数据表 |
09225VE | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 96.4 CFM (2.70m³/min) | 0.600 in H2O (149.5 Pa) | Ball | - | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 25.00mm | 51.0dB(A) | 8.64 W | CE, cULus, VDE | 5600 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | IP68/IP69K - Dust Tight, Water Resistant, Waterproof |
|
|
9G0924S2D01FAN AXIAL 92X32MM 24VDC WIRE |
72 | - |
|
数据表 |
San Ace 92 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 70.7 CFM (1.98m³/min) | 0.309 in H2O (77.0 Pa) | Ball | 0.375 lb (170.1 g) | Tubeaxial | Locked Rotor Sensor | 32.00mm | 38.0dB(A) | 4.56 W | CSA, TUV, UL | 3500 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
