直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9G0912S2D01FAN AXIAL 92X32MM 12VDC WIRE |
60 | - |
|
数据表 |
San Ace 92 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 70.7 CFM (1.98m³/min) | 0.309 in H2O (77.0 Pa) | Ball | 0.375 lb (170.1 g) | Tubeaxial | Locked Rotor Sensor | 32.00mm | 38.0dB(A) | 4.56 W | CSA, TUV, UL | 3500 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
9G0912S2011FAN AXIAL 92X32MM 12VDC WIRE |
42 | - |
|
数据表 |
San Ace 92 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 70.6 CFM (1.98m³/min) | 0.309 in H2O (77.0 Pa) | Ball | 0.375 lb (170.1 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 32.00mm | 38.0dB(A) | 4.56 W | CSA, TUV, UL | 3500 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
9G0912A201FAN AXIAL 92X32MM 12VDC WIRE |
40 | - |
|
数据表 |
San Ace 92 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 88.2 CFM (2.47m³/min) | 0.462 in H2O (115.2 Pa) | Ball | 0.375 lb (170.1 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 32.00mm | 44.0dB(A) | 6.96 W | CSA, TUV, UL | 4300 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
9G0924A2D01FAN AXIAL 92X32MM 24VDC WIRE |
30 | - |
|
数据表 |
San Ace 92 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 88.3 CFM (2.47m³/min) | 0.462 in H2O (115.2 Pa) | Ball | 0.375 lb (170.1 g) | Tubeaxial | Locked Rotor Sensor | 32.00mm | 44.0dB(A) | 7.2 W | CSA, TUV, UL | 4300 RPM | -4 ~ 140°F (-20 ~ 60°C) | 3 Wire Leads | - |
|
9G0948M2021FAN AXIAL 92X32MM 48VDC WIRE |
31 | - |
|
数据表 |
San Ace 92 | Box | Active | 48VDC | Square - 92mm L x 92mm H | 42.4 CFM (1.19m³/min) | 0.108 in H2O (27.0 Pa) | Ball | 0.375 lb (170.1 g) | Tubeaxial | Speed Sensor (Tach) | 32.00mm | 25.0dB(A) | 2.4 W | CSA, TUV, UL | 2100 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
CFM-A238BF-165-635FAN AXIAL 120X38MM 12VDC WIRE |
90 | - |
|
数据表 |
CFM-120 BF | Box | Active | 12VDC | Square - 120mm L x 120mm H | 213.8 CFM (6.98m³/min) | 1.430 in H2O (356.2 Pa) | Ball | - | Tubeaxial | Auto Restart | 38.00mm | 63.5dB(A) | 33.36 W | CE, cURus, TUV | 6500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
09232VE-24R-CTS-0FAN AXIAL 92X32MM 24VDC WIRE |
54 | - |
|
数据表 |
09232VE | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 105.9 CFM (2.97m³/min) | 1.100 in H2O (274.0 Pa) | Ball | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 32.00mm | 59.0dB(A) | 12 W | CE, cULus, VDE | 7000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | IP68/IP69K - Dust Tight, Water Resistant, Waterproof |
|
11338JE-12L-BA-F0FAN AXIAL 113X45.5MM 12VDC WIRE |
62 | - |
|
数据表 |
11338JE | Box | Active | 12VDC | Square - 113mm L x 113mm H | 52.5 CFM (1.47m³/min) | 0.150 in H2O (37.4 Pa) | Ball | 0.375 lb (170.1 g) | Tubeaxial | Auto Restart | 45.50mm | 32.5dB | 1.56 W | - | 2900 RPM | -40 ~ 104°F (-40 ~ 40°C) | 2 Wire Leads | - |
|
MR1238L24B-FSRFAN AXIAL 120X38MM 24VDC WIRE |
57 | - |
|
数据表 |
MR1238 | Box | Active | 24VDC | Square - 120mm L x 120mm H | 184.4 CFM (5.16m³/min) | 0.660 in H2O (164.4 Pa) | Ball | 0.838 lb (380.11 g) | Tubeaxial | Auto Restart | 38.00mm | 58.5dB(A) | - | CE, cUL, TUV, UL | 3500 RPM | - | 2 Wire Leads | - |
|
9RA0912G4001FAN AXIAL 92X25MM 12VDC WIRE |
50 | - |
|
数据表 |
San Ace 92 | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 63.5 CFM (1.78m³/min) | 0.290 in H2O (72.2 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | 37.0dB(A) | 2.64 W | cURus, TUV | 4200 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|

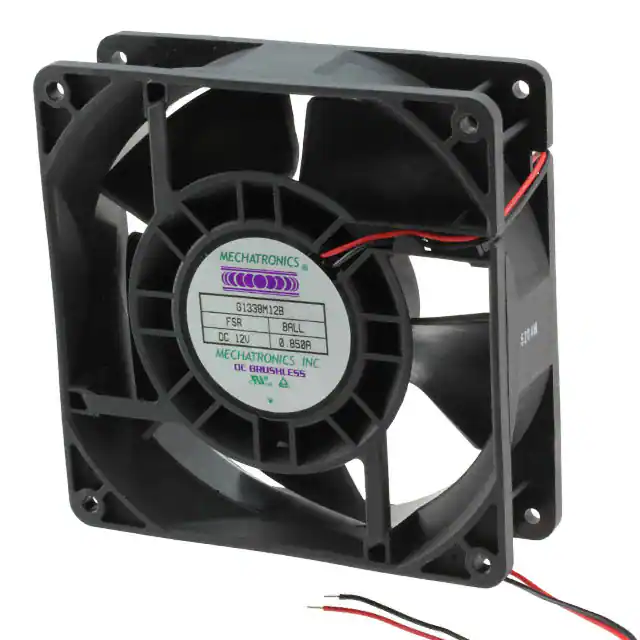

G1338M12B-FSRFAN AXIAL 127X38MM 12VDC WIRE |
61 | - |
|
数据表 |
G1338 | Bulk | Active | 12VDC | Square - 127mm L x 127mm H | 122.1 CFM (3.42m³/min) | 0.460 in H2O (114.6 Pa) | Ball | 0.784 lb (355.62 g) | Tubeaxial | Thermal Overload Protector (TOP) | 38.00mm | 46.0dB(A) | - | CE, cUL, TUV, UL | 2800 RPM | - | 2 Wire Leads | - |
|
|
DC0923824H2B-3T0FAN 92X38MM 24VDC TACH |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 123.6 CFM (3.46m³/min) | 1.120 in H2O (279.0 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | 64.0dB(A) | 28.8 W | CE, cURus | 6000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
DC0923824U2B-3T0FAN 92X38MM 24VDC TACH |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 145.6 CFM (4.08m³/min) | 1.460 in H2O (363.7 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | 67.0dB(A) | 60 W | CE, cURus | 7000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
DC0923848U2B-2T0FAN 92X38MM 48VDC |
0 | - |
|
数据表 |
- | Bulk | Active | 48VDC | Square - 92mm L x 92mm H | 145.6 CFM (4.08m³/min) | 1.460 in H2O (363.7 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection | 38.00mm | 67.0dB(A) | 120 W | CE, cURus | 7000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
F1238E24B1+6-FSRFAN AXIAL 119X38MM 24VDC WIRE |
0 | - |
|
数据表 |
F1238-S | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 126.0 CFM (3.53m³/min) | 0.280 in H2O (69.7 Pa) | Ball | 0.536 lb (243.13 g) | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 38.00mm | 43.0dB(A) | - | CE, cUL, TUV, UL | 2800 RPM | - | 4 Wire Leads | - |
|
|
F1238H24B1+3-FSRFAN AXIAL 119X38MM 24VDC WIRE |
0 | - |
|
数据表 |
F1238-S | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 115.0 CFM (3.22m³/min) | 0.250 in H2O (62.3 Pa) | Ball | 0.536 lb (243.13 g) | Tubeaxial | Auto Restart, Locked Rotor Protection, Speed Sensor (Tach), Thermistor | 38.00mm | 41.0dB(A) | - | CE, cUL, TUV, UL | 2500 RPM | - | 3 Wire Leads | - |
|
|
GF60252BX-1000U-SEP24VDC FAN 60X25MM TACH/PWM IP68 |
0 | - |
|
数据表 |
GF | Box | Active | 24VDC | Square - 60mm L x 60mm H | 54.6 CFM (1.53m³/min) | 1.440 in H2O (358.7 Pa) | Ball | - | Tubeaxial | PWM Control | 25.40mm | 55.4dB(A) | 13.08 W | CCC, CE, cURus, TUV, UKCA | 12900 RPM | - | 3 Wire Leads | IP68 - Dust Tight, Waterproof |
|
|
GF60252B1-1000U-SDP24VDC FAN 60X25MM TACH/PWM GR487 |
0 | - |
|
数据表 |
GF | Box | Active | 24VDC | Square - 60mm L x 60mm H | 48.1 CFM (1.35m³/min) | 1.210 in H2O (301.4 Pa) | Ball | - | Tubeaxial | PWM Control | 25.40mm | 53.2dB(A) | 9.72 W | CCC, CE, cURus, TUV, UKCA | 11500 RPM | - | 3 Wire Leads | - |
|
|
GF60252B3-1000U-SDP24VDC FAN 60X25MM TACH/PWM GR487 |
0 | - |
|
数据表 |
GF | Box | Active | 24VDC | Square - 60mm L x 60mm H | 26.9 CFM (0.753m³/min) | 0.420 in H2O (104.6 Pa) | Ball | - | Tubeaxial | PWM Control | 25.40mm | 38.0dB(A) | 2.76 W | CCC, CE, cURus, TUV, UKCA | 6450 RPM | - | 3 Wire Leads | - |
|
|
GF60252B2-1000U-SEP24VDC FAN 60X25MM TACH/PWM IP68 |
0 | - |
|
数据表 |
GF | Box | Active | 24VDC | Square - 60mm L x 60mm H | 36.3 CFM (1.02m³/min) | 0.790 in H2O (196.8 Pa) | Ball | - | Tubeaxial | PWM Control | 25.40mm | 47.2dB(A) | 5 W | CCC, CE, cURus, TUV, UKCA | 9000 RPM | - | 3 Wire Leads | IP68 - Dust Tight, Waterproof |
