直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
414/2FAN AXIAL 40X20MM 24VDC WIRE |
78 | - |
|
数据表 |
400 | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 5.9 CFM (0.165m³/min) | - | Sintec | 0.06 lb (27.22 g) | Tubeaxial | Speed Sensor (Tach) | 20.00mm | 18.0dB(A) | 1 W | CSA, UL, VDE | 6000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|

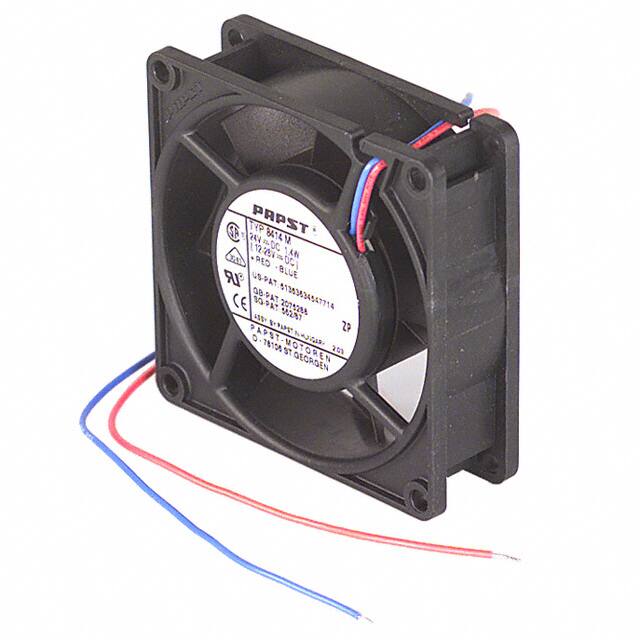

8414MFAN AXIAL 80X25MM 24VDC WIRE |
0 | - |
|
数据表 |
8400 | - | Obsolete | 24VDC | Square - 80mm L x 80mm H | 27.0 CFM (0.756m³/min) | - | Ball | 0.31 lb (140.61 g) | Tubeaxial | - | 25.00mm | 29.0dB(A) | 1.4 W | - | - | - | 2 Wire Leads | - |
|
8414LFAN AXIAL 80X25MM 24VDC WIRE |
0 | - |
|
数据表 |
8400 | - | Obsolete | 24VDC | Square - 80mm L x 80mm H | 21.0 CFM (0.588m³/min) | - | Ball | 0.31 lb (140.61 g) | Tubeaxial | - | 25.00mm | 21.0dB(A) | 800 mW | - | - | - | 2 Wire Leads | - |
|
9RA0824H4001FAN AXIAL 80X25MM 24VDC WIRE |
52 | - |
|
数据表 |
San Ace 80 | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 32.5 CFM (0.910m³/min) | 0.140 in H2O (34.9 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | 27.0dB(A) | 1.2 W | cURus, TUV | 3300 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
DC1203824U2B-2T2FAN 120X38MM 24VDC MOLEX 22-01-1 |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 123.3 CFM (3.45m³/min) | 0.450 in H2O (112.1 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection | 38.00mm | 44.0dB(A) | 18 W | CE, cURus | 2900 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Position Rectangular Connector | - |
|
|
DC1203824V2B-2T2FAN 120X38MM 24VDC MOLEX 22-01-1 |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 135.7 CFM (3.80m³/min) | 0.540 in H2O (134.5 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection | 38.00mm | 48.0dB(A) | 19.2 W | CE, cURus | 3200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Position Rectangular Connector | - |
|
DC0803812V2B-3T0FAN AXIAL 80X38MM 12VDC WIRE |
0 | - |
|
数据表 |
- | Box | Active | 12VDC | Square - 80mm L x 80mm H | 130.0 CFM (3.64m³/min) | 2.000 in H2O (498.2 Pa) | Ball | 0.463 lb (210.01 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | 66.0dB(A) | 32.4 W | CE, cURus, TUV | 9000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
DC0803824V2B-2T0FAN 80X38MM 24VDC |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 130.0 CFM (3.64m³/min) | 2.000 in H2O (498.2 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection | 38.00mm | 66.0dB(A) | 64.8 W | CE, cURus | 9000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
GF60252B2-1000U-FDP24VDC FAN 60X25MM TACH GR487 |
0 | - |
|
数据表 |
GF | Box | Active | 24VDC | Square - 60mm L x 60mm H | 36.3 CFM (1.02m³/min) | 0.790 in H2O (196.8 Pa) | Ball | - | Tubeaxial | Locked Rotor Sensor | 25.40mm | 47.2dB(A) | 5 W | CCC, CE, cURus, TUV, UKCA | 9000 RPM | - | 3 Wire Leads | - |
|
|
GF60252B1-1000U-FDP24VDC FAN 60X25MM TACH GR487 |
0 | - |
|
数据表 |
GF | Box | Active | 24VDC | Square - 60mm L x 60mm H | 48.1 CFM (1.35m³/min) | 1.210 in H2O (301.4 Pa) | Ball | - | Tubeaxial | Locked Rotor Sensor | 25.40mm | 53.2dB(A) | 9.72 W | CCC, CE, cURus, TUV, UKCA | 11500 RPM | - | 3 Wire Leads | - |
|
|
GF60252B3-1000U-FDP24VDC FAN 60X25MM TACH GR487 |
0 | - |
|
数据表 |
GF | Box | Active | 24VDC | Square - 60mm L x 60mm H | 26.9 CFM (0.753m³/min) | 0.420 in H2O (104.6 Pa) | Ball | - | Tubeaxial | Locked Rotor Sensor | 25.40mm | 38.0dB(A) | 2.76 W | CCC, CE, cURus, TUV, UKCA | 6450 RPM | - | 3 Wire Leads | - |
|
|
GF60252B2-1000U-FEP24VDC FAN 60X25MM TACH IP68 |
0 | - |
|
数据表 |
GF | Box | Active | 24VDC | Square - 60mm L x 60mm H | 36.3 CFM (1.02m³/min) | 0.790 in H2O (196.8 Pa) | Ball | - | Tubeaxial | Locked Rotor Sensor | 25.40mm | 47.2dB(A) | 5 W | CCC, CE, cURus, TUV, UKCA | 9000 RPM | - | 3 Wire Leads | IP68 - Dust Tight, Waterproof |
|
|
GF60252BX-1000U-FEP24VDC FAN 60X25MM TACH IP68 |
0 | - |
|
数据表 |
GF | Box | Active | 24VDC | Square - 60mm L x 60mm H | 54.6 CFM (1.53m³/min) | 1.440 in H2O (358.7 Pa) | Ball | - | Tubeaxial | Locked Rotor Sensor | 25.40mm | 55.4dB(A) | 13.08 W | CCC, CE, cURus, TUV, UKCA | 12900 RPM | - | 3 Wire Leads | IP68 - Dust Tight, Waterproof |
|
|
GF60252B1-1000U-FEP24VDC FAN 60X25MM TACH IP68 |
0 | - |
|
数据表 |
GF | Box | Active | 24VDC | Square - 60mm L x 60mm H | 48.1 CFM (1.35m³/min) | 1.210 in H2O (301.4 Pa) | Ball | - | Tubeaxial | Locked Rotor Sensor | 25.40mm | 53.2dB(A) | 9.72 W | CCC, CE, cURus, TUV, UKCA | 11500 RPM | - | 3 Wire Leads | IP68 - Dust Tight, Waterproof |
|
|
GF60252B3-1000U-FEP24VDC FAN 60X25MM TACH IP68 |
0 | - |
|
数据表 |
GF | Box | Active | 24VDC | Square - 60mm L x 60mm H | 26.9 CFM (0.753m³/min) | 0.420 in H2O (104.6 Pa) | Ball | - | Tubeaxial | Locked Rotor Sensor | 25.40mm | 38.0dB(A) | 2.76 W | CCC, CE, cURus, TUV, UKCA | 6450 RPM | - | 3 Wire Leads | IP68 - Dust Tight, Waterproof |
|
MS6038H12B1+6-FSRFAN AXIAL 60X38MM 12VDC WIRE |
100 | - |
|
数据表 |
MS6038-S | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 58.0 CFM (1.62m³/min) | 1.600 in H2O (398.6 Pa) | Ball | 0.231 lb (104.78 g) | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 38.00mm | 59.0dB(A) | - | - | 11000 RPM | - | 4 Wire Leads | - |
|
109R0812G4D01FAN AXIAL 80X25MM 12VDC WIRE |
80 | - |
|
数据表 |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 53.0 CFM (1.48m³/min) | 0.323 in H2O (80.4 Pa) | Ball | 0.243 lb (110.22 g) | Tubeaxial | Locked Rotor Sensor | 25.00mm | 40.0dB(A) | 4.44 W | CSA, TUV, UL | 4500 RPM | -4 ~ 140°F (-20 ~ 60°C) | 3 Wire Leads | - |
|
|
9RA0812G4001FAN AXIAL 80X25MM 12VDC WIRE |
93 | - |
|
数据表 |
San Ace 80 | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 49.4 CFM (1.38m³/min) | 0.330 in H2O (82.2 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | 37.0dB(A) | 2.64 W | cURus, TUV | 5000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
GF60252BX-1000U-FDP24VDC FAN 60X25MM TACH GR487 |
0 | - |
|
数据表 |
GF | Box | Active | 24VDC | Square - 60mm L x 60mm H | 54.6 CFM (1.53m³/min) | 1.440 in H2O (358.7 Pa) | Ball | - | Tubeaxial | Locked Rotor Sensor | 25.40mm | 55.4dB(A) | 13.08 W | CCC, CE, cURus, TUV, UKCA | 12900 RPM | - | 3 Wire Leads | - |
|
9G0924H101FAN AXIAL 92X38MM 24VDC WIRE |
49 | - |
|
数据表 |
San Ace 92 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 90.0 CFM (2.52m³/min) | 0.401 in H2O (100.0 Pa) | Ball | 0.397 lb (180.08 g) | Tubeaxial | Speed Sensor (Tach) | 38.00mm | 43.0dB(A) | 7.2 W | CSA, TUV, UL | 4000 RPM | -4 ~ 140°F (-20 ~ 60°C) | 3 Wire Leads | - |
