直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MQ8038E12B-FSRFAN AXIAL 80X38MM 12VDC WIRE |
68 | - |
|
数据表 |
MQ8038 | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 123.3 CFM (3.45m³/min) | 1.970 in H2O (490.7 Pa) | Ball | 0.397 lb (180.08 g) | Tubeaxial | Thermal Overload Protector (TOP) | 38.00mm | 67.0dB(A) | - | CE, cUL, TUV, UL | 9000 RPM | - | 2 Wire Leads | - |
|
08025VE-12P-GTD-0FAN AXIAL 80X25.4MM 12VDC WIRE |
93 | - |
|
数据表 |
- | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 73.1 CFM (2.05m³/min) | 0.750 in H2O (186.8 Pa) | Ball | 0.265 lb (120.2 g) | Tubeaxial | Auto Restart | 25.40mm | 53.0dB(A) | 6.84 W | - | 7000 RPM | 14 ~ 140°F (-10 ~ 60°C) | 2 Wire Leads | IP68 - Dust Tight, Waterproof |
|
9RA0924H4001FAN AXIAL 92X25MM 24VDC WIRE |
42 | - |
|
数据表 |
San Ace 92 | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 51.7 CFM (1.45m³/min) | 0.190 in H2O (47.3 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | 31.0dB(A) | 1.92 W | cURus, TUV | 3400 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
9RA0912H40011FAN AXIAL 92X25MM 12VDC WIRE |
30 | - |
|
数据表 |
San Ace 92 | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 52.0 CFM (1.46m³/min) | 0.190 in H2O (47.3 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | 31.0dB(A) | 1.68 W | cURus, TUV | 3400 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
MR9238H24B-FSRFAN AXIAL 92X38MM 24VDC WIRE |
87 | - |
|
数据表 |
MR9238 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 152.0 CFM (4.26m³/min) | 1.182 in H2O (294.4 Pa) | Ball | 0.437 lb (198.00 g) | Tubeaxial | Auto Restart | 38.00mm | 58.8dB(A) | - | CE, cUL, TUV, UL | 7000 RPM | - | 2 Wire Leads | - |
|
9GE0412P3G03FAN AXIAL 40X28MM 12VDC WIRE |
61 | - |
|
数据表 |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 21.2 CFM (0.594m³/min) | 1.044 in H2O (260.0 Pa) | Ball | 0.121 lb (54.88 g) | Tubeaxial | PWM Control, Speed Sensor (Tach) | 28.00mm | 52.0dB(A) | 5.64 W | CSA, TUV, UL | 13000 RPM | -4 ~ 140°F (-20 ~ 60°C) | 4 Wire Leads | - |
|
MQ8038E24B-FSRFAN AXIAL 80X38MM 24VDC WIRE |
14 | - |
|
数据表 |
MQ8038 | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 123.3 CFM (3.45m³/min) | 1.970 in H2O (490.7 Pa) | Ball | 0.397 lb (180.08 g) | Tubeaxial | Thermal Overload Protector (TOP) | 38.00mm | 67.0dB(A) | - | CE, cUL, TUV, UL | 9000 RPM | - | 2 Wire Leads | - |
|
9S1212M4011FAN AXIAL 119X25MM 12VDC WIRE |
62 | - |
|
数据表 |
San Ace 120 | Box | Active | 12VDC | Square - 119mm L x 119mm H | 58.6 CFM (1.64m³/min) | 0.090 in H2O (22.4 Pa) | Ball | 0.309 lb (140.16 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | 24.0dB(A) | 1.56 W | CSA, TUV, UL | 1850 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
9RA0924S40011FAN AXIAL 92X25MM 24VDC WIRE |
17 | - |
|
数据表 |
San Ace 92 | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 58.1 CFM (1.63m³/min) | 0.250 in H2O (62.3 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | 35.0dB(A) | 2.4 W | cURus, TUV | 3850 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|

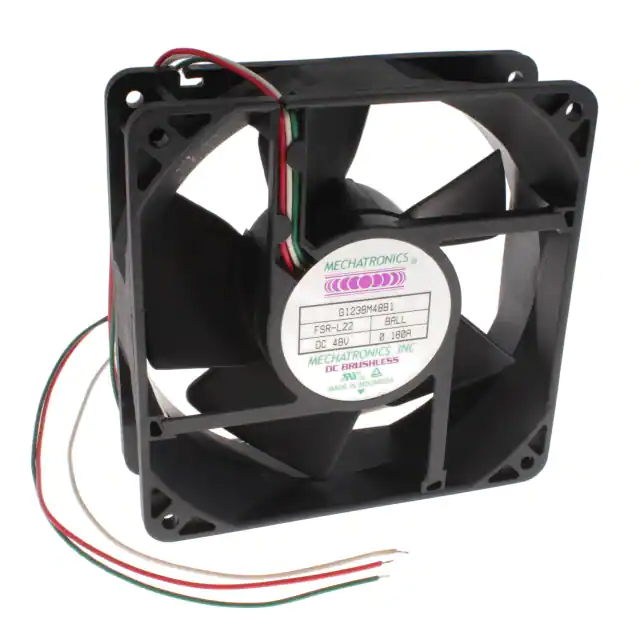

G1238M48B1-FSR-L22FAN AXIAL 120X38MM 48VDC WIRE |
40 | - |
|
数据表 |
G1238 | Bulk | Active | 48VDC | Square - 120mm L x 120mm H | 125.0 CFM (3.50m³/min) | 0.320 in H2O (79.7 Pa) | Ball | 0.74 lb (335.66 g) | Tubeaxial | Speed Sensor (Tach), Thermal Overload Protector (TOP) | 38.00mm | 43.0dB(A) | - | CE, cUL, TUV, UL | 2800 RPM | - | 3 Wire Leads | - |
|
G1238E24B1-FSR-TTLFAN AXIAL 120X38MM 24VDC WIRE |
38 | - |
|
数据表 |
G1238 | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 158.0 CFM (4.42m³/min) | 0.490 in H2O (122.1 Pa) | Ball | 0.74 lb (335.66 g) | Tubeaxial | Speed Sensor (Tach), Thermal Overload Protector (TOP) | 38.00mm | 49.0dB(A) | - | CE, cUL, TUV, UL | 3600 RPM | - | 3 Wire Leads | - |
|

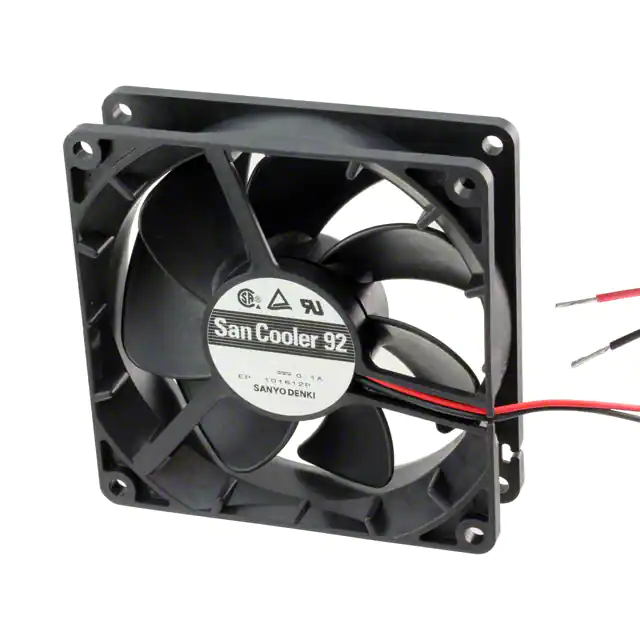

9A0924H4021FAN AXIAL 92X25MM 24VDC WIRE |
27 | - |
|
数据表 |
San Cooler 92 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 51.2 CFM (1.43m³/min) | 0.177 in H2O (44.1 Pa) | Ball | 0.222 lb (100.7 g) | Tubeaxial | Locked Rotor Protection | 25.00mm | 33.0dB(A) | 2.4 W | CSA, TUV, UL | 3150 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
9GA0412P6G023FAN AXL 40X20MM 12VDC RECT CONN |
76 | - |
|
数据表 |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | - | - | Ball | 0.078 lb (35.38 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 20.00mm | 47.0dB(A) | - | - | 16000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Position Rectangular Connector | - |
|
12539JA-12M-BA-00FAN AXIAL 125.4X39MM 12VDC WIRE |
16 | - |
|
数据表 |
12539JA | Box | Active | 12VDC | Square - 125.4mm L x 125.4mm H | 57.3 CFM (1.60m³/min) | 0.120 in H2O (29.9 Pa) | Ball | - | Tubeaxial | Auto Restart | 39.00mm | 26.5dB | 1.08 W | - | 1950 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
B1232H12B-BSR-I832FAN BLOWER 120X32MM 12VDC WIRE |
14 | - |
|
数据表 |
B1232 | Bulk | Active | 12VDC | Square/Rounded - 120mm L x 120mm H | 28.0 CFM (0.784m³/min) | 0.680 in H2O (169.4 Pa) | Ball | 0.706 lb (320.24 g) | Blower | Thermal Overload Protector (TOP) | 32.00mm | 49.0dB(A) | - | CE, cUL, TUV, UL | 2800 RPM | - | 2 Wire Leads | - |
|
G8032M12B-RSR-EM3FAN AXIAL 80X32MM 12VDC WIRE |
21 | - |
|
数据表 |
G8032 | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 41.0 CFM (1.15m³/min) | 0.290 in H2O (72.2 Pa) | Ball | 0.286 lb (129.73 g) | Tubeaxial | Thermal Overload Protector (TOP) | 32.00mm | 38.0dB(A) | - | CE, cUL, TUV, UL | 3500 RPM | - | 2 Wire Leads | - |
|
|
9A0824S402FAN AXIAL 80X25MM 24VDC WIRE |
74 | - |
|
数据表 |
San Cooler 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 42.4 CFM (1.19m³/min) | 0.193 in H2O (48.1 Pa) | Ball | 0.199 lb (90.26 g) | Tubeaxial | Locked Rotor Protection | 25.00mm | 34.0dB(A) | 2.4 W | CSA, TUV, UL | 3400 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
E1225M12B1+6-FSRFAN AXIAL 120X25MM 12VDC WIRE |
62 | - |
|
数据表 |
E1225 | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 67.0 CFM (1.88m³/min) | 0.180 in H2O (45.0 Pa) | Ball | 0.436 lb (197.77 g) | Tubeaxial | PWM Control, Speed Sensor (Tach), Thermal Overload Protector (TOP) | 25.00mm | 36.0dB(A) | - | CE, cUL, TUV, UL | 2200 RPM | - | 4 Wire Leads | - |
|
G1225E24B-FSR-EMFAN AXIAL 120X25MM 24VDC WIRE |
92 | - |
|
数据表 |
G1225 | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 99.0 CFM (2.77m³/min) | 0.220 in H2O (54.8 Pa) | Ball | 0.436 lb (197.77 g) | Tubeaxial | Thermal Overload Protector (TOP) | 25.00mm | 42.0dB(A) | - | CE, cUL, TUV, UL | 2700 RPM | - | 2 Wire Leads | IP57 - Dust Protected, Waterproof |
|
9G0924G102FAN AXIAL 92X38MM 24VDC WIRE |
21 | - |
|
数据表 |
San Ace 92 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 110.0 CFM (3.08m³/min) | 0.602 in H2O (149.9 Pa) | Ball | 0.397 lb (180.08 g) | Tubeaxial | Locked Rotor Protection | 38.00mm | 50.0dB(A) | 13.2 W | CSA, TUV, UL | 5000 RPM | -4 ~ 140°F (-20 ~ 60°C) | 2 Wire Leads | - |
