直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
GF60252B3-1000U-SEP24VDC FAN 60X25MM TACH/PWM IP68 |
0 | - |
|
数据表 |
GF | Box | Active | 24VDC | Square - 60mm L x 60mm H | 26.9 CFM (0.753m³/min) | 0.420 in H2O (104.6 Pa) | Ball | - | Tubeaxial | PWM Control | 25.40mm | 38.0dB(A) | 2.76 W | CCC, CE, cURus, TUV, UKCA | 6450 RPM | - | 3 Wire Leads | IP68 - Dust Tight, Waterproof |
|
G1238E24B-FSR-EMFAN AXIAL 119X38MM 24VDC WIRE |
0 | - |
|
数据表 |
G1238 | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 158.0 CFM (4.42m³/min) | 0.490 in H2O (122.1 Pa) | Ball | 0.74 lb (335.66 g) | Tubeaxial | Thermal Overload Protector (TOP) | 38.00mm | 49.0dB(A) | - | CE, cUL, TUV, UL | 3600 RPM | - | 2 Wire Leads | IP57 - Dust Protected, Waterproof |
|
G1238M24B-FSR-EMFAN AXIAL 119X38MM 24VDC WIRE |
0 | - |
|
数据表 |
G1238 | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 125.0 CFM (3.50m³/min) | 0.320 in H2O (79.7 Pa) | Ball | 0.74 lb (335.66 g) | Tubeaxial | Thermal Overload Protector (TOP) | 38.00mm | 43.0dB(A) | - | CE, cUL, TUV, UL | 2800 RPM | - | 2 Wire Leads | IP57 - Dust Protected, Waterproof |
|

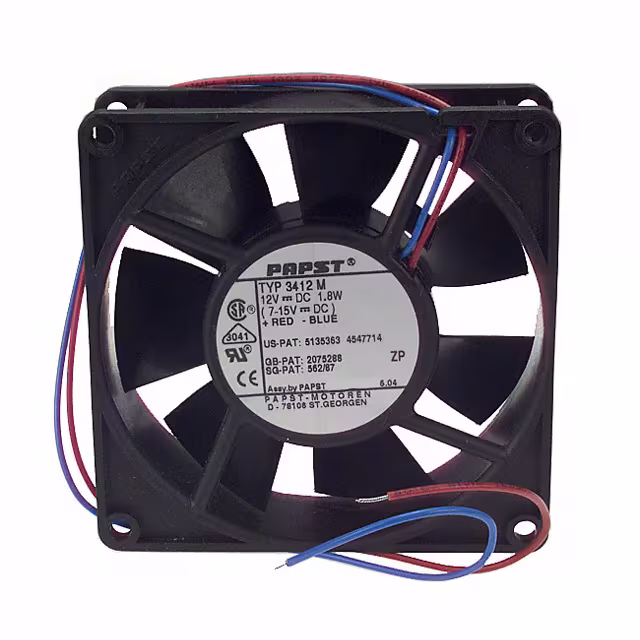

3412MFAN AXIAL 92X25.4MM 12VDC WIRE |
0 | - |
|
数据表 |
3400 | - | Obsolete | 12VDC | Square - 92mm L x 92mm H | 42.0 CFM (1.18m³/min) | - | Ball | 0.31 lb (140.61 g) | Tubeaxial | - | 25.40mm | 32.0dB(A) | 1.8 W | - | - | - | 2 Wire Leads | - |
|

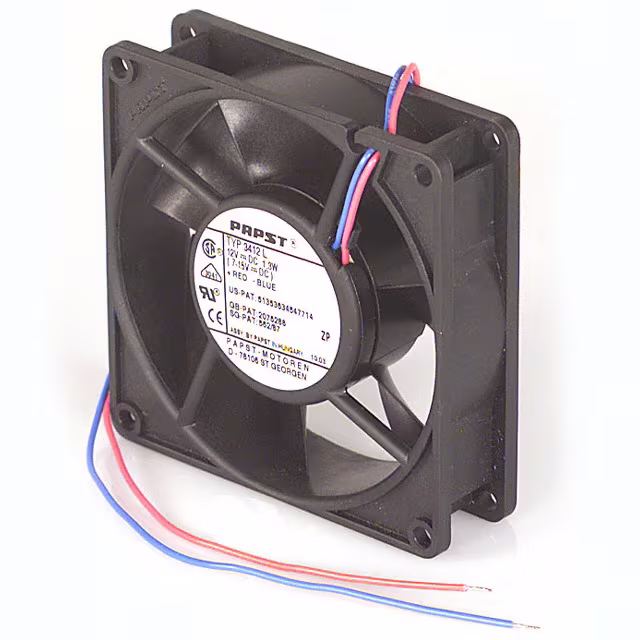

3412LFAN AXIAL 92X25.4MM 12VDC WIRE |
0 | - |
|
数据表 |
3400 | - | Obsolete | 12VDC | Square - 92mm L x 92mm H | 36.0 CFM (1.01m³/min) | - | Ball | 0.31 lb (140.61 g) | Tubeaxial | - | 25.40mm | 27.0dB(A) | 1.3 W | - | - | - | 2 Wire Leads | - |
|
|
3412FAN AXIAL 92X25.4MM 12VDC WIRE |
0 | - |
|
数据表 |
3400 | - | Obsolete | 12VDC | Square - 92mm L x 92mm H | 49.0 CFM (1.37m³/min) | - | Ball | 0.31 lb (140.61 g) | Tubeaxial | - | 25.40mm | 36.0dB(A) | 2.4 W | - | - | - | 2 Wire Leads | - |
|
605LFAN AXIAL 60X25.4MM 5VDC WIRE |
0 | - |
|
数据表 |
600 | - | Obsolete | 5VDC | Square - 60mm L x 60mm H | 12.0 CFM (0.336m³/min) | - | Ball | 0.19 lb (86.18 g) | Tubeaxial | - | 25.40mm | 26.0dB(A) | 800 mW | - | - | - | 2 Wire Leads | - |
|
|
DC0803824U2B-3T3FAN 80X38MM 24VDC TACH MOLEX 22- |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 105.5 CFM (2.95m³/min) | 1.360 in H2O (338.8 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | 62.0dB(A) | 36 W | CE, cURus | 7500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Position Rectangular Connector | - |
|
|
DC0803824H2B-3T3FAN 80X38MM 24VDC TACH MOLEX 22- |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 84.8 CFM (2.37m³/min) | 0.890 in H2O (221.7 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | 56.0dB(A) | 24 W | CE, cURus | 6100 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Position Rectangular Connector | - |
|
|
DC0803824M2B-3T3FAN 80X38MM 24VDC TACH MOLEX 22- |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 71.8 CFM (2.01m³/min) | 0.760 in H2O (189.3 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | 53.0dB(A) | 18.24 W | CE, cURus | 5600 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Position Rectangular Connector | - |
|
|
09533GA-12M-AT-00FAN BLOWER 97X33MM 12VDC WIRE |
0 | - |
|
数据表 |
09533GA | Bulk | Active | 12VDC | Square/Rounded - 97mm L x 93.5mm H | 28.6 CFM (0.801m³/min) | 1.370 in H2O (341.2 Pa) | Ball | - | Blower | Auto Restart, Speed Sensor (Tach) | 33.00mm | 54.5dB | 12.4 W | - | 3700 RPM | - | 3 Wire Leads | - |
|
|
09533GA-24M-AT-00FAN BLOWER 97X33MM 24VDC WIRE |
0 | - |
|
数据表 |
09533GA | Bulk | Active | 24VDC | Square/Rounded - 97mm L x 93.5mm H | 28.6 CFM (0.801m³/min) | 1.370 in H2O (341.2 Pa) | Ball | - | Blower | Auto Restart, Speed Sensor (Tach) | 33.00mm | 54.5dB | 11.8 W | - | 3700 RPM | 14 ~ 140°F (-10 ~ 60°C) | 3 Wire Leads | - |
|
|
09533GA-12K-AT-00FAN BLOWER 97X33MM 12VDC WIRE |
0 | - |
|
数据表 |
09533GA | Bulk | Active | 12VDC | Square/Rounded - 97mm L x 93.5mm H | 20.2 CFM (0.566m³/min) | 0.610 in H2O (151.9 Pa) | Ball | - | Blower | Auto Restart, Speed Sensor (Tach) | 33.00mm | 47.5dB | 4.8 W | - | 2700 RPM | - | 3 Wire Leads | - |
|
|
09533GA-12L-AL-00FAN BLOWER 97X33MM 12VDC WIRE |
0 | - |
|
数据表 |
09533GA | Bulk | Active | 12VDC | Square/Rounded - 97mm L x 93.5mm H | 24.7 CFM (0.692m³/min) | 0.900 in H2O (224.2 Pa) | Ball | - | Blower | Auto Restart, Locked Rotor Sensor | 33.00mm | 51.5dB | 7.68 W | - | 3200 RPM | - | 3 Wire Leads | - |
|
|
09533GA-24K-AL-00FAN BLOWER 97X33MM 24VDC WIRE |
0 | - |
|
数据表 |
09533GA | Bulk | Active | 24VDC | Square/Rounded - 97mm L x 93.5mm H | 20.4 CFM (0.571m³/min) | 0.610 in H2O (151.9 Pa) | Ball | - | Blower | Auto Restart, Locked Rotor Sensor | 33.00mm | 47.5dB | 5.04 W | - | 2700 RPM | 14 ~ 140°F (-10 ~ 60°C) | 3 Wire Leads | - |
|
|
09533GA-12M-AL-00FAN BLOWER 97X33MM 12VDC WIRE |
0 | - |
|
数据表 |
09533GA | Bulk | Active | 12VDC | Square/Rounded - 97mm L x 93.5mm H | 28.6 CFM (0.801m³/min) | 1.370 in H2O (341.2 Pa) | Ball | - | Blower | Auto Restart, Locked Rotor Sensor | 33.00mm | 54.5dB | 12.4 W | - | 3700 RPM | - | 3 Wire Leads | - |
|
|
09533GA-12K-AL-00FAN BLOWER 97X33MM 12VDC WIRE |
0 | - |
|
数据表 |
09533GA | Bulk | Active | 12VDC | Square/Rounded - 97mm L x 93.5mm H | 20.4 CFM (0.571m³/min) | 0.610 in H2O (151.9 Pa) | Ball | - | Blower | Auto Restart, Locked Rotor Sensor | 33.00mm | 47.5dB | 4.8 W | - | 2700 RPM | - | 3 Wire Leads | - |
|
9WF0424H601FAN AXIAL 40X20MM 24VDC WIRE |
60 | - |
|
数据表 |
San Ace 40WF | Box | Active | 24VDC | Square - 40mm L x 40mm H | 9.2 CFM (0.258m³/min) | 0.360 in H2O (89.7 Pa) | Ball | 0.111 lb (50.35 g) | Tubeaxial | Speed Sensor (Tach) | 20.00mm | 42.0dB(A) | 2.64 W | CSA, TUV, UL | 13100 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | Oil Resistant |
|

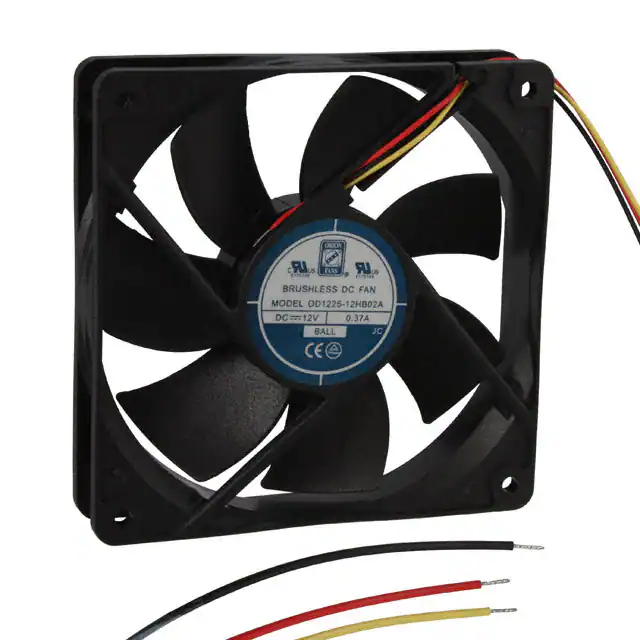

OD1225-12HB02AFAN AXIAL 120X25MM 12VDC WIRE |
32 | - |
|
数据表 |
OD1225 | Box | Active | 12VDC | Square - 120mm L x 120mm H | 120.0 CFM (3.36m³/min) | 0.240 in H2O (59.8 Pa) | Ball | 0.341 lb (154.67 g) | Tubeaxial | Auto Restart, Locked Rotor Sensor | 25.00mm | 42.0dB(A) | 5.4 W | CE, cURus, TUV, UR | 3100 RPM | -4 ~ 149°F (-20 ~ 65°C) | 3 Wire Leads | - |
|
|
9GA0924W4D01FAN AXIAL 92X25MM 24VDC WIRE |
60 | - |
|
数据表 |
San Ace 92 | Box | Active | 24VDC | Square - 92mm L x 92mm H | - | - | Ball | - | Tubeaxial | Locked Rotor Sensor | 25.00mm | - | 2.16 W | - | - | - | 3 Wire Leads | - |
