直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9RA0924F4001FAN AXIAL 92X25MM 24VDC WIRE |
78 | - |
|
数据表 |
San Ace 92 | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 43.1 CFM (1.21m³/min) | 0.140 in H2O (34.9 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | 27.0dB(A) | 1.44 W | cURus, TUV | 2850 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
9RA0924G4001FAN AXIAL 92X25MM 24VDC WIRE |
37 | - |
|
数据表 |
San Ace 92 | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 63.5 CFM (1.78m³/min) | 0.290 in H2O (72.2 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | 37.0dB(A) | 3.12 W | cURus, TUV | 4200 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
MS9238H24B1+6-FHRFAN AXIAL 92X38MM 24VDC WIRE |
68 | - |
|
数据表 |
MS9238-H | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 166.7 CFM (4.67m³/min) | 1.450 in H2O (361.2 Pa) | Ball | 0.446 lb (202.3 g) | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 38.00mm | 65.0dB(A) | - | - | 8000 RPM | - | 4 Wire Leads | - |
|
9G1224F402FAN AXIAL 119X25MM 24VDC WIRE |
91 | - |
|
数据表 |
San Ace 120 | Box | Active | 24VDC | Square - 119mm L x 119mm H | 70.0 CFM (1.96m³/min) | 0.169 in H2O (42.1 Pa) | Ball | 0.529 lb (239.95 g) | Tubeaxial | - | 25.00mm | 35.0dB(A) | 2.4 W | CSA, TUV, UL | 2250 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
9G1224H4021FAN AXIAL 119X25MM 24VDC WIRE |
90 | - |
|
数据表 |
San Ace 120 | Box | Active | 24VDC | Square - 119mm L x 119mm H | 88.0 CFM (2.46m³/min) | 0.257 in H2O (64.0 Pa) | Ball | 0.529 lb (239.95 g) | Tubeaxial | - | 25.00mm | 40.0dB(A) | 4.08 W | CSA, TUV, UL | 2850 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
|
9G1212H402FAN AXIAL 119X25MM 12VDC WIRE |
44 | - |
|
数据表 |
San Ace 120 | Box | Active | 12VDC | Square - 119mm L x 119mm H | 88.0 CFM (2.46m³/min) | 0.257 in H2O (64.0 Pa) | Ball | 0.529 lb (239.95 g) | Tubeaxial | - | 25.00mm | 40.0dB(A) | 3.72 W | CSA, TUV, UL | 2850 RPM | 14 ~ 140°F (-10 ~ 60°C) | 2 Wire Leads | - |
|

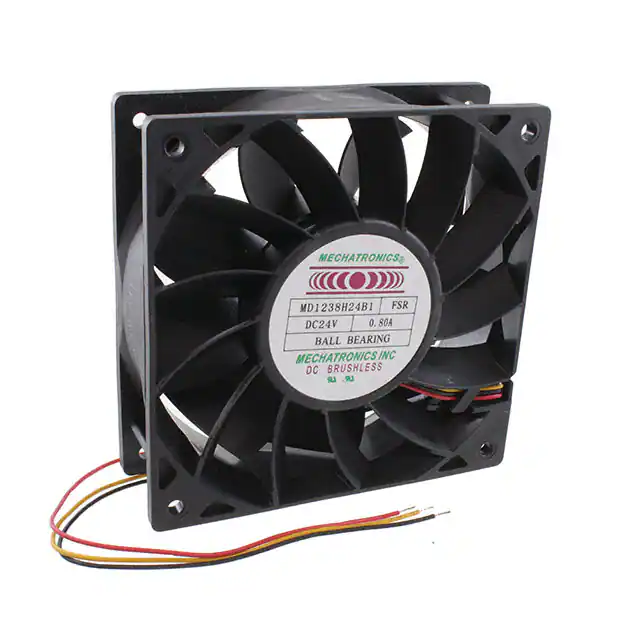

MD1238H24B1-FSRFAN AXIAL 120X38MM 24VDC WIRE |
67 | - |
|
数据表 |
MD1238 | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 174.0 CFM (4.87m³/min) | 0.670 in H2O (166.9 Pa) | Ball | 0.906 lb (410.95 g) | Tubeaxial | Speed Sensor (Tach), Thermal Overload Protector (TOP) | 38.00mm | 57.8dB(A) | - | cUL, UL | 3800 RPM | - | 3 Wire Leads | - |
|
OD6025-48HBIP69KFAN AXIAL 60X25MM 48VDC WIRE |
40 | - |
|
数据表 |
OD6025-IP69K | Box | Active | 48VDC | Square - 60mm L x 60mm H | 28.0 CFM (0.784m³/min) | 0.220 in H2O (54.8 Pa) | Ball | 0.141 lb (63.96 g) | Tubeaxial | Auto Restart | 25.00mm | 30.0dB(A) | 3.4 W | CE, cURus, TUV, UR | 3975 RPM | -4 ~ 149°F (-20 ~ 65°C) | 2 Wire Leads | IP69K - Dust Tight, Water Resistant, Waterproof |
|
G1238S12B1-FSR-TTL-EMFAN AXIAL 120X38MM 12VDC WIRE |
57 | - |
|
数据表 |
G1238 | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 88.0 CFM (2.46m³/min) | 0.170 in H2O (42.3 Pa) | Ball | 0.74 lb (335.66 g) | Tubeaxial | Speed Sensor (Tach), Thermal Overload Protector (TOP) | 38.00mm | 34.0dB(A) | - | CE, cUL, TUV, UL | 2000 RPM | - | 3 Wire Leads | IP57 - Dust Protected, Waterproof |
|
9G1224F401FAN AXIAL 119X25MM 24VDC WIRE |
88 | - |
|
数据表 |
San Ace 120 | Box | Active | 24VDC | Square - 119mm L x 119mm H | 70.0 CFM (1.96m³/min) | 0.169 in H2O (42.1 Pa) | Ball | 0.529 lb (239.95 g) | Tubeaxial | Speed Sensor (Tach) | 25.00mm | 35.0dB(A) | 2.4 W | CSA, TUV, UL | 2250 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
9G1224M4D011FAN AXIAL 119X25MM 24VDC WIRE |
42 | - |
|
数据表 |
San Ace 120 | Box | Active | 24VDC | Square - 119mm L x 119mm H | 59.0 CFM (1.65m³/min) | 0.124 in H2O (30.9 Pa) | Ball | 0.529 lb (239.95 g) | Tubeaxial | Locked Rotor Sensor | 25.00mm | 29.0dB(A) | 1.92 W | CSA, TUV, UL | 1950 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
12032GA-12N-AT-00FAN BLOWER 120X32MM 12VDC WIRE |
9 | - |
|
数据表 |
12032GA | Bulk | Active | 12VDC | Square/Rounded - 120mm L x 120mm H | 33.1 CFM (0.927m³/min) | 1.040 in H2O (258.0 Pa) | Ball | - | Blower | Auto Restart, Speed Sensor (Tach) | 32.00mm | 54.0dB | 11.16 W | - | 2650 RPM | 14 ~ 140°F (-10 ~ 60°C) | 3 Wire Leads | - |
|
ODB9733-12HBFAN BLOWER 96X33MM 12VDC WIRE |
73 | - |
|
数据表 |
ODB9733 | Box | Active | 12VDC | Square/Rounded - 96mm L x 96mm H | 33.0 CFM (0.924m³/min) | 1.100 in H2O (274.0 Pa) | Ball | - | Blower | - | 33.00mm | 56.0dB | 9.4 W | cURus | 4000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
G1338H12B2-FSRFAN AXIAL 127X38MM 12VDC WIRE |
18 | - |
|
数据表 |
G1338 | Bulk | Active | 12VDC | Square - 127mm L x 127mm H | 141.0 CFM (3.95m³/min) | 0.590 in H2O (147.0 Pa) | Ball | 0.784 lb (355.62 g) | Tubeaxial | Locked Rotor Sensor, Thermal Overload Protector (TOP) | 38.00mm | 49.0dB(A) | - | CE, cUL, TUV, UL | 3200 RPM | - | 3 Wire Leads | - |
|
9RA0912P4G001FAN AXIAL 92X25MM 12VDC WIRE |
85 | - |
|
数据表 |
San Ace 92 | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 63.5 CFM (1.78m³/min) | 0.290 in H2O (72.2 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 25.00mm | 37.0dB(A) | 2.64 W | cURus, TUV | 4200 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|
|
9RA0924P4G0011FAN AXIAL 92X25MM 24VDC WIRE |
43 | - |
|
数据表 |
San Ace 92 | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 63.5 CFM (1.78m³/min) | 0.290 in H2O (72.2 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 25.00mm | 37.0dB(A) | 3.12 W | cURus, TUV | 4200 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|
|
9RA0924P4G001FAN AXIAL 92X25MM 24VDC WIRE |
8 | - |
|
数据表 |
San Ace 92 | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 63.5 CFM (1.78m³/min) | 0.290 in H2O (72.2 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 25.00mm | 37.0dB(A) | 3.12 W | cURus, TUV | 4200 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|
OD9225-48HBIP69KFAN AXIAL 92X25MM 48VDC WIRE |
78 | - |
|
数据表 |
OD9225-IP69K | Box | Active | 48VDC | Square - 92mm L x 92mm H | 50.0 CFM (1.40m³/min) | 0.240 in H2O (59.8 Pa) | Ball | - | Tubeaxial | Auto Restart | 25.00mm | 35.0dB(A) | 4.3 W | CE, cURus, TUV, UR | 2900 RPM | -4 ~ 149°F (-20 ~ 65°C) | 2 Wire Leads | IP69K - Dust Tight, Water Resistant, Waterproof |
|
109BM12MC2-1FAN BLOWER 97.2X33MM 12VDC WIRE |
100 | - |
|
数据表 |
San Ace B97 | Box | Active | 12VDC | Rectangular/Rounded - 97.2mm L x 94.4mm H | 20.5 CFM (0.574m³/min) | 0.478 in H2O (119.1 Pa) | Ball | 0.386 lb (175.09 g) | Blower | Locked Rotor Protection, Speed Sensor (Tach) | 33.00mm | 43.5dB(A) | 3.12 W | CSA, TUV, UL | 2700 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
G1225S12B-FSR-PCFAN AXIAL 120X25MM 12VDC WIRE |
52 | - |
|
数据表 |
G1225 | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 54.0 CFM (1.51m³/min) | 0.070 in H2O (17.4 Pa) | Ball | 0.436 lb (197.77 g) | Tubeaxial | Thermal Overload Protector (TOP) | 25.00mm | 26.0dB(A) | - | CE, cUL, TUV, UL | 1500 RPM | - | 2 Wire Leads | - |
