直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9RA0624J4001FAN AXIAL 60X25MM 24VDC WIRE |
42 | - |
|
数据表 |
San Ace 60 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 38.8 CFM (1.09m³/min) | 0.520 in H2O (129.5 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | 41.0dB(A) | 4.32 W | cURus, TUV | 7700 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
GF60252B1-1000U-HEP24VDC FAN 60X25MM PWM IP68 |
0 | - |
|
数据表 |
GF | Box | Active | 24VDC | Square - 60mm L x 60mm H | 48.1 CFM (1.35m³/min) | 1.210 in H2O (301.4 Pa) | Ball | - | Tubeaxial | PWM Control | 25.40mm | 53.2dB(A) | 9.72 W | CCC, CE, cURus, TUV, UKCA | 11500 RPM | - | 3 Wire Leads | IP68 - Dust Tight, Waterproof |
|
|
9RA0624S4001FAN AXIAL 60X25MM 24VDC WIRE |
87 | - |
|
数据表 |
San Ace 60 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 23.3 CFM (0.652m³/min) | 0.180 in H2O (44.8 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | 30.0dB(A) | 1.44 W | cURus, TUV | 4600 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
9RA0612S4001FAN AXIAL 60X25MM 12VDC WIRE |
37 | - |
|
数据表 |
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 23.3 CFM (0.652m³/min) | 0.180 in H2O (44.8 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | 30.0dB(A) | 1.2 W | cURus, TUV | 4600 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
GF60252B3-1000U-HDP24VDC FAN 60X25MM PWM GR487 |
0 | - |
|
数据表 |
GF | Box | Active | 24VDC | Square - 60mm L x 60mm H | 26.9 CFM (0.753m³/min) | 0.420 in H2O (104.6 Pa) | Ball | - | Tubeaxial | PWM Control | 25.40mm | 38.0dB(A) | 2.76 W | CCC, CE, cURus, TUV, UKCA | 6450 RPM | - | 3 Wire Leads | - |
|
|
9RA0612G4001FAN AXIAL 60X25MM 12VDC WIRE |
16 | - |
|
数据表 |
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 28.2 CFM (0.790m³/min) | 0.280 in H2O (69.7 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | 36.0dB(A) | 1.8 W | cURus, TUV | 5600 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
GF60252BX-1000U-HDP24VDC FAN 60X25MM PWM GR487 |
0 | - |
|
数据表 |
GF | Box | Active | 24VDC | Square - 60mm L x 60mm H | 54.6 CFM (1.53m³/min) | 1.440 in H2O (358.7 Pa) | Ball | - | Tubeaxial | PWM Control | 25.40mm | 55.4dB(A) | 13.08 W | CCC, CE, cURus, TUV, UKCA | 12900 RPM | - | 3 Wire Leads | - |
|
09232JE-12M-BA-F0FAN AXIAL 92X32MM 12VDC WIRE |
22 | - |
|
数据表 |
09232JE | Box | Active | 12VDC | Square - 92mm L x 92mm H | 43.8 CFM (1.23m³/min) | 0.190 in H2O (47.3 Pa) | Ball | - | Tubeaxial | Auto Restart | 32.00mm | 34.5dB | 1.56 W | - | 3350 RPM | -40 ~ 104°F (-40 ~ 40°C) | 2 Wire Leads | - |
|
|
GF60252B2-1000U-GEP24VDC FAN 60X25MM ALARM IP68 |
0 | - |
|
数据表 |
GF | Box | Active | 24VDC | Square - 60mm L x 60mm H | 36.3 CFM (1.02m³/min) | 0.790 in H2O (196.8 Pa) | Ball | - | Tubeaxial | Speed Sensor (Tach) | 25.40mm | 47.2dB(A) | 5 W | CCC, CE, cURus, TUV, UKCA | 9000 RPM | - | 3 Wire Leads | IP68 - Dust Tight, Waterproof |
|
OD8032-12HHB02AFAN AXIAL 80X32MM 12VDC WIRE |
38 | - |
|
数据表 |
OD8032 | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 55.4 CFM (1.55m³/min) | 0.320 in H2O (79.7 Pa) | Ball | 0.238 lb (107.95 g) | Tubeaxial | Locked Rotor Sensor | 32.00mm | 44.0dB | 4.56 W | CE, cURus | 4200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
GF60252B2-1000U-HDP24VDC FAN 60X25MM PWM GR487 |
0 | - |
|
数据表 |
GF | Box | Active | 24VDC | Square - 60mm L x 60mm H | 36.3 CFM (1.02m³/min) | 0.790 in H2O (196.8 Pa) | Ball | - | Tubeaxial | PWM Control | 25.40mm | 47.2dB(A) | 5 W | CCC, CE, cURus, TUV, UKCA | 9000 RPM | - | 3 Wire Leads | - |
|

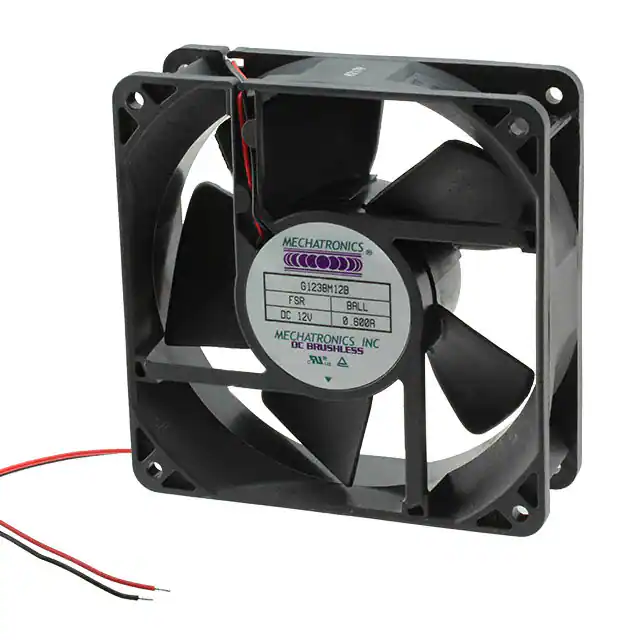

G1238M12B-FSRFAN AXIAL 119X38MM 12VDC WIRE |
92 | - |
|
数据表 |
G1238 | Bulk | Active | 12VDC | Square - 119mm L x 119mm H | 125.0 CFM (3.50m³/min) | 0.320 in H2O (79.7 Pa) | Ball | 0.74 lb (335.66 g) | Tubeaxial | Thermal Overload Protector (TOP) | 38.00mm | 43.0dB(A) | - | CE, cUL, TUV, UL | 2800 RPM | - | 2 Wire Leads | - |
|
|
GF60252B2-1000U-GDP24VDC FAN 60X25MM ALARM GR487 |
0 | - |
|
数据表 |
GF | Box | Active | 24VDC | Square - 60mm L x 60mm H | 36.3 CFM (1.02m³/min) | 0.790 in H2O (196.8 Pa) | Ball | - | Tubeaxial | Speed Sensor (Tach) | 25.40mm | 47.2dB(A) | 5 W | CCC, CE, cURus, TUV, UKCA | 9000 RPM | - | 3 Wire Leads | - |
|
|
GF60252B1-1000U-GEP24VDC FAN 60X25MM ALARM IP68 |
0 | - |
|
数据表 |
GF | Box | Active | 24VDC | Square - 60mm L x 60mm H | 48.1 CFM (1.35m³/min) | 1.210 in H2O (301.4 Pa) | Ball | - | Tubeaxial | Speed Sensor (Tach) | 25.40mm | 53.2dB(A) | 9.72 W | CCC, CE, cURus, TUV, UKCA | 11500 RPM | - | 3 Wire Leads | IP68 - Dust Tight, Waterproof |
|

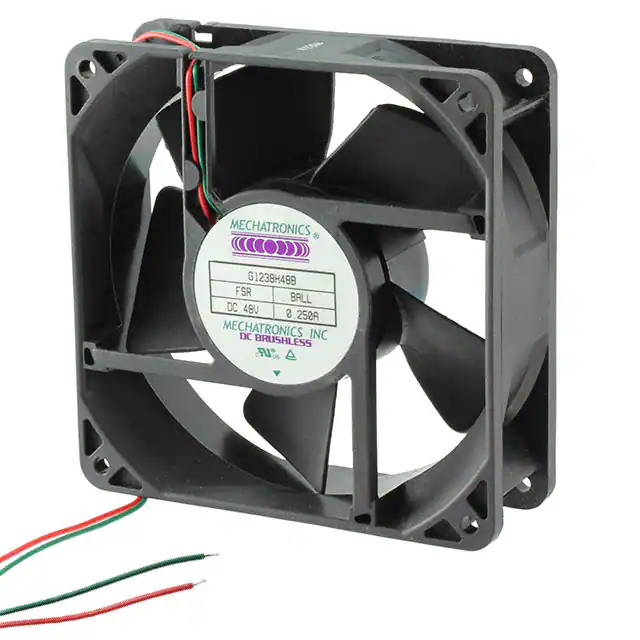

G1238H48B-FSRFAN AXIAL 119X38MM 48VDC WIRE |
18 | - |
|
数据表 |
G1238 | Bulk | Active | 48VDC | Square - 119mm L x 119mm H | 141.2 CFM (3.95m³/min) | 0.410 in H2O (102.1 Pa) | Ball | 0.74 lb (335.66 g) | Tubeaxial | Thermal Overload Protector (TOP) | 38.00mm | 46.0dB(A) | - | CE, cUL, TUV, UL | 3200 RPM | - | 2 Wire Leads | - |
|
|
GF60252B2-1000U-HEP24VDC FAN 60X25MM PWM IP68 |
0 | - |
|
数据表 |
GF | Box | Active | 24VDC | Square - 60mm L x 60mm H | 36.3 CFM (1.02m³/min) | 0.790 in H2O (196.8 Pa) | Ball | - | Tubeaxial | PWM Control | 25.40mm | 47.2dB(A) | 5 W | CCC, CE, cURus, TUV, UKCA | 9000 RPM | - | 3 Wire Leads | IP68 - Dust Tight, Waterproof |
|
G1225H12B4-FSR-EMFAN AXIAL 120X25MM 12VDC WIRE |
49 | - |
|
数据表 |
G1225 | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 87.0 CFM (2.44m³/min) | 0.180 in H2O (44.8 Pa) | Ball | 0.436 lb (197.77 g) | Tubeaxial | Thermal Overload Protector (TOP), Thermistor | 25.00mm | 38.0dB(A) | - | CE, cUL, TUV, UL | 2400 RPM | - | 2 Wire Leads | IP57 - Dust Protected, Waterproof |
|
|
GF60252BX-1000U-GDP24VDC FAN 60X25MM ALARM GR487 |
0 | - |
|
数据表 |
GF | Box | Active | 24VDC | Square - 60mm L x 60mm H | 54.6 CFM (1.53m³/min) | 1.440 in H2O (358.7 Pa) | Ball | - | Tubeaxial | Speed Sensor (Tach) | 25.40mm | 55.4dB(A) | 13.08 W | CCC, CE, cURus, TUV, UKCA | 12900 RPM | - | 3 Wire Leads | - |
|
OD6025-60LBFAN AXIAL 60X25MM 60VDC WIRE |
56 | - |
|
数据表 |
OD6025 | Box | Active | 60VDC | Square - 60mm L x 60mm H | 26.0 CFM (0.728m³/min) | 0.280 in H2O (69.7 Pa) | Ball | 0.141 lb (63.96 g) | Tubeaxial | Auto Restart | 25.00mm | 37.0dB | - | cURus | 5000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
GF60252BX-1000U-GEP24VDC FAN 60X25MM ALARM IP68 |
0 | - |
|
数据表 |
GF | Box | Active | 24VDC | Square - 60mm L x 60mm H | 54.6 CFM (1.53m³/min) | 1.440 in H2O (358.7 Pa) | Ball | - | Tubeaxial | Speed Sensor (Tach) | 25.40mm | 55.4dB(A) | 13.08 W | CCC, CE, cURus, TUV, UKCA | 12900 RPM | - | 3 Wire Leads | IP68 - Dust Tight, Waterproof |
