直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
109P0424H3D01FAN AXIAL 40X28MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 40 | Box | Active | 24VDC | Square - 40mm L x 40mm H | 11.3 CFM (0.316m³/min) | - | Ball | 0.115 lb (52.16 g) | Tubeaxial | Locked Rotor Sensor | 28.00mm | 37.0dB(A) | 2.28 W | CSA, TUV, UL | 8700 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|

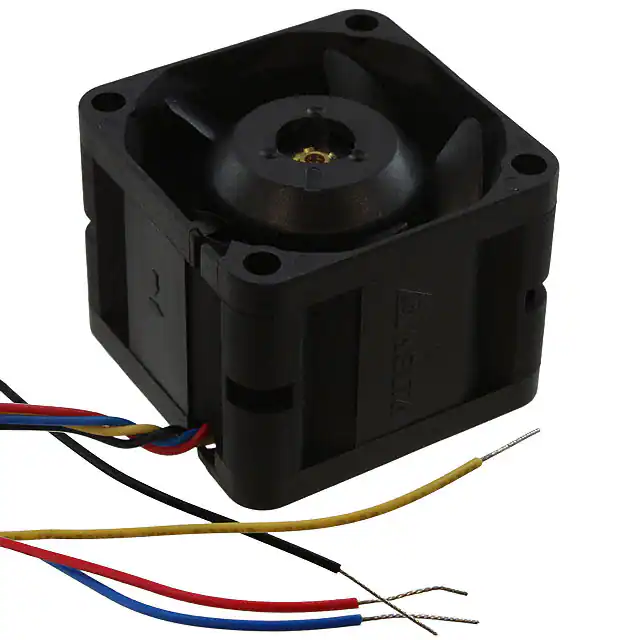

FFB03612EHN-BGAFAN AXIAL 36X28MM 12VDC WIRE |
0 | - |
|
数据表 |
FFB | Box | Not For New Designs | 12VDC | Square - 36mm L x 36mm H | 16.3 CFM (0.456m³/min) | 1.000 in H2O (249.1 Pa) | Ball | 0.071 lb (32.21 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 28.00mm | 50.0dB(A) | 3.96 W | CE, CSA, UL, VDE | 14500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
CFM-9238B-140-473FAN AXIAL 92X37.5MM 12VDC WIRE |
0 | - |
|
数据表 |
CFM-92B | Box | Active | 12VDC | Square - 92mm L x 92mm H | 76.9 CFM (2.15m³/min) | 0.440 in H2O (109.6 Pa) | Ball | - | Tubeaxial | Auto Restart | 37.50mm | 47.3dB(A) | 6.48 W | CE, cURus, TUV | 4000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
06020VA-24Q-CAS-0FAN AXIAL 60X20MM 24VDC WIRE |
0 | - |
|
数据表 |
06020VA | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 24.7 CFM (0.692m³/min) | 0.400 in H2O (99.6 Pa) | Ball | 0.176 lb (79.83 g) | Tubeaxial | - | 20.00mm | 42.0dB | 3.6 W | - | 6900 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | IP69K - Dust Tight, High Temp Water Jets, Waterproof |
|
F6025M24B1+6-FSRFAN AXIAL 60X25MM 24VDC WIRE |
0 | - |
|
数据表 |
F6025 | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 17.0 CFM (0.476m³/min) | 0.130 in H2O (32.4 Pa) | Ball | 0.139 lb (63.05 g) | Tubeaxial | Auto Restart, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 25.00mm | 27.0dB(A) | - | CE, cUL, TUV, UL | 3300 RPM | - | 4 Wire Leads | - |
|
109R0605F402FAN AXIAL 60X25MM BALL 5VDC WIRE |
0 | - |
|
数据表 |
San Ace 60 | Box | Active | 5VDC | Square - 60mm L x 60mm H | 15.5 CFM (0.434m³/min) | 0.118 in H2O (29.4 Pa) | Ball | 0.199 lb (90.26 g) | Tubeaxial | Locked Rotor Protection | 25.00mm | 24.0dB(A) | 1 W | CSA, TUV, UL | 3200 RPM | -4 ~ 140°F (-20 ~ 60°C) | 2 Wire Leads | - |
|
F6025X12B-FHR-EMFAN AXIAL 60X25MM 12VDC WIRE |
2 | - |
|
数据表 |
F6025-H | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 28.0 CFM (0.784m³/min) | 0.370 in H2O (92.2 Pa) | Ball | 0.139 lb (63.05 g) | Tubeaxial | Thermal Overload Protector (TOP) | 25.00mm | 42.0dB(A) | - | CE, cUL, TUV, UL | 5800 RPM | - | 2 Wire Leads | IP57 - Dust Protected, Waterproof |
|
09225VA-12N-EA-00FAN AXIAL 92X25MM 12VDC WIRE |
0 | - |
|
数据表 |
09225VA | Box | Active | 12VDC | Square - 92mm L x 92mm H | 77.0 CFM (2.16m³/min) | 0.390 in H2O (97.1 Pa) | Ball | - | Tubeaxial | Auto Restart | 25.00mm | 45.0dB(A) | 4.8 W | - | 4500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
09225VA-12N-AA-00FAN AXIAL 92X25MM 12VDC WIRE |
0 | - |
|
数据表 |
09225VA | Box | Active | 12VDC | Square - 92mm L x 92mm H | 77.0 CFM (2.16m³/min) | 0.390 in H2O (97.1 Pa) | Ball | - | Tubeaxial | Auto Restart | 25.00mm | 45.0dB(A) | 4.8 W | - | 4500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
FFB0412HN-F00FAN AXIAL 40X28MM 12VDC WIRE |
0 | - |
|
数据表 |
FFB | Box | Active | 12VDC | Square - 40mm L x 40mm H | 10.6 CFM (0.297m³/min) | 0.248 in H2O (61.8 Pa) | Ball | 0.071 lb (32.21 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 28.00mm | 32.1dB(A) | 840 mW | CE, CSA, UL, VDE | 6500 RPM | - | 3 Wire Leads | - |
|
E1225E24B1-FSR-TTLFAN AXIAL 120X25MM 24VDC WIRE |
4 | - |
|
数据表 |
E1225 | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 93.0 CFM (2.60m³/min) | 0.280 in H2O (69.7 Pa) | Ball | 0.436 lb (197.77 g) | Tubeaxial | Speed Sensor (Tach), Thermal Overload Protector (TOP) | 25.00mm | 44.0dB(A) | - | CE, cUL, TUV, UL | 3000 RPM | - | 3 Wire Leads | - |
|
06038RE-24S-GT-00FAN AXIAL 60X38MM 24VDC WIRE |
0 | - |
|
数据表 |
06038RE | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 59.0 CFM (1.65m³/min) | 1.530 in H2O (381.1 Pa) | Ball | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 38.00mm | 58.0dB(A) | 15.6 W | cULus, VDE | 11000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | IP68/IP69K - Dust Tight, Water Resistant, Waterproof |
|
OD9225-12HBIP55FAN AXIAL 92.5X25MM 12VDC WIRE |
0 | - |
|
数据表 |
OD9225 | Bulk | Active | 12VDC | Square - 92.5mm L x 92.5mm H | 60.0 CFM (1.68m³/min) | 0.250 in H2O (62.3 Pa) | Ball | - | Tubeaxial | - | 25.00mm | - | - | cURus, TUV | - | - | 2 Wire Leads | IP55 - Dust Protected, Water Resistant |
|
|
11938KA-48L-EA-00FAN AXIAL 119X38.4MM 48VDC WIRE |
0 | - |
|
数据表 |
11938KA | Bulk | Active | 48VDC | Square - 119mm L x 119mm H | 108.4 CFM (3.03m³/min) | 0.270 in H2O (67.3 Pa) | Ball | - | Tubeaxial | Auto Restart | 38.40mm | 42.5dB | 7.7 W | - | 2950 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
9S0812L4011FAN AXIAL 80X25MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 23.3 CFM (0.652m³/min) | 0.073 in H2O (18.2 Pa) | Ball | 0.167 lb (75.75 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | 16.0dB(A) | 600 mW | CSA, TUV, UL | 2000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
OD1225-12HTBFAN AXIAL 120X25MM 12VDC TERM |
5 | - |
|
数据表 |
OD1225 | Box | Active | 12VDC | Square - 120mm L x 120mm H | 120.0 CFM (3.36m³/min) | 0.240 in H2O (59.8 Pa) | Ball | 0.341 lb (154.67 g) | Tubeaxial | - | 25.00mm | 42.0dB(A) | 5.4 W | cURus, TUV | 3100 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Terminals | - |
|
9BD24FC6-1FAN BLOWER 76X20MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace B76 | Box | Active | 24VDC | Rectangular/Rounded - 76mm L x 69.7mm H | 8.8 CFM (0.246m³/min) | 0.800 in H2O (199.3 Pa) | Ball | 0.128 lb (58.06 g) | Blower | Locked Rotor Protection, Speed Sensor (Tach) | 20.00mm | 39.0dB(A) | 2.4 W | cURus, TUV | 3900 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
9RA0824S4001FAN AXIAL 80X25MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 80 | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 38.4 CFM (1.08m³/min) | 0.210 in H2O (52.3 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | 31.0dB(A) | 1.44 W | cURus, TUV | 3900 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
9G0624G1011FAN AXIAL 60X38MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 60 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 65.0 CFM (1.82m³/min) | 1.747 in H2O (435.2 Pa) | Ball | 0.243 lb (110.22 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | 58.0dB(A) | 20.4 W | CSA, TUV, UL | 11800 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
109R0848K401FAN AXIAL 80X25MM 48VDC WIRE |
0 | - |
|
数据表 |
San Ace 80 | Box | Active | 48VDC | Square - 80mm L x 80mm H | 55.1 CFM (1.54m³/min) | 0.355 in H2O (88.4 Pa) | Ball | 0.243 lb (110.22 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | 41.0dB(A) | 4.8 W | CSA, TUV, UL | 4600 RPM | -4 ~ 140°F (-20 ~ 60°C) | 3 Wire Leads | - |
