直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CFM-8015BF-130-301-20FAN AXIAL 80X15.4MM 12VDC WIRE |
23 | - |
|
数据表 |
CFM-80BF | Box | Active | 12VDC | Square - 80mm L x 80mm H | 34.9 CFM (0.977m³/min) | 0.100 in H2O (24.9 Pa) | Ball | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 15.40mm | 30.1dB(A) | 3.12 W | CE, cURus, TUV | 3000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
CFM-8015BF-120-213-20FAN AXIAL 80X15.4MM 12VDC WIRE |
22 | - |
|
数据表 |
CFM-80BF | Box | Active | 12VDC | Square - 80mm L x 80mm H | 23.2 CFM (0.650m³/min) | 0.040 in H2O (10.0 Pa) | Ball | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 15.40mm | 21.3dB(A) | 1.08 W | CE, cURus, TUV | 2000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
CFM-8015BF-240-363-20FAN AXIAL 80X15.4MM 24VDC WIRE |
0 | - |
|
数据表 |
CFM-80BF | Box | Active | 24VDC | Square - 80mm L x 80mm H | 46.5 CFM (1.30m³/min) | 0.180 in H2O (44.8 Pa) | Ball | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 15.40mm | 36.3dB(A) | 5.04 W | CE, cURus, TUV | 4000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
06020SA-12T-EA-00FAN AXIAL 60X20MM 12VDC WIRE |
1 | - |
|
数据表 |
06020SA | Box | Active | 12VDC | Square - 60mm L x 60mm H | 30.4 CFM (0.851m³/min) | 0.440 in H2O (109.6 Pa) | Ball | - | Tubeaxial | Auto Restart | 20.00mm | 42.5dB | 2.88 W | - | 6400 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
CFM-7015B-150-406-20FAN AXIAL 70X15.5MM 12VDC WIRE |
0 | - |
|
数据表 |
CFM-70B | Box | Active | 12VDC | Square - 70mm L x 70mm H | 32.1 CFM (0.899m³/min) | 0.220 in H2O (54.8 Pa) | Ball | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 15.50mm | 40.6dB(A) | 3.96 W | CE, cURus, TUV | 5000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
AFB02505LA-CF00FAN AXIAL 25X10MM BALL 5VDC WIRE |
1 | - |
|
数据表 |
AFB | Box | Active | 5VDC | Square - 25mm L x 25mm H | 0.900 CFM (0.025m³/min) | 0.045 in H2O (11.2 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 10.00mm | 18.0dB(A) | 200 mW | cURus, TUV | 5000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
06015KA-12K-AA-00FAN AXIAL 60X15MM 12VDC WIRE |
0 | - |
|
数据表 |
06015KA | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 11.7 CFM (0.328m³/min) | 0.094 in H2O (23.4 Pa) | Ball | - | Tubeaxial | Auto Restart | 15.00mm | 25.0dB | 840 mW | - | 3100 RPM | 14 ~ 140°F (-10 ~ 60°C) | 2 Wire Leads | - |
|
06015KA-12J-AA-00FAN AXIAL 60X15MM 12VDC WIRE |
0 | - |
|
数据表 |
06015KA | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 6.7 CFM (0.188m³/min) | 0.034 in H2O (8.5 Pa) | Ball | - | Tubeaxial | Auto Restart | 15.00mm | 19.0dB | 480 mW | - | 1800 RPM | 14 ~ 140°F (-10 ~ 60°C) | 2 Wire Leads | - |
|
|
BFB03505HHA-CR00FAN BLOWER 35X10MM 5VDC WIRE |
0 | - |
|
数据表 |
BFB | Bulk | Active | 5VDC | Square - 35mm L x 35mm H | 2.1 CFM (0.059m³/min) | 0.443 in H2O (110.3 Pa) | Ball | 0.025 lb (11.34 g) | Blower | Locked Rotor Sensor | 10.00mm | 31.0dB(A) | 1.15 W | CE, cURus, TUV | 8500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
BFB0305HA-CR00FAN BLOWER 30X10MM 5VDC WIRE |
0 | - |
|
数据表 |
BFB | Bulk | Active | 5VDC | Square - 30mm L x 30mm H | 1.5 CFM (0.042m³/min) | 0.285 in H2O (71.0 Pa) | Ball | 0.023 lb (10.43 g) | Blower | Locked Rotor Sensor | 10.00mm | 29.0dB(A) | 650 mW | CE, cURus, TUV | 7500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
BFB0305HHA-CR00FAN BLOWER 30X10MM 5VDC WIRE |
0 | - |
|
数据表 |
BFB | Bulk | Active | 5VDC | Square - 30mm L x 30mm H | 1.7 CFM (0.046m³/min) | 0.370 in H2O (92.2 Pa) | Ball | 0.025 lb (11.34 g) | Blower | Locked Rotor Sensor | 10.00mm | 29.0dB(A) | 1.15 W | CE, cURus, TUV | 8500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
G4015H24B2-RSR-TTLFAN AXIAL 40X15MM 24VDC WIRE |
4 | - |
|
数据表 |
G4015 | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 8.0 CFM (0.224m³/min) | 0.290 in H2O (72.2 Pa) | Ball | 0.051 lb (23.13 g) | Tubeaxial | Locked Rotor Sensor, Thermal Overload Protector (TOP) | 15.00mm | 29.0dB(A) | - | CE, cUL, TUV, UL | 8000 RPM | - | 3 Wire Leads | - |
|
BFB04512MD-F00FAN BLOWER 45X20MM 12VDC WIRE |
0 | - |
|
数据表 |
BFB | Box | Active | 12VDC | Square/Rounded - 45mm L x 45mm H | 4.2 CFM (0.118m³/min) | 0.269 in H2O (67.0 Pa) | Ball | 0.038 lb (17.24 g) | Blower | Locked Rotor Protection, Speed Sensor (Tach) | 20.00mm | 21.0dB(A) | 840 mW | CE, CSA, UL, VDE | 3300 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
109P0612M701FAN AXIAL 60X15MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 10.6 CFM (0.297m³/min) | 0.091 in H2O (22.7 Pa) | Ball | 0.133 lb (60.33 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 15.00mm | 25.0dB(A) | 840 mW | CSA, TUV, UL | 3100 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
CFM-A225V-222-340-20FAN AXIAL 120X25MM 24VDC WIRE |
0 | - |
|
数据表 |
CFM-120V | Tray | Active | 24VDC | Square - 120mm L x 120mm H | 75.0 CFM (2.10m³/min) | 0.160 in H2O (40.0 Pa) | omniCOOL™ Magnetic Sleeve | 0.357 lb (161.93 g) | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 25.00mm | 34.0dB(A) | 2.32 W | CE, cURus, TUV | 2200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
109P0412F302FAN AXIAL 40X28MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | - | - | Ball | 0.115 lb (52.16 g) | Tubeaxial | Locked Rotor Protection | 28.00mm | 30.0dB(A) | 1.26 W | CSA, TUV, UL | 6700 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
E9225H12B-FSR-CCFAN AXIAL 92X25MM 12VDC WIRE |
2 | - |
|
数据表 |
E9225 | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 51.0 CFM (1.43m³/min) | 0.240 in H2O (59.8 Pa) | Ball | 0.245 lb (111.13 g) | Tubeaxial | Conformal Coating, Thermal Overload Protector (TOP) | 25.00mm | 36.0dB(A) | - | CE, cUL, TUV, UL | 3200 RPM | - | 2 Wire Leads | - |
|

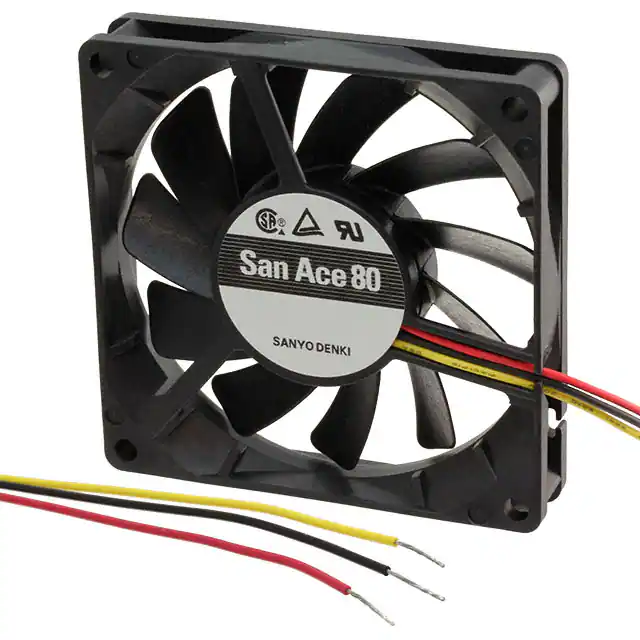

109P0812H602FAN AXIAL 80X20MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 29.7 CFM (0.832m³/min) | 0.118 in H2O (29.4 Pa) | Ball | 0.222 lb (100.7 g) | Tubeaxial | Locked Rotor Protection | 20.00mm | 31.0dB(A) | 2.52 W | CSA, TUV, UL | 2900 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
B6012M24D-BSRFAN BLOWER 60X12MM 24VDC WIRE |
0 | - |
|
数据表 |
B6012 | Bulk | Active | 24VDC | Square/Rounded - 60mm L x 60mm H | 5.0 CFM (0.140m³/min) | 0.300 in H2O (74.7 Pa) | Sleeve | 0.057 lb (25.85 g) | Blower | Thermal Overload Protector (TOP) | 12.00mm | 34.0dB(A) | - | - | 3600 RPM | - | 2 Wire Leads | - |
|
109P0412M602FAN AXIAL 40X20MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 4.8 CFM (0.134m³/min) | 0.106 in H2O (26.4 Pa) | Ball | 0.101 lb (45.81 g) | Tubeaxial | - | 20.00mm | 24.0dB(A) | 720 mW | CSA, TUV, UL | 5000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
