直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
F175H1-061-D0750FAN IMP MTRZD 175X69MM 48VDC |
0 | - |
|
数据表 |
F175H | Bulk | Active | 48VDC | Round - 175mm Dia | 610.0 CFM (17.08m³/min) | 4.190 in H2O (1046.0 Pa) | Ball | 2 lbs (907.2 g) | Motorized Impellers | PWM Control, Speed Sensor (Tach) | 69.00mm | 78.0dB(A) | 182 W | - | 5400 RPM | -22 ~ 158°F (-30 ~ 70°C) | 4 Wire Leads | - |
|
AUB0812VHB-AF00FAN AXIAL 80X15MM 12VDC WIRE |
0 | - |
|
数据表 |
AUB | Box | Not For New Designs | 12VDC | Square - 80mm L x 80mm H | 42.7 CFM (1.20m³/min) | 0.193 in H2O (48.1 Pa) | Superflo | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 15.00mm | 40.5dB(A) | 3 W | CE, CSA, UR, VDE | 3700 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
ASB0305LA-DR00FAN AXIAL 30X10MM 5VDC WIRE |
0 | - |
|
数据表 |
ASB | Box | Active | 5VDC | Square - 30mm L x 30mm H | 3.2 CFM (0.090m³/min) | 0.131 in H2O (32.6 Pa) | Sleeve | - | Tubeaxial | Locked Rotor Sensor | 10.00mm | 21.0dB(A) | 500 mW | cURus, TUV | 8000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
ASB0312LA-DR00FAN AXIAL 30X10MM 12VDC WIRE |
0 | - |
|
数据表 |
ASB | Box | Active | 12VDC | Square - 30mm L x 30mm H | 3.2 CFM (0.090m³/min) | 0.131 in H2O (32.6 Pa) | Sleeve | - | Tubeaxial | Locked Rotor Sensor | 10.00mm | 21.0dB(A) | 600 mW | cURus, TUV | 8000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
CFM-6015V-130-213FAN AXIAL 60X15MM 12VDC WIRE |
0 | - |
|
数据表 |
CFM-60V | Tray | Active | 12VDC | Square - 60mm L x 60mm H | 17.6 CFM (0.493m³/min) | 0.120 in H2O (29.9 Pa) | omniCOOL™ Magnetic Sleeve | 0.078 lb (35.38 g) | Tubeaxial | Auto Restart | 15.00mm | 21.3dB(A) | 700 mW | CE, cURus, TUV | 3000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
CFM-3010B-0100-316FAN AXIAL 30X10.5MM 5VDC WIRE |
0 | - |
|
数据表 |
CFM-30B | Box | Active | 5VDC | Square - 30mm L x 30mm H | 3.2 CFM (0.090m³/min) | 0.130 in H2O (32.4 Pa) | Ball | - | Tubeaxial | Auto Restart | 10.50mm | 31.6dB(A) | 1.2 W | CE, cURus, TUV | 10000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
09225SA-12K-EA-D0FAN AXIAL 92X25MM 12VDC WIRE |
0 | - |
|
数据表 |
09225SA | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 33.5 CFM (0.938m³/min) | 0.086 in H2O (21.5 Pa) | Ball | - | Tubeaxial | Auto Restart | 25.00mm | 22.0dB | 840 mW | - | 2050 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
BFB03512LA-CFAN BLOWER 35X10MM 12VDC WIRE |
0 | - |
|
数据表 |
BFB | Bulk | Active | 12VDC | Square - 35mm L x 35mm H | 1.3 CFM (0.036m³/min) | 0.163 in H2O (40.6 Pa) | Ball | 0.025 lb (11.34 g) | Blower | Locked Rotor Protection | 10.00mm | 24.0dB(A) | 600 mW | CE, cURus, TUV | 5500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
08025SS-12N-AT-D0FAN AXIAL 80X25MM 12VDC WIRE |
0 | - |
|
数据表 |
08025SS | Box | Active | 12VDC | Square - 80mm L x 80mm H | 41.3 CFM (1.16m³/min) | 0.150 in H2O (37.5 Pa) | Sleeve | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 25.00mm | 30.0dB | 1.92 W | - | 3100 RPM | 14 ~ 140°F (-10 ~ 60°C) | 3 Wire Leads | - |
|
|
06025SA-24N-EA-D0FAN AXIAL 60X25MM 24VDC WIRE |
0 | - |
|
数据表 |
06025SA | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 23.3 CFM (0.652m³/min) | 0.250 in H2O (62.3 Pa) | Ball | - | Tubeaxial | Auto Restart | 25.00mm | 33.0dB | 1.9 W | - | 4700 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|

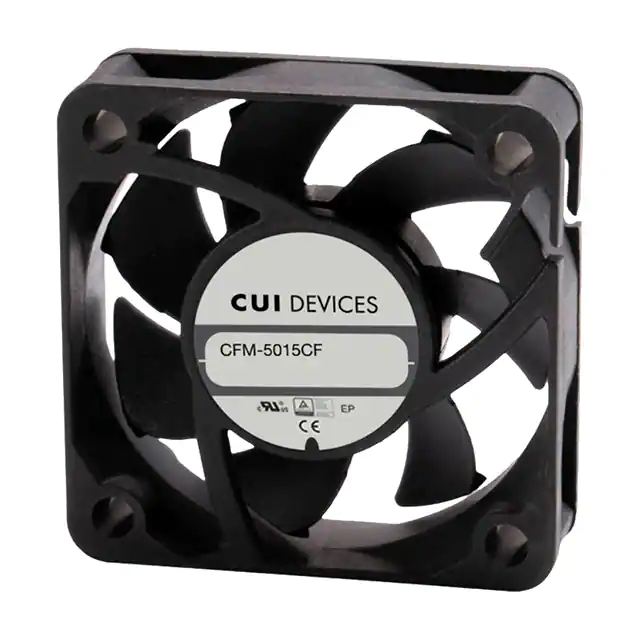

CFM-5015CF-160-374-22FAN AXIAL 50X15.5MM 12VDC WIRE |
1 | - |
|
数据表 |
CFM-50CF | Box | Active | 12VDC | Square - 50mm L x 50mm H | 15.6 CFM (0.437m³/min) | 0.200 in H2O (49.8 Pa) | omniCOOL™ Magnetic Sleeve | - | Tubeaxial | PWM Control, Speed Sensor (Tach) | 15.50mm | 37.4dB(A) | 1.8 W | CE, cURus, TUV | 6000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
CFM-6020V-237-280-20FAN AXIAL 60X20MM 24VDC WIRE |
3 | - |
|
数据表 |
CFM-60V | Tray | Active | 24VDC | Square - 60mm L x 60mm H | 19.0 CFM (0.532m³/min) | 0.160 in H2O (39.8 Pa) | omniCOOL™ Magnetic Sleeve | 0.112 lb (50.8 g) | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 20.00mm | 28.0dB(A) | 1.35 W | CE, cURus, TUV | 4200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
02510SS-05M-AA-00FAN AXIAL 25X10MM 5VDC WIRE |
0 | - |
|
数据表 |
02510SS | Box | Active | 5VDC | Square - 25mm L x 25mm H | - | - | Sleeve | - | Tubeaxial | Auto Restart | 10.00mm | - | - | - | - | - | 2 Wire Leads | - |
|
|
06025SA-12M-AT-D0FAN AXIAL 60X25MM 12VDC WIRE |
0 | - |
|
数据表 |
06025SA | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 19.8 CFM (0.554m³/min) | 0.180 in H2O (44.8 Pa) | Ball | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 25.00mm | 27.5dB | 1.2 W | - | 4000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
09225SA-12L-EA-D0FAN AXIAL 92X25MM 12VDC WIRE |
17 | - |
|
数据表 |
09225SA | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 41.3 CFM (1.16m³/min) | 0.120 in H2O (29.9 Pa) | Ball | 0.209 lb (94.8 g) | Tubeaxial | - | 25.00mm | 28.0dB | 1.2 W | CE, UR, VDE | 2400 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
09225SA-24L-EA-D0FAN AXIAL 92X25MM 24VDC WIRE |
0 | - |
|
数据表 |
09225SA | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 39.9 CFM (1.12m³/min) | 0.120 in H2O (29.9 Pa) | Ball | - | Tubeaxial | Auto Restart | 25.00mm | 25.0dB | 1.2 W | - | 2400 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
CFM-4020BF-275-306FAN AXIAL 40X20MM 24VDC WIRE |
0 | - |
|
数据表 |
CFM-40BF | Box | Active | 24VDC | Square - 40mm L x 40mm H | 9.4 CFM (0.263m³/min) | 0.250 in H2O (62.3 Pa) | Ball | - | Tubeaxial | Auto Restart | 20.00mm | 30.6dB(A) | 1.44 W | CE, cURus, TUV | 7500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
4558HQ/EG50060S1-C322-S9AFAN BLOWER 84.8X8.8MM 5VDC RECT |
0 | - |
|
数据表 |
EG | Box | Active | 5VDC | Rectangular/Rounded - 84.8mm L x 71.9mm H | 5.9 CFM (0.165m³/min) | 0.670 in H2O (166.9 Pa) | Sleeve | 0.091 lb (41.28 g) | Blower | Auto Restart, PWM Control, Speed Sensor (Tach) | 8.80mm | 44.2dB(A) | 1.8 W | CE, CSA, CUR, TUV, UL | 4800 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Position Rectangular Connector | - |
|
|
4552HQ/EG75050S1-C070-S9AFAN BLOWER 82.8X7.5MM 5VDC RECT |
18 | - |
|
数据表 |
EG | Box | Active | 5VDC | Rectangular/Rounded - 82.8mm L x 80.9mm H | 4.3 CFM (0.120m³/min) | 0.510 in H2O (127.0 Pa) | Sleeve | 0.098 lb (44.45 g) | Blower | Auto Restart, PWM Control, Speed Sensor (Tach) | 7.50mm | 35.4dB(A) | 1.35 W | CE, CUR, TUV, UL | 4000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Position Rectangular Connector | - |
|
|
4557HQ/EG50050S1-C711-S9AFAN BLOWER 66.9X5.6MM 5VDC RECT |
14 | - |
|
数据表 |
EG | Box | Active | 5VDC | Rectangular/Rounded - 66.9mm L x 65mm H | 3.4 CFM (0.095m³/min) | 0.500 in H2O (124.5 Pa) | Sleeve | 0.042 lb (19.05 g) | Blower | Auto Restart, PWM Control, Speed Sensor (Tach) | 5.60mm | 29.7dB(A) | 2 W | CE, CUR, TUV, UL | 4000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Position Rectangular Connector | - |
