直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9GV1212P4G01FAN AXIAL 119X25.4MM 12VDC WIRE |
3,275 | - |
|
数据表 |
San Ace 120 | Box | Active | 12VDC | Square - 119mm L x 119mm H | 171.0 CFM (4.79m³/min) | 0.900 in H2O (224.2 Pa) | Ball | 0.573 lb (260.00 g) | Tubeaxial | PWM Control, Speed Sensor (Tach) | 25.40mm | 58.0dB(A) | 20.16 W | CSA, TUV, UL | 5100 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|

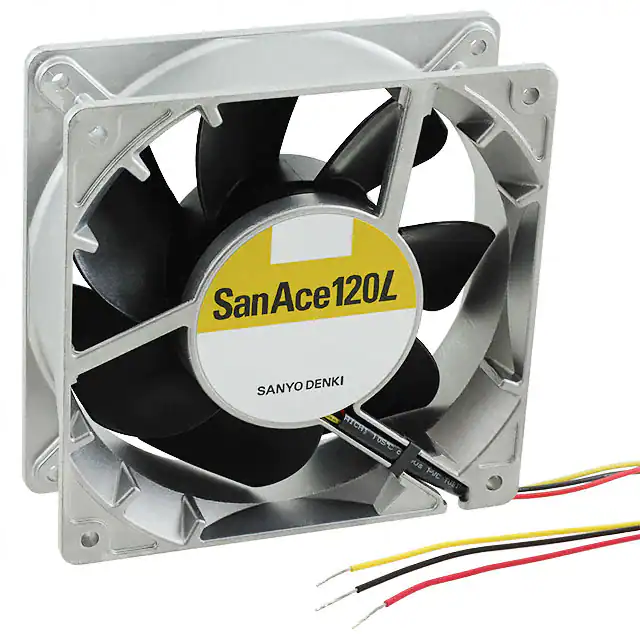

9GL1224G101FAN AXIAL 119X38MM 24VDC WIRE |
195 | - |
|
数据表 |
San Ace 120L | Box | Active | 24VDC | Square - 119mm L x 119mm H | 137.0 CFM (3.84m³/min) | 0.542 in H2O (135.0 Pa) | Ball | 0.816 lb (370.13 g) | Tubeaxial | Speed Sensor (Tach) | 38.00mm | 49.0dB(A) | 12 W | CSA, TUV, UL | 3600 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
BFB1248GH-AFAN BLOWER 120X32MM 48VDC WIRE |
289 | - |
|
数据表 |
BFB | Bulk | Not For New Designs | 48VDC | Square/Rounded - 120mm L x 120mm H | 60.4 CFM (1.69m³/min) | 4.094 in H2O (1019.8 Pa) | Ball | 0.661 lb (299.82 g) | Blower | Locked Rotor Protection | 32.00mm | 65.0dB(A) | 38.4 W | CE, CSA, UL, VDE | 4400 RPM | 14 ~ 140°F (-10 ~ 60°C) | 2 Wire Leads | - |
|
QFR1224GHE-SP01FAN AXIAL 120X38MM 24VDC WIRE |
1,008 | - |
|
数据表 |
QFR | Box | Active | 24VDC | Square - 120mm L x 120mm H | 210.4 CFM (5.89m³/min) | 1.170 in H2O (291.4 Pa) | Ball | 0.728 lb (330.22 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 38.00mm | 64.0dB(A) | 22.56 W | CE, CSA, UL, VDE | 6000 RPM | 14 ~ 140°F (-10 ~ 60°C) | 4 Wire Leads | - |
|
4312FAN AXIAL 119X32MM 12VDC WIRE |
383 | - |
|
数据表 |
4300 | Bulk | Active | 12VDC | Square - 119mm L x 119mm H | 100.1 CFM (2.80m³/min) | - | Ball | 0.485 lb (219.99 g) | Tubeaxial | - | 32.00mm | 45.0dB(A) | 5 W | CE, CSA, UL, VDE | 2800 RPM | -4 ~ 167°F (-20 ~ 75°C) | 2 Wire Leads | - |
|

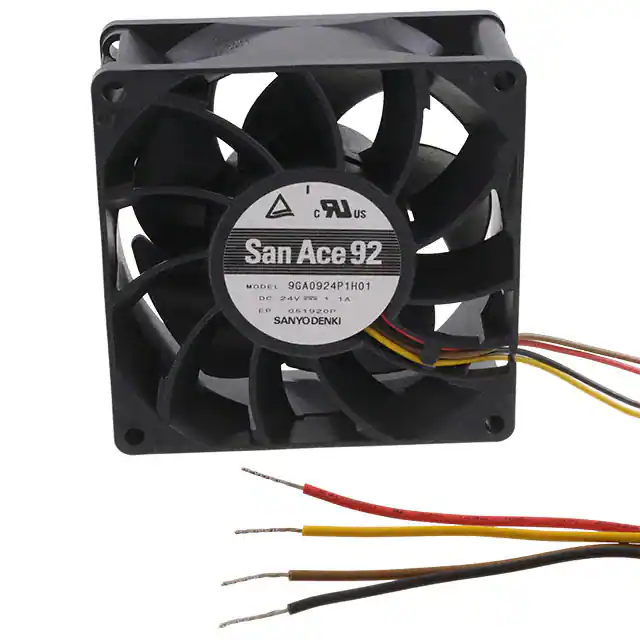

9GA0924P1H01FAN AXIAL 92X38MM 24VDC WIRE |
378 | - |
|
数据表 |
San Ace 92 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 141.0 CFM (3.95m³/min) | 2.010 in H2O (500.7 Pa) | Ball | 0.529 lb (240.00 g) | Tubeaxial | PWM Control, Speed Sensor (Tach) | 38.00mm | 63.0dB(A) | 26.4 W | CSA, TUV, UL | 9700 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
9GA0912P1H03FAN AXIAL 92X38MM 12VDC WIRE |
129 | - |
|
数据表 |
San Ace 92 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 141.2 CFM (3.95m³/min) | 2.010 in H2O (500.7 Pa) | Ball | 0.529 lb (239.95 g) | Tubeaxial | PWM Control, Speed Sensor (Tach) | 38.00mm | 63.0dB(A) | 25.2 W | CSA, TUV, UL | 9700 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|
PFR0912XHE-SP00FAN AXIAL 92X38MM 12VDC WIRE |
336 | - |
|
数据表 |
PFR | Box | Active | 12VDC | Square - 92mm L x 92mm H | 185.5 CFM (5.19m³/min) | 2.523 in H2O (628.5 Pa) | Ball | 0.573 lb (260.00 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 38.00mm | 71.0dB(A) | 44.4 W | CE, cURus, VDE | 11500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
4412FMFAN AXIAL 119X25.4MM 12VDC WIRE |
256 | - |
|
数据表 |
4400F | Bulk | Active | 12VDC | Square - 119mm L x 119mm H | 82.4 CFM (2.31m³/min) | - | Ball | 0.386 lb (175.09 g) | Tubeaxial | - | 25.40mm | 38.0dB(A) | 3.2 W | CE, CSA, UL, VDE | 2400 RPM | -4 ~ 167°F (-20 ~ 75°C) | 2 Wire Leads | - |
|

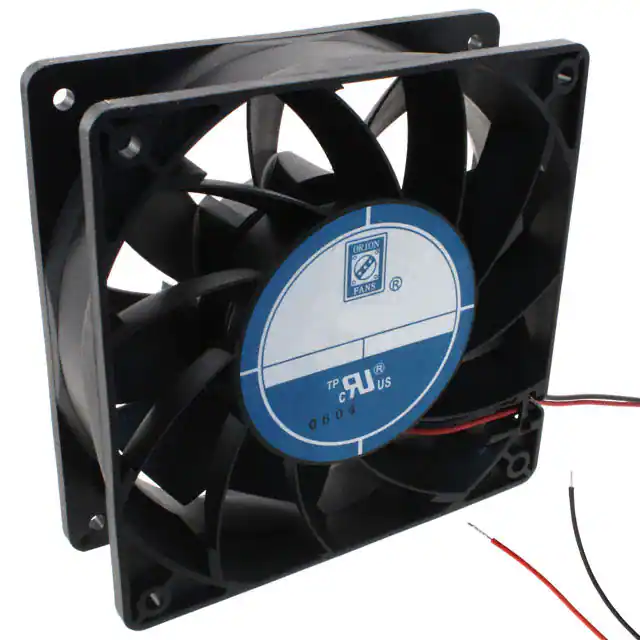

OD1238-12HBVXCFAN AXIAL 120X38MM 12VDC WIRE |
359 | - |
|
数据表 |
OD1238 VA | Box | Active | 12VDC | Square - 120mm L x 120mm H | 226.0 CFM (6.33m³/min) | 1.350 in H2O (336.3 Pa) | Ball | - | Tubeaxial | Auto Restart | 38.00mm | 65.0dB | 43.2 W | cURus, TUV | 5000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|

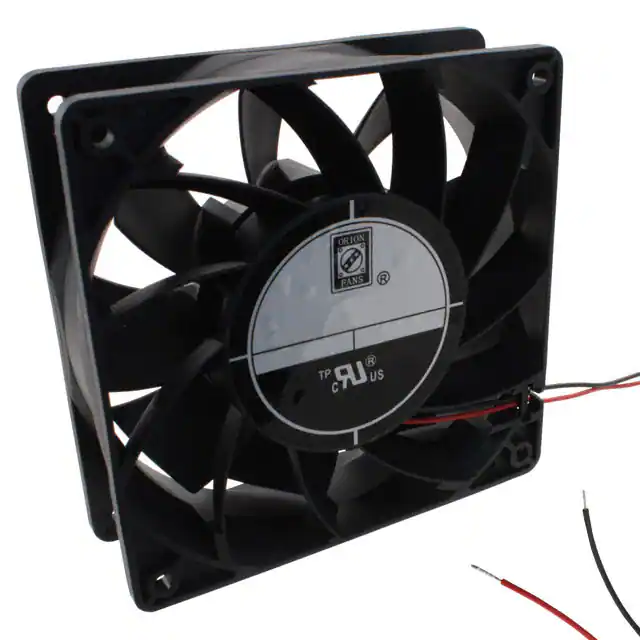

OD1238-24HBVXCFAN AXIAL 120X38MM 24VDC WIRE |
145 | - |
|
数据表 |
OD1238 VA | Box | Active | 24VDC | Square - 120mm L x 120mm H | 226.0 CFM (6.33m³/min) | 1.350 in H2O (336.3 Pa) | Ball | - | Tubeaxial | Auto Restart | 38.00mm | 65.0dB | 40.8 W | cURus, TUV | 5000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
9BMB12P2K01FAN BLOWER 97.1X33MM 12VDC WIRE |
9,602 | - |
|
数据表 |
San Ace B97 | Box | Active | 12VDC | Rectangular/Rounded - 97.1mm L x 95mm H | 56.8 CFM (1.59m³/min) | 5.140 in H2O (1280.0 Pa) | Ball | 0.419 lb (190.06 g) | Blower | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 33.00mm | 66.0dB(A) | 40.8 W | cURus, TUV | 6850 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|
OD1232-48LSSFAN AXIAL 120X32MM 48VDC WIRE |
0 | - |
|
数据表 |
OD1232 | Bulk | Active | 48VDC | Square - 120mm L x 120mm H | 93.0 CFM (2.60m³/min) | 0.270 in H2O (67.3 Pa) | Sealed Sleeve | - | Tubeaxial | - | 32.00mm | 44.0dB | - | cURus, TUV | 2900 RPM | 14 ~ 122°F (-10 ~ 50°C) | 2 Wire Leads | - |
|
|
OD1232-48MSSFAN AXIAL 120X32MM 48VDC WIRE |
0 | - |
|
数据表 |
OD1232 | Bulk | Active | 48VDC | Square - 120mm L x 120mm H | 107.0 CFM (3.00m³/min) | 0.330 in H2O (82.2 Pa) | Sealed Sleeve | - | Tubeaxial | - | 32.00mm | 48.0dB | - | cURus, TUV | 3300 RPM | 14 ~ 122°F (-10 ~ 50°C) | 2 Wire Leads | - |
|
OD1238-12HSS01AFAN AXIAL 120X38.5MM 12VDC WIRE |
0 | - |
|
数据表 |
OD1238 | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 105.0 CFM (2.94m³/min) | 0.270 in H2O (67.3 Pa) | Sealed Sleeve | - | Tubeaxial | Speed Sensor (Tach) | 38.50mm | 47.0dB | 4.7 W | cURus, TUV | 2800 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
OD1238-12HSS02AFAN AXIAL 120X38.5MM 12VDC WIRE |
0 | - |
|
数据表 |
OD1238 | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 105.0 CFM (2.94m³/min) | 0.270 in H2O (67.3 Pa) | Sealed Sleeve | - | Tubeaxial | Locked Rotor Sensor | 38.50mm | 47.0dB | 4.7 W | cURus, TUV | 2800 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
OD1238-12LSS01AFAN AXIAL 120X38.5MM 12VDC WIRE |
0 | - |
|
数据表 |
OD1238 | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 73.0 CFM (2.04m³/min) | 0.130 in H2O (32.4 Pa) | Sealed Sleeve | - | Tubeaxial | Speed Sensor (Tach) | 38.50mm | 33.0dB | 3 W | cURus, TUV | 1950 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
OD1238-12LSS02AFAN AXIAL 120X38.5MM 12VDC WIRE |
0 | - |
|
数据表 |
OD1238 | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 73.0 CFM (2.04m³/min) | 0.130 in H2O (32.4 Pa) | Sealed Sleeve | - | Tubeaxial | Locked Rotor Sensor | 38.50mm | 33.0dB | 3 W | cURus, TUV | 1950 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
OD1238-12MSS01AFAN AXIAL 120X38.5MM 12VDC WIRE |
0 | - |
|
数据表 |
OD1238 | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 95.0 CFM (2.66m³/min) | 0.230 in H2O (57.3 Pa) | Sealed Sleeve | - | Tubeaxial | Speed Sensor (Tach) | 38.50mm | 41.0dB | 4 W | cURus, TUV | 2540 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
OD1238-12MSS02AFAN AXIAL 120X38.5MM 12VDC WIRE |
0 | - |
|
数据表 |
OD1238 | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 95.0 CFM (2.66m³/min) | 0.230 in H2O (57.3 Pa) | Sealed Sleeve | - | Tubeaxial | Locked Rotor Sensor | 38.50mm | 41.0dB | 4 W | cURus, TUV | 2540 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
