直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9GA0824P6G001FAN AXIAL 80X20MM 24VDC WIRE |
2,845 | - |
|
数据表 |
San Ace 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 60.8 CFM (1.70m³/min) | 0.440 in H2O (109.6 Pa) | Ball | 0.176 lb (79.83 g) | Tubeaxial | PWM Control, Speed Sensor (Tach) | 20.00mm | 45.0dB(A) | 3.6 W | CSA, TUV, UL | 5850 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|
BFB0712HHD77FAN BLOWER 75.7X25MM 12VDC WIRE |
2,085 | - |
|
数据表 |
BFB | Box | Active | 12VDC | Rectangular/Rounded - 75.7mm L x 80.6mm H | 14.7 CFM (0.412m³/min) | 1.412 in H2O (351.7 Pa) | Ball | 0.188 lb (85.28 g) | Blower | Locked Rotor Protection, PWM Control | 25.00mm | 50.0dB(A) | 8.15 W | - | 5500 RPM | -40 ~ 185°F (-40 ~ 85°C) | 3 Wire Leads | IP55 - Dust Protected, Water Resistant |
|

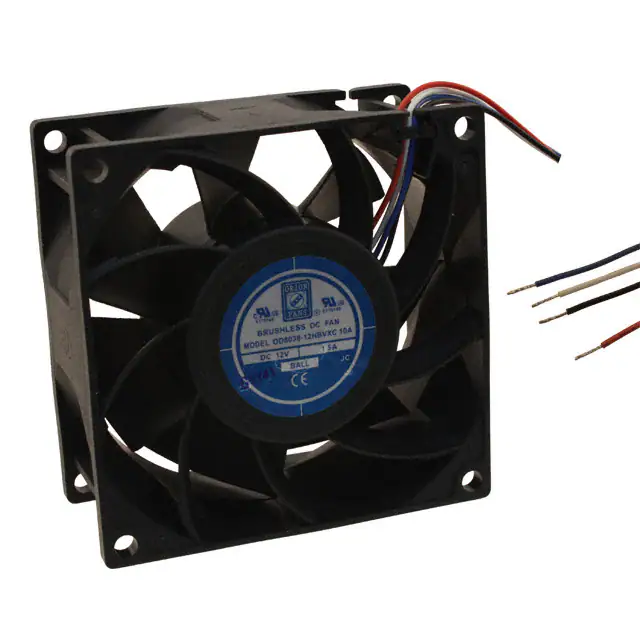

OD8038-12HBVXC10AFAN AXIAL 80X38MM 12VDC WIRE |
2,123 | - |
|
数据表 |
OD8038 VA | Box | Active | 12VDC | Square - 80mm L x 80mm H | 99.0 CFM (2.77m³/min) | 0.810 in H2O (201.8 Pa) | Ball | - | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 38.00mm | 57.0dB | 14 W | cURus | 6300 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|

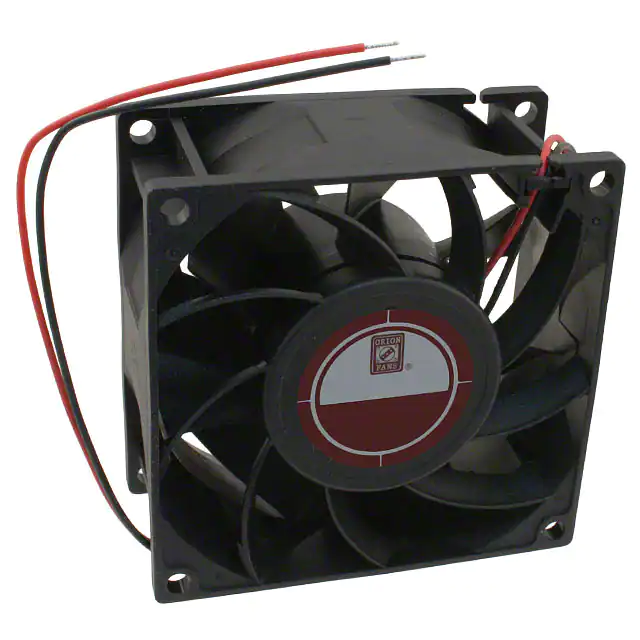

OD8038-48HBVXCFAN AXIAL 80X38MM 48VDC WIRE |
354 | - |
|
数据表 |
OD8038 VA | Box | Active | 48VDC | Square - 80mm L x 80mm H | 99.0 CFM (2.77m³/min) | 0.810 in H2O (201.8 Pa) | Ball | - | Tubeaxial | Auto Restart | 38.00mm | 57.0dB | 14 W | cURus, TUV | 6300 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
BFB1024HFAN BLOWER 97.2X33MM 24VDC WIRE |
1,517 | - |
|
数据表 |
BFB | Bulk | Active | 24VDC | Rectangular/Rounded - 97.2mm L x 94.4mm H | 25.4 CFM (0.711m³/min) | 1.000 in H2O (249.1 Pa) | Ball | 0.353 lb (160.12 g) | Blower | Locked Rotor Protection | 33.00mm | 52.0dB(A) | 9.6 W | CE, CSA, UL, VDE | 3600 RPM | 14 ~ 140°F (-10 ~ 60°C) | 2 Wire Leads | - |
|
BFB1024HHFAN BLOWER 97.2X33MM 24VDC WIRE |
491 | - |
|
数据表 |
BFB | Bulk | Active | 24VDC | Rectangular/Rounded - 97.2mm L x 94.4mm H | 28.3 CFM (0.792m³/min) | 1.299 in H2O (323.6 Pa) | Ball | 0.353 lb (160.12 g) | Blower | Locked Rotor Protection | 33.00mm | 55.0dB(A) | 13.2 W | CE, CSA, UL, VDE | 4000 RPM | 14 ~ 140°F (-10 ~ 60°C) | 2 Wire Leads | - |
|

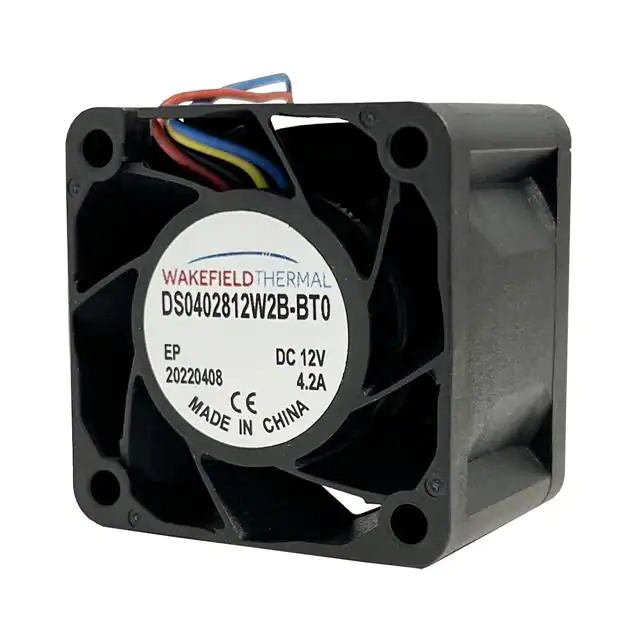

DS0402812W2B-BT0FAN AXIAL 40X28MM 12VDC WIRE |
264 | - |
|
数据表 |
DS | Box | Active | 12VDC | Square - 40mm L x 40mm H | 41.2 CFM (1.15m³/min) | 8.112 in H2O (2020.6 Pa) | Ball | - | Tubeaxial | PWM Control, Speed Sensor (Tach) | 28.00mm | 72.5dB(A) | 50.4 W | CE | 35000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
.GN.jpg)
|
PMD1209PMB1-A.(2).GNFAN AXIAL 92X38MM 12VDC WIRE |
824 | - |
|
数据表 |
PMD | Box | Active | 12VDC | Square - 92mm L x 92mm H | 120.2 CFM (3.37m³/min) | 0.710 in H2O (176.9 Pa) | Ball | 0.419 lb (190.06 g) | Tubeaxial | - | 38.00mm | 57.6dB(A) | 12.5 W | CE, CUR, TUV, UL | 4900 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
PMD1208PMB1-A.(2).GNFAN AXIAL 80X38MM 12VDC WIRE |
574 | - |
|
数据表 |
PMD | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 84.1 CFM (2.35m³/min) | 0.740 in H2O (184.3 Pa) | Ball | 0.386 lb (175.09 g) | Tubeaxial | - | 38.00mm | 55.2dB(A) | 9.1 W | CE, CUR, TUV, UL | 5700 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
_Series.jpg)
|
3414NGHFAN AXIAL 92X25.4MM 24VDC WIRE |
108 | - |
|
数据表 |
3400N | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 55.3 CFM (1.55m³/min) | - | Sintec | 0.22 lb (99.79 g) | Tubeaxial | - | 25.40mm | 36.0dB(A) | 3 W | CSA, UL, VDE | 3000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
PFC0612DE-F00FAN AXIAL 60X38MM 12VDC WIRE |
1,146 | - |
|
数据表 |
PFC | Box | Active | 12VDC | Square - 60mm L x 60mm H | 67.8 CFM (1.90m³/min) | 2.129 in H2O (530.3 Pa) | Ball | 0.287 lb (130.18 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 38.00mm | 61.5dB(A) | 16.8 W | CE, CSA, UL, VDE | 12000 RPM | 14 ~ 140°F (-10 ~ 60°C) | 4 Wire Leads | - |
|
9G0924H102FAN AXIAL 92X38MM 24VDC WIRE |
510 | - |
|
数据表 |
San Ace 92 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 90.0 CFM (2.52m³/min) | 0.401 in H2O (100.0 Pa) | Ball | 0.397 lb (180.08 g) | Tubeaxial | - | 38.00mm | 43.0dB(A) | 7.2 W | CSA, TUV, UL | 4000 RPM | -4 ~ 140°F (-20 ~ 60°C) | 2 Wire Leads | - |
|

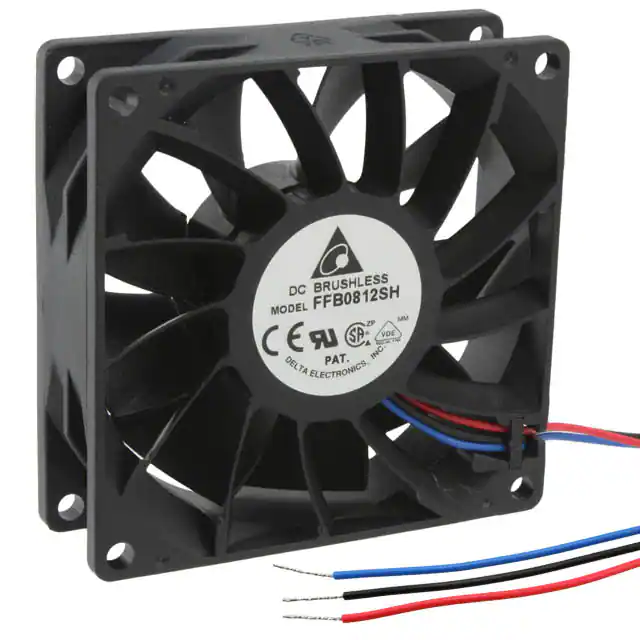

FFB0812SH-F00FAN AXIAL 80X25.4MM 12VDC WIRE |
449 | - |
|
数据表 |
FFB | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 67.0 CFM (1.88m³/min) | 0.392 in H2O (97.6 Pa) | Ball | 0.253 lb (114.76 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.40mm | 48.6dB(A) | 6 W | CE, CSA, UL, VDE | 4500 RPM | 14 ~ 140°F (-10 ~ 60°C) | 3 Wire Leads | - |
|
9GA0912P4J03FAN AXIAL 92X25MM 12VDC WIRE |
2,189 | - |
|
数据表 |
San Ace 92 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 77.7 CFM (2.18m³/min) | 0.420 in H2O (104.6 Pa) | Ball | 0.276 lb (125.19 g) | Tubeaxial | PWM Control, Speed Sensor (Tach) | 25.00mm | 43.0dB(A) | 4.68 W | CSA, TUV, UL | 5000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|
|
9GA0912P4J031FAN AXIAL 92X25MM 12VDC WIRE |
848 | - |
|
数据表 |
San Ace 92 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 77.7 CFM (2.18m³/min) | 0.420 in H2O (104.6 Pa) | Ball | 0.276 lb (125.19 g) | Tubeaxial | PWM Control, Speed Sensor (Tach) | 25.00mm | 43.0dB(A) | 4.68 W | CSA, TUV, UL | 5000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|
MR1238E24B1+6-FSRFAN AXIAL 120X38MM 24VDC WIRE |
264 | - |
|
数据表 |
MR1238 | Box | Active | 24VDC | Square - 120mm L x 120mm H | 261.0 CFM (7.31m³/min) | 1.325 in H2O (330.0 Pa) | Ball | 0.838 lb (380.11 g) | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 38.00mm | 67.9dB(A) | - | CE, cUL, TUV, UL | 5000 RPM | - | 4 Wire Leads | - |
|
614NGHHFAN AXIAL 60X25.4MM 24VDC WIRE |
577 | - |
|
数据表 |
600NG | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 33.0 CFM (0.924m³/min) | - | Sintec | 0.19 lb (86.18 g) | Tubeaxial | - | 25.40mm | 43.0dB(A) | 3.8 W | CE, CSA, UL, VDE | - | - | 2 Wire Leads | - |
.jpg)
|
9G0612P4S001FAN AXIAL 60X25MM 12VDC WIRE |
2,461 | - |
|
数据表 |
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 49.4 CFM (1.38m³/min) | 1.200 in H2O (298.9 Pa) | Ball | 0.199 lb (90.26 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 25.00mm | 53.0dB(A) | 8.04 W | CSA, TUV, UL | 11000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|
DC0602548M2B-3T0FAN 60X25MM 48VDC TACH |
0 | - |
|
数据表 |
- | Bulk | Active | 48VDC | Square - 60mm L x 60mm H | 24.0 CFM (0.672m³/min) | 0.220 in H2O (54.8 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | 34.0dB(A) | 7.2 W | CE, cURus | 4250 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
DC0602524H2B-BT0FAN 60X25MM 24VDC PWM/TACH |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 33.6 CFM (0.941m³/min) | 0.250 in H2O (62.3 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 25.00mm | 40.0dB(A) | 6.72 W | CE, cURus | 5000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
