直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9GA0824P7S001FAN AXIAL 80X15MM 24VDC WIRE |
276 | - |
|
数据表 |
San Ace 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 41.7 CFM (1.17m³/min) | 0.226 in H2O (56.4 Pa) | Ball | 0.143 lb (64.86 g) | Tubeaxial | PWM Control, Speed Sensor (Tach) | 15.00mm | 37.0dB(A) | 1.92 W | CSA, TUV, UL | 5000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|
8414NGHFAN AXIAL 80X25.4MM 24VDC WIRE |
538 | - |
|
数据表 |
8400N | Box | Active | 24VDC | Square - 80mm L x 80mm H | 46.5 CFM (1.30m³/min) | - | Sintec | 0.21 lb (95.25 g) | Tubeaxial | - | 25.40mm | 37.0dB(A) | 2.6 W | CE, CSA, UL, VDE | 3600 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
|
8414NGLFAN AXIAL 80X25.4MM 24VDC WIRE |
190 | - |
|
数据表 |
8400N | Box | Active | 24VDC | Square - 80mm L x 80mm H | 19.4 CFM (0.543m³/min) | - | Sintec | 0.209 lb (94.8 g) | Tubeaxial | - | 25.40mm | 12.0dB(A) | 700 mW | CE, CSA, UL, VDE | 1500 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
.jpg)
|
9GV0612P1G03FAN AXIAL 60X38MM 12VDC WIRE |
738 | - |
|
数据表 |
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 84.0 CFM (2.35m³/min) | 3.020 in H2O (752.3 Pa) | Ball | 0.287 lb (130.18 g) | Tubeaxial | PWM Control, Speed Sensor (Tach) | 38.00mm | 66.0dB(A) | 33.6 W | CSA, TUV, UL | 16000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|
|
9GV0612P1G031FAN AXIAL 60X38MM 12VDC WIRE |
292 | - |
|
数据表 |
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 84.0 CFM (2.35m³/min) | 3.020 in H2O (752.3 Pa) | Ball | 0.287 lb (130.18 g) | Tubeaxial | PWM Control, Speed Sensor (Tach) | 38.00mm | 66.0dB(A) | 33.6 W | CSA, TUV, UL | 16000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|
OD1238-24HBXJ01AFAN AXIAL 120X38MM 24VDC WIRE |
1,533 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 250.0 CFM (7.00m³/min) | 1.480 in H2O (368.7 Pa) | Ball | 0.827 lb (375.12 g) | Tubeaxial | Speed Sensor (Tach) | 38.00mm | 69.0dB | 42 W | cURus, TUV | 6000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
CFM-A225V-131-445-11FAN AXIAL 120X25MM 12VDC WIRE |
0 | - |
|
数据表 |
CFM-120V | Tray | Obsolete | 12VDC | Square - 120mm L x 120mm H | 108.2 CFM (3.03m³/min) | 0.280 in H2O (69.7 Pa) | omniCOOL™ Magnetic Sleeve | 0.357 lb (161.93 g) | Tubeaxial | Auto Restart | 25.00mm | 44.5dB(A) | 4.84 W | CE, cURus, TUV | 3100 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
CBM-9330B-240-507DC BLOWER, 92.3 X 92.6 X 30 MM, |
0 | - |
|
数据表 |
CBM-93B | Box | Active | 24VDC | Rectangular/Rounded - 92.5mm L x 92.3mm H | 21.7 CFM (0.608m³/min) | 1.140 in H2O (284.0 Pa) | Ball | - | Blower | Auto Restart | 29.50mm | 47.5dB(A) | 7.2 W | CE, cURus, TUV | 3500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
9238TH12BFAN 12VDC 92X38MM |
0 | - |
|
数据表 |
- | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 112.7 CFM (3.16m³/min) | 0.677 in H2O (168.6 Pa) | Ball | - | Tubeaxial | Auto Restart | 38.00mm | 56.5dB(A) | 10.68 W | CE, cURus, TUV | 5000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
DC0602548H2B-3T0FAN 60X25MM 48VDC TACH |
0 | - |
|
数据表 |
- | Bulk | Active | 48VDC | Square - 60mm L x 60mm H | 33.6 CFM (0.941m³/min) | 0.250 in H2O (62.3 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | 40.0dB(A) | 13.44 W | CE, cURus | 5000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
DC0602548J2B-3T0FAN 60X25MM 48VDC TACH |
0 | - |
|
数据表 |
- | Bulk | Active | 48VDC | Square - 60mm L x 60mm H | 17.1 CFM (0.479m³/min) | 0.120 in H2O (29.9 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | 26.0dB(A) | 9.6 W | CE, cURus | 3100 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
DC0602524L2B-BT0FAN 60X25MM 24VDC PWM/TACH |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 21.5 CFM (0.602m³/min) | 0.160 in H2O (39.8 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 25.00mm | 31.0dB(A) | 2.88 W | CE, cURus | 3600 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
|
DC0602548L2B-3T0FAN 60X25MM 48VDC TACH |
0 | - |
|
数据表 |
- | Bulk | Active | 48VDC | Square - 60mm L x 60mm H | 21.5 CFM (0.602m³/min) | 0.160 in H2O (39.8 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | 31.0dB(A) | 5.76 W | CE, cURus | 3600 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|

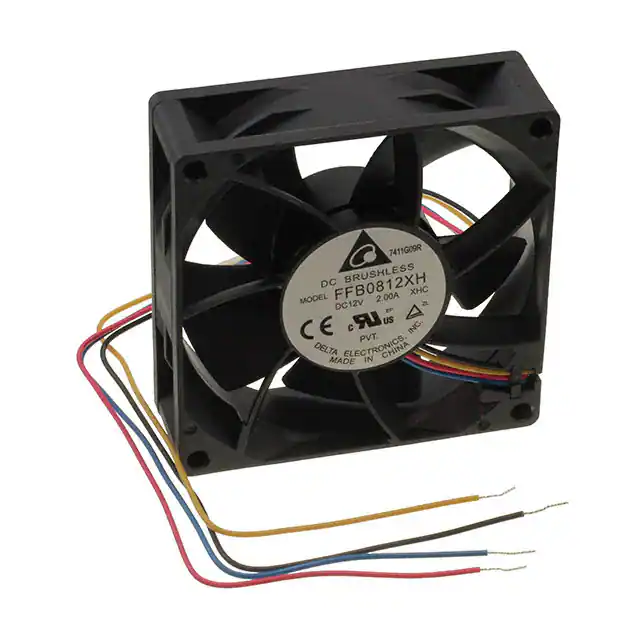

FFB0812XHXHCFAN AXIAL 80X25.4MM 12VDC WIRE |
2,704 | - |
|
数据表 |
FFB | Box | Active | 12VDC | Square - 80mm L x 80mm H | 92.7 CFM (2.60m³/min) | 1.102 in H2O (255.0 Pa) | Ball | 0.254 lb (115.21 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 25.40mm | 59.0dB(A) | 12 W | CE, cURus, TUV | 9000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|

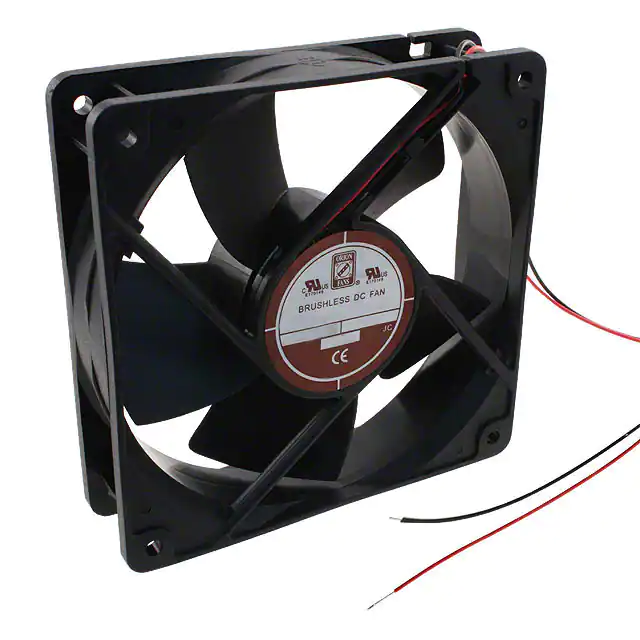

OD1232-48HBFAN AXIAL 120X32MM 48VDC WIRE |
970 | - |
|
数据表 |
OD1232 | Box | Active | 48VDC | Square - 120mm L x 120mm H | 120.0 CFM (3.36m³/min) | 0.420 in H2O (104.6 Pa) | Ball | - | Tubeaxial | - | 32.00mm | 51.0dB | - | cURus, TUV | 3750 RPM | -4 ~ 176°F (-20 ~ 80°C) | 2 Wire Leads | - |
|

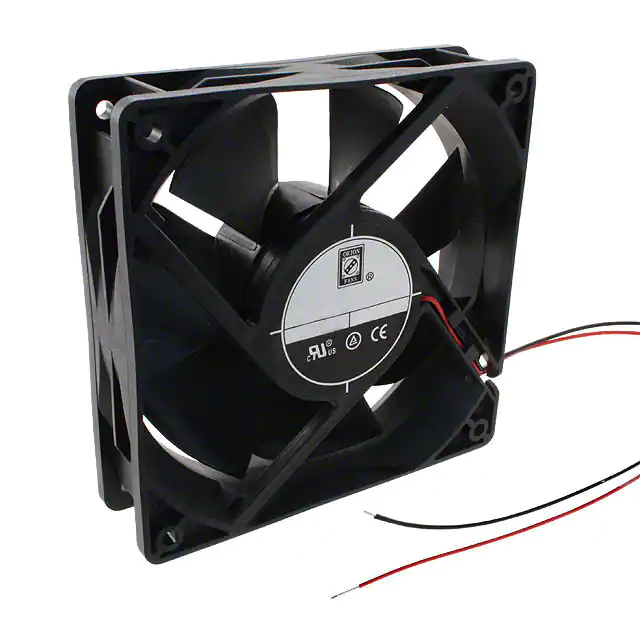

OD1232-24HBFAN AXIAL 120X32MM 24VDC WIRE |
719 | - |
|
数据表 |
OD1232 | Box | Active | 24VDC | Square - 120mm L x 120mm H | 120.0 CFM (3.36m³/min) | 0.420 in H2O (104.6 Pa) | Ball | - | Tubeaxial | - | 32.00mm | 51.0dB | - | cURus, TUV | 3750 RPM | -4 ~ 176°F (-20 ~ 80°C) | 2 Wire Leads | - |
|

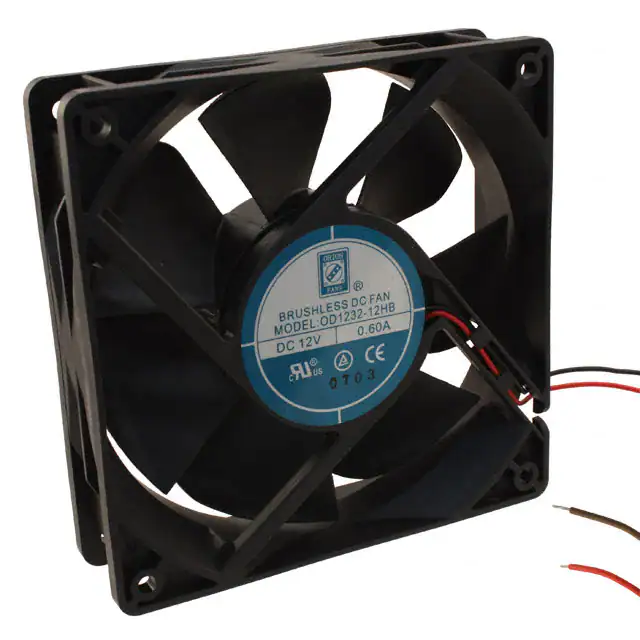

OD1232-12HBFAN AXIAL 120X32MM 12VDC WIRE |
475 | - |
|
数据表 |
OD1232 | Box | Active | 12VDC | Square - 120mm L x 120mm H | 120.0 CFM (3.36m³/min) | 0.420 in H2O (104.6 Pa) | Ball | - | Tubeaxial | - | 32.00mm | 51.0dB | - | cURus, TUV | 3750 RPM | -4 ~ 176°F (-20 ~ 80°C) | 2 Wire Leads | - |
|

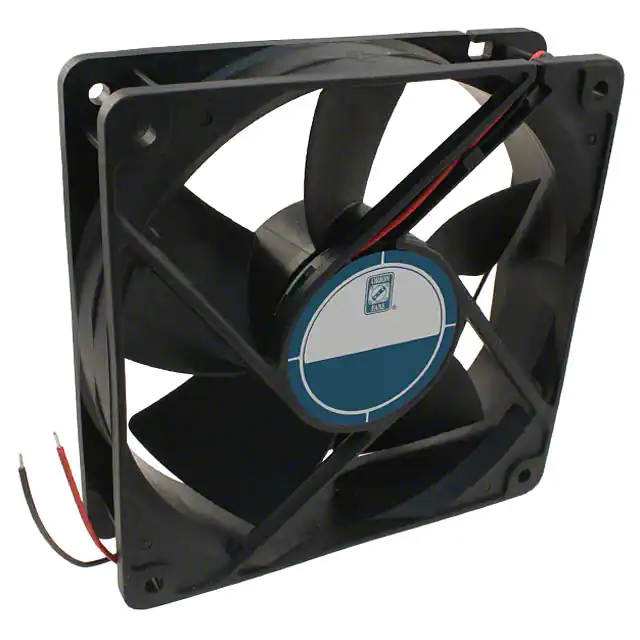

OD1232-12MBFAN AXIAL 120X32MM 12VDC WIRE |
136 | - |
|
数据表 |
OD1232 | Box | Active | 12VDC | Square - 120mm L x 120mm H | 107.0 CFM (3.00m³/min) | 0.330 in H2O (82.2 Pa) | Ball | - | Tubeaxial | - | 32.00mm | 48.0dB | - | cURus, TUV | 3300 RPM | -4 ~ 176°F (-20 ~ 80°C) | 2 Wire Leads | - |
|

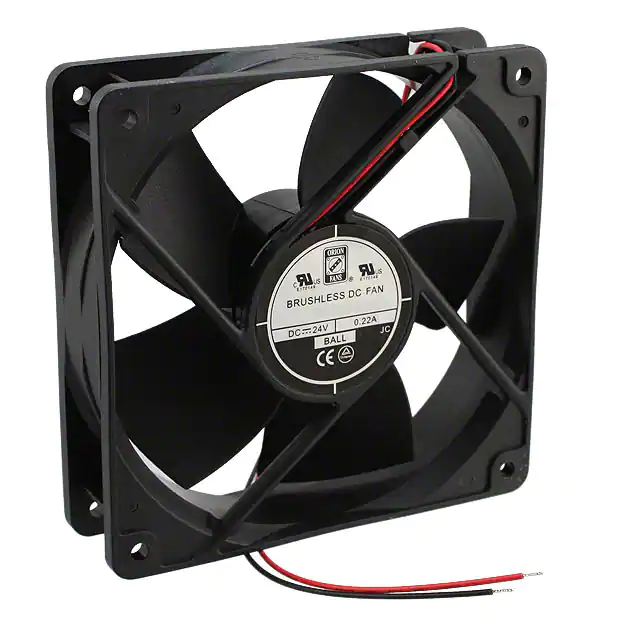

OD1232-24MBFAN AXIAL 120X32MM 24VDC WIRE |
0 | - |
|
数据表 |
OD1232 | Box | Active | 24VDC | Square - 120mm L x 120mm H | 107.0 CFM (3.00m³/min) | 0.330 in H2O (82.2 Pa) | Ball | - | Tubeaxial | - | 32.00mm | 48.0dB | - | cURus, TUV | 3300 RPM | -4 ~ 176°F (-20 ~ 80°C) | 2 Wire Leads | - |
|

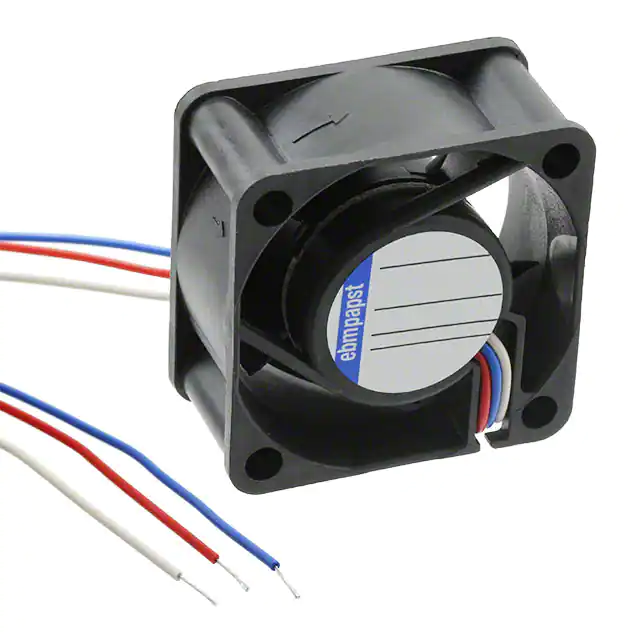

414/2HFAN AXIAL 40X20MM 24VDC WIRE |
217 | - |
|
数据表 |
400 | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 7.9 CFM (0.221m³/min) | - | Sintec | 0.06 lb (27.22 g) | Tubeaxial | Speed Sensor (Tach) | 20.00mm | 29.0dB(A) | 1.7 W | CSA, UL, VDE | 8100 RPM | -4 ~ 140°F (-20 ~ 60°C) | 3 Wire Leads | - |
