直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

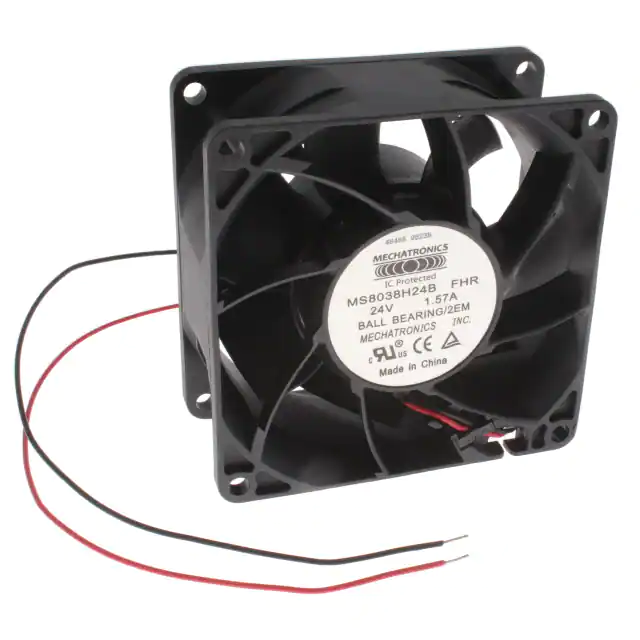

MS8038H24B-FHR-2EMFAN AXIAL 80X38MM 24VDC WIRE |
159 | - |
|
数据表 |
MS8038-H | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 120.5 CFM (3.37m³/min) | 1.550 in H2O (385.0 Pa) | Ball | 0.391 lb (177.35 g) | Tubeaxial | Auto Restart | 38.00mm | 77.0dB(A) | - | - | 10000 RPM | - | 2 Wire Leads | IP68 - Dust Tight, Waterproof |
|
DC0601005U2B-BT4FAN 60X10MM 5VDC PWM/TACH MOLEX |
0 | - |
|
数据表 |
- | Bulk | Active | 5VDC | Square - 60mm L x 60mm H | 19.9 CFM (0.557m³/min) | 0.160 in H2O (39.8 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 10.50mm | 37.0dB(A) | 1 W | CE, cURus | 4900 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Position Rectangular Connector | - |
|
9BMB24P2F01FAN BLOWER 97.1X33MM 24VDC WIRE |
969 | - |
|
数据表 |
San Ace B97 | Box | Active | 24VDC | Rectangular/Rounded - 97.1mm L x 95mm H | 36.7 CFM (1.03m³/min) | 1.640 in H2O (408.5 Pa) | Ball | 0.419 lb (190.06 g) | Blower | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 33.00mm | 56.0dB(A) | 10.8 W | cURus, TUV | 4500 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|
|
PMD1208PKV1-A.GNFAN AXIAL 80X20MM 12VDC WIRE |
0 | - |
|
数据表 |
MagLev® PMD | Bulk | Obsolete | 12VDC | Square - 80mm L x 80mm H | 53.0 CFM (1.48m³/min) | 0.360 in H2O (89.6 Pa) | Vapo-Bearing™ | - | Tubeaxial | Auto Restart | 20.00mm | 48.0dB(A) | 4.7 W | - | 4600 RPM | - | 2 Wire Leads | - |
|
9GA0824P4J001FAN AXIAL 80X25MM 24VDC WIRE |
655 | - |
|
数据表 |
San Ace 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 73.0 CFM (2.04m³/min) | 0.700 in H2O (174.4 Pa) | Ball | 0.243 lb (110.22 g) | Tubeaxial | PWM Control, Speed Sensor (Tach) | 25.00mm | 48.0dB(A) | 6.72 W | CSA, TUV, UL | 7400 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|
|
PMD1208PKV3-A.GNFAN AXIAL 80X20MM 12VDC WIRE |
0 | - |
|
数据表 |
MagLev® PMD | Bulk | Obsolete | 12VDC | Square - 80mm L x 80mm H | 45.0 CFM (1.26m³/min) | 0.260 in H2O (64.8 Pa) | Vapo-Bearing™ | - | Tubeaxial | Auto Restart | 20.00mm | 43.0dB(A) | 3.1 W | - | 3900 RPM | - | 2 Wire Leads | - |
|
|
DC0251005M2B-BT0FAN 25X10MM 5VDC PWM/TACH |
0 | - |
|
数据表 |
- | Bulk | Active | 5VDC | Square - 25mm L x 25mm H | 1.9 CFM (0.053m³/min) | 0.170 in H2O (42.3 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 10.00mm | 24.0dB(A) | 300 mW | CE, cURus | 10000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|

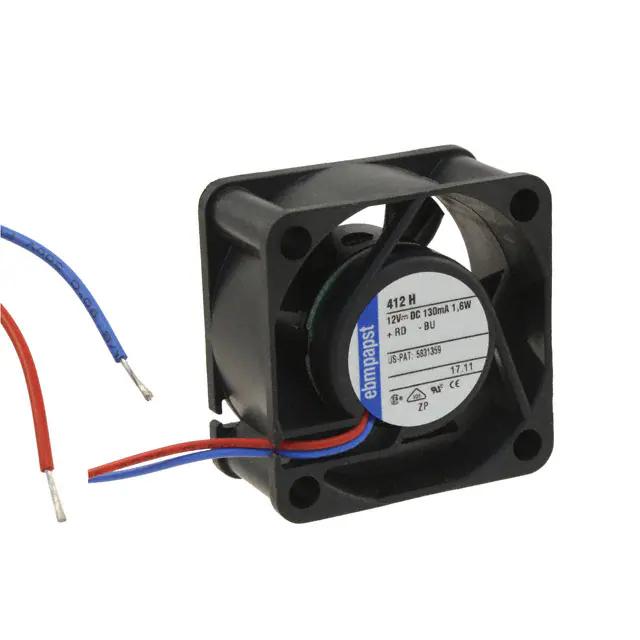

412HFAN AXIAL 40X20MM 12VDC WIRE |
425 | - |
|
数据表 |
400 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 7.9 CFM (0.221m³/min) | - | Sintec | 0.059 lb (26.76 g) | Tubeaxial | - | 20.00mm | 29.0dB(A) | 1.6 W | CSA, UL, VDE | 8100 RPM | -4 ~ 140°F (-20 ~ 60°C) | 2 Wire Leads | - |
|
|
DC0251005L2B-BT0FAN 25X10MM 5VDC PWM/TACH |
0 | - |
|
数据表 |
- | Bulk | Active | 5VDC | Square - 25mm L x 25mm H | 1.3 CFM (0.036m³/min) | 0.070 in H2O (17.4 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 10.00mm | 20.0dB(A) | 250 mW | CE, cURus | 7000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
PMD2412PMB1-A(2).GNFAN AXIAL 120X38MM 24VDC WIRE |
2,057 | - |
|
数据表 |
PMD | Tray | Active | 24VDC | Square - 120mm L x 120mm H | 190.0 CFM (5.32m³/min) | 0.650 in H2O (161.9 Pa) | Ball | 0.728 lb (330.22 g) | Tubeaxial | - | 38.00mm | 54.0dB(A) | 18.2 W | CE, CUR, TUV, UL | 4200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
DC0922524U2B-2T2FAN 92X25MM 24VDC MOLEX 22-01-10 |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 69.2 CFM (1.94m³/min) | 0.280 in H2O (69.7 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection | 25.00mm | 45.0dB(A) | 7.2 W | CE, cURus | 3800 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Position Rectangular Connector | - |
|
|
9GA0612P1K60FAN AXIAL 60X38MM 12VDC WIRE |
226 | - |
|
数据表 |
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 53.0 CFM (1.48m³/min) | 2.710 in H2O (675.0 Pa) | Ball | 0.287 lb (130.18 g) | Tubeaxial | PWM Control, Speed Sensor (Tach) | 38.00mm | 59.0dB(A) | 11.4 W | CSA, TUV, UL | 14800 RPM | -4 ~ 140°F (-20 ~ 60°C) | 4 Wire Leads | - |
|
|
DC0702548H2B-BT4FAN 70X25MM 48VDC PWM/TACH MOLEX |
0 | - |
|
数据表 |
- | Bulk | Active | 48VDC | Square - 70mm L x 70mm H | 39.9 CFM (1.13m³/min) | 0.270 in H2O (67.3 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 25.00mm | 37.0dB(A) | 6.24 W | CE, cURus | 4000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Position Rectangular Connector | - |
|
|
9GA0824H7001FAN AXIAL 80X15MM 24VDC WIRE |
427 | - |
|
数据表 |
San Ace 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 31.4 CFM (0.879m³/min) | 0.131 in H2O (32.6 Pa) | Ball | 0.143 lb (64.86 g) | Tubeaxial | Speed Sensor (Tach) | 15.00mm | 29.0dB(A) | 1.2 W | CSA, TUV, UL | 3800 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
DC0301005U2B-2T2FAN 30X10MM 5VDC MOLEX 22-01-102 |
0 | - |
|
数据表 |
- | Bulk | Active | 5VDC | Square - 30mm L x 30mm H | 5.7 CFM (0.157m³/min) | 0.240 in H2O (59.8 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection | 10.50mm | 31.0dB(A) | 850 mW | CE, cURus | 11000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Position Rectangular Connector | - |
|
|
DC0702548U2B-BT4FAN 70X25MM 48VDC PWM/TACH MOLEX |
0 | - |
|
数据表 |
- | Bulk | Active | 48VDC | Square - 70mm L x 70mm H | 54.8 CFM (1.53m³/min) | 0.500 in H2O (124.5 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 25.00mm | 45.0dB(A) | 12.96 W | CE, cURus | 5500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Position Rectangular Connector | - |
|
CFM-A225V-127-405-11FAN AXIAL 120X25MM 12VDC WIRE |
0 | - |
|
数据表 |
CFM-120V | Tray | Obsolete | 12VDC | Square - 120mm L x 120mm H | 93.0 CFM (2.60m³/min) | 0.220 in H2O (54.8 Pa) | omniCOOL™ Magnetic Sleeve | 0.357 lb (161.93 g) | Tubeaxial | Auto Restart | 25.00mm | 40.5dB(A) | 3.46 W | CE, cURus, TUV | 2700 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
9GA0812P7G001FAN AXIAL 80X15MM 12VDC WIRE |
2,029 | - |
|
数据表 |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 50.9 CFM (1.43m³/min) | 0.337 in H2O (83.9 Pa) | Ball | 0.143 lb (64.86 g) | Tubeaxial | PWM Control, Speed Sensor (Tach) | 15.00mm | 41.0dB(A) | 3.48 W | CSA, TUV, UL | 6100 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|
|
9GA0812P7S001FAN AXIAL 80X15MM 12VDC WIRE |
585 | - |
|
数据表 |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 41.7 CFM (1.17m³/min) | 0.226 in H2O (56.4 Pa) | Ball | 0.143 lb (64.86 g) | Tubeaxial | PWM Control, Speed Sensor (Tach) | 15.00mm | 37.0dB(A) | 2.04 W | CSA, TUV, UL | 5000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|
|
9GA0824P7G001FAN AXIAL 80X15MM 24VDC WIRE |
517 | - |
|
数据表 |
San Ace 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 50.9 CFM (1.43m³/min) | 0.337 in H2O (83.9 Pa) | Ball | 0.143 lb (64.86 g) | Tubeaxial | PWM Control, Speed Sensor (Tach) | 15.00mm | 41.0dB(A) | 3.12 W | CSA, TUV, UL | 6100 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
