直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
OD1225-24HB02AFAN AXIAL 120X25MM 24VDC WIRE |
952 | - |
|
数据表 |
OD1225 | Box | Active | 24VDC | Square - 120mm L x 120mm H | 120.0 CFM (3.36m³/min) | 0.240 in H2O (59.8 Pa) | Ball | 0.341 lb (154.67 g) | Tubeaxial | Auto Restart, Locked Rotor Sensor | 25.00mm | 42.0dB(A) | 7.7 W | CE, cURus, TUV, UR | 3100 RPM | -4 ~ 149°F (-20 ~ 65°C) | 3 Wire Leads | - |
|
9G1224H101FAN AXIAL 119X38MM 24VDC WIRE |
633 | - |
|
数据表 |
San Ace 120 | Box | Active | 24VDC | Square - 119mm L x 119mm H | 99.0 CFM (2.77m³/min) | 0.283 in H2O (70.5 Pa) | Ball | 0.728 lb (330.22 g) | Tubeaxial | Speed Sensor (Tach) | 38.00mm | 39.0dB(A) | 5.28 W | CSA, TUV, UL | 2600 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
9GA0612P1H03FAN AXIAL 60X38MM 12VDC WIRE |
909 | - |
|
数据表 |
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 40.6 CFM (1.14m³/min) | 1.504 in H2O (374.6 Pa) | Ball | 0.287 lb (130.18 g) | Tubeaxial | PWM Control, Speed Sensor (Tach) | 38.00mm | 52.0dB(A) | 6.6 W | CSA, TUV, UL | 11500 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|
OD1238-24HTBFAN AXIAL 120X38.5MM 24VDC TERM |
1,966 | - |
|
数据表 |
OD1238 | Box | Active | 24VDC | Square - 120mm L x 120mm H | 105.0 CFM (2.94m³/min) | 0.240 in H2O (59.8 Pa) | Ball | - | Tubeaxial | - | 38.50mm | 43.0dB | 7 W | cURus, TUV | 2800 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Terminals | - |
|
PFB0612EHEFAN AXIAL 60X38MM 12VDC WIRE |
210 | - |
|
数据表 |
PFB | Box | Active | 12VDC | Square - 60mm L x 60mm H | 50.4 CFM (1.41m³/min) | 1.203 in H2O (299.7 Pa) | Ball | 0.287 lb (130.18 g) | Tubeaxial | Locked Rotor Protection | 38.00mm | 54.0dB(A) | 7.56 W | CE, CSA, UL, VDE | 9000 RPM | 14 ~ 140°F (-10 ~ 60°C) | 2 Wire Leads | - |
|
KDE2412PMV1.13.MS.A.GNFAN AXIAL 120X38MM 24VDC WIRE |
0 | - |
|
数据表 |
MagLev® KDE | Box | Obsolete | 24VDC | Square - 120mm L x 120mm H | 145.0 CFM (4.06m³/min) | 0.320 in H2O (79.7 Pa) | Vapo-Bearing™ | 0.661 lb (299.82 g) | Tubeaxial | - | 38.00mm | 50.0dB(A) | 9.9 W | CE, CUR, TUV, UL | 3000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
MR9238E24B1+6-FSRFAN AXIAL 92X38MM 24VDC WIRE |
373 | - |
|
数据表 |
MR9238 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 173.0 CFM (4.84m³/min) | 1.540 in H2O (383.6 Pa) | Ball | 0.437 lb (198.00 g) | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 38.00mm | 63.3dB(A) | - | CE, cUL, TUV, UL | 8000 RPM | - | 4 Wire Leads | - |
|
CBM-7530BF-150-493DC BLOWER, 75.7 X 75.7 X 30 MM, |
0 | - |
|
数据表 |
CBM-75BF | Box | Active | 12VDC | Square/Rounded - 75.7mm L x 75.7mm H | 17.8 CFM (0.498m³/min) | 1.030 in H2O (256.6 Pa) | Ball | - | Blower | Auto Restart | 30.00mm | 53.5dB(A) | 8.16 W | CE, cURus, TUV | 5000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
PMD2408PMB1-A.(2).GNFAN AXIAL 80X38MM 24VDC WIRE |
1,143 | - |
|
数据表 |
PMD | Box | Active | 24VDC | Square - 80mm L x 80mm H | 84.1 CFM (2.35m³/min) | 0.740 in H2O (184.3 Pa) | Ball | 0.386 lb (175.09 g) | Tubeaxial | - | 38.00mm | 55.2dB(A) | 9.6 W | CE, CUR, TUV, UL | 5700 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
109P0412R7D01FAN AXIAL 40X15MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 8.0 CFM (0.224m³/min) | 0.449 in H2O (111.8 Pa) | Ball | 0.071 lb (32.21 g) | Tubeaxial | Locked Rotor Sensor | 15.00mm | 34.0dB(A) | 1.56 W | CSA, TUV, UL | 9700 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
9GA0824P4G001FAN AXIAL 80X25MM 24VDC WIRE |
980 | - |
|
数据表 |
San Ace 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 67.4 CFM (1.89m³/min) | 0.600 in H2O (149.5 Pa) | Ball | 0.243 lb (110.22 g) | Tubeaxial | PWM Control, Speed Sensor (Tach) | 25.00mm | 45.0dB(A) | 5.04 W | CSA, TUV, UL | 6800 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|
|
109P0412R701FAN AXIAL 40X15MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 8.0 CFM (0.224m³/min) | 0.449 in H2O (111.8 Pa) | Ball | 0.071 lb (32.21 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 15.00mm | 34.0dB(A) | 1.56 W | CSA, TUV, UL | 9700 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
9GA0812P4J001FAN AXIAL 80X25MM 12VDC WIRE |
133 | - |
|
数据表 |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 73.0 CFM (2.04m³/min) | 0.700 in H2O (174.4 Pa) | Ball | 0.243 lb (110.22 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 25.00mm | 48.0dB(A) | 7.2 W | CSA, TUV, UL | 7400 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
B.jpg)
|
CFM-A225B-230-438-22FAN AXIAL 120X25.4MM 24VDC WIRE |
0 | - |
|
数据表 |
CFM-120B | Box | Active | 24VDC | Square - 120mm L x 120mm H | 104.6 CFM (2.93m³/min) | 0.210 in H2O (52.3 Pa) | Ball | - | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 25.40mm | 46.6dB(A) | 7.2 W | CE, cURus, TUV | 3000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
OD1225-48HBFAN AXIAL 120X25MM 48VDC WIRE |
389 | - |
|
数据表 |
OD1225 | Box | Active | 48VDC | Square - 120mm L x 120mm H | 120.0 CFM (3.36m³/min) | 0.240 in H2O (59.8 Pa) | Ball | 0.341 lb (154.67 g) | Tubeaxial | Auto Restart | 25.00mm | 42.0dB | 4.5 W | CE, cURus, TUV, UR | 3100 RPM | -4 ~ 149°F (-20 ~ 65°C) | 2 Wire Leads | - |
|
|
KD2405PHB1.(2).GNFAN AXIAL 50X15MM 24VDC WIRE |
0 | - |
|
数据表 |
KD | Bulk | Obsolete | 24VDC | Square - 50mm L x 50mm H | - | - | Ball | - | Tubeaxial | - | 15.00mm | - | - | - | - | - | 2 Wire Leads | - |
|
AFB0924SH-TZUHFAN AXIAL 92X25.4MM 24VDC WIRE |
1,936 | - |
|
数据表 |
AFB | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 102.6 CFM (2.87m³/min) | 0.526 in H2O (131.0 Pa) | Ball | 0.267 lb (121.11 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.40mm | 53.0dB(A) | 9.6 W | CE, CSA, UL, VDE | 4800 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | IP55 - Dust Protected, Water Resistant |
|
|
KD2405PHB2.(2).GNFAN AXIAL 50X15MM 24VDC WIRE |
0 | - |
|
数据表 |
KD | Bulk | Obsolete | 24VDC | Square - 50mm L x 50mm H | 13.0 CFM (0.364m³/min) | 0.170 in H2O (42.3 Pa) | Ball | - | Tubeaxial | - | 15.00mm | 30.0dB(A) | 1.3 W | CE, CUR, TUV, UL | 4700 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
412/2-036FAN AXIAL 40X20MM 12VDC WIRE |
526 | - |
|
数据表 |
400 | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 5.9 CFM (0.165m³/min) | - | Sintec | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 20.00mm | 18.0dB(A) | 900 mW | - | 6000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|

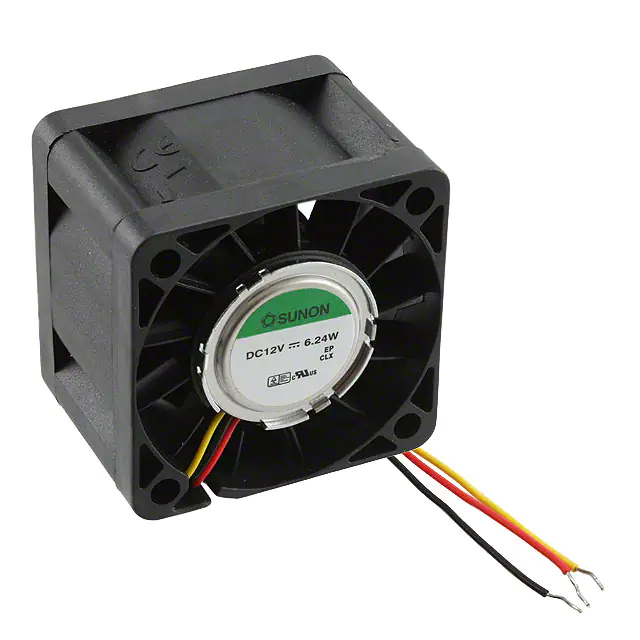

SG38281B1-000U-G99FAN AXIAL 38X28MM 12VDC WIRE |
0 | - |
|
数据表 |
SG | Bulk | Obsolete | 12VDC | Square - 38mm L x 38mm H | 24.8 CFM (0.694m³/min) | 1.470 in H2O (366.2 Pa) | Ball | 0.077 lb (34.93 g) | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 28.00mm | 56.2dB | 6.24 W | CUR, TUV, UL | 19000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
