直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
OD9238-48HBVXCFAN AXIAL 92.5X38MM 48VDC WIRE |
167 | - |
|
数据表 |
OD9238 VA | Box | Active | 48VDC | Square - 92.5mm L x 92.5mm H | 135.0 CFM (3.78m³/min) | 0.740 in H2O (184.3 Pa) | Ball | - | Tubeaxial | Auto Restart | 38.00mm | 58.0dB | 17 W | cURus, TUV | 5400 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|

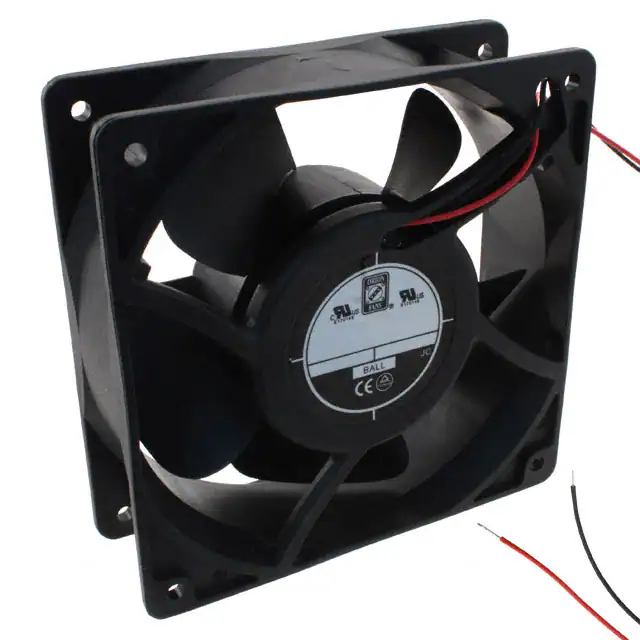

OD1238-24HBFAN AXIAL 120X38MM 24VDC WIRE |
1,996 | - |
|
数据表 |
OD1238 | Box | Active | 24VDC | Square - 120mm L x 120mm H | 123.9 CFM (3.47m³/min) | 0.469 in H2O (116.8 Pa) | Ball | 0.572 lb (259.45 g) | Tubeaxial | Auto Restart | 38.00mm | 44.1dB(A) | 12 W | CE, cURus, TUV, UR | 2895 RPM | -4 ~ 149°F (-20 ~ 65°C) | 2 Wire Leads | - |
|

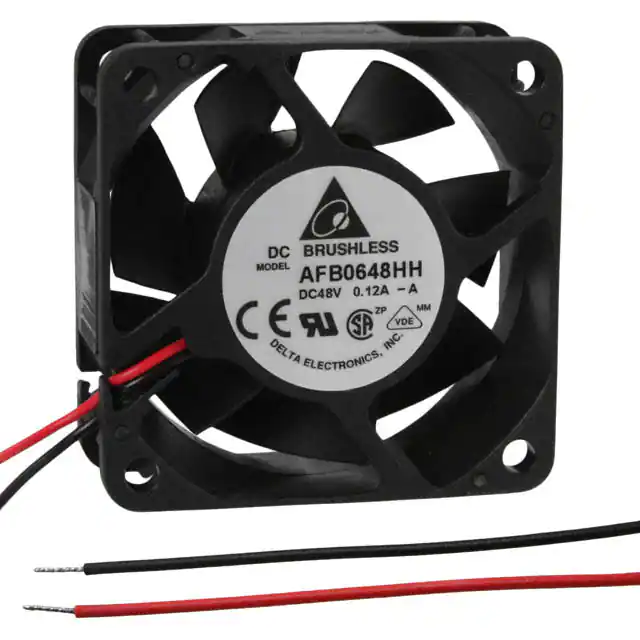

AFB0648HH-AFAN AXIAL 60X25.4MM 48VDC WIRE |
463 | - |
|
数据表 |
AFB | Bulk | Active | 48VDC | Square - 60mm L x 60mm H | 27.5 CFM (0.770m³/min) | 0.294 in H2O (73.2 Pa) | Ball | 0.176 lb (80.00 g) | Tubeaxial | Locked Rotor Protection | 25.40mm | 40.0dB(A) | 3.84 W | CE, CSA, UL, VDE | 5000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|

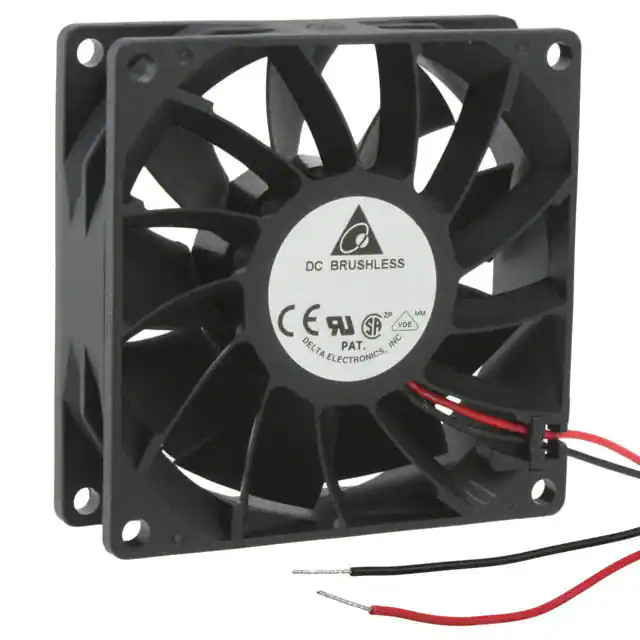

FFB0824SH-TZW1FAN AXIAL 80X25.4MM 24VDC WIRE |
6,577 | - |
|
数据表 |
FFB | Box | Active | 24VDC | Square - 80mm L x 80mm H | 67.0 CFM (1.88m³/min) | 0.392 in H2O (97.6 Pa) | Ball | 0.254 lb (115.21 g) | Tubeaxial | Locked Rotor Protection | 25.40mm | 48.6dB(A) | 5.76 W | CE, CSA, UL, VDE | 4500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | IP55 - Dust Protected, Water Resistant |
|
AFB0712MBFAN AXIAL 70X15MM 12VDC WIRE |
0 | - |
|
数据表 |
AFB | Box | Active | 12VDC | Square - 70mm L x 70mm H | 28.2 CFM (0.790m³/min) | 0.123 in H2O (30.6 Pa) | Ball | 0.104 lb (47.17 g) | Tubeaxial | Locked Rotor Protection | 15.00mm | 31.0dB(A) | 1.68 W | CE, CSA, UL, VDE | 3300 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
DC0802548J2B-BT4FAN 80X25MM 48VDC PWM/TACH MOLEX |
0 | - |
|
数据表 |
- | Bulk | Active | 48VDC | Square - 80mm L x 80mm H | 47.6 CFM (1.33m³/min) | 0.140 in H2O (34.9 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 25.40mm | 35.0dB(A) | 7.2 W | CE, cURus | 3500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Position Rectangular Connector | - |
|
AFB1224SHEFAN AXIAL 120X38MM 24VDC WIRE |
2,704 | - |
|
数据表 |
AFB | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 151.9 CFM (4.25m³/min) | 0.571 in H2O (142.2 Pa) | Ball | 0.565 lb (256.28 g) | Tubeaxial | Locked Rotor Protection | 38.00mm | 53.0dB(A) | 12 W | CE, CSA, UL, VDE | 3700 RPM | 14 ~ 140°F (-10 ~ 60°C) | 2 Wire Leads | - |
|
|
DC0922524U2B-BT0FAN 92X25MM 24VDC PWM/TACH |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 69.2 CFM (1.94m³/min) | 0.280 in H2O (69.7 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 25.00mm | 45.0dB(A) | 7.2 W | CE, cURus | 3800 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
AFB1224VHEFAN AXIAL 120X38MM 24VDC WIRE |
1,644 | - |
|
数据表 |
AFB | Tray | Active | 24VDC | Square - 120mm L x 120mm H | 130.0 CFM (3.64m³/min) | 0.420 in H2O (104.6 Pa) | Ball | 0.565 lb (256.28 g) | Tubeaxial | Locked Rotor Protection | 38.00mm | 48.0dB(A) | 9.12 W | CE, CSA, UL, VDE | 3200 RPM | 14 ~ 140°F (-10 ~ 60°C) | 2 Wire Leads | - |
|
|
DC0922548U2B-3T0FAN 92X25MM 48VDC TACH |
0 | - |
|
数据表 |
- | Bulk | Active | 48VDC | Square - 92mm L x 92mm H | 69.2 CFM (1.94m³/min) | 0.280 in H2O (69.7 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | 45.0dB(A) | 14.4 W | CE, cURus | 3800 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
AFB1224HEFAN AXIAL 120X38MM 24VDC WIRE |
1,043 | - |
|
数据表 |
AFB | Tray | Active | 24VDC | Square - 120mm L x 120mm H | 105.9 CFM (2.97m³/min) | 0.300 in H2O (74.7 Pa) | Ball | 0.565 lb (256.28 g) | Tubeaxial | Locked Rotor Protection | 38.00mm | 41.0dB(A) | 5.76 W | CE, CSA, UL, VDE | 2600 RPM | 14 ~ 140°F (-10 ~ 60°C) | 2 Wire Leads | - |
|
CFM-9232B-240-461-20FAN AXIAL 92.2X32MM 24VDC WIRE |
0 | - |
|
数据表 |
CFM-92B | Box | Active | 24VDC | Square - 92.2mm L x 92.2mm H | 82.2 CFM (2.30m³/min) | 0.400 in H2O (99.6 Pa) | Ball | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 32.00mm | 46.2dB(A) | 8.64 W | CE, cURus, TUV | 4000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|

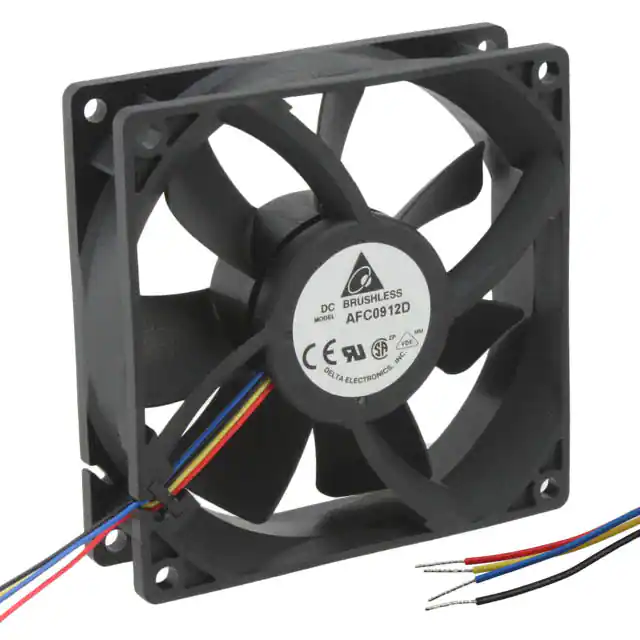

AFC0912D-AF00FAN AXIAL 92X25.4MM 12VDC WIRE |
119 | - |
|
数据表 |
AFC | Box | Active | 12VDC | Square - 92mm L x 92mm H | 102.6 CFM (2.87m³/min) | 0.526 in H2O (131.0 Pa) | Ball | 0.265 lb (120.2 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 25.40mm | 53.0dB(A) | 9 W | CE, CSA, UL, VDE | 4800 RPM | 14 ~ 140°F (-10 ~ 60°C) | 4 Wire Leads | - |
|
MD1238X24B-FSRFAN AXIAL 120X38MM 24VDC WIRE |
215 | - |
|
数据表 |
MD1238 | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 205.0 CFM (5.74m³/min) | 0.943 in H2O (234.9 Pa) | Ball | 0.906 lb (410.95 g) | Tubeaxial | Thermal Overload Protector (TOP) | 38.00mm | 62.0dB(A) | - | cUL, UL | 4500 RPM | - | 2 Wire Leads | - |
|
612FHFAN AXIAL 60X15MM 12VDC WIRE |
107 | - |
|
数据表 |
600F | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 19.4 CFM (0.543m³/min) | - | Sintec | 0.066 lb (29.94 g) | Tubeaxial | - | 15.00mm | 31.0dB(A) | 1.4 W | CE, CSA, UL, VDE | 4500 RPM | -4 ~ 140°F (-20 ~ 60°C) | 2 Wire Leads | - |
|
PFB0512EHFFAN AXIAL 50X32MM 12VDC WIRE |
259 | - |
|
数据表 |
PFB | Box | Active | 12VDC | Square - 50mm L x 50mm H | 31.6 CFM (0.885m³/min) | 1.051 in H2O (261.8 Pa) | Ball | 0.128 lb (58.06 g) | Tubeaxial | Locked Rotor Protection | 32.00mm | 51.2dB(A) | 6.48 W | CE, CSA, UL, VDE | 10000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
MR1238E24B-FSRFAN AXIAL 120X38MM 24VDC WIRE |
130 | - |
|
数据表 |
MR1238 | Box | Active | 24VDC | Square - 120mm L x 120mm H | 261.0 CFM (7.31m³/min) | 1.325 in H2O (330.0 Pa) | Ball | 0.838 lb (380.11 g) | Tubeaxial | Auto Restart | 38.00mm | 67.9dB(A) | - | CE, cUL, TUV, UL | 5000 RPM | - | 2 Wire Leads | - |
|
FFB0412UHN-SP4ZFAN AXIAL 40X28MM 12VDC WIRE |
2,480 | - |
|
数据表 |
FFB | Box | Active | 12VDC | Square - 40mm L x 40mm H | 26.5 CFM (0.742m³/min) | 3.150 in H2O (784.7 Pa) | Ball | 0.115 lb (52.16 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 28.00mm | 59.9dB(A) | 10.08 W | CE, CSA, UL, VDE | 23000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
AFB0812GHE-F00FAN AXIAL 80X38MM 12VDC WIRE |
1,013 | - |
|
数据表 |
AFB | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 99.0 CFM (2.77m³/min) | 1.006 in H2O (250.6 Pa) | Ball | 0.344 lb (156.04 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | 54.0dB(A) | 16.8 W | CE, CSA, UL, VDE | 6800 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
OD1225-12HB01AFAN AXIAL 120X25MM 12VDC WIRE |
1,572 | - |
|
数据表 |
OD1225 | Box | Active | 12VDC | Square - 120mm L x 120mm H | 120.0 CFM (3.36m³/min) | 0.240 in H2O (59.8 Pa) | Ball | 0.341 lb (154.67 g) | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 25.00mm | 42.0dB(A) | 5.4 W | CE, cURus, TUV, UR | 3100 RPM | -4 ~ 149°F (-20 ~ 65°C) | 3 Wire Leads | - |
