直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DC0922548L2B-2T2FAN 92X25MM 48VDC MOLEX 22-01-10 |
0 | - |
|
数据表 |
- | Bulk | Active | 48VDC | Square - 92mm L x 92mm H | 44.8 CFM (1.25m³/min) | 0.120 in H2O (29.9 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection | 25.00mm | 30.0dB(A) | 5.28 W | CE, cURus | 2450 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Position Rectangular Connector | - |
|
|
DC0922512L2B-BT4FAN 92X25MM 12VDC PWM/TACH MOLEX |
0 | - |
|
数据表 |
- | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 44.8 CFM (1.25m³/min) | 0.120 in H2O (29.9 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 25.00mm | 30.0dB(A) | 1.32 W | CE, cURus, TUV | 2450 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Position Rectangular Connector | - |
|
|
DC0922548H2B-2T2FAN 92X25MM 48VDC MOLEX 22-01-10 |
0 | - |
|
数据表 |
- | Bulk | Active | 48VDC | Square - 92mm L x 92mm H | 58.1 CFM (1.63m³/min) | 0.220 in H2O (54.8 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection | 25.00mm | 38.0dB(A) | 9.6 W | CE, cURus | 3200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Position Rectangular Connector | - |
|
|
DC0922512J2B-BT4FAN 92X25MM 12VDC PWM/TACH MOLEX |
0 | - |
|
数据表 |
- | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 39.2 CFM (1.10m³/min) | 0.090 in H2O (22.4 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 25.00mm | 25.0dB(A) | 1.08 W | CE, cURus, TUV | 2100 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Position Rectangular Connector | - |
|
|
DC0922548M2B-2T2FAN 92X25MM 48VDC MOLEX 22-01-10 |
0 | - |
|
数据表 |
- | Bulk | Active | 48VDC | Square - 92mm L x 92mm H | 52.0 CFM (1.46m³/min) | 0.170 in H2O (42.3 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection | 25.00mm | 34.0dB(A) | 6.72 W | CE, cURus | 2850 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Position Rectangular Connector | - |
|
|
DC0802548I2B-3T3FAN 80X25MM 48VDC TACH MOLEX 22- |
0 | - |
|
数据表 |
- | Bulk | Active | 48VDC | Square - 80mm L x 80mm H | 55.6 CFM (1.56m³/min) | 0.180 in H2O (44.8 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.40mm | 37.0dB(A) | 6.24 W | CE, cURus | 4000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Position Rectangular Connector | - |
|
|
DC0922512M2B-BT4FAN 92X25MM 12VDC PWM/TACH MOLEX |
0 | - |
|
数据表 |
- | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 52.0 CFM (1.46m³/min) | 0.170 in H2O (42.3 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 25.00mm | 34.0dB(A) | 1.68 W | CE, cURus, TUV | 2850 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Position Rectangular Connector | - |
|
|
DC0922548J2B-2T2FAN 92X25MM 48VDC MOLEX 22-01-10 |
0 | - |
|
数据表 |
- | Bulk | Active | 48VDC | Square - 92mm L x 92mm H | 39.2 CFM (1.10m³/min) | 0.090 in H2O (22.4 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection | 25.00mm | 25.0dB(A) | 4.32 W | CE, cURus | 2100 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Position Rectangular Connector | - |
|
CFM-A238V-126-440-11FAN AXIAL 120X38MM 12VDC WIRE |
0 | - |
|
数据表 |
CFM-120V | Tray | Obsolete | 12VDC | Square - 120mm L x 120mm H | 116.0 CFM (3.25m³/min) | 0.260 in H2O (64.8 Pa) | omniCOOL™ Magnetic Sleeve | 0.481 lb (218.18 g) | Tubeaxial | Auto Restart | 38.00mm | 44.0dB(A) | 5.81 W | CE, cURus, TUV | 2600 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
CFM-A238V-131-480-11FAN AXIAL 120X38MM 12VDC WIRE |
0 | - |
|
数据表 |
CFM-120V | Tray | Obsolete | 12VDC | Square - 120mm L x 120mm H | 138.0 CFM (3.86m³/min) | 0.360 in H2O (89.7 Pa) | omniCOOL™ Magnetic Sleeve | 0.481 lb (218.18 g) | Tubeaxial | Auto Restart | 38.00mm | 48.0dB(A) | 11.5 W | CE, cURus, TUV | 3100 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
109P0412A7D0140X15MM 12V DC LCKRTRSNS |
0 | - |
|
数据表 |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | - | - | Ball | - | Tubeaxial | Locked Rotor Sensor | 15.00mm | 23.0dB(A) | - | - | 6000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
AFB0812MBFAN AXIAL 80X15MM 12VDC WIRE |
0 | - |
|
数据表 |
AFB | Box | Active | 12VDC | Square - 80mm L x 80mm H | 28.3 CFM (0.792m³/min) | 0.107 in H2O (26.6 Pa) | Ball | 0.128 lb (58.06 g) | Tubeaxial | Locked Rotor Protection | 15.00mm | 30.5dB(A) | 1.32 W | CE, CSA, UL, VDE | 2700 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
AFB0824HFAN AXIAL 80X25.4MM 24VDC WIRE |
0 | - |
|
数据表 |
AFB | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 35.3 CFM (0.988m³/min) | 0.159 in H2O (39.6 Pa) | Ball | 0.176 lb (80.00 g) | Tubeaxial | Locked Rotor Protection | 25.40mm | 31.0dB(A) | 1.68 W | CE, CSA, UL, VDE | 3000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
AFB0812LFAN AXIAL 80X25.4MM 12VDC WIRE |
0 | - |
|
数据表 |
AFB | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 27.9 CFM (0.781m³/min) | 0.102 in H2O (25.5 Pa) | Ball | 0.176 lb (80.00 g) | Tubeaxial | Locked Rotor Protection | 25.40mm | 25.0dB(A) | 1.08 W | CE, CSA, UL, VDE | 2400 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
.jpg)
|
9GA0624P6G001FAN AXIAL 60X20MM 24VDC WIRE |
2,074 | - |
|
数据表 |
San Ace 60 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 31.1 CFM (0.871m³/min) | 0.500 in H2O (124.5 Pa) | Ball | 0.154 lb (69.85 g) | Tubeaxial | PWM Control, Speed Sensor (Tach) | 20.00mm | 43.0dB(A) | 2.88 W | CSA, TUV, UL | 6850 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
|
9GA0624P6S001FAN AXIAL 60X20MM 24VDC WIRE |
287 | - |
|
数据表 |
San Ace 60 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 24.7 CFM (0.692m³/min) | 0.326 in H2O (81.2 Pa) | Ball | 0.154 lb (69.85 g) | Tubeaxial | PWM Control, Speed Sensor (Tach) | 20.00mm | 36.0dB(A) | 1.68 W | CSA, TUV, UL | 5500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
614NGMFAN AXIAL 60X25.4MM 24VDC WIRE |
1,450 | - |
|
数据表 |
600NG | Box | Active | 24VDC | Square - 60mm L x 60mm H | 20.6 CFM (0.577m³/min) | - | Sintec | 0.145 lb (65.77 g) | Tubeaxial | - | 25.40mm | 28.0dB(A) | 1.7 W | CE, CSA, UL, VDE | 4100 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|

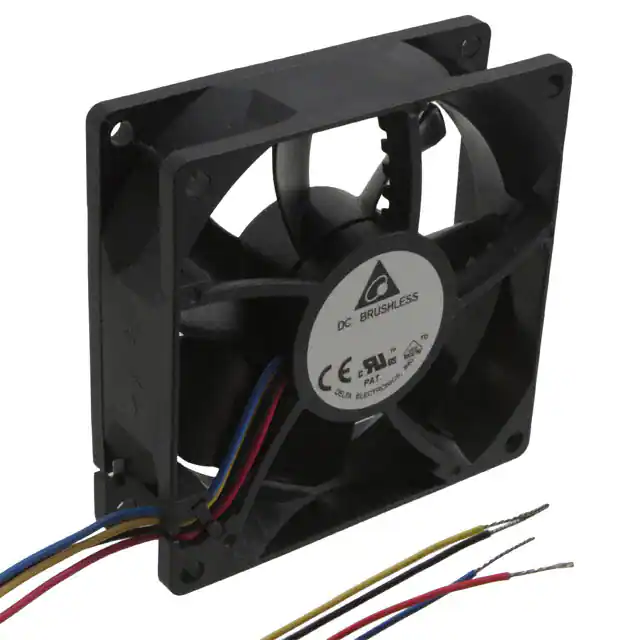

QFR0812SH-CX13FAN AXIAL 80X25.4MM 12VDC WIRE |
216 | - |
|
数据表 |
QFR | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 54.6 CFM (1.53m³/min) | 0.331 in H2O (82.4 Pa) | Ball | 0.191 lb (86.64 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 25.40mm | 41.2dB(A) | 3.96 W | CE, cURus, VDE | 4300 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
PMD2407PTB1-A.(2).GNFAN AXIAL 70X25MM 24VDC WIRE |
196 | - |
|
数据表 |
PMD | Box | Active | 24VDC | Square - 70mm L x 70mm H | 49.0 CFM (1.37m³/min) | 0.360 in H2O (89.7 Pa) | Ball | 0.199 lb (90.26 g) | Tubeaxial | - | 25.00mm | 45.0dB(A) | 4.6 W | CE, CUR, TUV, UL | 5100 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
CFM-A238-23-10FAN AXIAL 120X38MM 24VDC WIRE |
2,559 | - |
|
数据表 |
CFM-120 | Tray | Active | 24VDC | Square - 120mm L x 120mm H | 200.9 CFM (5.63m³/min) | 0.780 in H2O (194.3 Pa) | Ball | 0.624 lb (283.04 g) | Tubeaxial | Auto Restart | 38.00mm | 61.5dB(A) | 21.12 W | CE, cURus, TUV | 4600 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
