直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9S0912F401FAN AXIAL 92X25MM 12VDC WIRE |
766 | - |
|
数据表 |
San Ace 92 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 44.5 CFM (1.25m³/min) | 0.120 in H2O (29.9 Pa) | Ball | 0.222 lb (100.7 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | 27.0dB(A) | 1.68 W | CSA, TUV, UL | 2650 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
9S0912F4011FAN AXIAL 92X25MM 12VDC WIRE |
514 | - |
|
数据表 |
San Ace 92 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 44.5 CFM (1.25m³/min) | 0.120 in H2O (29.9 Pa) | Ball | 0.222 lb (100.7 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | 27.0dB(A) | 1.68 W | CSA, TUV, UL | 2650 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|

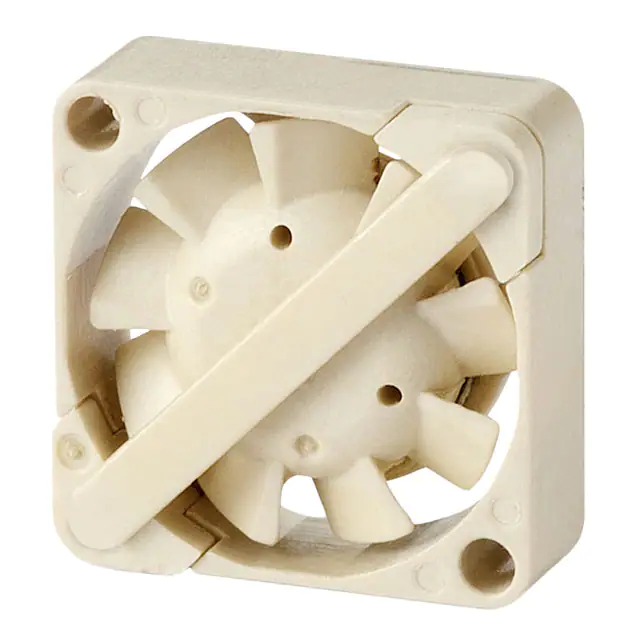

UF3A3-700TCFAN AXIAL 10X3MM VAPO 3VDC WIRE |
931 | - |
|
数据表 |
MagLev® UF, Mighty Mini | Tray | Active | 3VDC | Square - 10mm L x 10mm H | 0.121 CFM (0.003m³/min) | 0.042 in H2O (10.4 Pa) | Vapo-Bearing™ | 0.002 lb (0.91 g) | Tubeaxial | Auto Restart | 3.00mm | 21.0dB(A) | 290 mW | CE | 17000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | IP55 - Dust Protected, Water Resistant |
|

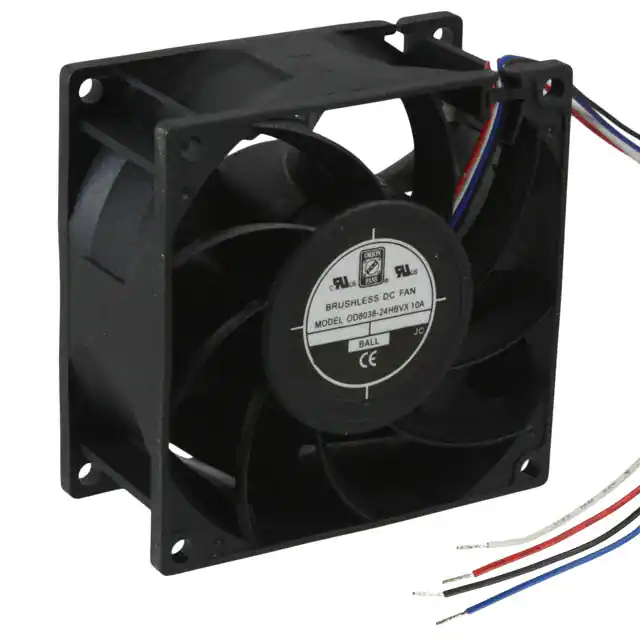

OD8038-24HBVXC10AFAN AXIAL 80X38MM 24VDC WIRE |
8,042 | - |
|
数据表 |
OD8038 VA | Box | Active | 24VDC | Square - 80mm L x 80mm H | 99.0 CFM (2.77m³/min) | 0.810 in H2O (201.8 Pa) | Ball | - | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 38.00mm | 57.0dB | 13 W | cURus | 6300 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
OD8038-24HBVXCFAN AXIAL 80X38MM 24VDC WIRE |
4,421 | - |
|
数据表 |
OD8038 VA | Box | Active | 24VDC | Square - 80mm L x 80mm H | 99.0 CFM (2.77m³/min) | 0.810 in H2O (201.8 Pa) | Ball | - | Tubeaxial | Auto Restart | 38.00mm | 57.0dB | 13 W | cURus, TUV | 6300 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
9G0924G1D01FAN AXIAL 92X38MM 24VDC WIRE |
666 | - |
|
数据表 |
San Ace 92 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 110.0 CFM (3.08m³/min) | 0.602 in H2O (149.9 Pa) | Ball | 0.397 lb (180.08 g) | Tubeaxial | Locked Rotor Sensor | 38.00mm | 50.0dB(A) | 13.2 W | CSA, TUV, UL | 5000 RPM | -4 ~ 140°F (-20 ~ 60°C) | 3 Wire Leads | - |
|

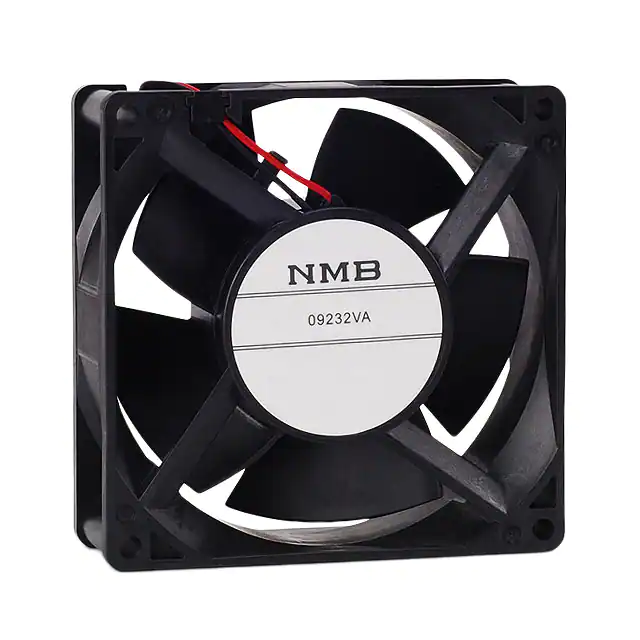

09232VA-24R-CAS-0FAN AXIAL 92X32MM 24VDC WIRE |
174 | - |
|
数据表 |
09232VA | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 105.9 CFM (2.97m³/min) | 1.100 in H2O (274.0 Pa) | Ball | 0.485 lb (219.99 g) | Tubeaxial | - | 32.00mm | 59.0dB(A) | 12 W | - | 7000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | IP69K - Dust Tight, High Temp Water Jets, Waterproof |
|
MS6038H12B-FSR-2EMFAN AXIAL 60X38MM 12VDC WIRE |
478 | - |
|
数据表 |
MS6038-S | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 58.0 CFM (1.62m³/min) | 1.600 in H2O (398.6 Pa) | Ball | 0.231 lb (104.78 g) | Tubeaxial | Auto Restart | 38.00mm | 59.0dB(A) | - | - | 11000 RPM | - | 2 Wire Leads | IP68 - Dust Tight, Waterproof |
|
BFB0712HH-AF00FAN BLOWER 75.7X25MM 12VDC WIRE |
241 | - |
|
数据表 |
BFB | Bulk | Active | 12VDC | Square/Rounded - 75.7mm L x 75.7mm H | 15.3 CFM (0.428m³/min) | 0.977 in H2O (243.4 Pa) | Ball | 0.199 lb (90.26 g) | Blower | Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | 51.0dB(A) | 4.08 W | CE, CSA, UL, VDE | 4400 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|

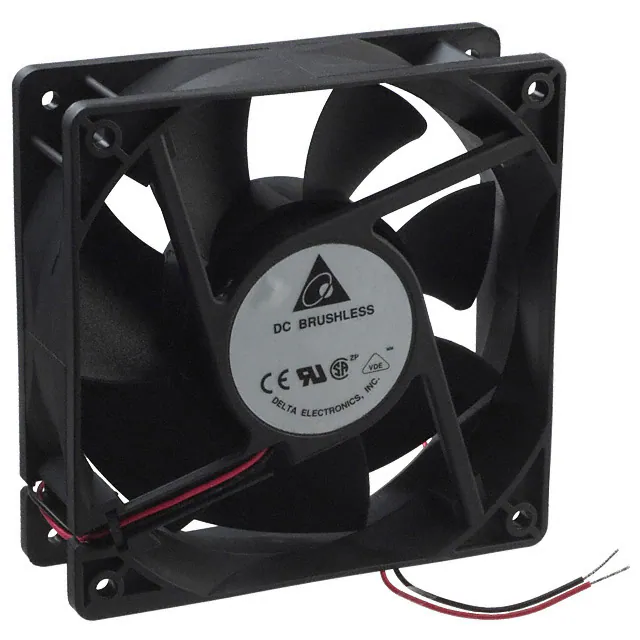

AFB1212SHEFAN AXIAL 120X38MM 12VDC WIRE |
1,509 | - |
|
数据表 |
AFB | Tray | Active | 12VDC | Square - 120mm L x 120mm H | 151.9 CFM (4.25m³/min) | 0.571 in H2O (142.2 Pa) | Ball | 0.564 lb (255.83 g) | Tubeaxial | Locked Rotor Protection | 38.00mm | 53.0dB(A) | 12.6 W | CE, CSA, UL, VDE | 3700 RPM | 14 ~ 140°F (-10 ~ 60°C) | 2 Wire Leads | - |
|

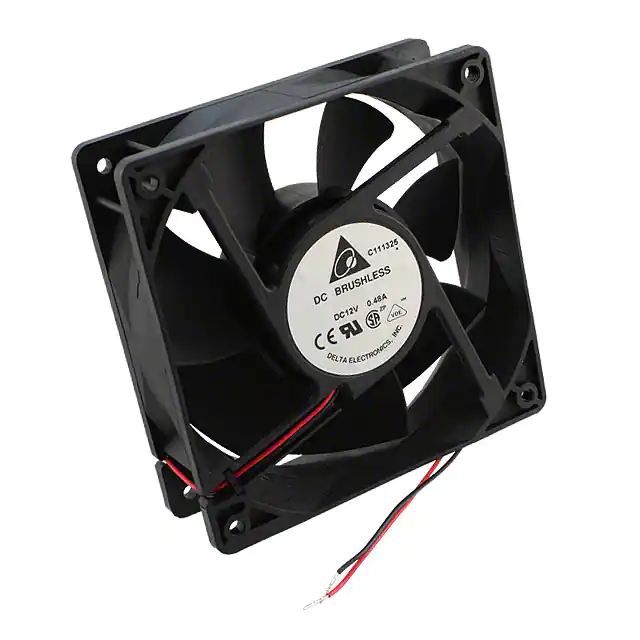

AFB1212HEFAN AXIAL 120X38MM 12VDC WIRE |
156 | - |
|
数据表 |
AFB | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 105.9 CFM (2.97m³/min) | 0.300 in H2O (74.7 Pa) | Ball | 0.565 lb (256.28 g) | Tubeaxial | Locked Rotor Protection | 38.00mm | 41.0dB(A) | 3.84 W | CE, CSA, UL, VDE | 2600 RPM | 14 ~ 140°F (-10 ~ 60°C) | 2 Wire Leads | - |
|
614FFAN AXIAL 60X15MM 24VDC WIRE |
211 | - |
|
数据表 |
600F | Box | Active | 24VDC | Square - 60mm L x 60mm H | 17.1 CFM (0.479m³/min) | - | Sintec | 0.066 lb (29.94 g) | Tubeaxial | - | 15.00mm | 27.0dB(A) | 1.1 W | CE, CSA, UL, VDE | 3900 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
|
MS1225H24B-FHR-2EMFAN AXIAL 120X25MM 24VDC WIRE |
146 | - |
|
数据表 |
MS1225 | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 86.0 CFM (2.41m³/min) | 0.180 in H2O (44.8 Pa) | Ball | 0.267 lb (121.11 g) | Tubeaxial | Auto Restart | 25.00mm | 41.0dB(A) | - | - | 2600 RPM | - | 2 Wire Leads | IP68 - Dust Tight, Waterproof |
|
EEC0254B1-000U-A99FAN AXIAL 120X25MM 48VDC WIRE |
3,038 | - |
|
数据表 |
EEC | Bulk | Active | 48VDC | Square - 120mm L x 120mm H | 108.2 CFM (3.03m³/min) | 0.280 in H2O (69.7 Pa) | Ball | 0.346 lb (156.94 g) | Tubeaxial | Auto Restart | 25.00mm | 44.5dB(A) | 5.7 W | CE, CUR, TUV, UL | 3100 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
512F/2FAN AXIAL 50X15MM 12VDC WIRE |
1,172 | - |
|
数据表 |
500F | Bulk | Active | 12VDC | Square - 50mm L x 50mm H | 11.8 CFM (0.330m³/min) | - | Sintec | 0.055 lb (24.95 g) | Tubeaxial | Speed Sensor (Tach) | 15.00mm | 30.0dB(A) | 1 W | CE, CSA, UL, VDE | 5000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
CBM-7530B-224FAN BLOWER 75X30MM 24VDC WIRE |
0 | - |
|
数据表 |
CBM-75B | Tray | Obsolete | 24VDC | Square/Rounded - 75mm L x 75mm H | 9.6 CFM (0.269m³/min) | 0.270 in H2O (67.3 Pa) | Ball | 0.191 lb (86.64 g) | Blower | Auto Restart | 30.00mm | 33.9dB(A) | 1.9 W | CE, cURus, TUV | 2400 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
CBM-7530B-130FAN BLOWER 75X30MM 12VDC WIRE |
0 | - |
|
数据表 |
CBM-75B | Tray | Obsolete | 12VDC | Square/Rounded - 75mm L x 75mm H | 12.3 CFM (0.344m³/min) | 0.480 in H2O (119.6 Pa) | Ball | 0.191 lb (86.64 g) | Blower | Auto Restart | 30.00mm | 40.5dB(A) | 2.8 W | CE, cURus, TUV | 3000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
DC0802548L2B-3T3FAN 80X25MM 48VDC TACH MOLEX 22- |
0 | - |
|
数据表 |
- | Bulk | Active | 48VDC | Square - 80mm L x 80mm H | 66.4 CFM (1.86m³/min) | 0.220 in H2O (54.8 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.40mm | 42.0dB(A) | 9.6 W | CE, cURus | 4500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Position Rectangular Connector | - |
|
|
DC0802548M2B-3T3FAN 80X25MM 48VDC TACH MOLEX 22- |
0 | - |
|
数据表 |
- | Bulk | Active | 48VDC | Square - 80mm L x 80mm H | 69.9 CFM (1.96m³/min) | 0.260 in H2O (64.8 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.40mm | 44.0dB(A) | 12 W | CE, cURus | 5000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Position Rectangular Connector | - |
|
|
DC0922512H2B-BT4FAN 92X25MM 12VDC PWM/TACH MOLEX |
0 | - |
|
数据表 |
- | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 58.1 CFM (1.63m³/min) | 0.220 in H2O (54.8 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 25.00mm | 38.0dB(A) | 2.4 W | CE, cURus, TUV | 3200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Position Rectangular Connector | - |
