直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

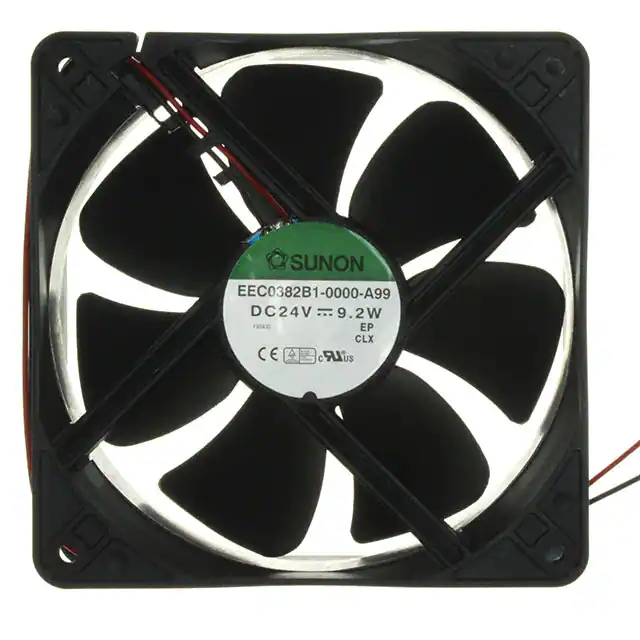

EEC0382B1-000U-A99FAN AXIAL 120X38MM 24VDC WIRE |
1,714 | - |
|
数据表 |
EEC | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 138.0 CFM (3.86m³/min) | 0.360 in H2O (89.6 Pa) | Ball | 0.472 lb (214.1 g) | Tubeaxial | Auto Restart | 38.00mm | 48.0dB(A) | 9.2 W | CE, CUR, TUV, UL | 3100 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|

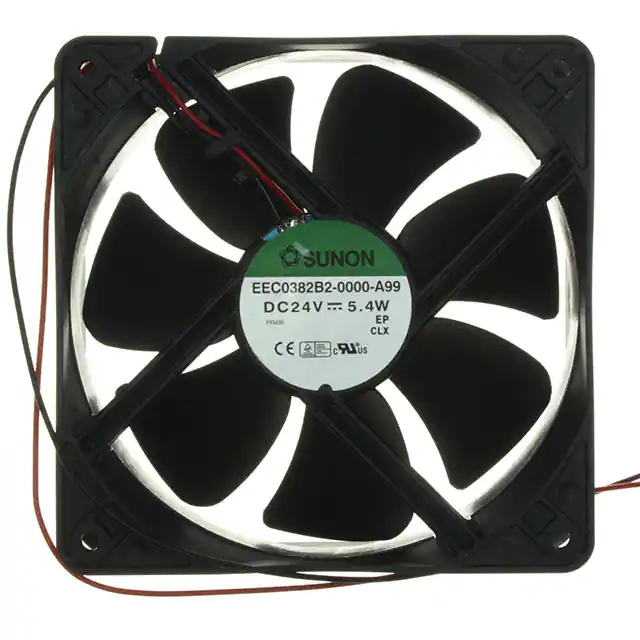

EEC0382B2-000U-A99FAN AXIAL 120X38MM 24VDC WIRE |
1,037 | - |
|
数据表 |
EEC | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 116.0 CFM (3.25m³/min) | 0.260 in H2O (64.8 Pa) | Ball | 0.472 lb (214.1 g) | Tubeaxial | Auto Restart | 38.00mm | 44.0dB(A) | 5.4 W | CE, CUR, TUV, UL | 2600 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
9GA0812H7001FAN AXIAL 80X15MM 12VDC WIRE |
727 | - |
|
数据表 |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 31.4 CFM (0.879m³/min) | 0.131 in H2O (32.6 Pa) | Ball | 0.143 lb (64.86 g) | Tubeaxial | Speed Sensor (Tach) | 15.00mm | 29.0dB(A) | 1.08 W | cURus, TUV | 3800 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
17000191AFAN 80X32MM CR0824UB-Y51(NCU) |
0 | - |
|
数据表 |
- | Bulk | Obsolete | 24VDC | Square - 80mm L x 80mm H | 52.4 CFM (1.47m³/min) | 0.320 in H2O (79.7 Pa) | Ball | 0.238 lb (107.95 g) | Tubeaxial | Auto Restart, Locked Rotor Protection | 32.00mm | 44.0dB(A) | 3.6 W | CE, cUL, TUV, UL | 4200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
09225VA-24Q-CA-00FAN AXIAL 92X25MM 24VDC WIRE |
903 | - |
|
数据表 |
09225VA | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 96.4 CFM (2.70m³/min) | 0.600 in H2O (149.5 Pa) | Ball | 0.331 lb (150.14 g) | Tubeaxial | - | 25.00mm | 51.0dB | 9.12 W | - | 6200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | IP69K - Dust Tight, High Temp Water Jets, Waterproof |
|
|
09533GA-24M-AA-00FAN BLOWER 97X33MM 24VDC WIRE |
1,225 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Rectangular/Rounded - 97mm L x 93.5mm H | 28.6 CFM (0.801m³/min) | 1.400 in H2O (348.7 Pa) | Ball | - | Blower | Auto Restart | 33.00mm | 54.5dB(A) | 11.8 W | - | 3700 RPM | 14 ~ 140°F (-10 ~ 60°C) | 2 Wire Leads | - |
|
|
17000192AFAN 80X32MM CR0812UB-Y51(NCU) |
0 | - |
|
数据表 |
- | Bulk | Obsolete | 12VDC | Square - 80mm L x 80mm H | 52.4 CFM (1.47m³/min) | 0.320 in H2O (79.7 Pa) | Ball | 0.238 lb (107.95 g) | Tubeaxial | Auto Restart, Locked Rotor Protection | 32.00mm | 44.0dB(A) | 2.76 W | CE, cUL, TUV, UL | 4200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
DC0351005V2B-2T2FAN 35X10MM 5VDC MOLEX 22-01-102 |
0 | - |
|
数据表 |
- | Bulk | Active | 5VDC | Square - 35mm L x 35mm H | 5.5 CFM (0.154m³/min) | 0.180 in H2O (44.8 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection | 10.00mm | 25.0dB(A) | 0.75 W | CE, cURus | 8000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Position Rectangular Connector | - |
|
|
DC0351005U2B-2T2FAN 35X10MM 5VDC MOLEX 22-01-102 |
0 | - |
|
数据表 |
- | Bulk | Active | 5VDC | Square - 35mm L x 35mm H | 4.4 CFM (0.123m³/min) | 0.140 in H2O (34.9 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection | 10.00mm | 23.0dB(A) | 150 mW | CE, cURus | 7000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Position Rectangular Connector | - |
|
CBM-7530B-119FAN BLOWER 75X30MM 12VDC WIRE |
0 | - |
|
数据表 |
CBM-75B | Tray | Obsolete | 12VDC | Square/Rounded - 75mm L x 75mm H | 7.5 CFM (0.210m³/min) | 0.150 in H2O (37.3 Pa) | Ball | 0.191 lb (86.64 g) | Blower | Auto Restart | 30.00mm | 28.0dB(A) | 1 W | CE, cURus, TUV | 1900 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
CBM-7530B-219FAN BLOWER 75X30MM 24VDC WIRE |
0 | - |
|
数据表 |
CBM-75B | Tray | Obsolete | 24VDC | Square/Rounded - 75mm L x 75mm H | 7.5 CFM (0.210m³/min) | 0.150 in H2O (37.3 Pa) | Ball | 0.191 lb (86.64 g) | Blower | Auto Restart | 30.00mm | 28.0dB(A) | 1.2 W | CE, cURus, TUV | 1900 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
CBM-7530B-230FAN BLOWER 75X30MM 24VDC WIRE |
0 | - |
|
数据表 |
CBM-75B | Tray | Obsolete | 24VDC | Square/Rounded - 75mm L x 75mm H | 12.3 CFM (0.344m³/min) | 0.480 in H2O (119.6 Pa) | Ball | 0.191 lb (86.64 g) | Blower | Auto Restart | 30.00mm | 40.5dB(A) | 3.4 W | CE, cURus, TUV | 3000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
CBM-7530B-234FAN BLOWER 75X30MM 24VDC WIRE |
0 | - |
|
数据表 |
CBM-75B | Tray | Obsolete | 24VDC | Square/Rounded - 75mm L x 75mm H | 13.6 CFM (0.381m³/min) | 0.600 in H2O (149.5 Pa) | Ball | 0.191 lb (86.64 g) | Blower | Auto Restart | 30.00mm | 43.5dB(A) | 4.1 W | CE, cURus, TUV | 3400 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
AF40201VX-1000U-SL912VDC FAN 40X20MM TACH/PWM IP52 |
0 | - |
|
数据表 |
AF | Box | Active | 12VDC | Square - 40mm L x 40mm H | 11.0 CFM (0.308m³/min) | 0.310 in H2O (77.2 Pa) | Vapo-Bearing™ | - | Tubeaxial | PWM Control, Speed Sensor (Tach) | 20.00mm | 30.5dB(A) | 0.92 W | CCC, CE, cURus, TUV, UKCA | 8600 RPM | - | 4 Wire Leads | IP52 |
|
|
AF40200VX-1000U-SL95VDC FAN 40X20MM TACH/PWM IP52 |
0 | - |
|
数据表 |
AF | Box | Active | 5VDC | Square - 40mm L x 40mm H | 11.0 CFM (0.308m³/min) | 0.310 in H2O (77.2 Pa) | Vapo-Bearing™ | - | Tubeaxial | PWM Control, Speed Sensor (Tach) | 20.00mm | 30.5dB(A) | 0.9 W | CCC, CE, cURus, TUV, UKCA | 8600 RPM | - | 4 Wire Leads | IP52 |
|
|
PE92252B1-000U-G99FAN AXIAL 92X25MM 24VDC WIRE |
0 | - |
|
数据表 |
MagLev® PE | Bulk | Obsolete | 24VDC | Square - 92mm L x 92mm H | 75.0 CFM (2.10m³/min) | 0.350 in H2O (87.2 Pa) | Ball | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 25.00mm | 47.0dB(A) | 5.28 mW | CE, CUR, TUV, UL | 4500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
PE80252B1-000U-G99FAN AXIAL 80X25MM 24VDC WIRE |
0 | - |
|
数据表 |
MagLev® PE | Bulk | Obsolete | 24VDC | Square - 80mm L x 80mm H | 60.0 CFM (1.68m³/min) | 0.410 in H2O (102.1 Pa) | Ball | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 25.00mm | 47.5dB(A) | 4.8 W | CE, CUR, TUV, UL | 4800 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
06025SA-12S-ET-D0FAN AXIAL 60X25MM 12VDC WIRE |
0 | - |
|
数据表 |
06025SA | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 35.7 CFM (1.00m³/min) | 0.550 in H2O (137.0 Pa) | Ball | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 25.00mm | 42.5dB | 4.1 W | - | 7000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
06025SA-12S-AT-D0FAN AXIAL 60X25MM 12VDC WIRE |
0 | - |
|
数据表 |
06025SA | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 35.7 CFM (1.00m³/min) | 0.550 in H2O (137.0 Pa) | Ball | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 25.00mm | 42.5dB | 4.1 W | - | 7000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
06025SA-12T-AT-D0FAN AXIAL 60X25MM 12VDC WIRE |
0 | - |
|
数据表 |
06025SA | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 37.8 CFM (1.06m³/min) | 0.630 in H2O (156.9 Pa) | Ball | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 25.00mm | 47.0dB | 5.16 W | - | 7500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
