直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9A0812M4021FAN AXIAL 80X25MM 12VDC WIRE |
0 | - |
|
数据表 |
San Cooler 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 29.3 CFM (0.820m³/min) | 0.090 in H2O (22.4 Pa) | Ball | 0.199 lb (90.26 g) | Tubeaxial | Locked Rotor Protection | 25.00mm | 23.0dB(A) | 1.08 W | CSA, TUV, UL | 2350 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|

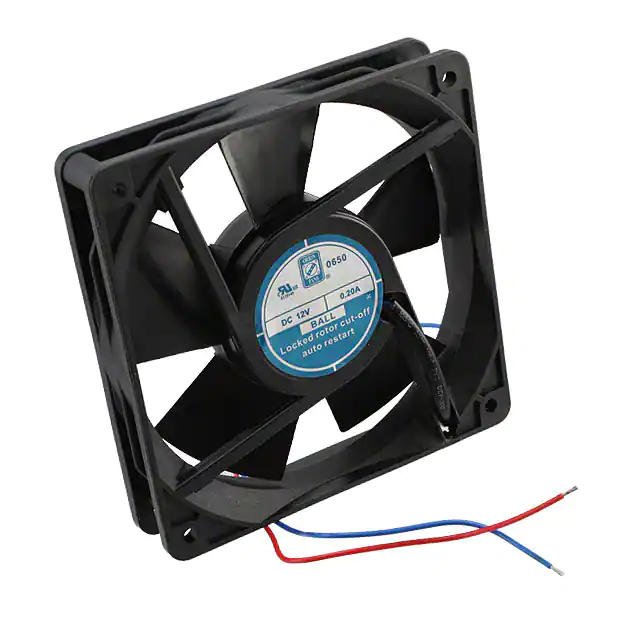

OD1225-12LBFAN AXIAL 120X25MM 12VDC WIRE |
797 | - |
|
数据表 |
OD1225 | Box | Active | 12VDC | Square - 120mm L x 120mm H | 70.0 CFM (1.96m³/min) | 0.150 in H2O (37.3 Pa) | Ball | 0.341 lb (154.67 g) | Tubeaxial | Auto Restart | 25.00mm | 25.0dB(A) | 2.5 W | CE, cURus, TUV, UR | 1900 RPM | -4 ~ 149°F (-20 ~ 65°C) | 2 Wire Leads | - |
|

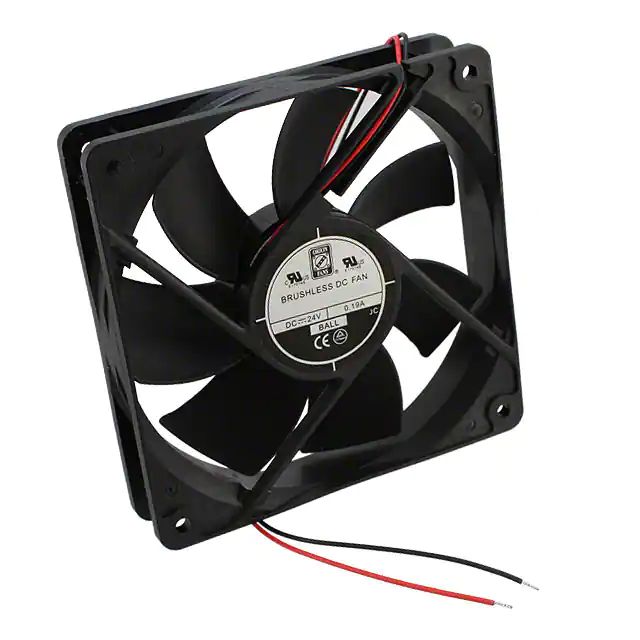

OD1225-24HBFAN AXIAL 120X25MM 24VDC WIRE |
725 | - |
|
数据表 |
OD1225 | Box | Active | 24VDC | Square - 120mm L x 120mm H | 120.0 CFM (3.36m³/min) | 0.240 in H2O (59.8 Pa) | Ball | 0.341 lb (154.67 g) | Tubeaxial | Auto Restart | 25.00mm | 42.0dB(A) | 7.7 W | CE, cURus, TUV, UR | 3100 RPM | -4 ~ 149°F (-20 ~ 65°C) | 2 Wire Leads | - |
|
DB0300405H1A-2T0FAN BLOWER 30X4MM BALL 5VDC WIRE |
1,432 | - |
|
数据表 |
Slim-Line | Bulk | Active | 5VDC | Square - 30mm L x 30mm H | 0.760 CFM (0.021m³/min) | 0.346 in H2O (86.2 Pa) | Ball | 0.001 lb (0.45 g) | Blower | - | 4.00mm | 31.3dB(A) | 500 mW | - | 9500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | IP55 - Dust Protected, Water Resistant |
|
AFB1224HFAN AXIAL 120X25.4MM 24VDC WIRE |
2,134 | - |
|
数据表 |
AFB | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 82.7 CFM (2.32m³/min) | 0.246 in H2O (61.3 Pa) | Ball | 0.437 lb (198.00 g) | Tubeaxial | Locked Rotor Protection | 25.40mm | 38.5dB(A) | 3.36 W | CE, CSA, UL, VDE | 2500 RPM | 14 ~ 140°F (-10 ~ 60°C) | 2 Wire Leads | - |
|
|
AFB1212VHFAN AXIAL 120X25.4MM 12VDC WIRE |
793 | - |
|
数据表 |
AFB | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 103.7 CFM (2.90m³/min) | 0.371 in H2O (92.5 Pa) | Ball | 0.437 lb (198.00 g) | Tubeaxial | Locked Rotor Protection | 25.40mm | 44.5dB(A) | 4.8 W | CE, CSA, UL, VDE | 3100 RPM | 14 ~ 140°F (-10 ~ 60°C) | 2 Wire Leads | - |
|
|
AFB1212MFAN AXIAL 120X25.4MM 12VDC WIRE |
403 | - |
|
数据表 |
AFB | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 73.8 CFM (2.07m³/min) | 0.203 in H2O (50.6 Pa) | Ball | 0.437 lb (198.00 g) | Tubeaxial | Locked Rotor Protection | 25.40mm | 35.5dB(A) | 2.16 W | CE, CSA, UL, VDE | 2200 RPM | 14 ~ 140°F (-10 ~ 60°C) | 2 Wire Leads | - |
|
|
AFB1212HFAN AXIAL 120X25.4MM 12VDC WIRE |
304 | - |
|
数据表 |
AFB | Tray | Active | 12VDC | Square - 120mm L x 120mm H | 82.7 CFM (2.32m³/min) | 0.246 in H2O (61.3 Pa) | Ball | 0.437 lb (198.00 g) | Tubeaxial | Locked Rotor Protection | 25.40mm | 38.5dB(A) | 2.76 W | CE, CSA, UL, VDE | 2500 RPM | 14 ~ 140°F (-10 ~ 60°C) | 2 Wire Leads | - |
|
9GA0812P6G001FAN AXIAL 80X20MM 12VDC WIRE |
4,543 | - |
|
数据表 |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 60.8 CFM (1.70m³/min) | 0.440 in H2O (109.6 Pa) | Ball | 0.176 lb (79.83 g) | Tubeaxial | PWM Control, Speed Sensor (Tach) | 20.00mm | 45.0dB(A) | 3.6 W | CSA, TUV, UL | 5850 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|
|
9GA0812P6M001FAN AXIAL 80X20MM 12VDC WIRE |
2,473 | - |
|
数据表 |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 29.7 CFM (0.832m³/min) | 0.110 in H2O (27.4 Pa) | Ball | 0.176 lb (79.83 g) | Tubeaxial | PWM Control, Speed Sensor (Tach) | 20.00mm | 26.5dB(A) | 720 mW | CSA, TUV, UL | 2900 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|

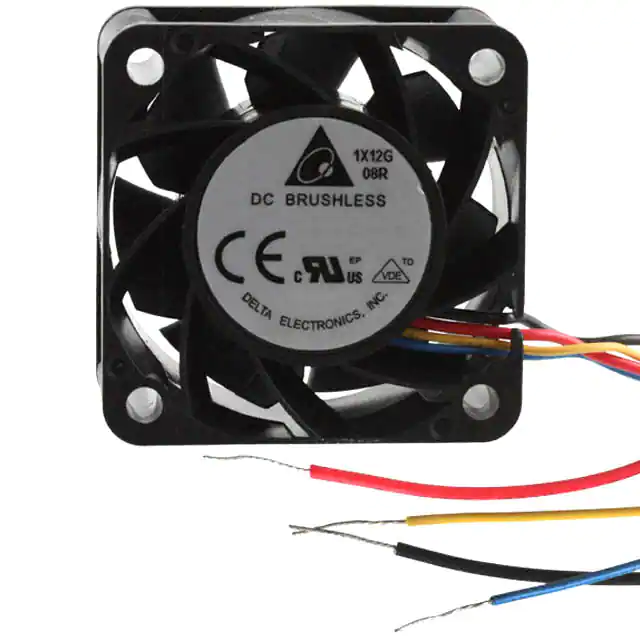

THA0412ADFAN AXIAL 40X20MM 12VDC WIRE |
565 | - |
|
数据表 |
THA | Box | Active | 12VDC | Square - 40mm L x 40mm H | 20.6 CFM (0.577m³/min) | 1.385 in H2O (345.0 Pa) | Ball | 0.057 lb (25.85 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 20.00mm | 52.0dB(A) | 5.16 W | CE, cURus, TUV | 15600 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
MH4028H24B1+6-RSR-PCFAN AXIAL 40X28MM 24VDC WIRE |
320 | - |
|
数据表 |
MH4028 | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 21.1 CFM (0.591m³/min) | 0.880 in H2O (219.2 Pa) | Ball | 0.089 lb (40.37 g) | Tubeaxial | Auto Restart, Parylene Coating, PWM Control, Speed Sensor (Tach), Thermal Overload Protector (TOP) | 28.00mm | 52.0dB(A) | - | - | 13000 RPM | - | 4 Wire Leads | - |
|
PFB0624SHEFAN AXIAL 60X38MM 24VDC WIRE |
1,858 | - |
|
数据表 |
PFB | Box | Active | 24VDC | Square - 60mm L x 60mm H | 43.6 CFM (1.22m³/min) | 0.918 in H2O (228.7 Pa) | Ball | 0.287 lb (130.18 g) | Tubeaxial | Locked Rotor Protection | 38.00mm | 50.5dB(A) | 6.72 W | CE, CSA, UL, VDE | 8000 RPM | 14 ~ 140°F (-10 ~ 60°C) | 2 Wire Leads | - |
|
AFB0924SH-AF00FAN AXIAL 92X25.4MM 24VDC WIRE |
652 | - |
|
数据表 |
AFB | Box | Active | 24VDC | Square - 92mm L x 92mm H | 102.6 CFM (2.87m³/min) | 0.526 in H2O (131.0 Pa) | Ball | 0.267 lb (121.11 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.40mm | 53.0dB(A) | 9.6 W | CE, CSA, UL, VDE | 4800 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
9GAX0412P3K001FAN AXIAL 40X28MM 12VDC WIRE |
624 | - |
|
数据表 |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 28.6 CFM (0.801m³/min) | 3.210 in H2O (800.0 Pa) | Ball | 0.117 lb (53.07 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 28.00mm | 61.0dB(A) | 11.04 W | CSA, TUV, UL | 22000 RPM | -4 ~ 140°F (-20 ~ 60°C) | 4 Wire Leads | - |
|
9S0812P4F011FAN AXIAL 80X25MM 12VDC WIRE |
751 | - |
|
数据表 |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 32.8 CFM (0.918m³/min) | 0.143 in H2O (35.6 Pa) | Ball | 0.167 lb (75.75 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 25.00mm | 24.0dB(A) | 1.32 W | CSA, TUV, UL | 2800 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|

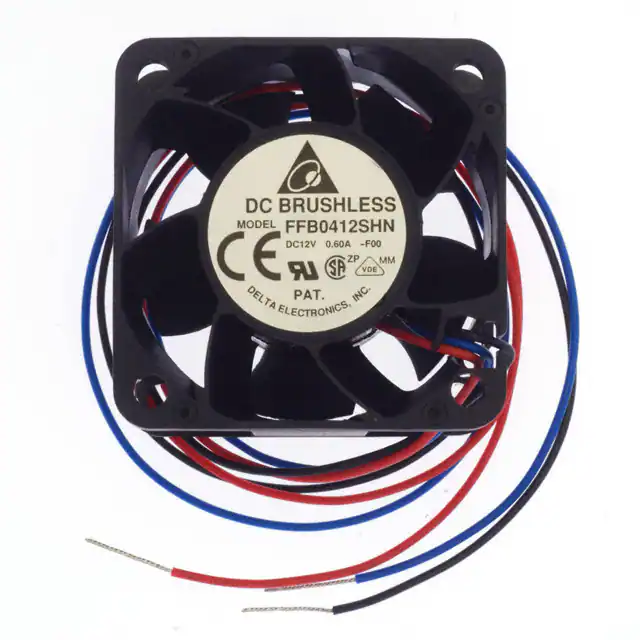

FFB0412SHN-F00FAN AXIAL 40X28MM 12VDC WIRE |
2,090 | - |
|
数据表 |
FFB | Box | Active | 12VDC | Square - 40mm L x 40mm H | 24.0 CFM (0.672m³/min) | 1.075 in H2O (267.8 Pa) | Ball | 0.071 lb (32.21 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 28.00mm | 54.5dB(A) | 6 W | CE, CSA, UL, VDE | 13000 RPM | 14 ~ 140°F (-10 ~ 60°C) | 3 Wire Leads | - |
|
FFB0824EHE-F00FAN AXIAL 80X38MM 24VDC WIRE |
2,856 | - |
|
数据表 |
FFB | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 80.2 CFM (2.25m³/min) | 0.812 in H2O (202.3 Pa) | Ball | 0.375 lb (170.1 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | 52.5dB(A) | 12 W | CE, CSA, UL, VDE | 5700 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
109R0812S401FAN AXIAL 80X25MM 12VDC WIRE |
754 | - |
|
数据表 |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 42.4 CFM (1.19m³/min) | 0.193 in H2O (48.1 Pa) | Ball | 0.243 lb (110.22 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | 34.0dB(A) | 2.16 W | CSA, TUV, UL | 3400 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
04028DA-12T-AK-HAQFAN AXIAL 40X28MM 12VDC WIRE |
146 | - |
|
数据表 |
04028DA | Box | Active | 12VDC | Square - 40mm L x 40mm H | 36.0 CFM (1.01m³/min) | 4.250 in H2O (1060.0 Pa) | Ball | - | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 28.00mm | 66.5dB | 18.6 W | CE, cULus, VDE | 26500 RPM | 14 ~ 140°F (-10 ~ 60°C) | 4 Wire Leads | - |
