直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

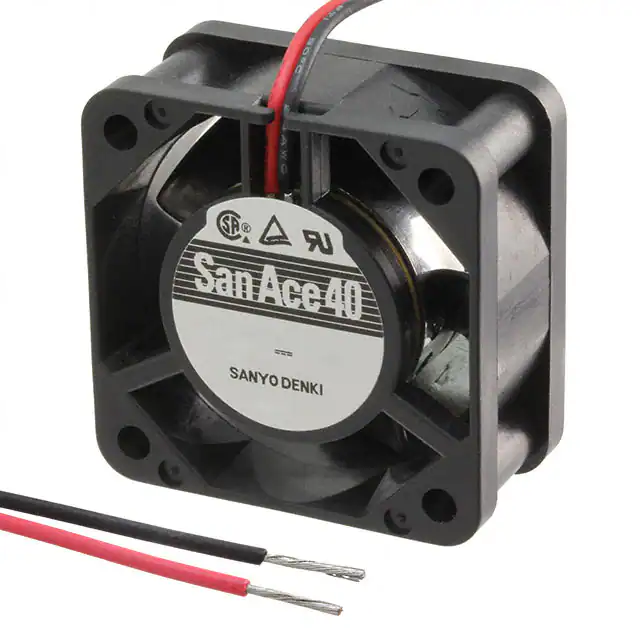

109P0424H702FAN AXIAL 40X15MM 24VDC WIRE |
365 | - |
|
数据表 |
San Ace 40 | Box | Active | 24VDC | Square - 40mm L x 40mm H | 6.4 CFM (0.179m³/min) | 0.303 in H2O (75.5 Pa) | Ball | 0.071 lb (32.21 g) | Tubeaxial | Locked Rotor Protection | 15.00mm | 28.0dB(A) | 1.92 W | CSA, TUV, UL | 7700 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|

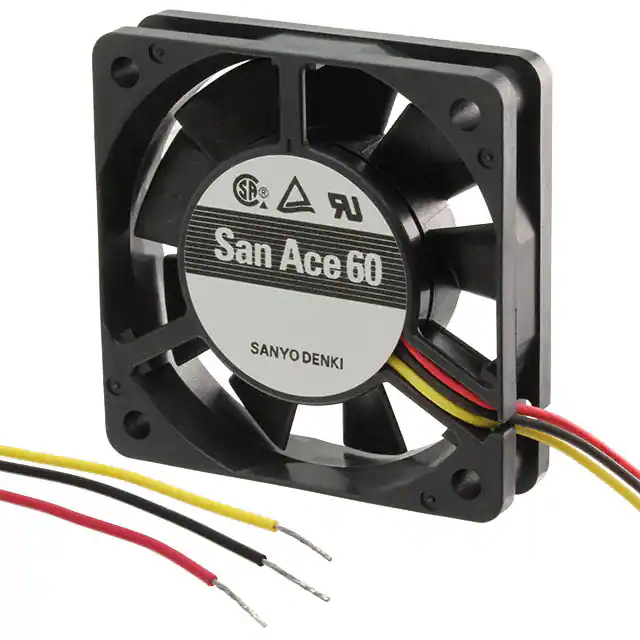

109P0624H701FAN AXIAL 60X15MM 24VDC WIRE |
182 | - |
|
数据表 |
San Ace 60 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 14.1 CFM (0.395m³/min) | 0.153 in H2O (38.2 Pa) | Ball | 0.133 lb (60.33 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 15.00mm | 32.0dB(A) | 1.44 W | CSA, TUV, UL | 4100 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|

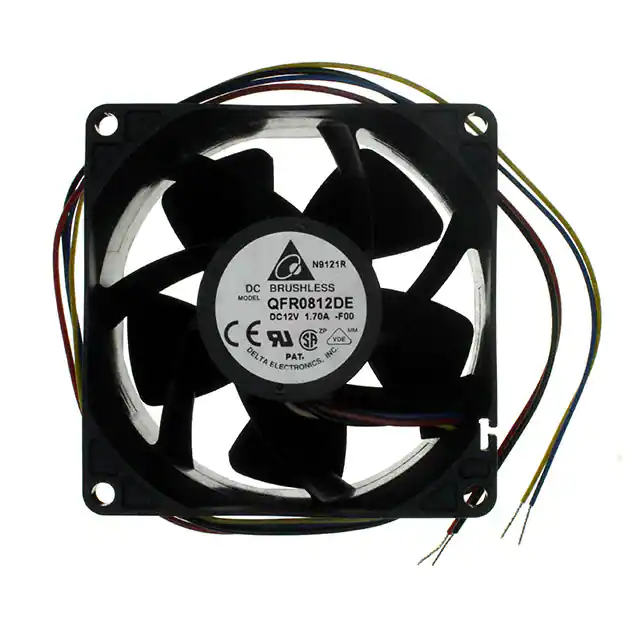

QFR0812UHEYDWFAN AXIAL 80X38MM 12VDC WIRE |
346 | - |
|
数据表 |
QFR | Box | Active | 12VDC | Square - 80mm L x 80mm H | 105.2 CFM (2.95m³/min) | 1.335 in H2O (332.5 Pa) | Ball | 0.353 lb (160.12 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 38.00mm | 60.0dB(A) | 13.8 W | CE, cURus, VDE | 9000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|

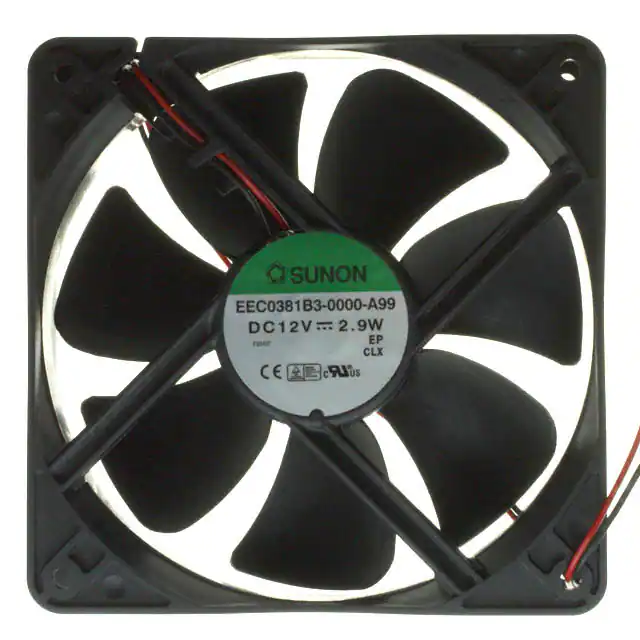

EEC0381B3-000U-A99FAN AXIAL 120X38MM 12VDC WIRE |
5,248 | - |
|
数据表 |
EEC | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 93.0 CFM (2.60m³/min) | 0.180 in H2O (44.8 Pa) | Ball | 0.472 lb (214.1 g) | Tubeaxial | Auto Restart | 38.00mm | 37.0dB(A) | 2.9 W | CE, CUR, TUV, UL | 2100 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
AFB0424HHBFAN AXIAL 40X15MM 24VDC WIRE |
2,022 | - |
|
数据表 |
AFB | Box | Active | 24VDC | Square - 40mm L x 40mm H | 11.5 CFM (0.322m³/min) | 0.359 in H2O (89.4 Pa) | Ball | 0.057 lb (25.85 g) | Tubeaxial | Locked Rotor Protection | 15.00mm | 32.0dB(A) | 2.16 W | CE, CSA, UL, VDE | 8300 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
AFB0412HHBFAN AXIAL 40X15MM 12VDC WIRE |
1,063 | - |
|
数据表 |
AFB | Tray | Active | 12VDC | Square - 40mm L x 40mm H | 11.5 CFM (0.322m³/min) | 0.359 in H2O (89.4 Pa) | Ball | 0.057 lb (25.85 g) | Tubeaxial | Locked Rotor Protection | 15.00mm | 32.0dB(A) | 1.56 W | CE, CSA, UL, VDE | 8300 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
AFB0624HBFAN AXIAL 60X15MM 24VDC WIRE |
669 | - |
|
数据表 |
AFB | Tray | Active | 24VDC | Square - 60mm L x 60mm H | 15.4 CFM (0.431m³/min) | 0.155 in H2O (38.6 Pa) | Ball | 0.098 lb (44.45 g) | Tubeaxial | Locked Rotor Protection | 15.00mm | 32.0dB(A) | 1.92 W | CE, CSA, UL, VDE | 4000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
AFB0412SHBFAN AXIAL 40X15MM 12VDC WIRE |
450 | - |
|
数据表 |
AFB | Tray | Active | 12VDC | Square - 40mm L x 40mm H | 14.8 CFM (0.414m³/min) | 0.601 in H2O (149.7 Pa) | Ball | 0.057 lb (25.85 g) | Tubeaxial | Locked Rotor Protection | 15.00mm | 41.5dB(A) | 3 W | CE, CSA, UL, VDE | 11000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
109P0424J3013FAN AXIAL 40X28MM 24VDC WIRE |
6,419 | - |
|
数据表 |
San Ace 40 | Box | Active | 24VDC | Square - 40mm L x 40mm H | 16.2 CFM (0.454m³/min) | 0.843 in H2O (210.0 Pa) | Ball | 0.115 lb (52.16 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 28.00mm | 44.0dB(A) | 4.32 W | CSA, TUV, UL | 12500 RPM | -4 ~ 140°F (-20 ~ 60°C) | 3 Wire Leads | - |
|
109R0612S402FAN AXIAL 60X25MM 12VDC WIRE |
640 | - |
|
数据表 |
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 23.0 CFM (0.644m³/min) | 0.228 in H2O (56.8 Pa) | Ball | 0.199 lb (90.26 g) | Tubeaxial | Locked Rotor Protection | 25.00mm | 33.0dB(A) | 2.04 W | CSA, TUV, UL | 4600 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
DC0251005H2B-BT0FAN 25X10MM 5VDC PWM/TACH |
623 | - |
|
数据表 |
- | Bulk | Active | 5VDC | Square - 25mm L x 25mm H | 2.4 CFM (0.067m³/min) | 0.290 in H2O (72.2 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 10.00mm | 28.0dB(A) | 400 mW | CE, cURus | 13000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
BFB0405HHA-AFAN BLOWER 40X10MM 5VDC WIRE |
297 | - |
|
数据表 |
BFB | Tray | Active | 5VDC | Square - 40mm L x 40mm H | 3.0 CFM (0.084m³/min) | 0.564 in H2O (140.5 Pa) | Ball | 0.027 lb (12.25 g) | Blower | Locked Rotor Protection | 10.00mm | 34.5dB(A) | 800 mW | CE, CSA, UL, VDE | 8500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
MA2506M12C-RSRFAN AXIAL 25X6.1MM 12VDC WIRE |
288 | - |
|
数据表 |
MA2506 | Bulk | Active | 5VDC | Square - 25mm L x 25mm H | 1.6 CFM (0.045m³/min) | 0.090 in H2O (22.4 Pa) | 1 Ball/1 Sleeve | 0.018 lb (8.16 g) | Tubeaxial | Thermal Overload Protector (TOP) | 6.10mm | 19.0dB(A) | - | cUL, TUV, UL | 8500 RPM | - | 2 Wire Leads | - |
|

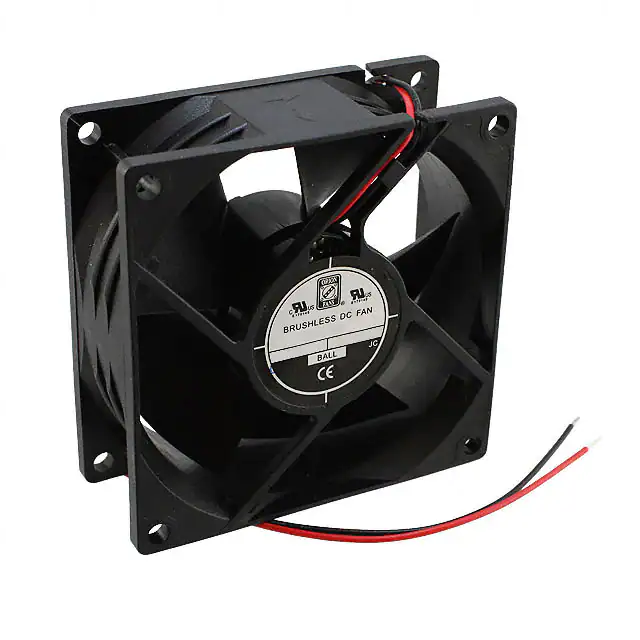

OD8032-24HBFAN AXIAL 80.5X32MM 24VDC WIRE |
858 | - |
|
数据表 |
OD8032 | Box | Active | 24VDC | Square - 80.5mm L x 80.5mm H | 50.0 CFM (1.40m³/min) | 0.290 in H2O (72.2 Pa) | Ball | - | Tubeaxial | - | 32.00mm | 42.0dB | - | cURus, TUV | 3800 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
F6025X24B-RHR-EMFAN AXIAL 60X25MM 24VDC WIRE |
411 | - |
|
数据表 |
F6025-H | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 28.0 CFM (0.784m³/min) | 0.370 in H2O (92.2 Pa) | Ball | 0.139 lb (63.05 g) | Tubeaxial | Thermal Overload Protector (TOP) | 25.00mm | 42.0dB(A) | - | CE, cUL, TUV, UL | 5800 RPM | - | 2 Wire Leads | IP57 - Dust Protected, Waterproof |
|

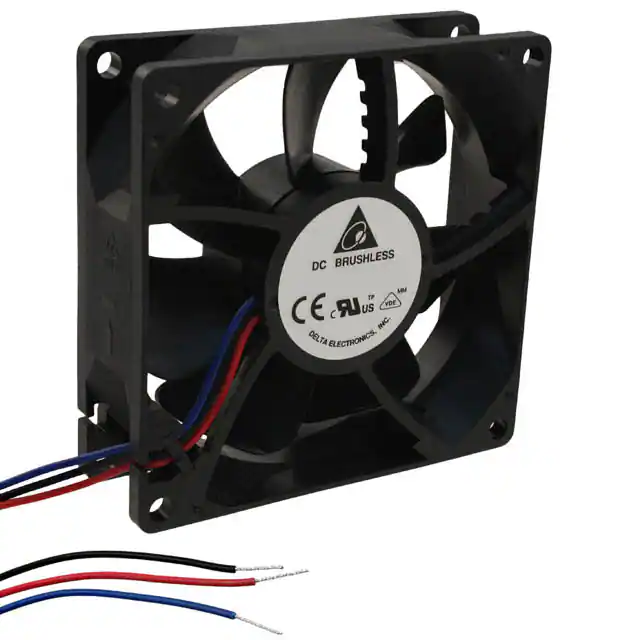

QFR0812SH-F00FAN AXIAL 80X25.4MM 12VDC WIRE |
15,260 | - |
|
数据表 |
QFR | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 54.6 CFM (1.53m³/min) | 0.331 in H2O (82.4 Pa) | Ball | 0.254 lb (115.21 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.40mm | 41.2dB(A) | 3.96 W | CE, CSA, UL, VDE | 4300 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
BFB04512HHA-CFAN BLOWER 45X10.3MM 12VDC WIRE |
3,796 | - |
|
数据表 |
BFB | Bulk | Active | 12VDC | Square - 45mm L x 45mm H | 3.5 CFM (0.098m³/min) | 0.560 in H2O (139.5 Pa) | Ball | 0.04 lb (18.14 g) | Blower | Locked Rotor Protection | 10.30mm | 35.5dB(A) | 1.56 W | CE, CSA, UL, VDE | 5900 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
AFB0412VHA-DU48FAN AXIAL 40X10MM 12VDC WIRE |
2,999 | - |
|
数据表 |
AFB | Box | Active | 12VDC | Square - 40mm L x 40mm H | 8.8 CFM (0.246m³/min) | 0.224 in H2O (55.8 Pa) | Ball | 0.031 lb (14.06 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 10.00mm | 33.0dB(A) | 1.08 W | CSA, UR, VDE | 8000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
MR8025E24B1+6-FSRFAN AXIAL 80X25MM 24VDC WIRE |
657 | - |
|
数据表 |
MR8025 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 67.0 CFM (1.88m³/min) | 0.370 in H2O (92.2 Pa) | Ball | 0.119 lb (53.98 g) | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 25.00mm | 44.2dB(A) | - | CE, cUL, TUV, UL | 4800 RPM | - | 4 Wire Leads | - |
|
|
DC0601024U2B-BT4FAN 60X10MM 24VDC PWM/TACH MOLEX |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 19.9 CFM (0.557m³/min) | 0.160 in H2O (39.8 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 10.50mm | 37.0dB(A) | 4.8 W | CE, cURus | 4900 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Position Rectangular Connector | - |
