直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
G9225H24B-FSRFAN AXIAL 92X25MM 24VDC WIRE |
0 | - |
|
数据表 |
G9225 | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 50.0 CFM (1.40m³/min) | 0.160 in H2O (39.8 Pa) | Ball | 0.218 lb (98.88 g) | Tubeaxial | Thermal Overload Protector (TOP) | 25.00mm | 36.0dB(A) | - | CE, cUL, TUV, UL | 2800 RPM | - | 2 Wire Leads | - |
|
|
G9225L24B-FSRFAN AXIAL 92X25MM 24VDC WIRE |
0 | - |
|
数据表 |
G9225 | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 34.0 CFM (0.952m³/min) | 0.090 in H2O (22.4 Pa) | Ball | 0.218 lb (98.88 g) | Tubeaxial | Thermal Overload Protector (TOP) | 25.00mm | 27.0dB(A) | - | CE, cUL, TUV, UL | 2000 RPM | - | 2 Wire Leads | - |
|
|
G9225M12B-FSRFAN AXIAL 92X25MM 12VDC WIRE |
0 | - |
|
数据表 |
G9225 | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 42.0 CFM (1.18m³/min) | 0.120 in H2O (29.9 Pa) | Ball | 0.218 lb (98.88 g) | Tubeaxial | Thermal Overload Protector (TOP) | 25.00mm | 32.0dB(A) | - | CE, cUL, TUV, UL | 2400 RPM | - | 2 Wire Leads | - |
|
|
G9225M24B-FSRFAN AXIAL 92X25MM 24VDC WIRE |
0 | - |
|
数据表 |
G9225 | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 42.0 CFM (1.18m³/min) | 0.120 in H2O (29.9 Pa) | Ball | 0.218 lb (98.88 g) | Tubeaxial | Thermal Overload Protector (TOP) | 25.00mm | 32.0dB(A) | - | CE, cUL, TUV, UL | 2400 RPM | - | 2 Wire Leads | - |
|
|
G9225X12B-FSRFAN AXIAL 92X25MM 12VDC WIRE |
0 | - |
|
数据表 |
G9225 | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 66.0 CFM (1.85m³/min) | 0.240 in H2O (59.8 Pa) | Ball | 0.218 lb (98.88 g) | Tubeaxial | Thermal Overload Protector (TOP) | 25.00mm | 42.0dB(A) | - | CE, cUL, TUV, UL | 3600 RPM | - | 2 Wire Leads | - |
|
|
G9225E12B-FGR-L24FAN AXIAL 92X25MM 12VDC WIRE |
0 | - |
|
数据表 |
G9225-G | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 57.0 CFM (1.60m³/min) | 0.130 in H2O (32.4 Pa) | Ball | 0.218 lb (98.88 g) | Tubeaxial | Thermal Overload Protector (TOP) | 25.00mm | 30.0dB(A) | - | CE, cUL, TUV, UL | 2800 RPM | - | 2 Wire Leads | - |
|
|
G9225H12B-FGRFAN AXIAL 92X25MM 12VDC WIRE |
0 | - |
|
数据表 |
G9225-G | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 48.0 CFM (1.34m³/min) | 0.100 in H2O (24.9 Pa) | Ball | 0.218 lb (98.88 g) | Tubeaxial | Thermal Overload Protector (TOP) | 25.00mm | 26.0dB(A) | - | CE, cUL, TUV, UL | 2400 RPM | - | 2 Wire Leads | - |
|
|
G9225L12B-FGRFAN AXIAL 92X25MM 12VDC WIRE |
0 | - |
|
数据表 |
G9225-G | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 31.0 CFM (0.868m³/min) | 0.050 in H2O (12.4 Pa) | Ball | 0.218 lb (98.88 g) | Tubeaxial | Thermal Overload Protector (TOP) | 25.00mm | 21.0dB(A) | - | CE, cUL, TUV, UL | 1600 RPM | - | 2 Wire Leads | - |
|
E9225S05B-FSRFAN AXIAL 92X25MM BALL 5VDC WIRE |
0 | - |
|
数据表 |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
CFM-A225V-222-340-11FAN AXIAL 120X25MM 24VDC WIRE |
0 | - |
|
数据表 |
CFM-120V | Tray | Obsolete | 24VDC | Square - 120mm L x 120mm H | 75.0 CFM (2.10m³/min) | 0.160 in H2O (40.0 Pa) | omniCOOL™ Magnetic Sleeve | 0.357 lb (161.93 g) | Tubeaxial | Auto Restart | 25.00mm | 34.0dB(A) | 2.32 W | CE, cURus, TUV | 2200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
CFM-A225V-227-405-11FAN AXIAL 120X25MM 24VDC WIRE |
0 | - |
|
数据表 |
CFM-120V | Tray | Obsolete | 24VDC | Square - 120mm L x 120mm H | 93.0 CFM (2.60m³/min) | 0.220 in H2O (54.8 Pa) | omniCOOL™ Magnetic Sleeve | 0.357 lb (161.93 g) | Tubeaxial | Auto Restart | 25.00mm | 40.5dB(A) | 4.03 W | CE, cURus, TUV | 2700 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
CFM-A225V-231-445-11FAN AXIAL 120X25MM 24VDC WIRE |
0 | - |
|
数据表 |
CFM-120V | Tray | Obsolete | 24VDC | Square - 120mm L x 120mm H | 108.2 CFM (3.03m³/min) | 0.280 in H2O (69.7 Pa) | omniCOOL™ Magnetic Sleeve | 0.357 lb (161.93 g) | Tubeaxial | Auto Restart | 25.00mm | 44.5dB(A) | 5.71 W | CE, cURus, TUV | 3100 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
08020SA-24N-AA-00FAN AXIAL 80X20MM 24VDC WIRE |
0 | - |
|
数据表 |
08020SA | Box | Active | 24VDC | Square - 80mm L x 80mm H | 42.4 CFM (1.19m³/min) | 0.210 in H2O (52.3 Pa) | Ball | - | Tubeaxial | Auto Restart | 20.00mm | 40.5dB(A) | 2.4 W | - | 4000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|

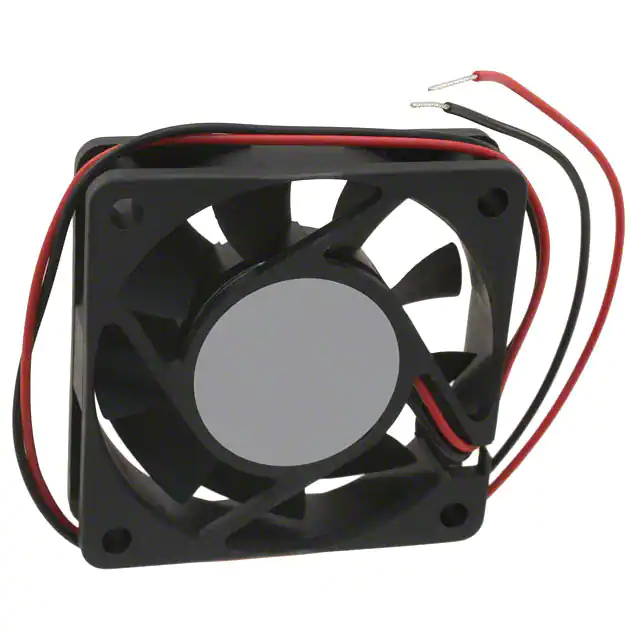

AFB0624HHBFAN AXIAL 60X15MM 24VDC WIRE |
0 | - |
|
数据表 |
AFB | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 17.3 CFM (0.484m³/min) | 0.195 in H2O (48.6 Pa) | Ball | 0.098 lb (44.45 g) | Tubeaxial | Locked Rotor Protection | 15.00mm | 35.0dB(A) | 2.4 W | CE, CSA, UL, VDE | 4500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
AFB0624LBFAN AXIAL 60X15MM 24VDC WIRE |
0 | - |
|
数据表 |
AFB | Box | Active | 24VDC | Square - 60mm L x 60mm H | 11.6 CFM (0.325m³/min) | 0.087 in H2O (21.7 Pa) | Ball | 0.098 lb (44.45 g) | Tubeaxial | Locked Rotor Protection | 15.00mm | 24.0dB(A) | 960 mW | CE, CSA, UL, VDE | 3000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
109P0424H601FAN AXIAL 40X20MM 24VDC WIRE |
364 | - |
|
数据表 |
San Ace 40 | Box | Active | 24VDC | Square - 40mm L x 40mm H | 8.2 CFM (0.230m³/min) | 0.280 in H2O (69.7 Pa) | Ball | 0.101 lb (45.81 g) | Tubeaxial | Speed Sensor (Tach) | 20.00mm | 35.0dB(A) | 1.68 W | CSA, TUV, UL | 8300 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
MR6025X24B1+6-RSRFAN AXIAL 60X25.5MM 24VDC WIRE |
325 | - |
|
数据表 |
MR6025 | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 39.2 CFM (1.10m³/min) | 0.730 in H2O (181.8 Pa) | Ball | - | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 25.50mm | 51.0dB(A) | - | - | 8000 RPM | - | 4 Wire Leads | - |
|
OD6025-24HB02AFAN AXIAL 60X25MM 24VDC WIRE |
511 | - |
|
数据表 |
OD6025 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.0 CFM (0.700m³/min) | 0.220 in H2O (54.8 Pa) | Ball | 0.141 lb (63.96 g) | Tubeaxial | Auto Restart, Locked Rotor Sensor | 25.00mm | 30.0dB(A) | 2.8 W | CE, cURus, TUV, UR | 3975 RPM | -4 ~ 149°F (-20 ~ 65°C) | 3 Wire Leads | - |
|
04028VA-24N-CA-00FAN AXIAL 40X28.1MM 24VDC WIRE |
164 | - |
|
数据表 |
04028VA | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 14.5 CFM (0.406m³/min) | 0.840 in H2O (209.2 Pa) | Ball | 0.121 lb (54.88 g) | Tubeaxial | - | 28.10mm | 44.5dB | 2.4 W | - | 13000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | IP69K - Dust Tight, High Temp Water Jets, Waterproof |
.jpg)
|
9S0612P4H01FAN AXIAL 60X25MM 12VDC WIRE |
136 | - |
|
数据表 |
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 20.5 CFM (0.574m³/min) | 0.160 in H2O (39.8 Pa) | Ball | 0.122 lb (55.34 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 25.00mm | 24.0dB(A) | 1.32 W | CSA, TUV, UL | 3900 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
