直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DC0802512U2B-2T0FAN AXIAL 80X25.4MM 12VDC WIRE |
226 | - |
|
数据表 |
- | Box | Active | 12VDC | Square - 80mm L x 80mm H | 83.6 CFM (2.34m³/min) | 0.380 in H2O (94.6 Pa) | Ball | 0.188 lb (85.28 g) | Tubeaxial | Locked Rotor Protection | 25.40mm | 50.0dB(A) | 12 W | CE, cURus, TUV | 6500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
MR3010E12B1-RSRFAN AXIAL 30X10MM 12VDC WIRE |
11,506 | - |
|
数据表 |
MR3010 | Box | Active | 12VDC | Square - 30mm L x 30mm H | 7.7 CFM (0.216m³/min) | 0.380 in H2O (94.6 Pa) | Ball | 0.018 lb (8.16 g) | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 10.00mm | 34.0dB(A) | - | CE, cUL, TUV, UL | 11500 RPM | - | 3 Wire Leads | - |
|

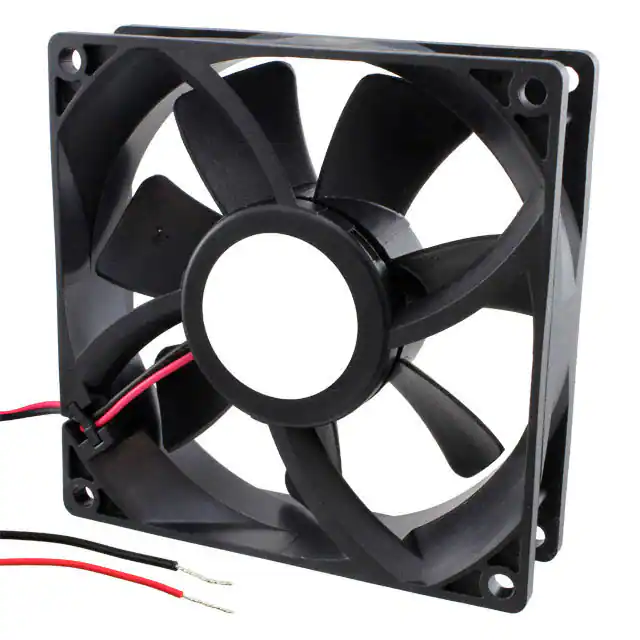

AUB0924VH-AFAN AXIAL 92X25.4MM 24VDC |
4,880 | - |
|
数据表 |
AUB | Box | Active | 24VDC | Square - 92mm L x 92mm H | 81.5 CFM (2.28m³/min) | 0.345 in H2O (85.9 Pa) | Superflo | 0.267 lb (121.11 g) | Tubeaxial | Locked Rotor Protection | 25.40mm | 46.0dB(A) | 6 W | CE, CSA, UL, VDE | 3800 RPM | 14 ~ 140°F (-10 ~ 60°C) | 2 Wire Leads | - |
|

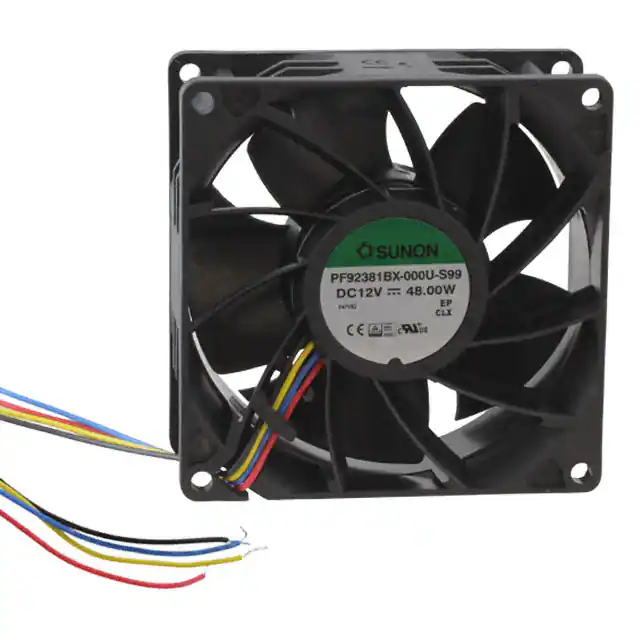

PF92381BX-000U-S99FAN AXIAL 92X38MM 12VDC WIRE |
2,873 | - |
|
数据表 |
PF | Box | Active | 12VDC | Square - 92mm L x 92mm H | 182.4 CFM (5.11m³/min) | 2.940 in H2O (732.3 Pa) | Ball | 0.463 lb (210.01 g) | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 38.00mm | 72.1dB(A) | 48 W | CE, CUR, TUV, UL | 13000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
G4020E12B-RSR-EMFAN AXIAL 40X20MM 12VDC WIRE |
418 | - |
|
数据表 |
G4020 | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 11.7 CFM (0.328m³/min) | 0.230 in H2O (57.3 Pa) | Ball | 0.062 lb (28.12 g) | Tubeaxial | Thermal Overload Protector (TOP) | 20.00mm | 32.0dB(A) | - | CE, cUL, TUV, UL | 8000 RPM | - | 2 Wire Leads | IP57 - Dust Protected, Waterproof |
|
MR4028W12B1+6-RSRFAN AXIAL 40X28MM 12VDC WIRE |
862 | - |
|
数据表 |
- | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 32.6 CFM (0.913m³/min) | 3.650 in H2O (909.2 Pa) | Ball | - | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 28.00mm | 65.0dB(A) | 19.2 W | - | 24000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|

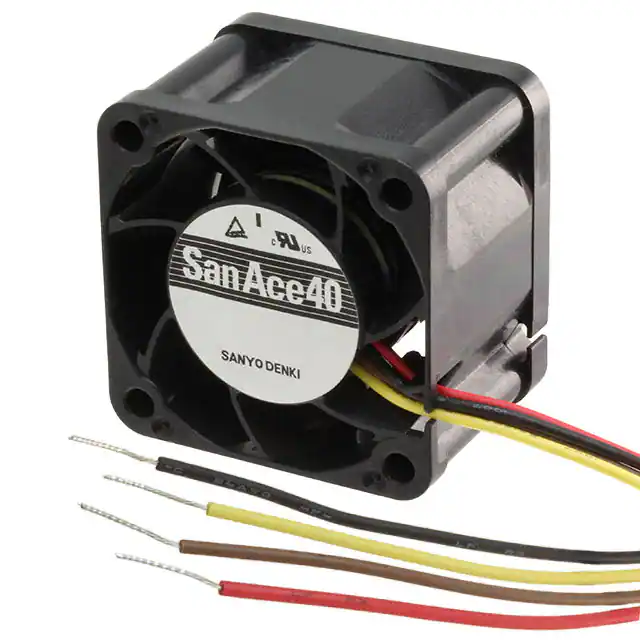

9GA0424P3J0011FAN AXIAL 40X28MM 24VDC WIRE |
2,006 | - |
|
数据表 |
San Ace 40 | Box | Active | 24VDC | Square - 40mm L x 40mm H | 23.7 CFM (0.664m³/min) | 2.150 in H2O (535.0 Pa) | Ball | 0.117 lb (53.07 g) | Tubeaxial | PWM Control, Speed Sensor (Tach) | 28.00mm | 54.0dB(A) | 6.48 W | CSA, TUV, UL | 18000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|
109P0412G601FAN AXIAL 40X20MM 12VDC WIRE |
1,310 | - |
|
数据表 |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 12.4 CFM (0.347m³/min) | 0.618 in H2O (153.8 Pa) | Ball | 0.101 lb (45.81 g) | Tubeaxial | Speed Sensor (Tach) | 20.00mm | 44.0dB(A) | 3.36 W | CSA, TUV, UL | 12500 RPM | -4 ~ 140°F (-20 ~ 60°C) | 3 Wire Leads | - |
|

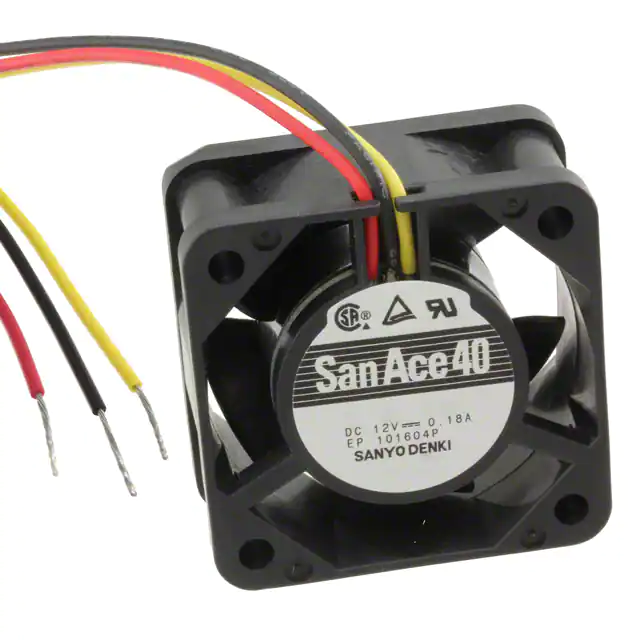

109P0412D601FAN AXIAL 40X20MM 12VDC WIRE |
749 | - |
|
数据表 |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 10.9 CFM (0.305m³/min) | 0.498 in H2O (124.0 Pa) | Ball | 0.101 lb (45.81 g) | Tubeaxial | Speed Sensor (Tach) | 20.00mm | 42.0dB(A) | 2.16 W | CSA, TUV, UL | 11000 RPM | -4 ~ 140°F (-20 ~ 60°C) | 3 Wire Leads | - |
|
E9225H48B-FSRFAN AXIAL 92X25MM 48VDC WIRE |
0 | - |
|
数据表 |
E9225 | Bulk | Active | 48VDC | Square - 92mm L x 92mm H | 51.0 CFM (1.43m³/min) | 0.240 in H2O (59.8 Pa) | Ball | 0.245 lb (111.13 g) | Tubeaxial | Thermal Overload Protector (TOP) | 25.00mm | 36.0dB(A) | - | CE, cUL, TUV, UL | 3200 RPM | - | 2 Wire Leads | - |
|
|
E9225M05B-FSRFAN AXIAL 92X25MM BALL 5VDC WIRE |
0 | - |
|
数据表 |
E9225 | Bulk | Active | 5VDC | Square - 92mm L x 92mm H | 44.0 CFM (1.23m³/min) | 0.190 in H2O (47.3 Pa) | Ball | 0.245 lb (111.13 g) | Tubeaxial | Thermal Overload Protector (TOP) | 25.00mm | 32.0dB(A) | - | CE, cUL, TUV, UL | 2800 RPM | - | 2 Wire Leads | - |
|
|
E9225M12B-FSRFAN AXIAL 92X25MM 12VDC WIRE |
0 | - |
|
数据表 |
E9225 | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 44.0 CFM (1.23m³/min) | 0.190 in H2O (47.3 Pa) | Ball | 0.245 lb (111.13 g) | Tubeaxial | Thermal Overload Protector (TOP) | 25.00mm | 32.0dB(A) | - | CE, cUL, TUV, UL | 2800 RPM | - | 2 Wire Leads | - |
|
|
E9225M24B-FSRFAN AXIAL 92X25MM 24VDC WIRE |
0 | - |
|
数据表 |
E9225 | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 44.0 CFM (1.23m³/min) | 0.190 in H2O (47.3 Pa) | Ball | 0.245 lb (111.13 g) | Tubeaxial | Thermal Overload Protector (TOP) | 25.00mm | 32.0dB(A) | - | CE, cUL, TUV, UL | 2800 RPM | - | 2 Wire Leads | - |
|
|
E9225S12B-FSRFAN AXIAL 92X25MM 12VDC WIRE |
0 | - |
|
数据表 |
E9225 | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 29.0 CFM (0.812m³/min) | 0.090 in H2O (22.4 Pa) | Ball | 0.245 lb (111.13 g) | Tubeaxial | Thermal Overload Protector (TOP) | 25.00mm | 24.0dB(A) | - | CE, cUL, TUV, UL | 2000 RPM | - | 2 Wire Leads | - |
|
|
E9225S24B-FSRFAN AXIAL 92X25MM 24VDC WIRE |
0 | - |
|
数据表 |
E9225 | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 29.0 CFM (0.812m³/min) | 0.090 in H2O (22.4 Pa) | Ball | 0.245 lb (111.13 g) | Tubeaxial | Thermal Overload Protector (TOP) | 25.00mm | 24.0dB(A) | - | CE, cUL, TUV, UL | 2000 RPM | - | 2 Wire Leads | - |
|
|
E9225X48B-FSRFAN AXIAL 92X25MM 48VDC WIRE |
0 | - |
|
数据表 |
E9225 | Bulk | Active | 48VDC | Square - 92mm L x 92mm H | 60.0 CFM (1.68m³/min) | 0.320 in H2O (79.7 Pa) | Ball | 0.245 lb (111.13 g) | Tubeaxial | Thermal Overload Protector (TOP) | 25.00mm | 43.0dB(A) | - | CE, cUL, TUV, UL | 4000 RPM | - | 2 Wire Leads | - |
|
G5015H12B1-RSRFAN AXIAL 50X15MM 12VDC WIRE |
0 | - |
|
数据表 |
G5015 | Bulk | Active | 12VDC | Square - 50mm L x 50mm H | 13.0 CFM (0.364m³/min) | 0.170 in H2O (42.3 Pa) | Ball | 0.077 lb (34.93 g) | Tubeaxial | Speed Sensor (Tach), Thermal Overload Protector (TOP) | 15.00mm | 29.0dB(A) | - | CE, cUL, TUV, UL | 5500 RPM | - | 3 Wire Leads | - |
|
G9225E12B-FSRFAN AXIAL 92X25MM 12VDC WIRE |
0 | - |
|
数据表 |
G9225 | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 58.0 CFM (1.62m³/min) | 0.210 in H2O (52.3 Pa) | Ball | 0.218 lb (98.88 g) | Tubeaxial | Thermal Overload Protector (TOP) | 25.00mm | 39.0dB(A) | - | CE, cUL, TUV, UL | 3200 RPM | - | 2 Wire Leads | - |
|
|
G9225E24B-FSRFAN AXIAL 92X25MM 24VDC WIRE |
0 | - |
|
数据表 |
G9225 | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 58.0 CFM (1.62m³/min) | 0.210 in H2O (52.3 Pa) | Ball | 0.218 lb (98.88 g) | Tubeaxial | Thermal Overload Protector (TOP) | 25.00mm | 39.0dB(A) | - | CE, cUL, TUV, UL | 3200 RPM | - | 2 Wire Leads | - |
|
|
G9225H12B-FSRFAN AXIAL 92X25MM 12VDC WIRE |
0 | - |
|
数据表 |
G9225 | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 50.0 CFM (1.40m³/min) | 0.160 in H2O (39.8 Pa) | Ball | 0.218 lb (98.88 g) | Tubeaxial | Thermal Overload Protector (TOP) | 25.00mm | 36.0dB(A) | - | CE, cUL, TUV, UL | 2800 RPM | - | 2 Wire Leads | - |
