直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DC0802524J2B-BT4FAN 80X25MM 24VDC PWM/TACH MOLEX |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 47.6 CFM (1.33m³/min) | 0.140 in H2O (34.9 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 25.40mm | 35.0dB(A) | 3.6 W | CE, cURus | 3500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Position Rectangular Connector | - |
|
|
DC0922548U2B-2T0FAN 92X25MM 48VDC |
0 | - |
|
数据表 |
- | Bulk | Active | 48VDC | Square - 92mm L x 92mm H | 69.2 CFM (1.94m³/min) | 0.280 in H2O (69.7 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection | 25.00mm | 45.0dB(A) | 14.4 W | CE, cURus | 3800 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
DC0301005U2B-3T0FAN 30X10MM 5VDC TACH |
0 | - |
|
数据表 |
- | Bulk | Active | 5VDC | Square - 30mm L x 30mm H | 5.7 CFM (0.157m³/min) | 0.240 in H2O (59.8 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 10.50mm | 31.0dB(A) | 850 mW | CE, cURus | 11000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
E9225E48B-FSRFAN AXIAL 92X25MM 48VDC WIRE |
0 | - |
|
数据表 |
E9225 | Bulk | Active | 48VDC | Square - 92mm L x 92mm H | 56.0 CFM (1.57m³/min) | 0.280 in H2O (69.7 Pa) | Ball | 0.245 lb (111.13 g) | Tubeaxial | Thermal Overload Protector (TOP) | 25.00mm | 39.0dB(A) | - | CE, cUL, TUV, UL | 3600 RPM | - | 2 Wire Leads | - |
|
|
E9225H12B-FSRFAN AXIAL 92X25MM 12VDC WIRE |
0 | - |
|
数据表 |
E9225 | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 51.0 CFM (1.43m³/min) | 0.240 in H2O (59.8 Pa) | Ball | 0.245 lb (111.13 g) | Tubeaxial | Thermal Overload Protector (TOP) | 25.00mm | 36.0dB(A) | - | CE, cUL, TUV, UL | 3200 RPM | - | 2 Wire Leads | - |
|
UF3C3-700TCFAN AXIAL 12X3MM VAPO 3VDC WIRE |
1,934 | - |
|
数据表 |
MagLev® UF, Mighty Mini | Tray | Active | 3VDC | Square - 12mm L x 12mm H | 0.218 CFM (0.006m³/min) | 0.076 in H2O (18.9 Pa) | Vapo-Bearing™ | 0.002 lb (0.91 g) | Tubeaxial | Auto Restart | 3.00mm | 28.3dB(A) | 300 mW | CE | 16500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | IP55 - Dust Protected, Water Resistant |
|
EEC0251B3-000U-A99FAN AXIAL 120X25MM 12VDC WIRE |
5,217 | - |
|
数据表 |
EEC | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 75.0 CFM (2.10m³/min) | 0.160 in H2O (39.8 Pa) | Ball | 0.346 lb (156.94 g) | Tubeaxial | Auto Restart | 25.00mm | 34.0dB(A) | 1.9 W | CE, CUR, TUV, UL | 2200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
FFB0924EHEFAN AXIAL 92X38MM 24VDC WIRE |
1,577 | - |
|
数据表 |
FFB | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 110.2 CFM (3.09m³/min) | 0.665 in H2O (165.6 Pa) | Ball | 0.437 lb (198.00 g) | Tubeaxial | Locked Rotor Protection | 38.00mm | 55.0dB(A) | 12 W | CE, CSA, UL, VDE | 4800 RPM | 14 ~ 140°F (-10 ~ 60°C) | 2 Wire Leads | - |
|
109P0424J3023FAN AXIAL 40X28MM 24VDC WIRE |
1,959 | - |
|
数据表 |
San Ace 40 | Box | Active | 24VDC | Square - 40mm L x 40mm H | 16.2 CFM (0.454m³/min) | 0.843 in H2O (210.0 Pa) | Ball | 0.115 lb (52.16 g) | Tubeaxial | Locked Rotor Protection | 28.00mm | 44.0dB(A) | 4.32 W | CSA, TUV, UL | 12500 RPM | -4 ~ 140°F (-20 ~ 60°C) | 2 Wire Leads | - |
|
109P0612H701FAN AXIAL 60X15MM 12VDC WIRE |
409 | - |
|
数据表 |
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 14.1 CFM (0.395m³/min) | 0.153 in H2O (38.2 Pa) | Ball | 0.133 lb (60.33 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 15.00mm | 32.0dB(A) | 1.08 W | CSA, TUV, UL | 4100 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
MR8032H24B-FSRFAN AXIAL 80X32MM 24VDC WIRE |
1,741 | - |
|
数据表 |
MR8032 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 73.0 CFM (2.04m³/min) | 0.760 in H2O (189.3 Pa) | Ball | 0.32 lb (145.15 g) | Tubeaxial | Auto Restart | 32.00mm | 48.6dB(A) | - | CE, cUL, TUV, UL | 6000 RPM | - | 2 Wire Leads | - |
|
DC0251012H2B-BT0FAN AXIAL 25X10MM 12VDC WIRE |
169 | - |
|
数据表 |
- | Box | Active | 12VDC | Square - 25mm L x 25mm H | 2.4 CFM (0.067m³/min) | 0.290 in H2O (72.2 Pa) | Ball | 0.018 lb (8.16 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 10.00mm | 28.0dB(A) | 960 mW | CE, cURus, TUV | 13000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
EFB0412VHD-F00FAN AXIAL 40X20MM 12VDC WIRE |
4,553 | - |
|
数据表 |
EFB | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 10.1 CFM (0.283m³/min) | 0.416 in H2O (103.6 Pa) | Ball | 0.073 lb (33.11 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 20.00mm | 32.5dB(A) | 1.44 W | CE, CSA, UL, VDE | 9000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
109P0424H602FAN AXIAL 40X20MM 24VDC WIRE |
2,477 | - |
|
数据表 |
San Ace 40 | Box | Active | 24VDC | Square - 40mm L x 40mm H | 8.2 CFM (0.230m³/min) | 0.280 in H2O (69.7 Pa) | Ball | 0.101 lb (45.81 g) | Tubeaxial | - | 20.00mm | 35.0dB(A) | 1.68 W | CSA, TUV, UL | 8300 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
9GA0412G7001FAN AXIAL 40X15MM 12VDC WIRE |
138 | - |
|
数据表 |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 12.7 CFM (0.356m³/min) | 0.770 in H2O (191.8 Pa) | Ball | 0.062 lb (28.12 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 15.00mm | 42.0dB(A) | 2.04 W | CSA, TUV, UL | 13100 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
109P0412H3013FAN AXIAL 40X28MM 12VDC WIRE |
3,143 | - |
|
数据表 |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 11.3 CFM (0.316m³/min) | 0.414 in H2O (102.9 Pa) | Ball | 0.115 lb (52.16 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 28.00mm | 37.0dB(A) | 2.34 W | CSA, TUV, UL | 8700 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
109P0524A701FAN AXIAL 52X15MM 24VDC WIRE |
1,064 | - |
|
数据表 |
San Ace 52 | Box | Active | 24VDC | Square - 52mm L x 52mm H | 13.2 CFM (0.370m³/min) | 0.280 in H2O (69.7 Pa) | Ball | 0.122 lb (55.34 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 15.00mm | 36.0dB(A) | 2.64 W | CSA, TUV, UL | 6800 RPM | -4 ~ 140°F (-20 ~ 60°C) | 3 Wire Leads | - |
|
|
109P0412B3013FAN AXIAL 40X28MM 12VDC WIRE |
163 | - |
|
数据表 |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 13.4 CFM (0.375m³/min) | 0.574 in H2O (143.0 Pa) | Ball | 0.115 lb (52.16 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 28.00mm | 40.0dB(A) | 3.36 W | CSA, TUV, UL | 10300 RPM | -4 ~ 140°F (-20 ~ 60°C) | 3 Wire Leads | - |
|
OD4010-24HB01AFAN AXIAL 40X10.5MM 24VDC WIRE |
692 | - |
|
数据表 |
OD4010 | Box | Active | 24VDC | Square - 40mm L x 40mm H | 9.2 CFM (0.258m³/min) | 0.200 in H2O (49.8 Pa) | Ball | 0.441 lb (200.00 g) | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 10.50mm | 33.4dB | 1.45 W | CE, cURus, TUV, UR | 8000 RPM | -4 ~ 149°F (-20 ~ 65°C) | 3 Wire Leads | - |
|

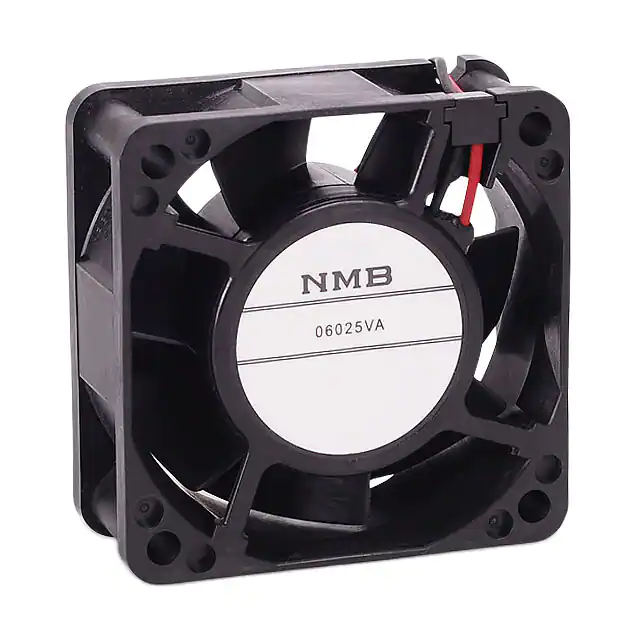

06025VA-24Q-CA-00FAN AXIAL 60X25MM 24VDC WIRE |
3,521 | - |
|
数据表 |
06025VA | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 39.2 CFM (1.10m³/min) | 0.980 in H2O (244.0 Pa) | Ball | 0.198 lb (89.81 g) | Tubeaxial | - | 25.00mm | 54.0dB | 6.5 W | - | 9200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | IP69K - Dust Tight, High Temp Water Jets, Waterproof |
