直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DC0801524U2B-3T3FAN 80X15MM 24VDC TACH MOLEX 22- |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 45.2 CFM (1.27m³/min) | 0.210 in H2O (52.3 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 15.00mm | 43.0dB(A) | 11.52 W | CE, cURus | 4500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Position Rectangular Connector | - |
|
|
DC0802012J2B-BT4FAN 80X20MM 12VDC PWM/TACH MOLEX |
0 | - |
|
数据表 |
- | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 27.4 CFM (0.767m³/min) | 0.090 in H2O (22.4 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 20.00mm | 25.0dB(A) | 1.56 W | CE, cURus, TUV | 2400 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Position Rectangular Connector | - |
B.jpg)
|
CFM-A225B-018-327-22FAN AXIAL 120X25.4MM 5VDC WIRE |
0 | - |
|
数据表 |
CFM-120B | Box | Active | 5VDC | Square - 120mm L x 120mm H | 62.9 CFM (1.76m³/min) | 0.090 in H2O (22.4 Pa) | Ball | - | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 25.40mm | 28.8dB(A) | 2.25 W | CE, cURus, TUV | 1800 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
|
CFM-A225B-015-287-22FAN AXIAL 120X25.4MM 5VDC WIRE |
0 | - |
|
数据表 |
CFM-120B | Box | Active | 5VDC | Square - 120mm L x 120mm H | 52.2 CFM (1.46m³/min) | 0.060 in H2O (14.9 Pa) | Ball | - | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 25.40mm | 24.8dB(A) | 1.2 W | CE, cURus, TUV | 1500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
(8020BF)(8038BF).jpg)
|
CFM-8020BF-255-444-22FAN AXIAL 80X20MM 24VDC WIRE |
0 | - |
|
数据表 |
CFM-80BF | Box | Active | 24VDC | Square - 80mm L x 80mm H | 53.9 CFM (1.51m³/min) | 0.350 in H2O (87.2 Pa) | Ball | - | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 20.00mm | 44.5dB(A) | 6.48 W | CE, cURus, TUV | 5500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
|
DC0501005M2B-BT4FAN 50X10MM 5VDC PWM/TACH MOLEX |
0 | - |
|
数据表 |
- | Bulk | Active | 5VDC | Square - 50mm L x 50mm H | 10.5 CFM (0.294m³/min) | 0.140 in H2O (34.9 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 10.00mm | 30.0dB(A) | 400 mW | CE, cURus | 5500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Position Rectangular Connector | - |
|
|
DC0501024M2B-BT4FAN 50X10MM 24VDC PWM/TACH MOLEX |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 50mm L x 50mm H | 10.5 CFM (0.294m³/min) | 0.140 in H2O (34.9 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 10.00mm | 30.0dB(A) | 1.92 W | CE, cURus | 5500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Position Rectangular Connector | - |
|
CBM-A232S-225-481FAN BLOWER 119.3X32MM 24VDC WIRE |
0 | - |
|
数据表 |
CBM-120S | Box | Active | 24VDC | Square/Rounded - 119.3mm L x 119mm H | 23.1 CFM (0.647m³/min) | 0.940 in H2O (234.1 Pa) | Ball | - | Blower | Auto Restart | 32.00mm | 48.2dB(A) | 8.64 W | CE, cURus, TUV | 2500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
CBM-A232S-120-457FAN BLOWER 119.3X32MM 12VDC WIRE |
0 | - |
|
数据表 |
CBM-120S | Box | Active | 12VDC | Square/Rounded - 119.3mm L x 119mm H | 18.5 CFM (0.518m³/min) | 0.600 in H2O (149.5 Pa) | Ball | - | Blower | Auto Restart | 32.00mm | 45.8dB(A) | 4.56 W | CE, cURus, TUV | 2000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
CBM-A232S-220-457FAN BLOWER 119.3X32MM 24VDC WIRE |
0 | - |
|
数据表 |
CBM-120S | Box | Active | 24VDC | Square/Rounded - 119.3mm L x 119mm H | 18.5 CFM (0.518m³/min) | 0.600 in H2O (149.5 Pa) | Ball | - | Blower | Auto Restart | 32.00mm | 45.8dB(A) | 4.32 W | CE, cURus, TUV | 2000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
(8038B).jpg)
|
CFM-8025B-235-364-22FAN AXIAL 80X25MM 24VDC WIRE |
0 | - |
|
数据表 |
CFM-80B | Box | Active | 24VDC | Square - 80mm L x 80mm H | 43.3 CFM (1.21m³/min) | 0.170 in H2O (42.3 Pa) | Ball | - | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 25.00mm | 36.4dB(A) | 3.6 W | CE, cURus, TUV | 3500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
|
CFM-8025B-225-290-22FAN AXIAL 80X25MM 24VDC WIRE |
0 | - |
|
数据表 |
CFM-80B | Box | Active | 24VDC | Square - 80mm L x 80mm H | 30.9 CFM (0.865m³/min) | 0.090 in H2O (22.4 Pa) | Ball | - | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 25.00mm | 29.0dB(A) | 1.92 W | CE, cURus, TUV | 2500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
|
CFM-8025B-230-330-22FAN AXIAL 80X25MM 24VDC WIRE |
0 | - |
|
数据表 |
CFM-80B | Box | Active | 24VDC | Square - 80mm L x 80mm H | 37.1 CFM (1.04m³/min) | 0.130 in H2O (32.4 Pa) | Ball | - | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 25.00mm | 33.0dB(A) | 2.64 W | CE, cURus, TUV | 3000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
MF40060V1-1000U-A99FAN AXIAL 40X6.5MM 5VDC WIRE |
2,691 | - |
|
数据表 |
MagLev® MF | Bulk | Active | 5VDC | Square - 40mm L x 40mm H | 6.3 CFM (0.176m³/min) | 0.100 in H2O (24.9 Pa) | Vapo-Bearing™ | 0.015 lb (6.8 g) | Tubeaxial | Auto Restart | 6.50mm | 29.3dB(A) | 440 mW | cURus, TUV | 7000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
MF40060V2-1000U-A99FAN AXIAL 40X6.5MM 5VDC WIRE |
2,622 | - |
|
数据表 |
MagLev® MF | Bulk | Active | 5VDC | Square - 40mm L x 40mm H | 5.5 CFM (0.154m³/min) | 0.080 in H2O (20.0 Pa) | Vapo-Bearing™ | 0.015 lb (6.8 g) | Tubeaxial | Auto Restart | 6.50mm | 25.3dB(A) | 330 mW | cURus, TUV | 6000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
BFB0512HHA-CF00FAN BLOWER 50X10.3MM 12VDC WIRE |
2,541 | - |
|
数据表 |
BFB | Box | Active | 12VDC | Square - 50mm L x 50mm H | 4.0 CFM (0.112m³/min) | 0.790 in H2O (196.8 Pa) | Ball | 0.05 lb (22.68 g) | Blower | Locked Rotor Protection, Speed Sensor (Tach) | 10.30mm | 37.5dB(A) | 1.92 W | CE, CSA, UL, VDE | 5900 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
MF40060V1-1000U-G99FAN AXIAL 40X6.5MM 5VDC WIRE |
3,849 | - |
|
数据表 |
MagLev® MF | Bulk | Active | 5VDC | Square - 40mm L x 40mm H | 6.3 CFM (0.176m³/min) | 0.100 in H2O (24.9 Pa) | Vapo-Bearing™ | 0.015 lb (6.8 g) | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 6.50mm | 29.3dB(A) | 440 mW | CE, CUR, TUV, UL | 7000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
109P0605M701FAN AXIAL 60X15MM BALL 5VDC WIRE |
103 | - |
|
数据表 |
San Ace 60 | Box | Active | 5VDC | Square - 60mm L x 60mm H | 10.6 CFM (0.297m³/min) | 0.091 in H2O (22.7 Pa) | Ball | 0.133 lb (60.33 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 15.00mm | 25.0dB(A) | 750 mW | CSA, TUV, UL | 3100 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
9GA0412P3H01FAN AXIAL 40X28MM 12VDC WIRE |
5,100 | - |
|
数据表 |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 19.1 CFM (0.535m³/min) | 1.393 in H2O (347.0 Pa) | Ball | 0.117 lb (53.07 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 28.00mm | 50.0dB(A) | 3.36 W | CSA, TUV, UL | 14500 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|

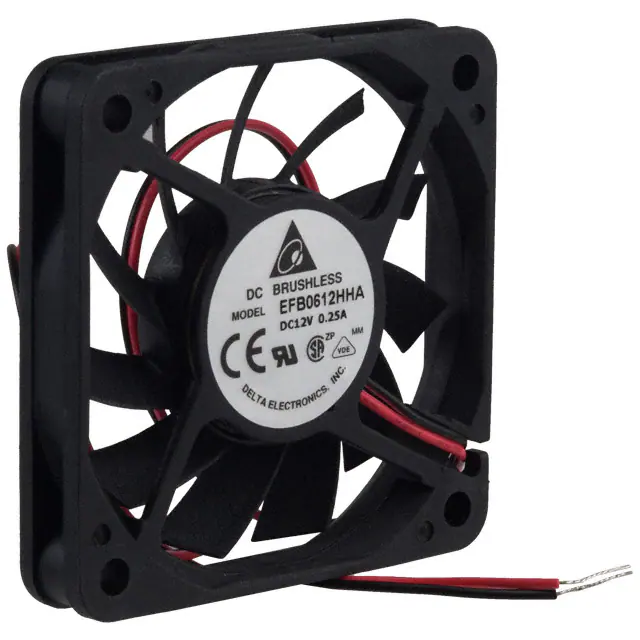

EFB0612HHAFAN AXIAL 60X10MM 12VDC WIRE |
4,139 | - |
|
数据表 |
EFB | Box | Active | 12VDC | Square - 60mm L x 60mm H | 21.2 CFM (0.594m³/min) | 0.169 in H2O (42.1 Pa) | Ball | 0.062 lb (28.12 g) | Tubeaxial | Locked Rotor Protection | 10.00mm | 36.5dB(A) | 2.16 W | CE, CSA, UL, VDE | 4800 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
