直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

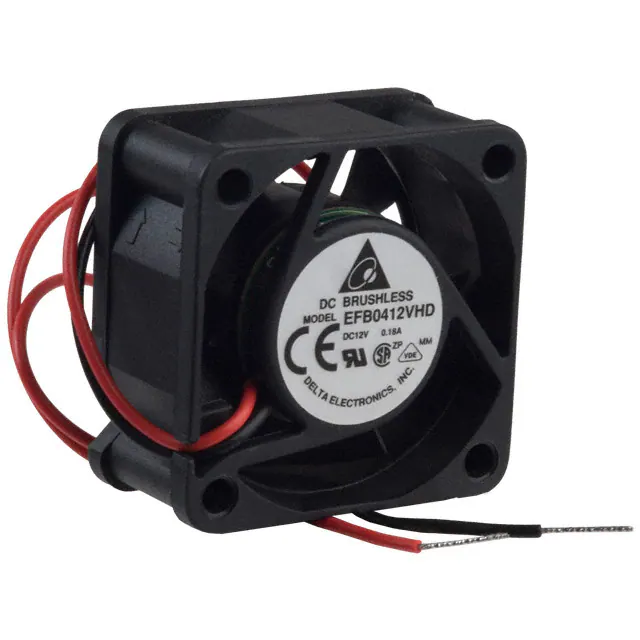

EFB0412VHDFAN AXIAL 40X20MM 12VDC WIRE |
1,326 | - |
|
数据表 |
EFB | Tray | Active | 12VDC | Square - 40mm L x 40mm H | 10.1 CFM (0.283m³/min) | 0.416 in H2O (103.6 Pa) | Ball | 0.073 lb (33.11 g) | Tubeaxial | Locked Rotor Protection | 20.00mm | 32.5dB(A) | 1.44 W | CE, CSA, UL, VDE | 9000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
EFB0424VHDFAN AXIAL 40X20MM 24VDC WIRE |
886 | - |
|
数据表 |
EFB | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 10.1 CFM (0.283m³/min) | 0.416 in H2O (103.6 Pa) | Ball | 0.073 lb (33.11 g) | Tubeaxial | Locked Rotor Protection | 20.00mm | 32.5dB(A) | 2.16 W | CE, CSA, UL, VDE | 9000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
EFB0612HAFAN AXIAL 60X10MM 12VDC WIRE |
389 | - |
|
数据表 |
EFB | Tray | Active | 12VDC | Square - 60mm L x 60mm H | 18.0 CFM (0.504m³/min) | 0.132 in H2O (32.9 Pa) | Ball | 0.062 lb (28.12 g) | Tubeaxial | Locked Rotor Protection | 10.00mm | 33.0dB(A) | 1.44 W | CE, CSA, UL, VDE | 4200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
MR3010H05B-RSRFAN AXIAL 30X10MM BALL 5VDC WIRE |
658 | - |
|
数据表 |
MR3010 | Box | Active | 5VDC | Square - 30mm L x 30mm H | 6.4 CFM (0.179m³/min) | 0.260 in H2O (64.8 Pa) | Ball | 0.018 lb (8.16 g) | Tubeaxial | Auto Restart | 10.00mm | 31.6dB(A) | - | CE, cUL, TUV, UL | 10000 RPM | - | 2 Wire Leads | - |
|
|
MR3010E12B-RSRFAN AXIAL 30X10MM 12VDC WIRE |
375 | - |
|
数据表 |
MR3010 | Box | Active | 12VDC | Square - 30mm L x 30mm H | 7.7 CFM (0.216m³/min) | 0.380 in H2O (94.6 Pa) | Ball | 0.018 lb (8.16 g) | Tubeaxial | Auto Restart | 10.00mm | 34.0dB(A) | - | CE, cUL, TUV, UL | 11500 RPM | - | 2 Wire Leads | - |
|
|
MR3010H12B-RSRFAN AXIAL 30X10MM 12VDC WIRE |
279 | - |
|
数据表 |
MR3010 | Box | Active | 12VDC | Square - 30mm L x 30mm H | 6.4 CFM (0.179m³/min) | 0.260 in H2O (64.8 Pa) | Ball | 0.018 lb (8.16 g) | Tubeaxial | Auto Restart | 10.00mm | 31.6dB(A) | - | CE, cUL, TUV, UL | 10000 RPM | - | 2 Wire Leads | - |
|
AFB0524VHDFAN AXIAL 50X20MM 24VDC WIRE |
4,452 | - |
|
数据表 |
AFB | Bulk | Active | 24VDC | Square - 50mm L x 50mm H | 20.3 CFM (0.568m³/min) | 0.303 in H2O (75.5 Pa) | Ball | 0.085 lb (38.56 g) | Tubeaxial | Locked Rotor Protection | 20.00mm | 40.5dB(A) | 2.4 W | CE, CSA, UL, VDE | 7000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
AFB0524HHBFAN AXIAL 50X15MM 24VDC WIRE |
3,214 | - |
|
数据表 |
AFB | Bulk | Active | 24VDC | Square - 50mm L x 50mm H | 16.2 CFM (0.454m³/min) | 0.315 in H2O (78.5 Pa) | Ball | 0.071 lb (32.21 g) | Tubeaxial | Locked Rotor Protection | 15.00mm | 36.0dB(A) | 1.92 W | CE, CSA, UL, VDE | 6400 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
AFB0505MBFAN AXIAL 50X15MM BALL 5VDC WIRE |
1,747 | - |
|
数据表 |
AFB | Bulk | Active | 5VDC | Square - 50mm L x 50mm H | 12.4 CFM (0.347m³/min) | 0.181 in H2O (45.1 Pa) | Ball | 0.071 lb (32.21 g) | Tubeaxial | Locked Rotor Protection | 15.00mm | 28.0dB(A) | 1.1 W | CE, CSA, UL, VDE | 4800 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
9S0612H402FAN AXIAL 60X25MM 12VDC WIRE |
797 | - |
|
数据表 |
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 20.5 CFM (0.574m³/min) | 0.160 in H2O (39.8 Pa) | Ball | 0.122 lb (55.34 g) | Tubeaxial | - | 25.00mm | 24.0dB(A) | 1.32 W | CSA, TUV, UL | 3900 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
04020VA-12Q-CA-00FAN AXIAL 40X20MM 12VDC WIRE |
3,104 | - |
|
数据表 |
04020VA | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 12.4 CFM (0.347m³/min) | 0.570 in H2O (142.0 Pa) | Ball | 0.088 lb (39.92 g) | Tubeaxial | Auto Restart | 20.00mm | 42.0dB | 1.56 W | - | 11000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | IP69K - Dust Tight, High Temp Water Jets, Waterproof |
|
|
04020VA-24Q-CA-00FAN AXIAL 40X20MM 24VDC WIRE |
785 | - |
|
数据表 |
04020VA | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 12.4 CFM (0.347m³/min) | 0.570 in H2O (142.0 Pa) | Ball | 0.088 lb (39.92 g) | Tubeaxial | Auto Restart | 20.00mm | 42.0dB | 2.16 W | - | 11000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | IP69K - Dust Tight, High Temp Water Jets, Waterproof |
|

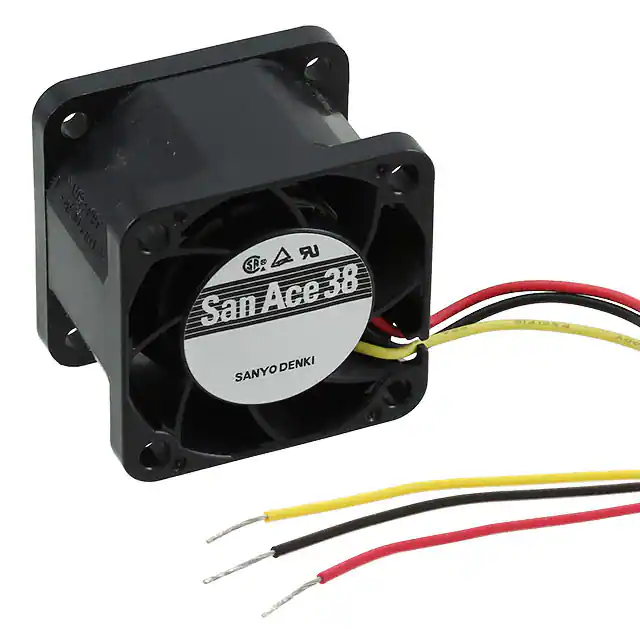

9GA0312P3K001FAN AXIAL 38X28MM 12VDC WIRE |
1,506 | - |
|
数据表 |
San Ace 38 | Box | Active | 12VDC | Square - 38mm L x 38mm H | 21.2 CFM (0.594m³/min) | 3.210 in H2O (800.0 Pa) | Ball | 0.115 lb (52.16 g) | Tubeaxial | PWM Control, Speed Sensor (Tach) | 28.00mm | 59.0dB(A) | 7.4 W | CSA, TUV, UL | 25000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|

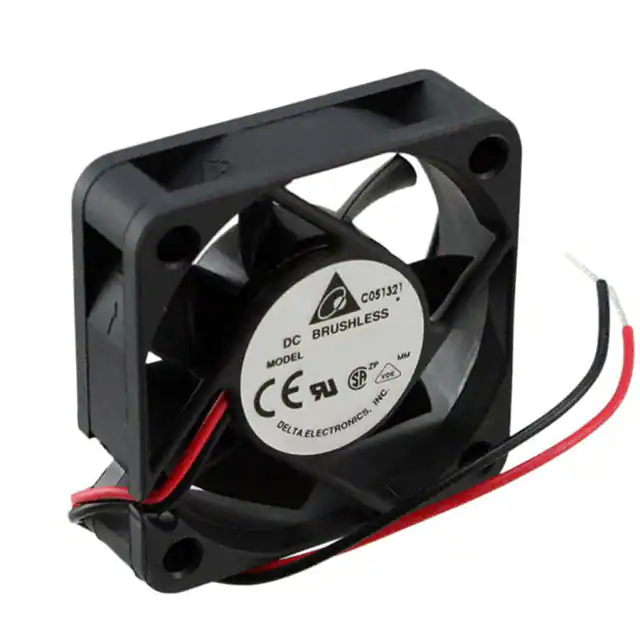

AFB0512MBFAN AXIAL 50X15MM 12VDC WIRE |
1,271 | - |
|
数据表 |
AFB | Bulk | Active | 12VDC | Square - 50mm L x 50mm H | 12.4 CFM (0.347m³/min) | 0.181 in H2O (45.1 Pa) | Ball | 0.071 lb (32.21 g) | Tubeaxial | Locked Rotor Protection | 15.00mm | 28.0dB(A) | 960 mW | CE, CSA, UL, VDE | 4800 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
DC0501005H2B-BT4FAN 50X10MM 5VDC PWM/TACH MOLEX |
179 | - |
|
数据表 |
- | Bulk | Active | 5VDC | Square - 50mm L x 50mm H | 12.7 CFM (0.356m³/min) | 0.180 in H2O (44.8 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 10.00mm | 35.0dB(A) | 500 mW | CE, cURus | 6500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Position Rectangular Connector | - |
|
OD3010-12MB02AFAN AXIAL 30X10MM 12VDC WIRE |
387 | - |
|
数据表 |
OD3010 | Bulk | Active | 12VDC | Square - 30mm L x 30mm H | 3.3 CFM (0.092m³/min) | 0.180 in H2O (45.0 Pa) | Ball | 0.018 lb (8.16 g) | Tubeaxial | Locked Rotor Sensor | 10.00mm | 28.4dB(A) | 840 mW | CE, cURus | 9000 RPM | -4 ~ 149°F (-20 ~ 65°C) | 3 Wire Leads | - |
|
109P0612H702FAN AXIAL 60X15MM 12VDC WIRE |
746 | - |
|
数据表 |
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 14.1 CFM (0.395m³/min) | 0.153 in H2O (38.2 Pa) | Ball | 0.133 lb (60.33 g) | Tubeaxial | Locked Rotor Protection | 15.00mm | 32.0dB(A) | 1.08 W | CSA, TUV, UL | 4100 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
(9238S).jpg)
|
CFM-9225B-120-269-22FAN AXIAL 92X25MM 12VDC WIRE |
0 | - |
|
数据表 |
CFM-92B | Box | Active | 12VDC | Square - 92mm L x 92mm H | 33.4 CFM (0.935m³/min) | 0.070 in H2O (17.4 Pa) | Ball | - | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 25.00mm | 26.9dB(A) | 1.08 W | CE, cURus, TUV | 2000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
|
CFM-9225B-125-317-22FAN AXIAL 92X25MM 12VDC WIRE |
0 | - |
|
数据表 |
CFM-92B | Box | Active | 12VDC | Square - 92mm L x 92mm H | 41.7 CFM (1.17m³/min) | 0.110 in H2O (27.4 Pa) | Ball | - | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 25.00mm | 31.7dB(A) | 1.8 W | CE, cURus, TUV | 2500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
MS2507H05D-RSRFAN AXIAL 25X7.4MM SLEEVE 5VDC |
0 | - |
|
数据表 |
MS2507 | Box | Active | 5VDC | Square - 25mm L x 25mm H | 1.9 CFM (0.053m³/min) | 0.150 in H2O (37.4 Pa) | Sleeve | 0.011 lb (4.99 g) | Tubeaxial | - | 7.40mm | 28.0dB(A) | - | CE, cUL, TUV, UL | 14000 RPM | - | - | - |
