直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MEC0251V2-000U-A99FAN AXIAL 120X25MM 12VDC WIRE |
1,383 | - |
|
数据表 |
MagLev® MEC | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 93.0 CFM (2.60m³/min) | 0.220 in H2O (54.8 Pa) | Vapo-Bearing™ | 0.357 lb (161.93 g) | Tubeaxial | Auto Restart | 25.00mm | 40.5dB(A) | 3.4 W | CUR, TUV, UL | 2700 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
EFB0512HAFAN AXIAL 50X10MM 12VDC WIRE |
1,380 | - |
|
数据表 |
EFB | Tray | Active | 12VDC | Square - 50mm L x 50mm H | 11.4 CFM (0.319m³/min) | 0.167 in H2O (41.6 Pa) | Ball | 0.057 lb (25.85 g) | Tubeaxial | Locked Rotor Protection | 10.00mm | 30.0dB(A) | 1.2 W | CE, CSA, UL, VDE | 5500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
UB5U3-500FAN BLOWER 30X3MM VAPO 5VDC WIRE |
1,494 | - |
|
数据表 |
MagLev® UB, Mighty Mini | Tray | Active | 5VDC | Square - 30mm L x 30mm H | 0.630 CFM (0.018m³/min) | 0.354 in H2O (88.2 Pa) | Vapo-Bearing™ | 0.006 lb (2.72 g) | Blower | Auto Restart, Speed Sensor (Tach) | 3.00mm | 36.0dB(A) | 360 mW | CE | 9500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | IP55 - Dust Protected, Water Resistant |
|

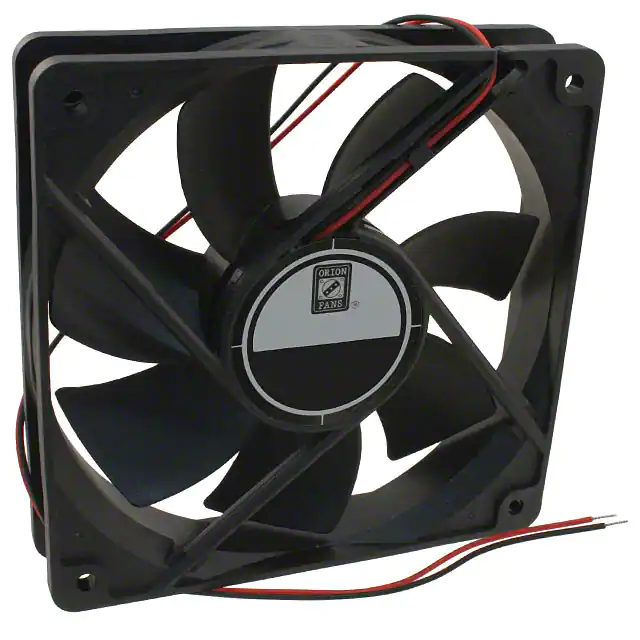

OD1225-24HSSFAN AXIAL 120X25MM 24VDC WIRE |
106 | - |
|
数据表 |
OD1225 | Box | Active | 24VDC | Square - 120mm L x 120mm H | 120.0 CFM (3.36m³/min) | 0.240 in H2O (59.8 Pa) | Sealed Sleeve | 0.341 lb (154.67 g) | Tubeaxial | Auto Restart | 25.00mm | 42.0dB(A) | 7.7 W | cURus, TUV | 3100 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
AFB03512HA-AF00FAN AXIAL 35X10MM 12VDC WIRE |
1,585 | - |
|
数据表 |
AFB | Bulk | Not For New Designs | 12VDC | Square - 35mm L x 35mm H | 5.5 CFM (0.154m³/min) | 0.106 in H2O (26.4 Pa) | Ball | 0.023 lb (10.43 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 10.00mm | 22.0dB(A) | 1.08 W | CE, CSA, UL, VDE | 7000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
9GA0512P7G001FAN AXIAL 52X15MM 12VDC WIRE |
2,313 | - |
|
数据表 |
San Ace 52 | Box | Active | 12VDC | Square - 52mm L x 52mm H | 17.7 CFM (0.496m³/min) | 0.367 in H2O (91.5 Pa) | Ball | 0.088 lb (39.92 g) | Tubeaxial | PWM Control, Speed Sensor (Tach) | 15.00mm | 38.0dB(A) | 1.56 W | CSA, TUV, UL | 7800 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|

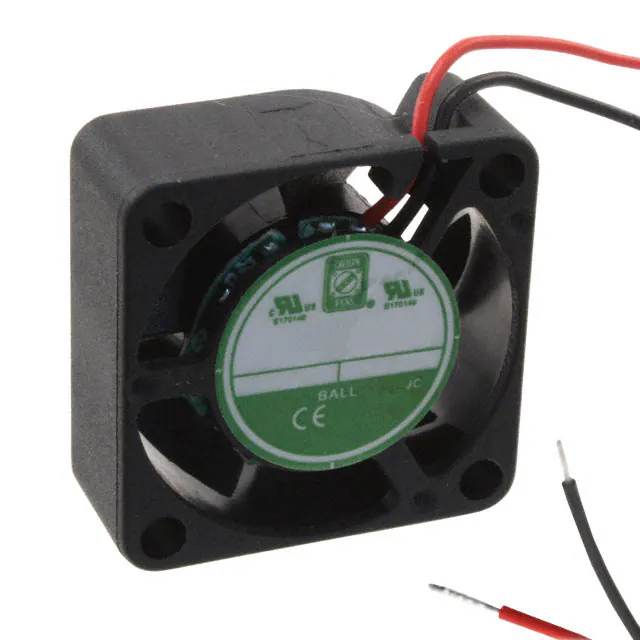

OD2510-05HBFAN AXIAL 25X10MM BALL 5VDC WIRE |
4,120 | - |
|
数据表 |
OD2510 | Box | Active | 5VDC | Square - 25mm L x 25mm H | 2.7 CFM (0.076m³/min) | 0.230 in H2O (57.3 Pa) | Ball | 0.022 lb (9.98 g) | Tubeaxial | Auto Restart | 10.00mm | 31.0dB | 700 mW | cURus, TUV | 12000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|

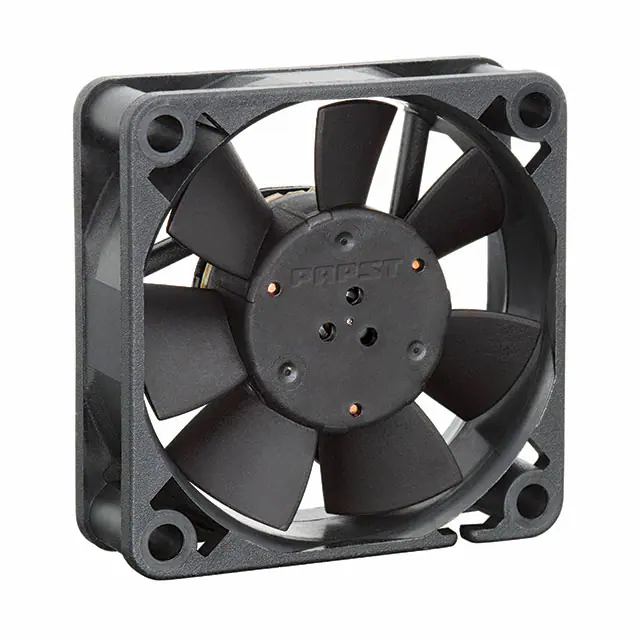

512FFAN AXIAL 50X15MM 12VDC WIRE |
1,220 | - |
|
数据表 |
500F | Bulk | Active | 12VDC | Square - 50mm L x 50mm H | 12.0 CFM (0.336m³/min) | - | Sintec | 0.055 lb (24.95 g) | Tubeaxial | - | 15.00mm | 30.0dB(A) | 1 W | CE, CSA, UL, VDE | 5000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
F8025H12B-FHR-CCFAN AXIAL 80X25MM 12VDC WIRE |
0 | - |
|
数据表 |
F8025-H | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 40.0 CFM (1.12m³/min) | 0.170 in H2O (42.3 Pa) | Ball | 0.182 lb (82.55 g) | Tubeaxial | Conformal Coating, Thermal Overload Protector (TOP) | 25.00mm | 32.0dB(A) | - | CE, cUL, TUV, UL | 3200 RPM | - | 2 Wire Leads | - |
|
|
F8025H24B-FSR-CCFAN AXIAL 80X25MM 24VDC WIRE |
0 | - |
|
数据表 |
F8025 | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 39.0 CFM (1.09m³/min) | 0.120 in H2O (29.9 Pa) | Ball | 0.174 lb (78.93 g) | Tubeaxial | Auto Restart, Conformal Coating, Locked Rotor Protection | 25.00mm | 29.0dB(A) | - | CE, cUL, TUV, UL | 2400 RPM | - | 2 Wire Leads | - |
|
|
F8025L12B-FSR-CCFAN AXIAL 80X25MM 12VDC WIRE |
0 | - |
|
数据表 |
F8025 | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 29.0 CFM (0.812m³/min) | 0.070 in H2O (17.4 Pa) | Ball | 0.174 lb (78.93 g) | Tubeaxial | Auto Restart, Conformal Coating, Locked Rotor Protection | 25.00mm | 22.0dB(A) | - | CE, cUL, TUV, UL | 1800 RPM | - | 2 Wire Leads | - |
|
|
F8025M24B-FSR-CCFAN AXIAL 80X25MM 24VDC WIRE |
0 | - |
|
数据表 |
F8025 | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 34.0 CFM (0.952m³/min) | 0.090 in H2O (22.4 Pa) | Ball | 0.174 lb (78.93 g) | Tubeaxial | Auto Restart, Conformal Coating, Locked Rotor Protection | 25.00mm | 29.0dB(A) | - | CE, cUL, TUV, UL | 2100 RPM | - | 2 Wire Leads | - |
|

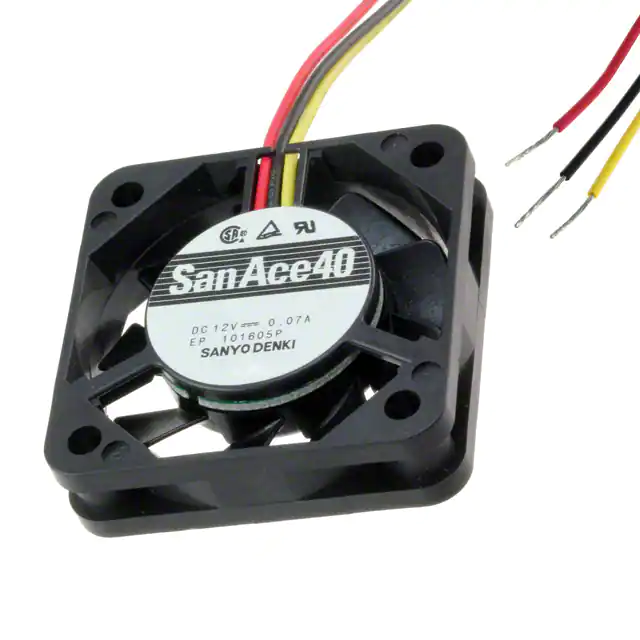

109P0412M7D01FAN AXIAL 40X15MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 5.3 CFM (0.148m³/min) | 0.213 in H2O (53.0 Pa) | Ball | 0.071 lb (32.21 g) | Tubeaxial | Locked Rotor Sensor | 15.00mm | 24.0dB(A) | 1.14 W | CSA, TUV, UL | 6500 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
PMD1204PQV2-A.(2).U.GNFAN AXIAL 40X28MM 12VDC WIRE |
0 | - |
|
数据表 |
MagLev® PMD | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | - | - | Vapo-Bearing™ | - | Tubeaxial | Auto Restart | 28.00mm | - | - | - | - | - | 2 Wire Leads | - |
|
|
PMD1206PKV3-A.GNFAN AXIAL 60X20MM 12VDC WIRE |
0 | - |
|
数据表 |
MagLev® PMD | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | - | - | Vapo-Bearing™ | - | Tubeaxial | Auto Restart | 20.00mm | - | - | - | - | - | 2 Wire Leads | - |
|
|
PMD1206PKV4-A.GNFAN AXIAL 60X20MM 12VDC WIRE |
0 | - |
|
数据表 |
MagLev® PMD | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | - | - | Vapo-Bearing™ | - | Tubeaxial | Auto Restart | 20.00mm | - | - | - | - | - | 2 Wire Leads | - |
|
|
BFB0512HHD-F00FAN BLOWER 50X20MM 12VDC WIRE |
0 | - |
|
数据表 |
BFB | Bulk | Active | 12VDC | Square/Rounded - 50mm L x 50mm H | 5.8 CFM (0.163m³/min) | 0.636 in H2O (158.4 Pa) | Ball | 0.078 lb (35.38 g) | Blower | Locked Rotor Protection, Speed Sensor (Tach) | 20.00mm | 36.5dB(A) | 1.92 W | CE, CSA, UL, VDE | 4900 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
BFB0512LD-F00FAN BLOWER 50X20MM 12VDC WIRE |
0 | - |
|
数据表 |
BFB | Bulk | Active | 12VDC | Square/Rounded - 50mm L x 50mm H | 4.5 CFM (0.126m³/min) | 0.309 in H2O (77.0 Pa) | Ball | 0.078 lb (35.38 g) | Blower | Locked Rotor Protection, Speed Sensor (Tach) | 20.00mm | 28.0dB(A) | 1.44 W | CE, CSA, UL, VDE | 3700 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
BFB0512MD-F00FAN BLOWER 50X20MM 12VDC WIRE |
0 | - |
|
数据表 |
BFB | Bulk | Active | 12VDC | Square/Rounded - 50mm L x 50mm H | 4.9 CFM (0.137m³/min) | 0.387 in H2O (96.4 Pa) | Ball | 0.078 lb (35.38 g) | Blower | Locked Rotor Protection, Speed Sensor (Tach) | 20.00mm | 32.0dB(A) | 1.56 W | CE, CSA, UL, VDE | 4100 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
DC0801524H2B-3T3FAN 80X15MM 24VDC TACH MOLEX 22- |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 37.6 CFM (1.05m³/min) | 0.150 in H2O (37.3 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 15.00mm | 36.0dB(A) | 3.84 W | CE, cURus | 3600 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Position Rectangular Connector | - |
