直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EFB0412HHD16VFAN AXIAL 40X20MM 12VDC |
0 | - |
|
数据表 |
EFB | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 9.4 CFM (0.263m³/min) | 0.354 in H2O (88.2 Pa) | Ball | 0.073 lb (33.11 g) | Tubeaxial | Locked Rotor Protection | 20.00mm | 30.5dB(A) | 1.2 W | CE, cURus, VDE | 8200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Position Rectangular Connector | - |
|
06015VA-12P-AT-00FAN AXIAL 60X15MM 12VDC WIRE |
0 | - |
|
数据表 |
06015VA | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 19.4 CFM (0.543m³/min) | 0.270 in H2O (67.3 Pa) | Ball | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 15.00mm | 36.5dB | 1.6 W | - | 5600 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
OD4010-24LBFAN AXIAL 40X10.5MM 24VDC WIRE |
0 | - |
|
数据表 |
OD4010 | Box | Active | 24VDC | Square - 40mm L x 40mm H | 4.7 CFM (0.132m³/min) | 0.070 in H2O (17.4 Pa) | Ball | 0.441 lb (200.00 g) | Tubeaxial | Auto Restart | 10.50mm | 20.1dB | 730 mW | CE, cURus, TUV, UR | 4000 RPM | -4 ~ 149°F (-20 ~ 65°C) | 2 Wire Leads | - |
|

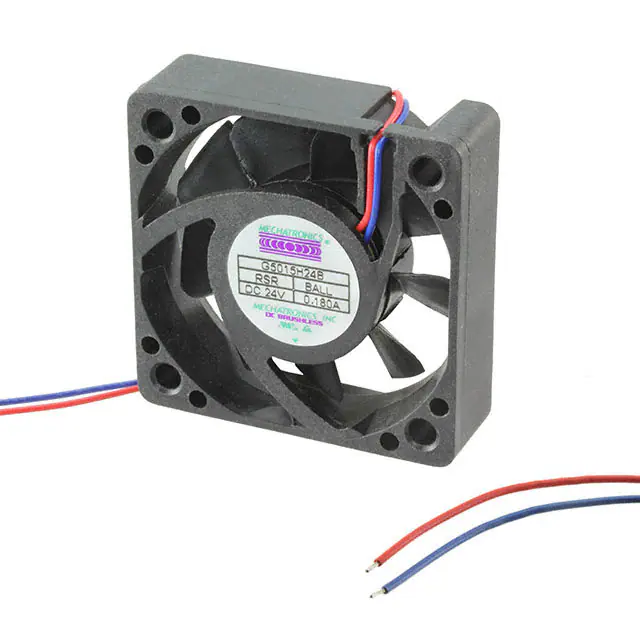

G5015H24B-RSRFAN AXIAL 50X15MM 24VDC WIRE |
0 | - |
|
数据表 |
G5015 | Bulk | Active | 24VDC | Square - 50mm L x 50mm H | 13.0 CFM (0.364m³/min) | 0.170 in H2O (42.3 Pa) | Ball | 0.077 lb (34.93 g) | Tubeaxial | Thermal Overload Protector (TOP) | 15.00mm | 29.0dB(A) | - | CE, cUL, TUV, UL | 5500 RPM | - | 2 Wire Leads | - |
|
CFM-8025V-148-447FAN AXIAL 80X25MM 12VDC WIRE |
0 | - |
|
数据表 |
CFM-80V | Tray | Active | 12VDC | Square - 80mm L x 80mm H | 60.0 CFM (1.68m³/min) | 0.410 in H2O (102.1 Pa) | omniCOOL™ Magnetic Sleeve | 0.167 lb (75.75 g) | Tubeaxial | Auto Restart | 25.00mm | 44.7dB(A) | 4.29 W | CE, cURus, TUV | 4800 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
08020SA-12J-AT-00FAN AXIAL 80X20MM 12VDC WIRE |
0 | - |
|
数据表 |
08020SA | Box | Active | 12VDC | Square - 80mm L x 80mm H | 27.5 CFM (0.770m³/min) | 0.110 in H2O (27.4 Pa) | Ball | 0.176 lb (79.83 g) | Tubeaxial | Speed Sensor (Tach) | 20.00mm | 27.0dB | 600 mW | - | 2600 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
06025SA-24S-AA-D0FAN AXIAL 60X25MM 24VDC WIRE |
0 | - |
|
数据表 |
06025SA | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 35.7 CFM (1.00m³/min) | 0.550 in H2O (137.0 Pa) | Ball | - | Tubeaxial | Auto Restart | 25.00mm | 42.5dB | 4.1 W | - | 7000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
DC0401005V2B-BT0FAN 40X10MM 5VDC PWM/TACH |
0 | - |
|
数据表 |
- | Bulk | Active | 5VDC | Square - 40mm L x 40mm H | 12.2 CFM (0.342m³/min) | 0.330 in H2O (82.2 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 10.00mm | 39.0dB(A) | 2 W | CE, cURus | 10000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
109P0412K3023FAN AXIAL 40X28MM 12VDC WIRE |
4 | - |
|
数据表 |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 20.8 CFM (0.582m³/min) | 1.365 in H2O (340.0 Pa) | Ball | 0.115 lb (52.16 g) | Tubeaxial | Locked Rotor Protection | 28.00mm | 50.0dB(A) | 6.6 W | CSA, TUV, UL | 15500 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
|
06025SA-12S-AU-D660X60X25MM, 12VDC, 7,000 RPM, 35 |
0 | - |
|
数据表 |
06025SA | Box | Active | 12VDC | Square - 60mm L x 60mm H | 35.7 CFM (1.00m³/min) | 0.550 in H2O (137.0 Pa) | Ball | - | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 25.00mm | 42.5dB | 7.2 W | CE, cULus, VDE | 7000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
BFB0412HHA-A117FAN BLOWER 40X10MM 12VDC |
0 | - |
|
数据表 |
BFB | Box | Active | 12VDC | Square - 40mm L x 40mm H | 3.0 CFM (0.084m³/min) | 0.564 in H2O (140.5 Pa) | Ball | 0.027 lb (12.25 g) | Blower | Locked Rotor Protection | 10.00mm | 34.5dB(A) | 960 mW | CE, CSA, UL, VDE | 8500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Position Rectangular Connector | - |
|

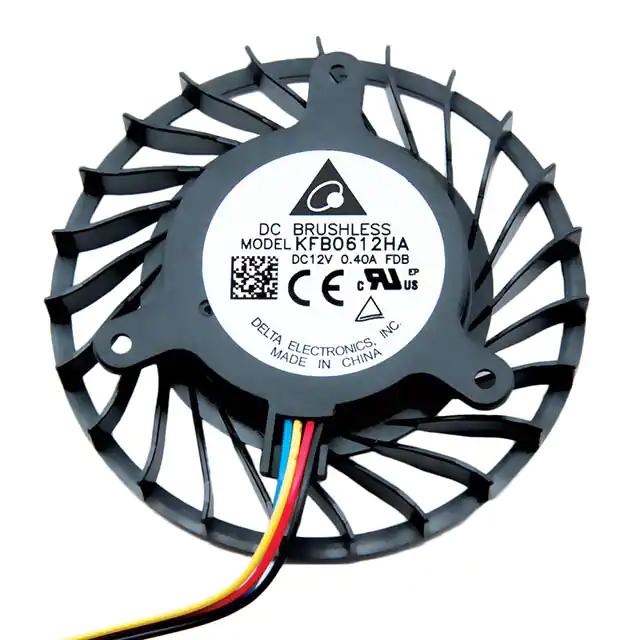

KFB0612HAFDBFAN IMP MTR FRAMEL 60X12MM 12VDC |
0 | - |
|
数据表 |
KFB - Frameless | Box | Active | 12VDC | Round - 60mm Dia | 9.2 CFM (0.258m³/min) | 0.634 in H2O (157.9 Pa) | Ball | 0.061 lb (27.67 g) | Motorized Impellers, Frameless | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 12.00mm | 36.7dB(A) | 1.8 W | CE, cURus, TUV | 3300 RPM | -4 ~ 212°F (-20 ~ 100°C) | 4 Wire Leads | IP55 - Dust Protected, Water Resistant |
|
9GA0412H7001FAN AXIAL 40X15MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 7.1 CFM (0.199m³/min) | 0.240 in H2O (59.8 Pa) | Ball | 0.062 lb (28.12 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 15.00mm | 28.0dB(A) | 720 mW | CSA, TUV, UL | 7300 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
109P0424H3013FAN AXIAL 40X28MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 40 | Box | Active | 24VDC | Square - 40mm L x 40mm H | 11.3 CFM (0.316m³/min) | 0.414 in H2O (102.9 Pa) | Ball | 0.115 lb (52.16 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 28.00mm | 37.0dB(A) | 2.28 W | CSA, TUV, UL | 8700 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
9GA0412P7G001FAN AXIAL 40X15MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 12.7 CFM (0.356m³/min) | 0.770 in H2O (191.8 Pa) | Ball | 0.062 lb (28.12 g) | Tubeaxial | PWM Control, Speed Sensor (Tach) | 15.00mm | 42.0dB(A) | 2.04 W | CSA, TUV, UL | 13100 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|
F8025M05B-FSR-EMFAN AXIAL 80X25MM BALL 5VDC WIRE |
0 | - |
|
数据表 |
F8025 | Bulk | Active | 5VDC | Square - 80mm L x 80mm H | 34.0 CFM (0.952m³/min) | 0.090 in H2O (22.4 Pa) | Ball | 0.174 lb (78.93 g) | Tubeaxial | Auto Restart, Locked Rotor Protection | 25.00mm | 26.0dB(A) | - | CE, cUL, TUV, UL | 2100 RPM | - | 2 Wire Leads | IP57 - Dust Protected, Waterproof |
|
AFB0412SHB-F00FAN AXIAL 40X15MM 12VDC WIRE |
0 | - |
|
数据表 |
AFB | Box | Active | 12VDC | Square - 40mm L x 40mm H | 14.8 CFM (0.414m³/min) | 0.601 in H2O (149.7 Pa) | Ball | 0.057 lb (25.85 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 15.00mm | 41.5dB(A) | 3 W | CE, CSA, UL, VDE | 11000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
AFB0724M-AFAN AXIAL 70X25.4MM 24VDC WIRE |
0 | - |
|
数据表 |
AFB | Tray | Active | 24VDC | Square - 70mm L x 70mm H | 28.9 CFM (0.809m³/min) | 0.140 in H2O (34.9 Pa) | Ball | 0.199 lb (90.26 g) | Tubeaxial | - | 25.40mm | 31.5dB(A) | 2.16 W | CE, CSA, UL, VDE | 3100 RPM | - | 2 Wire Leads | - |
|
|
9GA0412P6F001FAN AXIAL 40X20MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 7.4 CFM (0.207m³/min) | 0.319 in H2O (79.5 Pa) | Ball | 0.077 lb (34.93 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 20.00mm | 28.0dB(A) | 960 mW | CSA, TUV, UL | 8000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|
E1225E12B1+6-FSRFAN AXIAL 120X25MM 12VDC WIRE |
0 | - |
|
数据表 |
E1225 | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 93.0 CFM (2.60m³/min) | 0.280 in H2O (69.7 Pa) | Ball | 0.434 lb (196.86 g) | Tubeaxial | PWM Control, Speed Sensor (Tach), Thermal Overload Protector (TOP) | 25.00mm | 44.0dB(A) | - | CE, cUL, TUV, UL | 3000 RPM | - | 4 Wire Leads | - |
