直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
P1232X24BALB2A-28FAN BLOWER 120X32MM 24VDC WIRE |
10 | - |
|
数据表 |
TITAN | Bulk | Active | 24VDC | Rectangular/Round - 120mm L x 120mm H | 37.9 CFM (1.07m³/min) | 1.590 in H2O (396.0 Pa) | Ball | - | Blower | Auto Restart, Locked Rotor Protection, Polarity Protection, Speed Sensor (Tach) | 32.00mm | 58.5dB(A) | 16.2 W | CE, cUL, UL | 4600 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
P1232X48BALB2A-28FAN BLOWER 120X32MM 48VDC WIRE |
10 | - |
|
数据表 |
TITAN | Bulk | Active | 48VDC | Rectangular/Round - 120mm L x 120mm H | 37.9 CFM (1.07m³/min) | 1.590 in H2O (396.0 Pa) | Ball | - | Blower | Auto Restart, Locked Rotor Protection, Polarity Protection, Speed Sensor (Tach) | 32.00mm | 58.5dB(A) | 16.13 W | CE, cUL, UL | 4600 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
CFR5B12X-SCF Blower 141X23.5mm 12V/Tach |
10 | - |
|
数据表 |
CFR5B | Tape & Box (TB) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | -10°C ~ 70°C | - | - |
|
|
FD1751B48T3-61-2RDC FAN 172X150X51mm 48V |
7 | - |
|
数据表 |
- | Tape & Box (TB) | Active | 48VDC | Rectangular/Rounded - 172mm L x 150mm H | 235.5 CFM (6.59m³/min) | 0.929 in H2O (231.4 Pa) | Ball | - | Tubeaxial | - | 51.00mm | 58.1dB(A) | 18.24 W | CE, cURus | 3400 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Terminals | - |
|
|
FD1751B24W5-52-2RDC FAN 172X150X51mm 24V |
6 | - |
|
数据表 |
- | Tape & Box (TB) | Active | 24VDC | Rectangular/Rounded - 172mm L x 150mm H | 174.0 CFM (4.87m³/min) | 0.441 in H2O (110.0 Pa) | Ball | - | Tubeaxial | Auto Restart | 51.00mm | 52.0dB(A) | 10.32 W | CE, cURus, TUV | 2600 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
|
FD1751B24T3-61-2RDC FAN 172X150X51mm 24V |
6 | - |
|
数据表 |
- | Tape & Box (TB) | Active | 24VDC | Rectangular/Rounded - 172mm L x 150mm H | 235.5 CFM (6.59m³/min) | 0.929 in H2O (231.4 Pa) | Ball | - | Tubeaxial | - | 51.00mm | 58.1dB(A) | 16.8 W | CE, cURus, TUV | 3400 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Terminals | - |
|
|
RER101-36/18NHHRER101-36/18NHH |
5 | - |
|
数据表 |
RER101 | Bulk | Active | 48VDC | Round - 101mm Dia | 111.9 CFM (3.13m³/min) | - | Ball | - | Tubeaxial | Alarm Sensor | 51.70mm | - | 19.4 W | - | 5850 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|

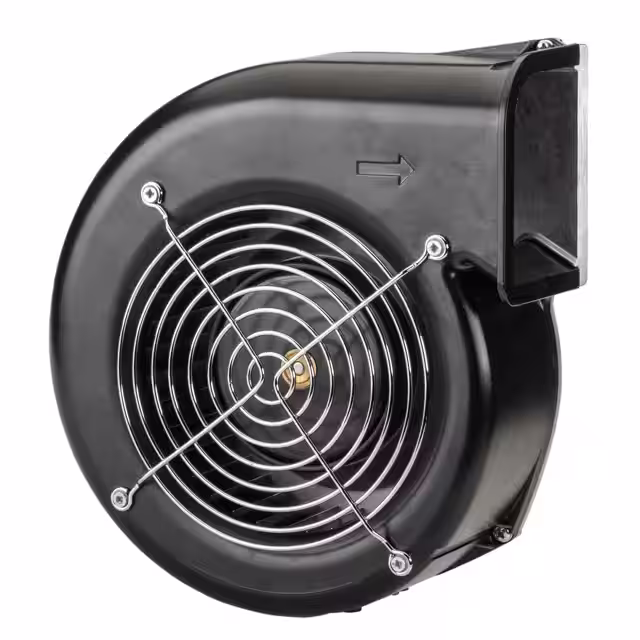

P1970H48BALA2A-38FAN BLOWER 193X72MM 48VDC WIRE |
8 | - |
|
数据表 |
TITAN | Bulk | Active | 48VDC | Rectangular/Round - 193mm L x 177mm H | 127.7 CFM (3.62m³/min) | 2.020 in H2O (503.1 Pa) | Ball | - | Blower | Auto Restart, Locked Rotor Protection, Polarity Protection, Speed Sensor (Tach) | 72.00mm | 55.5dB(A) | 42.05 W | CE, cUL, UL | 1800 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
CFM-8025V-232-330FAN AXIAL 80X25MM 24VDC WIRE |
0 | - |
|
数据表 |
CFM-80V | Tray | Active | 24VDC | Square - 80mm L x 80mm H | 41.0 CFM (1.15m³/min) | 0.180 in H2O (44.8 Pa) | omniCOOL™ Magnetic Sleeve | 0.167 lb (75.75 g) | Tubeaxial | Auto Restart | 25.00mm | 33.0dB(A) | 1.8 W | CE, cURus, TUV | 3200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
04015SS-12N-AA-00FAN AXIAL 40X15MM 12VDC WIRE |
0 | - |
|
数据表 |
04015SS | Box | Active | 12VDC | Square - 40mm L x 40mm H | 7.4 CFM (0.207m³/min) | 0.270 in H2O (67.3 Pa) | Sleeve | - | Tubeaxial | Auto Restart | 15.00mm | 32.0dB | 720 mW | - | 8300 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
MF40201V2-1000U-G99FAN AXIAL 40X20MM 12VDC WIRE |
21 | - |
|
数据表 |
MagLev® MF | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 7.7 CFM (0.216m³/min) | 0.170 in H2O (42.3 Pa) | Vapo-Bearing™ | 0.064 lb (29.03 g) | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 20.00mm | 21.0dB(A) | 540 mW | cURus, TUV | 6000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
OD4010-12HSSFAN AXIAL 40X10.5MM 12VDC WIRE |
0 | - |
|
数据表 |
OD4010 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 9.2 CFM (0.258m³/min) | 0.200 in H2O (49.8 Pa) | Sealed Sleeve | 0.441 lb (200.00 g) | Tubeaxial | Auto Restart | 10.50mm | 33.2dB | 720 mW | CE, cURus, TUV, UR | 8000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
MF50152VX-1000U-A99FAN AXIAL 50X15MM 24VDC WIRE |
10 | - |
|
数据表 |
MagLev® MF | Bulk | Active | 24VDC | Square - 50mm L x 50mm H | 18.6 CFM (0.521m³/min) | 0.310 in H2O (77.2 Pa) | Vapo-Bearing™ | 0.073 lb (33.11 g) | Tubeaxial | Auto Restart | 15.00mm | 38.1dB(A) | 1.32 W | cURus, TUV | 7200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
CFM-6025V-231-167-20FAN AXIAL 60X25MM 24VDC WIRE |
0 | - |
|
数据表 |
CFM-60V | Tray | Active | 24VDC | Square - 60mm L x 60mm H | 16.0 CFM (0.448m³/min) | 0.100 in H2O (24.9 Pa) | omniCOOL™ Magnetic Sleeve | 0.099 lb (44.91 g) | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 25.00mm | 16.7dB(A) | 680 mW | CE, cURus, TUV | 3100 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
06025SA-12N-AL-D0FAN AXIAL 60X25MM 12VDC WIRE |
0 | - |
|
数据表 |
06025SA | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 23.3 CFM (0.652m³/min) | 0.250 in H2O (62.3 Pa) | Ball | - | Tubeaxial | Auto Restart, Locked Rotor Sensor | 25.00mm | 33.0dB | 1.8 W | - | 4700 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
MF25060V1-1000U-A99FAN AXIAL 25X6.5MM 5VDC WIRE |
0 | - |
|
数据表 |
MagLev® MF | Bulk | Active | 5VDC | Square - 25mm L x 25mm H | 3.0 CFM (0.084m³/min) | 0.230 in H2O (57.3 Pa) | Vapo-Bearing™ | 0.012 lb (5.44 g) | Tubeaxial | Auto Restart | 6.50mm | 24.8dB(A) | 580 mW | cURus, TUV | 13000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|

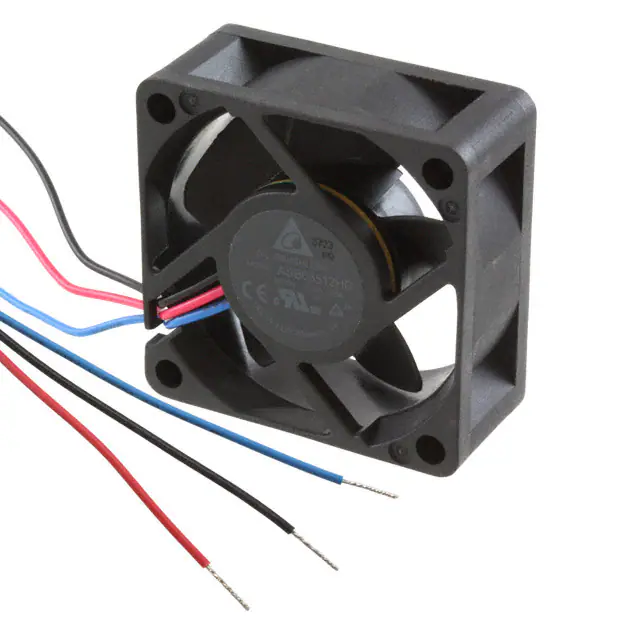

ASB03512HB-F00FAN AXIAL 35X15MM 12VDC WIRE |
0 | - |
|
数据表 |
ASB | Box | Active | 12VDC | Square - 35mm L x 35mm H | 9.5 CFM (0.266m³/min) | 0.327 in H2O (81.4 Pa) | Sleeve | 0.031 lb (14.06 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 15.00mm | 37.0dB(A) | 1.32 W | CE, cURus, TUV | 11000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
08025SA-12N-EL-D0FAN AXIAL 80X25MM 12VDC WIRE |
0 | - |
|
数据表 |
08025SA | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 41.3 CFM (1.16m³/min) | 0.150 in H2O (37.3 Pa) | Ball | - | Tubeaxial | Auto Restart, Locked Rotor Sensor | 25.00mm | 30.0dB | 1.7 W | - | 3100 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
08025SA-12M-ET-D0FAN AXIAL 80X25MM 12VDC WIRE |
0 | - |
|
数据表 |
08025SA | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 36.0 CFM (1.01m³/min) | 0.120 in H2O (29.9 Pa) | Ball | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 25.00mm | 26.0dB | 1.08 W | - | 2700 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
MF30101V2-1000U-A99FAN AXIAL 30X10MM 12VDC WIRE |
0 | - |
|
数据表 |
MagLev® MF | Bulk | Active | 12VDC | Square - 30mm L x 30mm H | 4.6 CFM (0.129m³/min) | 0.140 in H2O (34.9 Pa) | Vapo-Bearing™ | - | Tubeaxial | Auto Restart | 10.00mm | 20.0dB(A) | 390 mW | CE, CUR, TUV, UL | 8600 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
