直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FD1225B12W2-61-2R1DC Axial Fans 120x120x25mm 12VDC |
7 | - |
|
数据表 |
61 | Tape & Box (TB) | Active | 12VDC | Square - 120.1mm L x 120.1mm H | 66.1 CFM (1.85m³/min) | 0.102 in H2O (25.5 Pa) | Ball | 0.362 lb (164.2 g) | Tubeaxial | - | 25.00mm | 33.5dB(A) | 2.16 W | CE, cUL, TUV, UL | 1700 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|

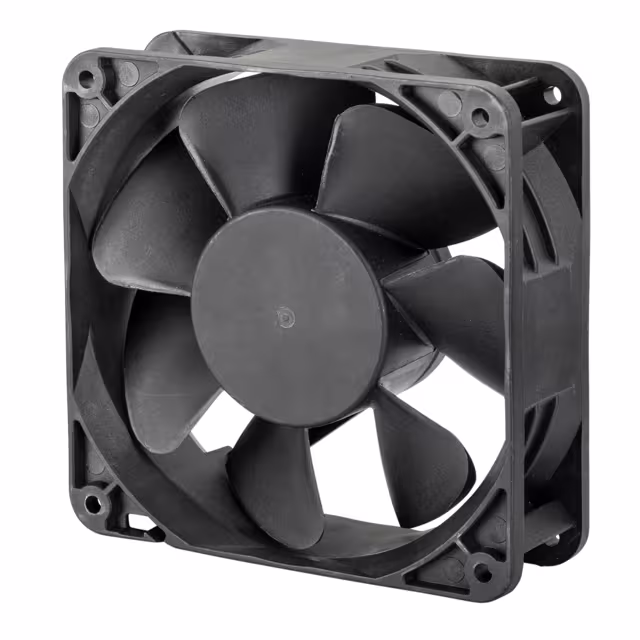

G1238L12BPLB1-7FAN AXIAL 120X38MM 12VDC WIRE |
37 | - |
|
数据表 |
Intelligent Motion | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 104.4 CFM (2.96m³/min) | 0.290 in H2O (72.2 Pa) | Ball | - | Tubeaxial | Auto Restart, Constant Speed, Inrush Protection, Locked Rotor Protection, Polarity Protection | 38.00mm | 39.8dB(A) | 3.48 W | CE, cUL, UL | 2600 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
FD4015B12W5-61-4JC1DC Axial Fan 40x40x15mm 12VDC |
60 | - |
|
数据表 |
61 | Tape & Box (TB) | Active | 12VDC | Square - 40mm L x 40mm H | 8.1 CFM (0.227m³/min) | 0.193 in H2O (48.1 Pa) | Ball | 0.111 lb (50.35 g) | Tubeaxial | Auto Restart, PWM Control | 15.00mm | 30.0dB(A) | 2.2 W | CE, cUL, UL | 6500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
|
FD4010B12W5-83-2N4DC Axial Fan 40x40x10mm 12VDC |
45 | - |
|
数据表 |
83 | Tape & Box (TB) | Active | 12VDC | Square - 40mm L x 40mm H | 8.1 CFM (0.227m³/min) | 0.177 in H2O (44.1 Pa) | Ball | - | Tubeaxial | - | 10.00mm | 30.5dB(A) | 1.92 W | CE, cUL, TUV, UL | 6600 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
|
FD1238B12W3-62-2R1DC Axial Fan 120x120x38mm 12VDC |
23 | - |
|
数据表 |
62 | Tape & Box (TB) | Active | 12VDC | Square - 120mm L x 120mm H | 130.6 CFM (3.66m³/min) | 0.311 in H2O (77.5 Pa) | Ball | - | Tubeaxial | Auto Restart | 38.00mm | 43.3dB(A) | 6.96 W | CE, cUL, TUV, UL | 2900 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
FD4015B24W5-61-2RSC2DC Axial Fan 40x40x15mm 24VDC |
18 | - |
|
数据表 |
61 | Tape & Box (TB) | Active | 24VDC | Square - 40mm L x 40mm H | 8.3 CFM (0.232m³/min) | 0.205 in H2O (51.2 Pa) | Ball | - | Tubeaxial | Auto Restart | 15.00mm | 29.0dB(A) | 2.4 W | cUL, TUV, UL | 6500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads With Connector | - |
|
|
FD1238B12W3-62-2RC1DC Axial Fan 120x120x38mm 12VDC |
15 | - |
|
数据表 |
62 | Tape & Box (TB) | Active | 12VDC | Square - 120mm L x 120mm H | 130.6 CFM (3.66m³/min) | 0.311 in H2O (77.5 Pa) | Ball | - | Tubeaxial | Auto Restart | 38.00mm | 43.3dB(A) | 6.96 W | CE, cUL, TUV, UL | 2900 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads With Connector | - |
|
|
FD1225B12W7-81-2RDC Fan 120x120x25mm 12VDC |
12 | - |
|
数据表 |
81 | Tape & Box (TB) | Active | 12VDC | Square - 120mm L x 120mm H | 122.0 CFM (3.42m³/min) | 0.197 in H2O (49.0 Pa) | Ball | 0.282 lb (127.91 g) | Tubeaxial | Auto Restart | 25.00mm | 46.8dB(A) | 8.16 W | CE, cUL, TUV, UL | 2800 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
|
FBD7530B12W3-61DC Blower 77x75x30mm 12VDC |
10 | - |
|
数据表 |
61 | Tape & Box (TB) | Active | 12VDC | Rectangular/Rounded - 77mm L x 75mm H | 8.7 CFM (0.244m³/min) | 0.258 in H2O (64.4 Pa) | Ball | 0.192 lb (87.08 g) | Blower | - | 30.00mm | 31.7dB(A) | 1.92 W | cUL, TUV, UL | 2500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
FD1238B12W3-62-2RDC Fan 120x120x38mm 12VDC |
9 | - |
|
数据表 |
62 | Tape & Box (TB) | Active | 12VDC | Square - 120mm L x 120mm H | 130.6 CFM (3.66m³/min) | 0.311 in H2O (77.5 Pa) | Ball | 0.64 lb (290.3 g) | Tubeaxial | Auto Restart | 38.00mm | 43.3dB(A) | 6.96 W | CE, cUL, TUV, UL | 2900 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
FD6038B24W9-87-4JC1DC Axial Fan 60x60x38mm 24VDC |
7 | - |
|
数据表 |
87 | Tape & Box (TB) | Active | 24VDC | Square - 60mm L x 60mm H | 67.0 CFM (1.88m³/min) | 2.070 in H2O (515.6 Pa) | Ball | - | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 38.00mm | 62.0dB(A) | 20.88 W | CE | 12000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
|
FBD7530B12W3-61-3FDC Blowers 77x75x30mm 12VDC |
7 | - |
|
数据表 |
61 | Tape & Box (TB) | Active | 12VDC | Rectangular/Rounded - 77mm L x 75mm H | 7.2 CFM (0.202m³/min) | 0.170 in H2O (42.3 Pa) | Ball | 0.192 lb (87.08 g) | Blower, Radial | Speed Sensor (Tach) | 30.00mm | 26.0dB(A) | 1.56 W | CE, cUL, TUV, UL | 2000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
CFR1B5X-SFAN MICR BLOWER 48.5X23.5MM 5VDC |
10 | - |
|
数据表 |
CFR1B | Tape & Box (TB) | Active | 5VDC | Rectangular - 48.5mm L x 23mm H | - | 0.230 in H2O (57.3 Pa) | Ball | - | Micro Blower | Auto Restart, Locked Rotor Protection, Speed Sensor (Tach) | 23.50mm | 36.0dB(A) | 1.2 V | CE, cUL, TUV, UL | 11500 RPM | -10°C ~ 70°C | - | - |
|
|
CFR1B12X-S-PMINI BLOWER 12VDC/TACH/PWM |
10 | - |
|
数据表 |
CFR1B | Tape & Box (TB) | Active | 12VDC | Rectangular - 48.5mm L x 23mm H | - | 0.230 in H2O (57.3 Pa) | Ball | - | Micro Blower | Auto Restart, Locked Rotor Protection, Speed Sensor (Tach), PWM Control | 23.50mm | 36.0dB(A) | 1.2 V | CE, cUL, TUV, UL | 11500 RPM | -10°C ~ 70°C | - | - |
|
|
CFR1B12X-SFAN MIC BLOWER 48.5X23.5MM 12VDC |
10 | - |
|
数据表 |
CFR1B | Tape & Box (TB) | Active | 12VDC | Rectangular - 48.5mm L x 23mm H | - | 0.230 in H2O (57.3 Pa) | Ball | - | Micro Blower | Auto Restart, Locked Rotor Protection, Speed Sensor (Tach) | 23.50mm | 36.0dB(A) | 1.2 V | CE, cUL, TUV, UL | 11500 RPM | -10°C ~ 70°C | - | - |
|
|
FBD6025B12W3-81-4JC1DC Axial Blowers 60x60x25mm 12VD |
16 | - |
|
数据表 |
81 | Tape & Box (TB) | Active | 12VDC | Square/Rounded - 60mm L x 60mm H | 7.1 CFM (0.199m³/min) | 0.335 in H2O (83.4 Pa) | Ball | - | Tubeaxial | Auto Restart, PWM Control | 25.00mm | 25.5dB(A) | 1.2 W | cUL, UL | 2500 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|
|
FD1238B24W7-81-3HDC FAN 120X120X38mm 24V |
34 | - |
|
数据表 |
- | Tape & Box (TB) | Active | 24VDC | Square - 120mm L x 120mm H | 134.0 CFM (3.75m³/min) | 0.283 in H2O (70.5 Pa) | Ball | - | Tubeaxial | Alarm Sensor, Auto Restart | 38.00mm | 46.3dB(A) | 9.6 W | CE, cURus, TUV | 2800 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
FD8025B12W11-3R21CDC Fan 80x80x25mm 12VDC |
48 | - |
|
数据表 |
96 | Tape & Box (TB) | Active | 12VDC | Square - 80mm L x 80mm H | 59.0 CFM (1.65m³/min) | 0.335 in H2O (83.4 Pa) | Ball | 0.553 lb (250.84 g) | Tubeaxial | - | 25.00mm | 44.0dB(A) | 5.4 W | cUL, TUV, UL | 4500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
CFR3B12X-SFAN BLOWER CF 99.2X23.5MM 12VDC |
10 | - |
|
数据表 |
CFR3B | Tape & Box (TB) | Active | 12VDC | Rectangular - 99.2mm L x 23mm H | 13.9 CFM (0.389m³/min) | - | Ball | - | Blower, Cross Flow | - | 23.50mm | 34.0dB | 1.3 A | CE, cUL, TUV, UL | 8500 RPM | -10°C ~ 70°C | - | - |
|
P1232H24BALB2A-28FAN BLOWER 120X32MM 24VDC WIRE |
10 | - |
|
数据表 |
TITAN | Bulk | Active | 24VDC | Rectangular/Round - 120mm L x 120mm H | 33.0 CFM (0.93m³/min) | 1.200 in H2O (298.9 Pa) | Ball | - | Blower | Auto Restart, Locked Rotor Protection, Polarity Protection, Speed Sensor (Tach) | 32.00mm | 54.8dB(A) | 10.92 W | CE, cUL, UL | 4000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
