直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9G1248G4011FAN AXIAL 119X25MM 48VDC WIRE |
0 | - |
|
数据表 |
San Ace 120 | Box | Active | 48VDC | Square - 119mm L x 119mm H | 130.0 CFM (3.64m³/min) | 0.482 in H2O (120.0 Pa) | Ball | 0.529 lb (239.95 g) | Tubeaxial | Speed Sensor (Tach) | 25.00mm | 51.0dB(A) | 11.04 W | CSA, TUV, UL | 4100 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
9G1248G4D01FAN AXIAL 119X25MM 48VDC WIRE |
0 | - |
|
数据表 |
San Ace 120 | Box | Active | 48VDC | Square - 119mm L x 119mm H | 130.0 CFM (3.64m³/min) | 0.482 in H2O (120.0 Pa) | Ball | 0.529 lb (239.95 g) | Tubeaxial | Locked Rotor Sensor | 25.00mm | 51.0dB(A) | 11.04 W | CSA, TUV, UL | 4100 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
9G1248H4011FAN AXIAL 119X25MM 48VDC WIRE |
0 | - |
|
数据表 |
San Ace 120 | Box | Active | 48VDC | Square - 119mm L x 119mm H | 88.0 CFM (2.46m³/min) | 0.257 in H2O (64.0 Pa) | Ball | 0.529 lb (239.95 g) | Tubeaxial | Speed Sensor (Tach) | 25.00mm | 40.0dB(A) | 4.8 W | CSA, TUV, UL | 2850 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
9G1248M401FAN AXIAL 119X25MM 48VDC WIRE |
0 | - |
|
数据表 |
San Ace 120 | Box | Active | 48VDC | Square - 119mm L x 119mm H | 59.0 CFM (1.65m³/min) | 0.124 in H2O (30.9 Pa) | Ball | 0.529 lb (239.95 g) | Tubeaxial | Speed Sensor (Tach) | 25.00mm | 29.0dB(A) | 2.4 W | CSA, TUV, UL | 1950 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
9G1248M4011FAN AXIAL 119X25MM 48VDC WIRE |
0 | - |
|
数据表 |
San Ace 120 | Box | Active | 48VDC | Square - 119mm L x 119mm H | 59.0 CFM (1.65m³/min) | 0.124 in H2O (30.9 Pa) | Ball | 0.529 lb (239.95 g) | Tubeaxial | Speed Sensor (Tach) | 25.00mm | 29.0dB(A) | 2.4 W | CSA, TUV, UL | 1950 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
9G1212E4D01FAN AXIAL 120X25MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 120 | Box | Active | 12VDC | Square - 120mm L x 120mm H | 115.0 CFM (3.22m³/min) | 0.394 in H2O (98.1 Pa) | Ball | 0.529 lb (239.95 g) | Tubeaxial | Locked Rotor Sensor | 25.00mm | 48.0dB(A) | 6.96 W | CSA, TUV, UL | 3650 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
9G1212E4D011FAN AXIAL 120X25MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 120 | Box | Active | 12VDC | Square - 120mm L x 120mm H | 115.0 CFM (3.22m³/min) | 0.394 in H2O (98.1 Pa) | Ball | 0.529 lb (239.95 g) | Tubeaxial | Locked Rotor Sensor | 25.00mm | 48.0dB(A) | 6.96 W | CSA, TUV, UL | 3650 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
9G1248E4D01FAN AXIAL 120X25MM 48VDC WIRE |
0 | - |
|
数据表 |
San Ace 120 | Box | Active | 48VDC | Square - 120mm L x 120mm H | 115.0 CFM (3.22m³/min) | 0.394 in H2O (98.1 Pa) | Ball | 0.529 lb (239.95 g) | Tubeaxial | Locked Rotor Sensor | 25.00mm | 48.0dB(A) | 7.68 W | CSA, TUV, UL | 3650 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
9G1248H4D01FAN AXIAL 120X25MM 48VDC WIRE |
0 | - |
|
数据表 |
San Ace 120 | Box | Active | 48VDC | Square - 120mm L x 120mm H | 88.0 CFM (2.46m³/min) | 0.257 in H2O (64.0 Pa) | Ball | 0.529 lb (239.95 g) | Tubeaxial | Locked Rotor Sensor | 25.00mm | 40.0dB(A) | 4.8 W | CSA, TUV, UL | 2850 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
9G1248H4D011FAN AXIAL 120X25MM 48VDC WIRE |
0 | - |
|
数据表 |
San Ace 120 | Box | Active | 48VDC | Square - 120mm L x 120mm H | 88.0 CFM (2.46m³/min) | 0.257 in H2O (64.0 Pa) | Ball | 0.529 lb (239.95 g) | Tubeaxial | Locked Rotor Sensor | 25.00mm | 40.0dB(A) | 4.8 W | CSA, TUV, UL | 2850 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
9G1248M4D01FAN AXIAL 120X25MM 48VDC WIRE |
0 | - |
|
数据表 |
San Ace 120 | Box | Active | 48VDC | Square - 120mm L x 120mm H | 59.0 CFM (1.65m³/min) | 0.124 in H2O (30.9 Pa) | Ball | 0.529 lb (239.95 g) | Tubeaxial | Locked Rotor Sensor | 25.00mm | 29.0dB(A) | 2.4 W | CSA, TUV, UL | 1950 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
9G1248M4D011FAN AXIAL 120X25MM 48VDC WIRE |
0 | - |
|
数据表 |
San Ace 120 | Box | Active | 48VDC | Square - 120mm L x 120mm H | 59.0 CFM (1.65m³/min) | 0.124 in H2O (30.9 Pa) | Ball | 0.529 lb (239.95 g) | Tubeaxial | Locked Rotor Sensor | 25.00mm | 29.0dB(A) | 2.4 W | CSA, TUV, UL | 1950 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|

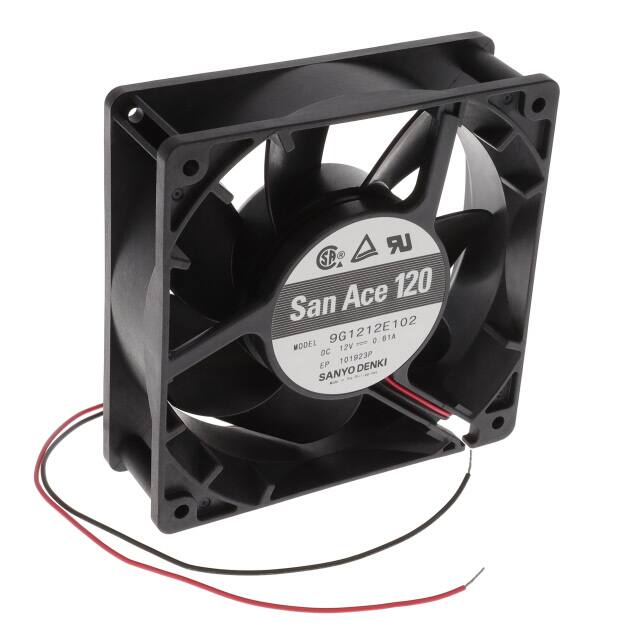

9G1212E102FAN AXIAL 119X38MM 12VDC WIRE |
42 | - |
|
数据表 |
San Ace 120 | Box | Active | 12VDC | Square - 119mm L x 119mm H | 118.0 CFM (3.30m³/min) | 0.401 in H2O (100.0 Pa) | Ball | 0.728 lb (330.22 g) | Tubeaxial | - | 38.00mm | 46.0dB(A) | 7.32 W | CSA, TUV, UL | 3100 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
8394FAN AXIAL 80X32MM 24VDC TERM |
7 | - |
|
数据表 |
8300 | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 32.0 CFM (0.896m³/min) | - | Ball | 0.38 lb (172.37 g) | Tubeaxial | - | 32.00mm | 36.0dB(A) | 2.5 W | - | - | - | 2 Terminals | - |
|
9LG0824H4002FAN AXIAL 80X25MM 24VDC WIRE |
27 | - |
|
数据表 |
San Ace 80L | Box | Active | 24VDC | Square - 80mm L x 80mm H | 36.3 CFM (1.02m³/min) | 0.170 in H2O (42.3 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection | 25.00mm | 31.0dB(A) | 1.2 W | CSA, TUV, UL | 3700 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
4412FGFAN AXIAL 119X25.4MM 12VDC WIRE |
7 | - |
|
数据表 |
4400F | Bulk | Active | 12VDC | Square - 119mm L x 119mm H | 100.1 CFM (2.80m³/min) | - | Sintec | 0.375 lb (170.1 g) | Tubeaxial | Locked Rotor Protection | 25.40mm | 43.0dB(A) | 5.3 W | CE, CSA, UL, VDE | 2900 RPM | -4 ~ 140°F (-20 ~ 60°C) | 2 Wire Leads | - |
|
9WFA0824G6001FAN AXIAL 80X20MM 24VDC WIRE |
37 | - |
|
数据表 |
San Ace 80WF | Box | Active | 24VDC | Square - 80mm L x 80mm H | 50.6 CFM (1.42m³/min) | 0.420 in H2O (104.6 Pa) | Ball | 0.232 lb (105.23 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 20.00mm | 48.0dB(A) | 3.6 W | cURus, TUV | 6000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | Oil Resistant |
|
4314NNFAN AXIAL 119X32MM 24VDC WIRE |
18 | - |
|
数据表 |
4300N | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 112.0 CFM (3.14m³/min) | - | Ball | 0.553 lb (250.84 g) | Tubeaxial | - | 32.00mm | 43.0dB(A) | 4.1 W | - | 2700 RPM | -4 ~ 167°F (-20 ~ 75°C) | 2 Wire Leads | - |
|
9CR0612P5G03FAN AXIAL DUAL 60X51MM 12VDC |
38 | - |
|
数据表 |
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 71.7 CFM (2.01m³/min) | 2.410 in H2O (600.0 Pa) | Ball | 0.397 lb (180.08 g) | Tubeaxial (Dual) | Counter-Rotating | 51.00mm | 68.0dB(A) | 32.4 W | CSA, TUV, UL | 11500 Front, 9000 Rear | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads per Fan | - |
|
622/2H3PFAN AXIAL 60X25.4MM BALL 12VDC |
46 | - |
|
数据表 |
620 | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 39.5 CFM (1.11m³/min) | - | Ball | 0.19 lb (86.18 g) | Tubeaxial | Speed Sensor (Tach) | 25.40mm | 48.0dB(A) | 5.5 W | CSA, UL, VDE | 9700 RPM | -4 ~ 140°F (-20 ~ 60°C) | - | - |
