直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9G0848H1D01FAN AXIAL 80X38MM 48VDC WIRE |
0 | - |
|
数据表 |
San Ace 80 | Box | Active | 48VDC | Square - 80mm L x 80mm H | 80.0 CFM (2.24m³/min) | 0.687 in H2O (171.1 Pa) | Ball | 0.375 lb (170.1 g) | Tubeaxial | Locked Rotor Sensor | 38.00mm | 49.0dB(A) | 9.6 W | CSA, TUV, UL | 5700 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
DC1203812M2B-3T0FAN AXIAL 120X38MM 12VDC WIRE |
0 | - |
|
数据表 |
- | Box | Active | 12VDC | Square - 120mm L x 120mm H | 123.3 CFM (3.45m³/min) | 0.450 in H2O (112.1 Pa) | Ball | 0.508 lb (230.42 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | 44.0dB(A) | 9 W | CE, cURus, TUV | 2900 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
DC1203812H2B-3T0FAN AXIAL 120X38MM 12VDC WIRE |
0 | - |
|
数据表 |
- | Box | Active | 12VDC | Square - 120mm L x 120mm H | 136.0 CFM (3.81m³/min) | 0.540 in H2O (134.5 Pa) | Ball | 0.508 lb (230.42 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | 48.0dB(A) | 9.6 W | CE, cURus, TUV | 3200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
19031157AFAN AXIAL 60X25MM 24VDC FS24B3 |
0 | - |
|
数据表 |
Flight II 60 | - | Obsolete | 24VDC | Square - 60mm L x 60mm H | 18.0 CFM (0.504m³/min) | 0.300 in H2O (74.7 Pa) | Ball | 0.243 lb (110.22 g) | Tubeaxial | - | 25.00mm | 33.9dB(A) | 1.9 W | - | 4927 RPM | - | 2 Wire Leads | - |
|

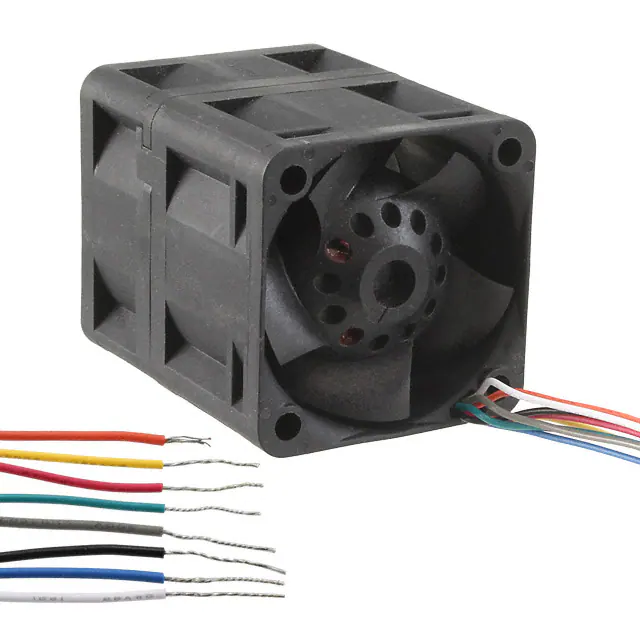

GFC03812HG-DV46FAN AXIAL DUAL 38X48MM 12VDC |
0 | - |
|
数据表 |
GFC | Box | Obsolete | 12VDC | Square - 38mm L x 38mm H | 26.4 CFM (0.739m³/min) | 3.866 in H2O (963.0 Pa) | Ball | 0.167 lb (75.75 g) | Tubeaxial (Dual) | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 48.00mm | 64.0dB(A) | 18.24 W | cURus, TUV | 21700 Front, 20000 Rear | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads per Fan | - |
|
|
DC0923824V2B-3T0FAN 92X38MM 24VDC TACH |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 166.4 CFM (4.66m³/min) | 1.910 in H2O (475.7 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | 72.0dB(A) | 70.8 W | CE, cURus | 8000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
DC0923848V2B-2T0FAN 92X38MM 48VDC |
0 | - |
|
数据表 |
- | Bulk | Active | 48VDC | Square - 92mm L x 92mm H | 166.4 CFM (4.66m³/min) | 1.910 in H2O (475.7 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection | 38.00mm | 72.0dB(A) | 141.6 W | CE, cURus | 8000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
DC0603824M2B-3T0FAN 60X38MM 24VDC TACH |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 67.0 CFM (1.88m³/min) | 2.070 in H2O (515.6 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | 62.0dB(A) | 33.12 W | CE, cURus | 12000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
ASFN66391FAN AXIAL 60X25MM 12VDC WIRE |
0 | - |
|
数据表 |
ASFN6 | Bulk | Obsolete | 12VDC | Square - 60mm L x 60mm H | 26.8 CFM (0.750m³/min) | 0.242 in H2O (60.3 Pa) | Ball | - | Tubeaxial | Auto Restart, Locked Rotor Sensor | 25.00mm | 36.5dB(A) | 3.12 W | CE, cURus | 4900 RPM | 14 ~ 140°F (-10 ~ 60°C) | 3 Wire Leads | - |
|
|
ASFN66392FAN AXIAL 60X25MM 24VDC WIRE |
0 | - |
|
数据表 |
ASFN6 | Bulk | Obsolete | 24VDC | Square - 60mm L x 60mm H | 26.8 CFM (0.750m³/min) | 0.242 in H2O (60.3 Pa) | Ball | - | Tubeaxial | Auto Restart, Locked Rotor Sensor | 25.00mm | 36.5dB(A) | 2.88 W | CE, cURus | 4900 RPM | 14 ~ 140°F (-10 ~ 60°C) | 3 Wire Leads | - |
|
|
CFM-9238BF-2110-663-20DC AXIAL FAN, 92 MM SQUARE, 38 M |
0 | - |
|
数据表 |
CFM-92BF | Box | Active | 24VDC | Square - 92mm L x 92mm H | 151.0 CFM (4.23m³/min) | 2.900 in H2O (722.4 Pa) | Ball | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 38.00mm | 66.3dB(A) | 33.36 W | CE, cURus, TUV | 11000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
CFM-9238BF-295-628-20DC AXIAL FAN, 92 MM SQUARE, 38 M |
0 | - |
|
数据表 |
CFM-92BF | Box | Active | 24VDC | Square - 92mm L x 92mm H | 129.6 CFM (3.63m³/min) | 2.310 in H2O (575.0 Pa) | Ball | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 38.00mm | 62.8dB(A) | 20.64 W | CE, cURus, TUV | 9500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
PMB2497PYB1-AY.(2).GNFAN BLOWER 97X33MM 24VDC WIRE |
0 | - |
|
数据表 |
PMB | Bulk | Obsolete | 24VDC | Rectangular/Rounded - 97mm L x 94mm H | 30.5 CFM (0.854m³/min) | 0.920 in H2O (229.2 Pa) | Ball | - | Blower | Auto Restart | 33.00mm | 55.8dB(A) | 9.4 W | - | 3600 RPM | - | 2 Wire Leads | - |
|
|
PMB2497PYB2-AY.(2).GNFAN BLOWER 97X33MM 24VDC WIRE |
0 | - |
|
数据表 |
PMB | Bulk | Obsolete | 24VDC | Rectangular/Rounded - 97mm L x 94mm H | 26.6 CFM (0.745m³/min) | 0.650 in H2O (161.9 Pa) | Ball | - | Blower | Auto Restart | 33.00mm | 53.1dB(A) | 6 W | - | 3200 RPM | - | 2 Wire Leads | - |
|
|
DC0803824V2B-3T3FAN 80X38MM 24VDC TACH MOLEX 22- |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 130.0 CFM (3.64m³/min) | 2.000 in H2O (498.2 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | 66.0dB(A) | 64.8 W | CE, cURus | 9000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Position Rectangular Connector | - |
|
3115RL-04W-B50-E00FAN AXIAL 80X38MM 12VDC WIRE |
0 | - |
|
数据表 |
3115RL | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 61.8 CFM (1.73m³/min) | 0.462 in H2O (115.2 Pa) | Ball | 0.452 lb (205.02 g) | Tubeaxial | - | 38.00mm | 46.0dB(A) | 4.9 W | - | 4500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
3115RL-04W-B70-E00FAN AXIAL 80X38MM 12VDC WIRE |
0 | - |
|
数据表 |
3115RL | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 91.8 CFM (2.57m³/min) | 1.044 in H2O (260.0 Pa) | Ball | 0.452 lb (205.02 g) | Tubeaxial | - | 38.00mm | 56.0dB(A) | 13.8 W | - | 6500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
3115RL-04W-B90-E00FAN AXIAL 80X38MM 12VDC WIRE |
0 | - |
|
数据表 |
3115RL | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 123.6 CFM (3.46m³/min) | 1.887 in H2O (470.1 Pa) | Ball | 0.452 lb (205.02 g) | Tubeaxial | - | 38.00mm | 62.5dB(A) | 32.4 W | - | 8600 RPM | 14 ~ 140°F (-10 ~ 60°C) | 2 Wire Leads | - |
|
|
3115RL-04W-B60-E00FAN AXIAL 80X38MM 12VDC WIRE |
0 | - |
|
数据表 |
3115RL | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 75.9 CFM (2.13m³/min) | 0.720 in H2O (179.3 Pa) | Ball | 0.452 lb (205.02 g) | Tubeaxial | - | 38.00mm | 51.0dB(A) | 8.8 W | - | 5500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
3115RL-04W-B80-E00FAN AXIAL 80X38MM 12VDC WIRE |
0 | - |
|
数据表 |
3115RL | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 105.9 CFM (2.97m³/min) | 1.425 in H2O (354.9 Pa) | Ball | 0.452 lb (205.02 g) | Tubeaxial | - | 38.00mm | 59.5dB(A) | 21 W | - | 7500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
