直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9RF1312P3H001FAN AXIAL 136X28MM 12VDC WIRE |
67 | - |
|
数据表 |
San Ace 136RF | Box | Active | 12VDC | Round - 136mm Dia | 70.7 CFM (1.98m³/min) | 0.410 in H2O (102.1 Pa) | Ball | 0.485 lb (220.00 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Reversible Flow, Speed Sensor (Tach) | 28.00mm | 35.0dB(A) | 1.8 W | CSA, TUV, UL | 3100 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|
9G1248F4011FAN AXIAL 119X25MM 48VDC WIRE |
0 | - |
|
数据表 |
San Ace 120 | Box | Active | 48VDC | Square - 119mm L x 119mm H | 70.0 CFM (1.96m³/min) | 0.169 in H2O (42.1 Pa) | Ball | 0.529 lb (240.00 g) | Tubeaxial | Speed Sensor (Tach) | 25.00mm | 35.0dB(A) | 2.88 W | CSA, TUV, UL | 2250 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
9G1248H401FAN AXIAL 119X25MM 48VDC WIRE |
0 | - |
|
数据表 |
San Ace 120 | Box | Active | 48VDC | Square - 119mm L x 119mm H | 88.0 CFM (2.46m³/min) | 0.257 in H2O (64.0 Pa) | Ball | 0.529 lb (240.00 g) | Tubeaxial | - | 25.00mm | 40.0dB(A) | 4.8 W | CSA, TUV, UL | 2850 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|

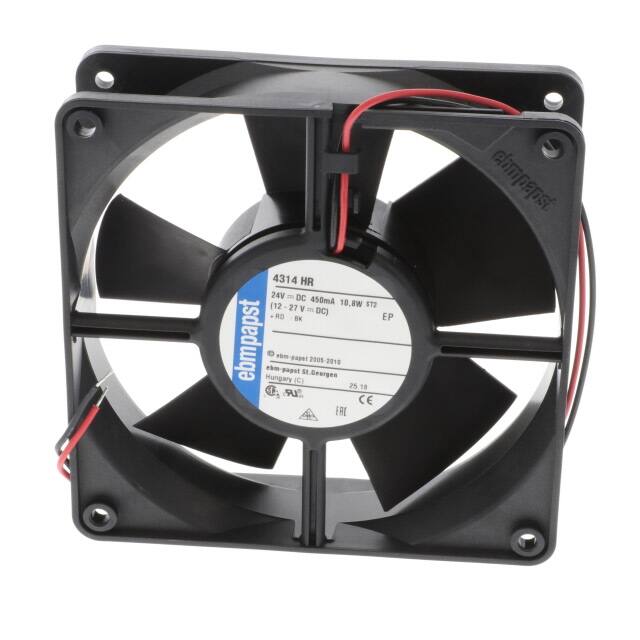

4314HRFAN 24DCV |
27 | - |
|
数据表 |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
612NGNIFAN AXIAL 60X25.4MM 12VDC WIRE |
0 | - |
|
数据表 |
600N | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 24.1 CFM (0.676m³/min) | - | Sintec | 0.146 lb (66.22 g) | Tubeaxial | Locked Rotor Protection | 25.40mm | 53.0dB(A) | 2.4 W | CE, CSA, UL, VDE | 5100 RPM | -4 ~ 149°F (-20 ~ 65°C) | 2 Wire Leads | - |
|
5214NNFAN AXIAL 127X38MM 24VDC WIRE |
45 | - |
|
数据表 |
5200N | Bulk | Active | 24VDC | Square - 127mm L x 127mm H | 127.1 CFM (3.56m³/min) | - | Ball | 0.683 lb (309.8 g) | Tubeaxial | - | 38.00mm | 46.0dB(A) | 6 W | CE, CSA, UL, VDE | 3150 RPM | -4 ~ 167°F (-20 ~ 75°C) | 2 Wire Leads | - |
|
9LG0824H4001FAN AXIAL 80X25MM 24VDC WIRE |
55 | - |
|
数据表 |
San Ace 80L | Box | Active | 24VDC | Square - 80mm L x 80mm H | 36.3 CFM (1.02m³/min) | 0.170 in H2O (42.3 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | 31.0dB(A) | 1.2 W | CSA, TUV, UL | 3700 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
9WP1224M101FAN AXIAL 120X38MM 24VDC WIRE |
34 | - |
|
数据表 |
San Ace 120W | Box | Active | 24VDC | Square - 120mm L x 120mm H | - | - | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | - | 2.64 W | - | - | - | 3 Wire Leads | IP68 - Dust Tight, Waterproof |
|
9WP1224M102FAN AXIAL 120X38MM 24VDC WIRE |
26 | - |
|
数据表 |
San Ace 120W | Box | Active | 24VDC | Square - 120mm L x 120mm H | - | - | Ball | - | Tubeaxial | Locked Rotor Protection | 38.00mm | - | 2.64 W | - | - | - | 2 Wire Leads | IP68 - Dust Tight, Waterproof |
|
9WP1212M1011FAN AXIAL 120X38MM 12VDC WIRE |
15 | - |
|
数据表 |
San Ace 120W | Box | Active | 12VDC | Square - 120mm L x 120mm H | - | - | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | - | 2.52 W | - | - | - | 3 Wire Leads | IP68 - Dust Tight, Waterproof |
|
9WP1224M1021FAN AXIAL 120X38MM 24VDC WIRE |
7 | - |
|
数据表 |
San Ace 120W | Box | Active | 24VDC | Square - 120mm L x 120mm H | - | - | Ball | - | Tubeaxial | Locked Rotor Protection | 38.00mm | - | 2.64 W | - | - | - | 2 Wire Leads | IP68 - Dust Tight, Waterproof |
_Series.jpg)
|
3412NGMVFAN AXIAL 92X25.4MM 12VDC WIRE |
17 | - |
|
数据表 |
3400N | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 42.4 CFM (1.19m³/min) | - | Sintec | 0.22 lb (99.79 g) | Tubeaxial | - | 25.40mm | 28.0dB(A) | 2 W | CSA, UL, VDE | 2300 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
9LG0824S4001FAN AXIAL 80X25MM 24VDC WIRE |
34 | - |
|
数据表 |
San Ace 80L | Box | Active | 24VDC | Square - 80mm L x 80mm H | - | - | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | - | 1.68 W | - | - | - | 3 Wire Leads | - |
|
9WP1248M1021FAN AXIAL 120X38MM 48VDC WIRE |
22 | - |
|
数据表 |
San Ace 120W | Box | Active | 48VDC | Square - 120mm L x 120mm H | - | - | Ball | - | Tubeaxial | Locked Rotor Protection | 38.00mm | - | 3.36 W | - | - | - | 2 Wire Leads | IP68 - Dust Tight, Waterproof |
|

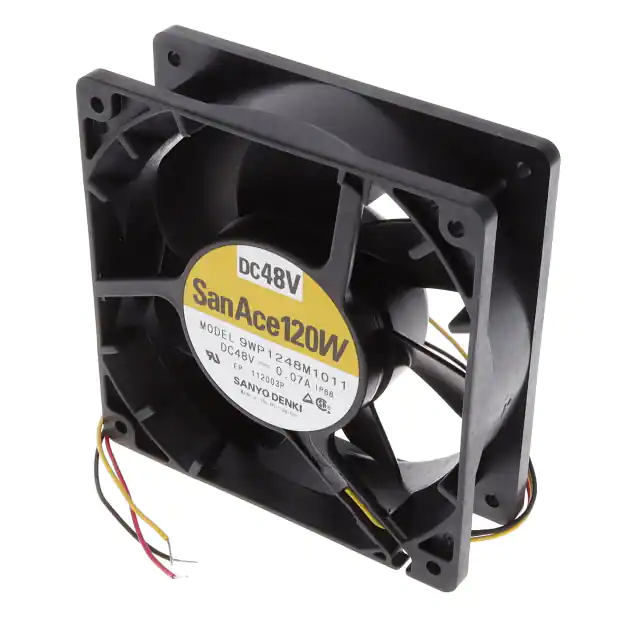

9WP1248M1011FAN AXIAL 120X38MM 48VDC WIRE |
18 | - |
|
数据表 |
San Ace 120W | Box | Active | 48VDC | Square - 120mm L x 120mm H | - | - | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | - | 3.36 W | - | - | - | 3 Wire Leads | IP68 - Dust Tight, Waterproof |
|
9WP1248M102FAN AXIAL 120X38MM 48VDC WIRE |
16 | - |
|
数据表 |
San Ace 120W | Box | Active | 48VDC | Square - 120mm L x 120mm H | - | - | Ball | - | Tubeaxial | Locked Rotor Protection | 38.00mm | - | 3.36 W | - | - | - | 2 Wire Leads | IP68 - Dust Tight, Waterproof |
|
8412N/2FAN AXIAL 80X25.4MM 12VDC WIRE |
11 | - |
|
数据表 |
8400N | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 40.6 CFM (1.14m³/min) | - | Ball | - | Tubeaxial | Speed Sensor (Tach) | 25.40mm | 32.0dB(A) | 2 W | CSA, UL, VDE | 3100 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
3314NHFAN AXIAL 92X32MM 24VDC WIRE |
85 | - |
|
数据表 |
3300N | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 54.7 CFM (1.53m³/min) | - | Ball | 0.419 lb (190.06 g) | Tubeaxial | - | 32.00mm | 38.0dB(A) | 2.6 W | UL | 3050 RPM | -4 ~ 167°F (-20 ~ 75°C) | 2 Wire Leads | - |
|
|
17001138AFAN AXIAL 12VDC SDD12B1E2X-E3 |
50 | - |
|
数据表 |
- | Bulk | Active | 12VDC | Square - 79.8mm L x 79.8mm H | 35.0 CFM (0.980m³/min) | - | Ball | - | Tubeaxial | Auto Restart, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 41.78mm | 47.6dB(A) | 3 W | CE, cUL, UL | 3500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | IP68 - Dust Tight, Waterproof |
|
|
08038DA-12T-E6E-F80X80X38MM, 12VDC, 17,000 RPM, 1 |
23 | - |
|
数据表 |
08038DA | Box | Active | 12VDC | Square - 80mm L x 80mm H | 137.7 CFM (3.86m³/min) | 5.480 in H2O (1365 Pa) | Ball | - | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 38.00mm | 76.5dB(A) | 79.2 W | CE, cULus, VDE | 17000 RPM | 14 ~ 140°F (-10 ~ 60°C) | 4 Wire Leads | - |
