直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
4312NHFAN AXIAL 119X32MM 12VDC WIRE |
38 | - |
|
数据表 |
4300N | Bulk | Active | 12VDC | Square - 119mm L x 119mm H | 129.3 CFM (3.62m³/min) | - | Ball | 0.553 lb (250.84 g) | Tubeaxial | - | 32.00mm | 47.0dB(A) | 6.5 W | CE, CSA, UL, VDE | 3150 RPM | -4 ~ 167°F (-20 ~ 75°C) | 2 Wire Leads | - |
|
4312NNFAN AXIAL 119X32MM 12VDC WIRE |
22 | - |
|
数据表 |
4300N | Bulk | Active | 12VDC | Square - 119mm L x 119mm H | 112.0 CFM (3.14m³/min) | - | Ball | 0.553 lb (250.84 g) | Tubeaxial | - | 32.00mm | 43.0dB(A) | 4.3 W | CE, CSA, UL, VDE | 2700 RPM | -4 ~ 167°F (-20 ~ 75°C) | 2 Wire Leads | - |
|

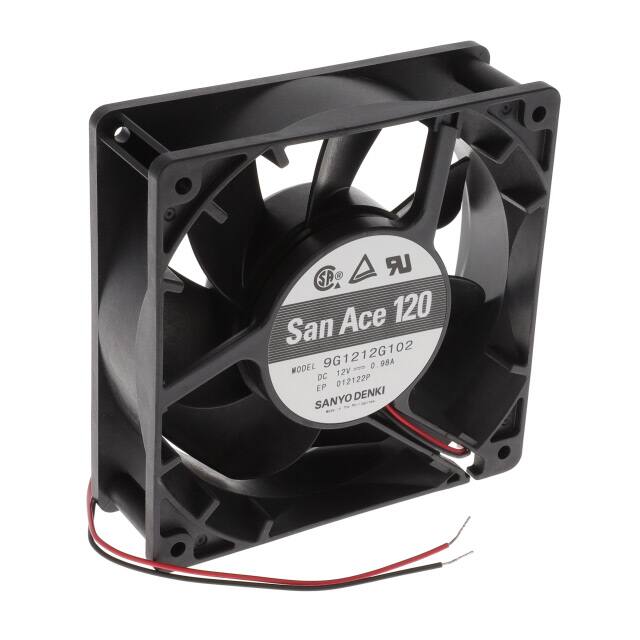

9G1212G102FAN AXIAL 119X38MM 12VDC WIRE |
77 | - |
|
数据表 |
San Ace 120 | Box | Active | 12VDC | Square - 119mm L x 119mm H | 137.0 CFM (3.84m³/min) | 0.542 in H2O (135.0 Pa) | Ball | 0.728 lb (330.22 g) | Tubeaxial | - | 38.00mm | 49.0dB(A) | 11.76 W | CSA, TUV, UL | 3600 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
9G1224G1021FAN AXIAL 119X38MM 24VDC WIRE |
75 | - |
|
数据表 |
San Ace 120 | Box | Active | 24VDC | Square - 119mm L x 119mm H | 137.0 CFM (3.84m³/min) | 0.542 in H2O (135.0 Pa) | Ball | 0.728 lb (330.22 g) | Tubeaxial | - | 38.00mm | 49.0dB(A) | 12 W | CSA, TUV, UL | 3600 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
9G1212H1D011FAN AXIAL 119X38MM 12VDC WIRE |
85 | - |
|
数据表 |
San Ace 120 | Box | Active | 12VDC | Square - 119mm L x 119mm H | 99.0 CFM (2.77m³/min) | 0.283 in H2O (70.5 Pa) | Ball | 0.728 lb (330.22 g) | Tubeaxial | Locked Rotor Sensor | 38.00mm | 39.0dB(A) | 4.56 W | CSA, TUV, UL | 2600 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
OD1232-48HB01XFAN AXIAL 120.5X32MM 48VDC WIRE |
27 | - |
|
数据表 |
OD1232 | Bulk | Active | 48VDC | Square - 120.5mm L x 120.5mm H | 120.0 CFM (3.36m³/min) | 0.520 in H2O (129.5 Pa) | Ball | - | Tubeaxial | Auto Restart | 32.00mm | 45.4dB(A) | 10.1 W | CE, cURus, TUV, UR | 3700 RPM | -4 ~ 149°F (-20 ~ 65°C) | 3 Wire Leads | - |
|
9CR0412S501FAN AXIAL DUAL 40X56MM 12VDC |
14 | - |
|
数据表 |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | - | - | Ball | 0.199 lb (90.26 g) | Tubeaxial (Dual) | Counter-Rotating, Locked Rotor Protection, Speed Sensor (Tach) | 56.00mm | 57.5dB(A) | 13.2 W | - | 15800 Front, 10600 Rear | 14 ~ 140°F (-10 ~ 60°C) | 3 Wire Leads per Fan | - |
|
9GA0824B2002FAN AXIAL 80X32MM 24VDC WIRE |
26 | - |
|
数据表 |
San Ace 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | - | - | Ball | - | Tubeaxial | Locked Rotor Protection | 32.00mm | - | 1.92 W | - | - | - | 2 Wire Leads | - |
|
9GA0824L2D001FAN AXIAL 80X32MM 24VDC WIRE |
61 | - |
|
数据表 |
San Ace 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | - | - | Ball | - | Tubeaxial | Locked Rotor Sensor | 32.00mm | - | 1.2 W | - | - | - | 3 Wire Leads | - |
|
|
9GA0824B2001FAN AXIAL 80X32MM 24VDC WIRE |
28 | - |
|
数据表 |
San Ace 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | - | - | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 32.00mm | - | 1.92 W | - | - | - | 3 Wire Leads | - |
|
9GA0824L2001FAN AXIAL 80X32MM 24VDC WIRE |
28 | - |
|
数据表 |
San Ace 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | - | - | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 32.00mm | - | 1.2 W | - | - | - | 3 Wire Leads | - |
|
9RA0812K10011FAN AXIAL 80X38MM 12VDC WIRE |
19 | - |
|
数据表 |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 104.5 CFM (2.96m³/min) | 1.230 in H2O (306.4 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | 53.0dB(A) | 18.24 W | cURus, TUV | 8250 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
_Series.jpg)
|
612N/2MEFAN AXIAL 60X25.4MM 12VDC WIRE |
19 | - |
|
数据表 |
600N | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 20.6 CFM (0.577m³/min) | - | Ball | 0.146 lb (66.22 g) | Tubeaxial | Speed Sensor (Tach) | 25.40mm | 35.0dB(A) | 800 mW | - | 4100 RPM | -4 ~ 167°F (-20 ~ 75°C) | 3 Wire Leads | - |
|
9HV0912P4H0011FAN AXIAL 92X25.2MM 12VDC WIRE |
96 | - |
|
数据表 |
San Ace 92 | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 97.1 CFM (2.72m³/min) | 0.760 in H2O (189.3 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 25.20mm | 52.0dB(A) | 8.52 W | cURus, TUV | 6050 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|
612N/2GML-096FAN AXIAL 60X25.4MM 12VDC RECT |
13 | - |
|
数据表 |
600NG | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 13.5 CFM (0.378m³/min) | 0.097 in H2O (24.0 Pa) | Sintec | 0.146 lb (66.22 g) | Tubeaxial | Auto Restart, Locked Rotor Protection, Speed Sensor (Tach) | 25.40mm | 28.0dB(A) | 900 mW | - | 3000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Position Rectangular Connector | - |
|
|
9RA0948S4001FAN AXIAL 92X25MM 48VDC WIRE |
53 | - |
|
数据表 |
San Ace 92 | Bulk | Active | 48VDC | Square - 92mm L x 92mm H | 58.1 CFM (1.63m³/min) | 0.250 in H2O (62.3 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | 35.0dB(A) | 2.88 W | cURus, TUV | 3850 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
9RA0948G4001FAN AXIAL 92X25MM 48VDC WIRE |
47 | - |
|
数据表 |
San Ace 92 | Bulk | Active | 48VDC | Square - 92mm L x 92mm H | 63.5 CFM (1.78m³/min) | 0.290 in H2O (72.2 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | 37.0dB(A) | 3.36 W | cURus, TUV | 4200 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
9RA0812P1K0011FAN AXIAL 80X38MM 12VDC WIRE |
37 | - |
|
数据表 |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 104.5 CFM (2.96m³/min) | 1.230 in H2O (306.4 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 38.00mm | 53.0dB(A) | 18.24 W | cURus, TUV | 8250 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|
MD1238X12B1+6-FSR-EMC-L25FAN AXIAL 120X38MM 12VDC WIRE |
36 | - |
|
数据表 |
MD1238 | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 205.0 CFM (5.74m³/min) | 0.943 in H2O (234.9 Pa) | Ball | 0.906 lb (410.95 g) | Tubeaxial | PWM Control, Speed Sensor (Tach), Thermal Overload Protector (TOP) | 38.00mm | 62.0dB(A) | - | cUL, UL | 4500 RPM | - | 4 Wire Leads | - |
|
9RA1248G4001FAN AXIAL 120X25MM 48VDC WIRE |
28 | - |
|
数据表 |
San Ace 120 | Box | Active | 48VDC | Square - 120mm L x 120mm H | 130.0 CFM (3.64m³/min) | 0.480 in H2O (119.6 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | 47.0dB(A) | 7.2 W | cURus, TUV | 4500 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
